Manual Transmission/Transaxle
>>
System Diagram
>>
Transmission Case
Transmission Case
Part 1:
Part 2:

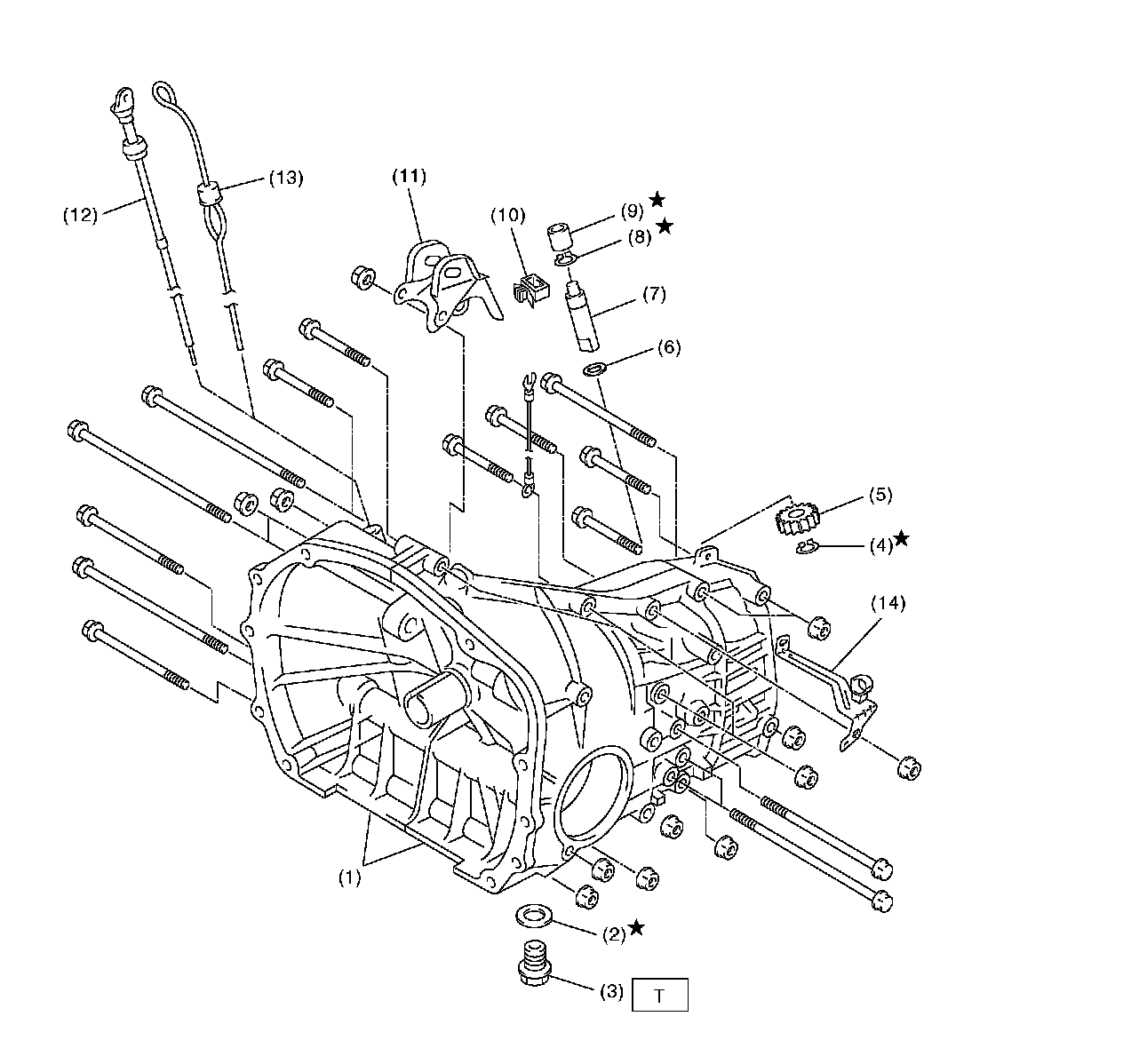

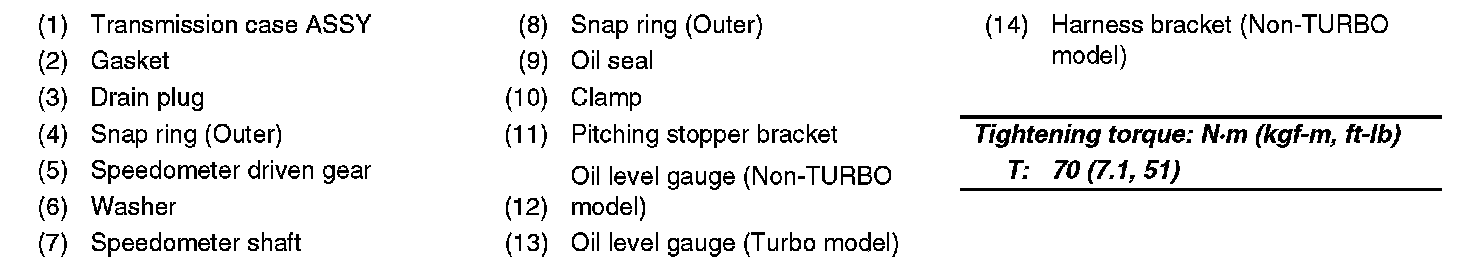

Transmission Case
^

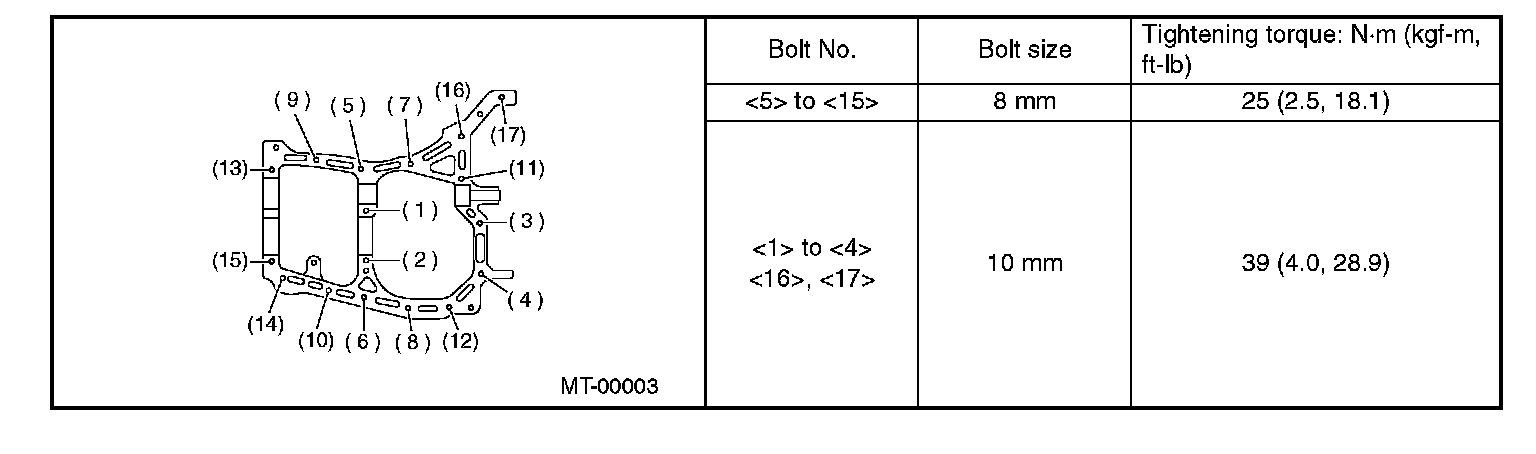

Transmission case tightening torque
