Wave Form Measurement
Transmission Control Module (TCM) 1/0 Signal
MEASUREMENT
Only for models with VDC system, measure input/output signal voltage.

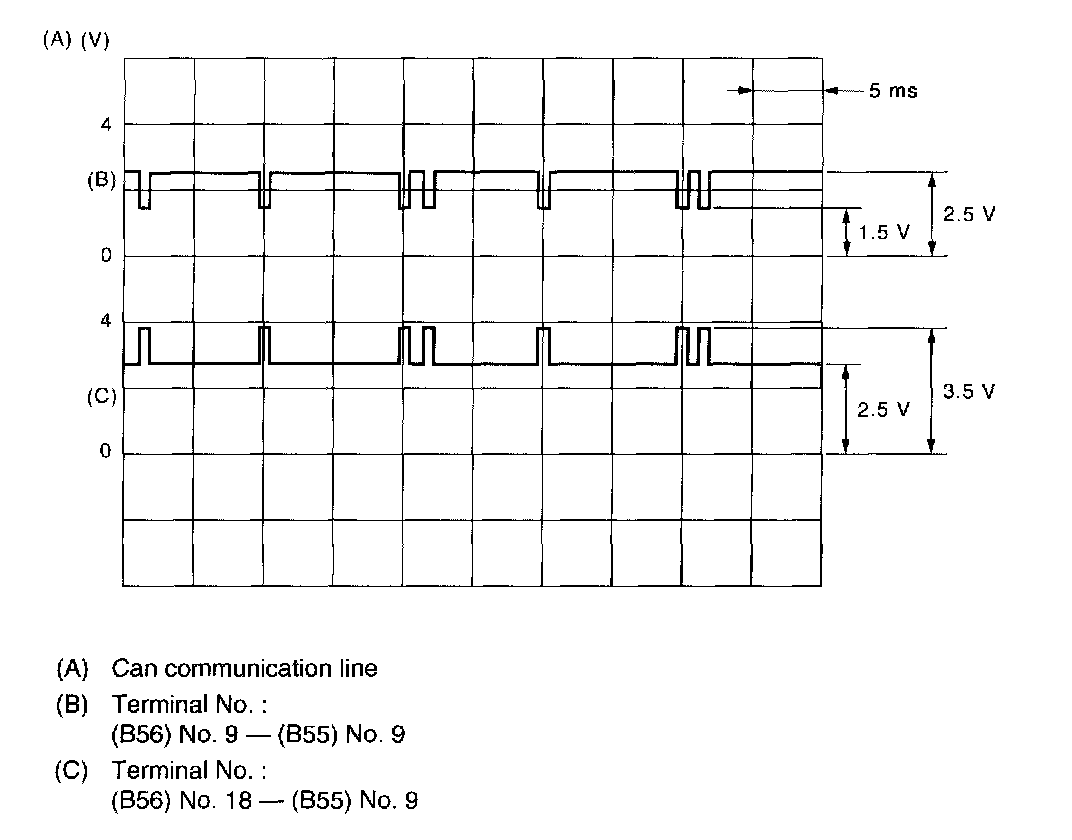

WAVEFORM
