Check Buzzer

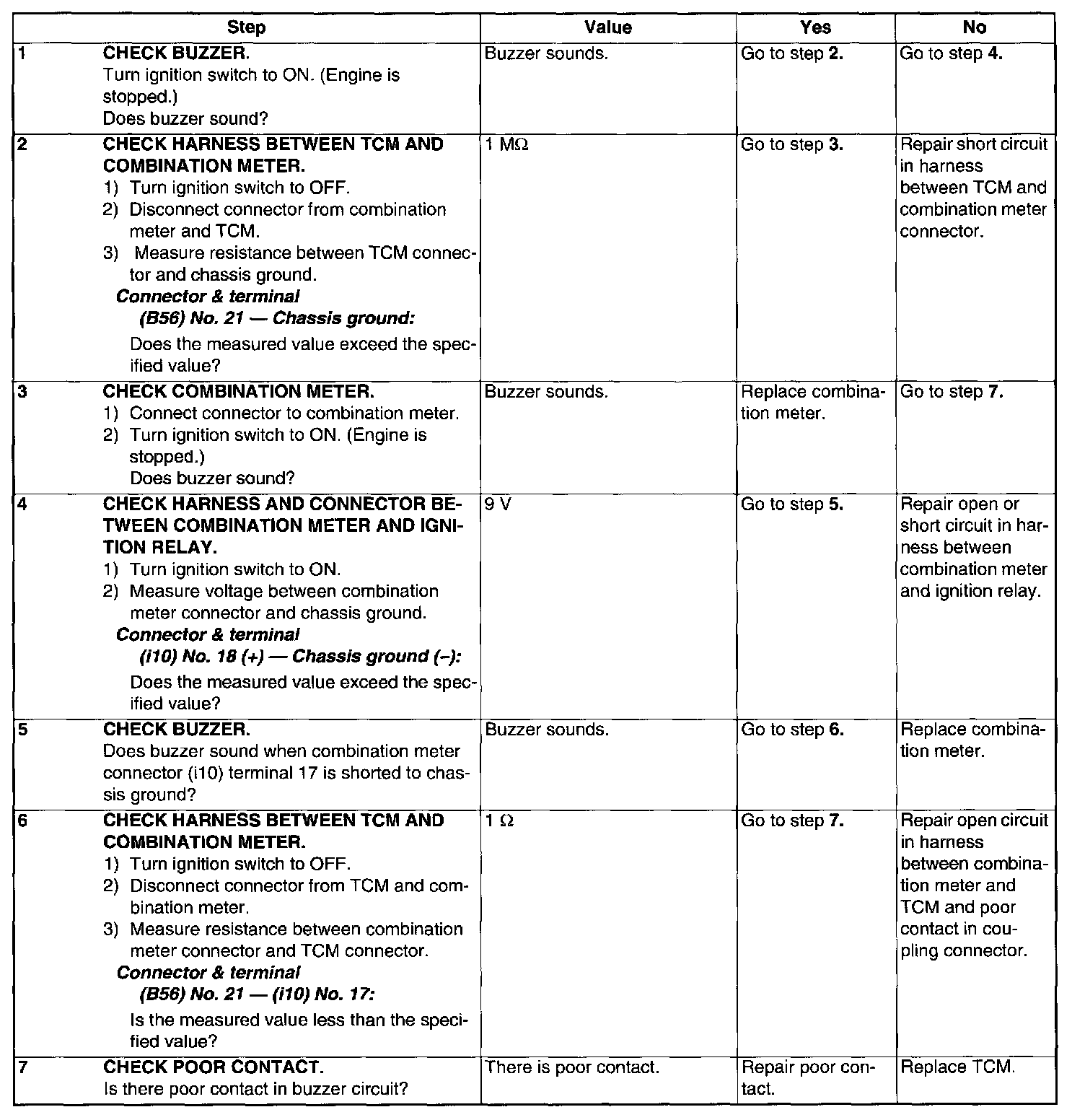

CHECK BUZZER

DIAGNOSIS:
Buzzer output signal circuit is open or shorted.

TROUBLE SYMPTOM:
Buzzer does not sound or remains sounded.

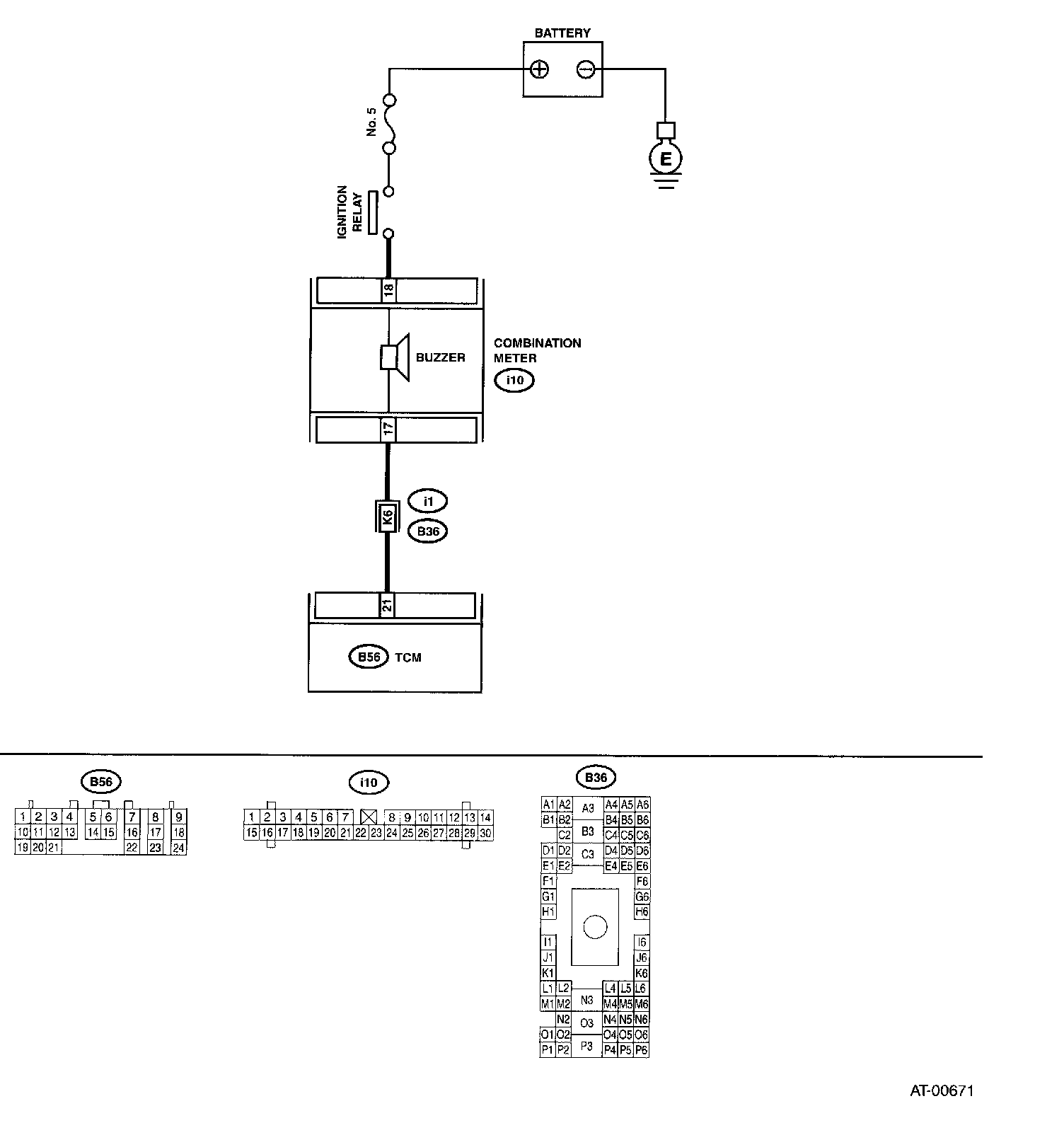

WIRING DIAGRAM:
