Connector Locations
>>
R15-R144 & D33-D67
R15-R144 & D33-D67
Rear Wiring Harness and Rear Gate Cord

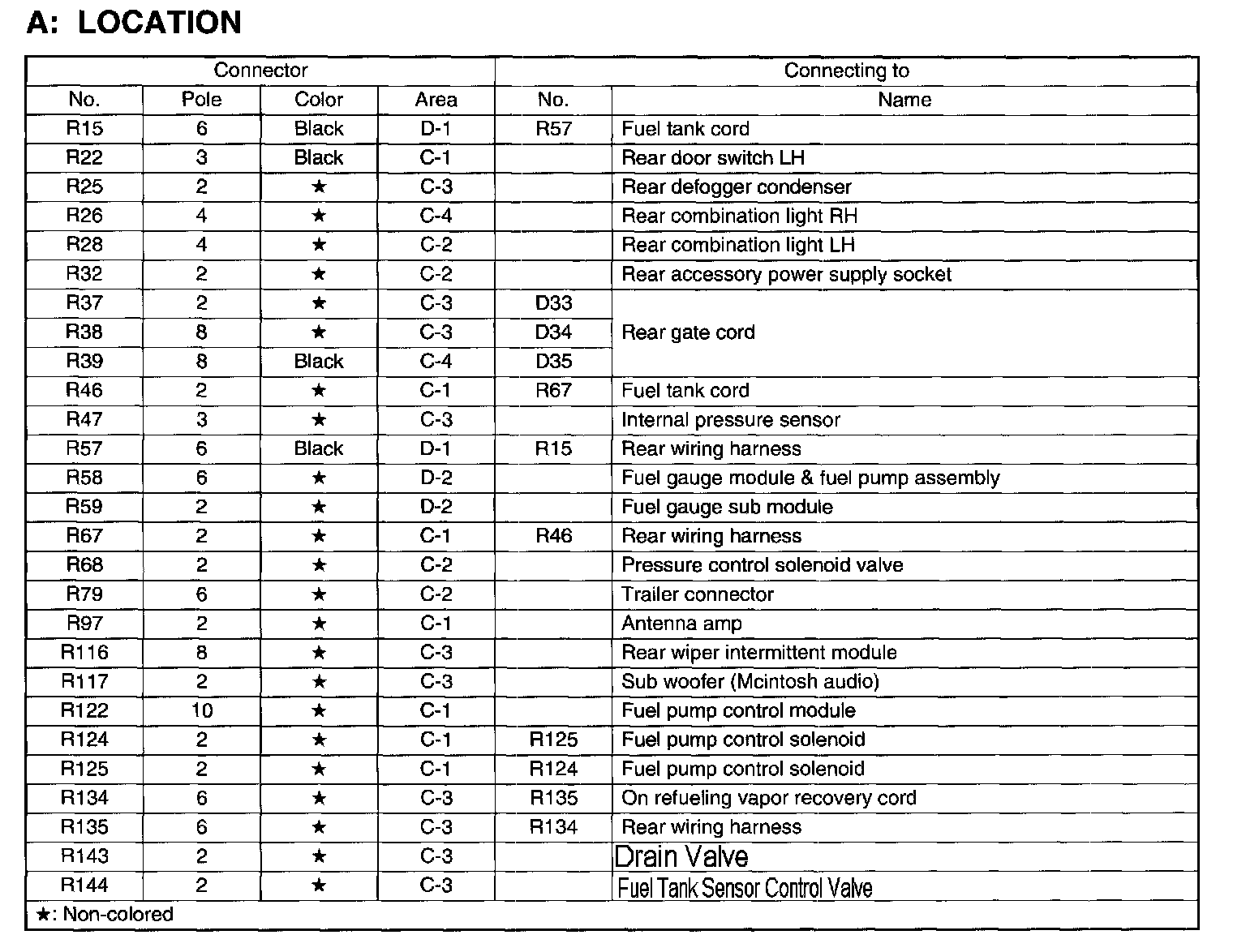

R15-R144:

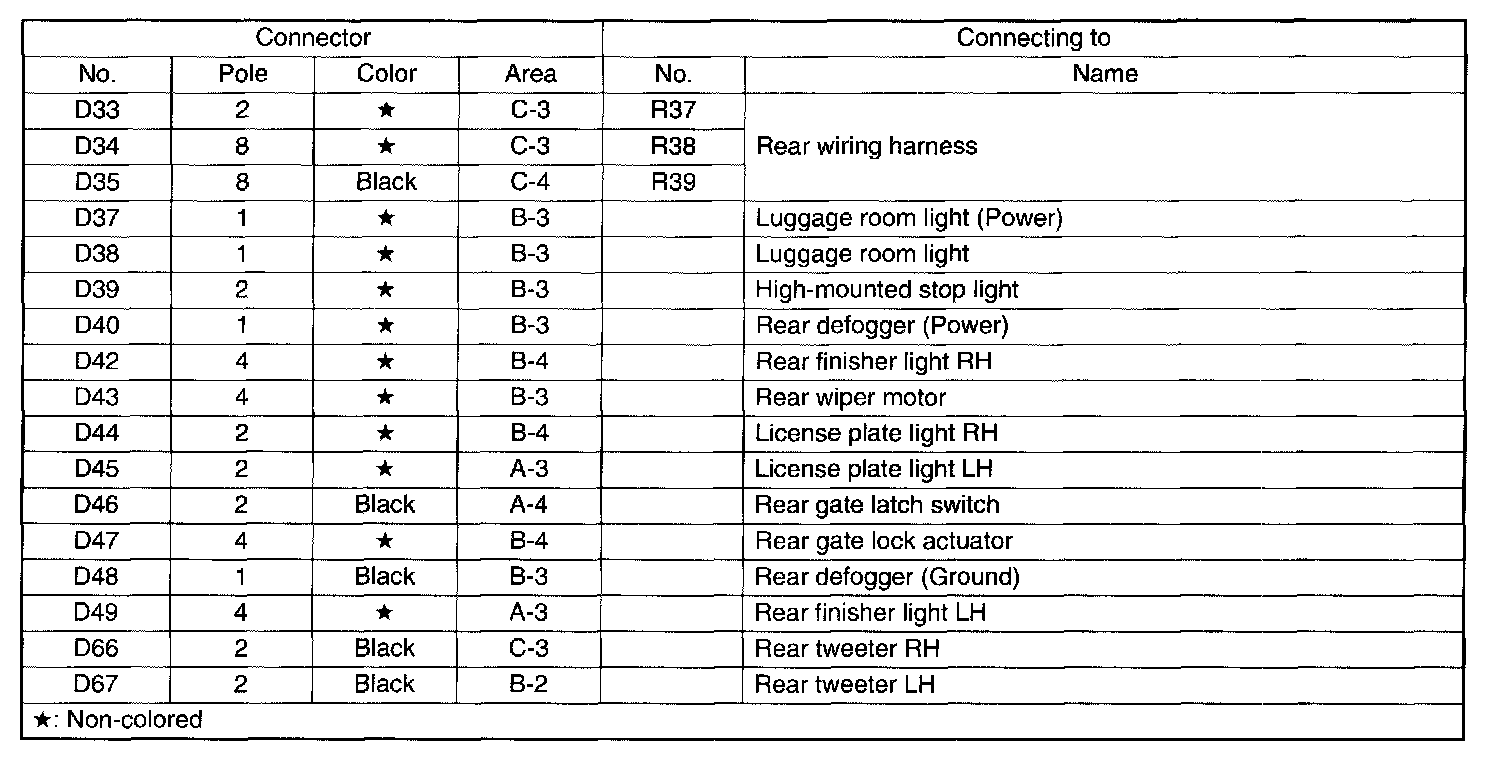

D33-D67:

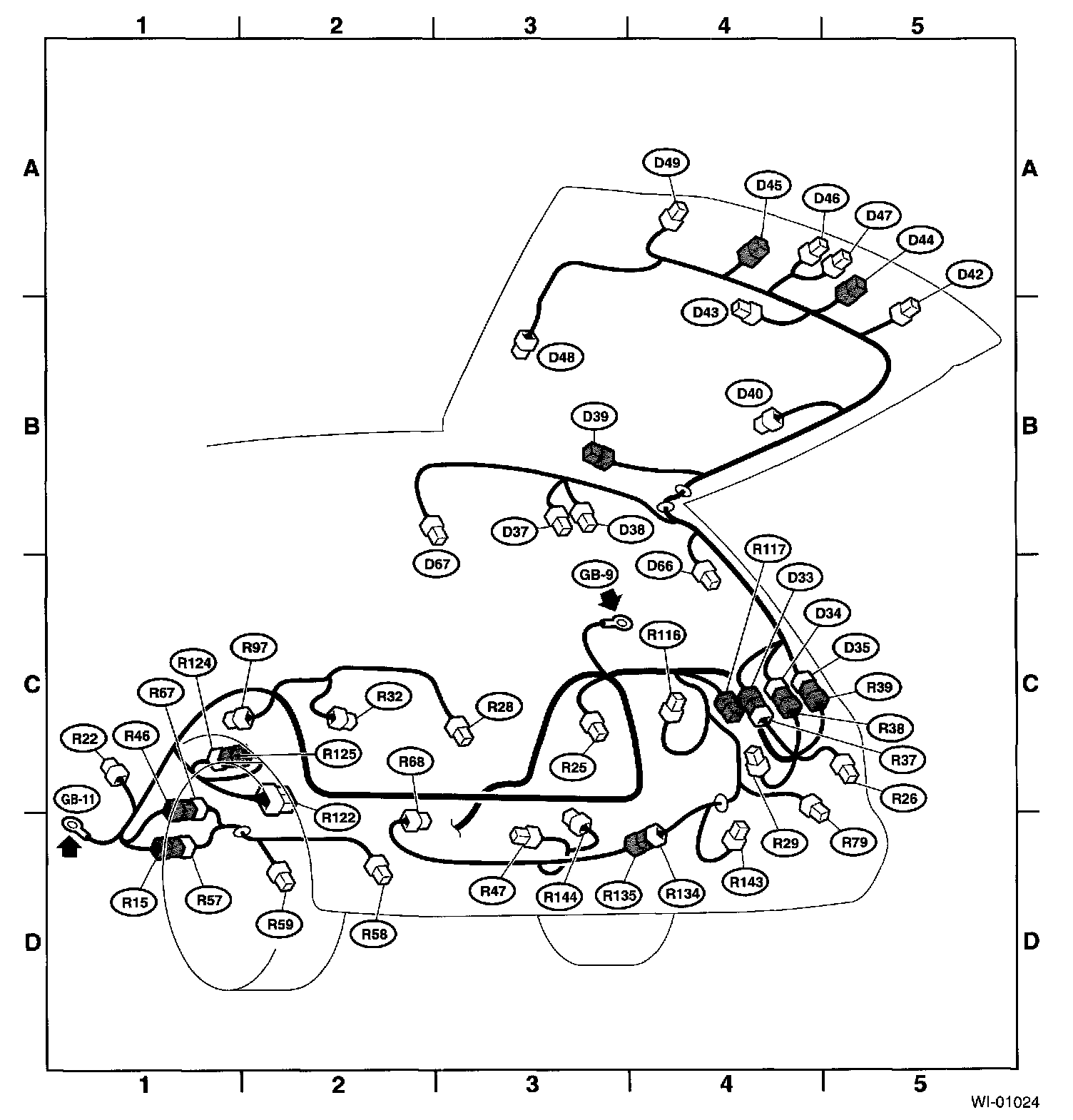

Area View:
