Home >> Subaru >> 2003 >> Outback F6-3.0L >> Repair and Diagnosis >> Locations >> Connector Locations >> F2-F104

F2-F104

Front Wiring Harness

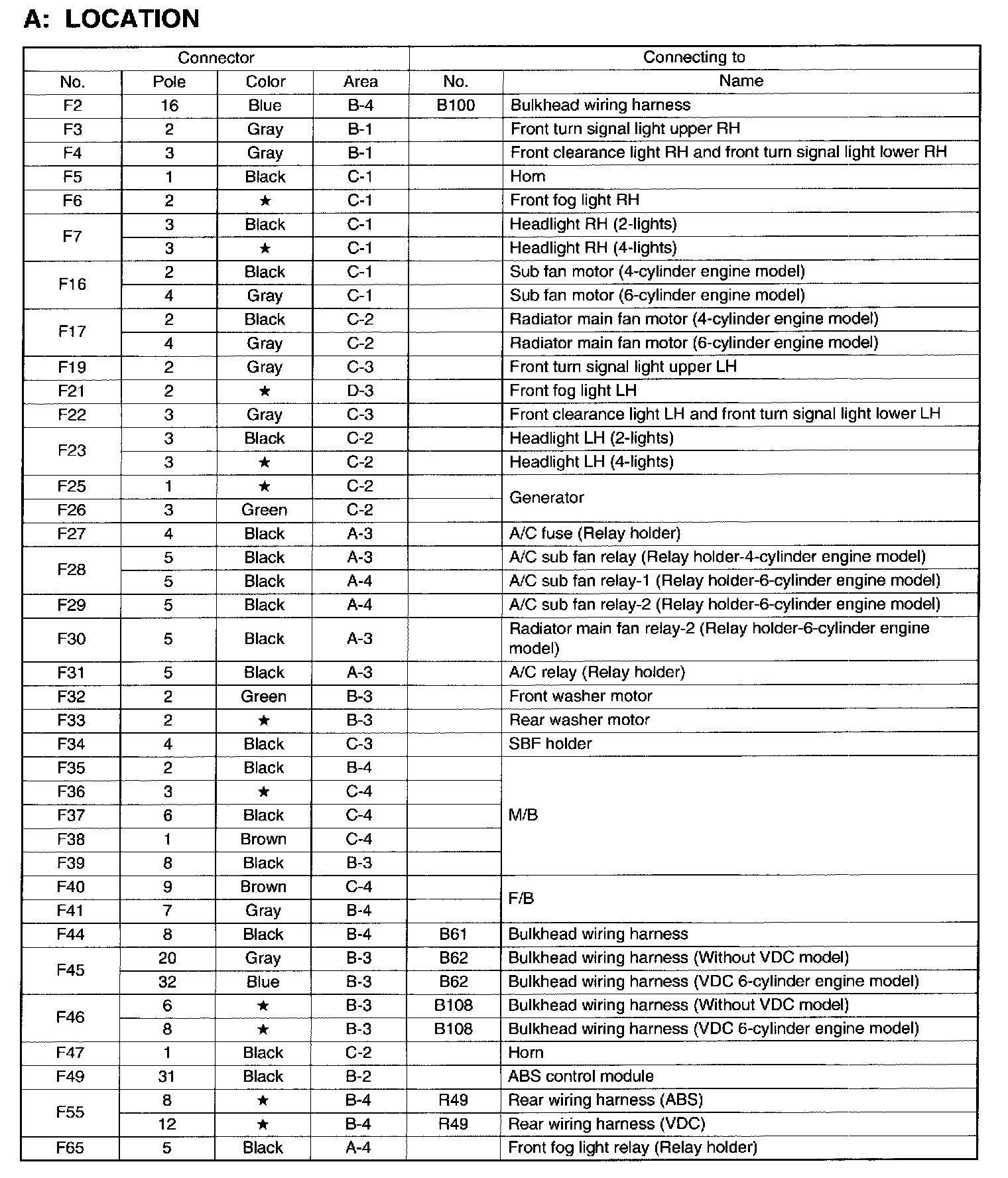

F2-F65:






F66-F104:

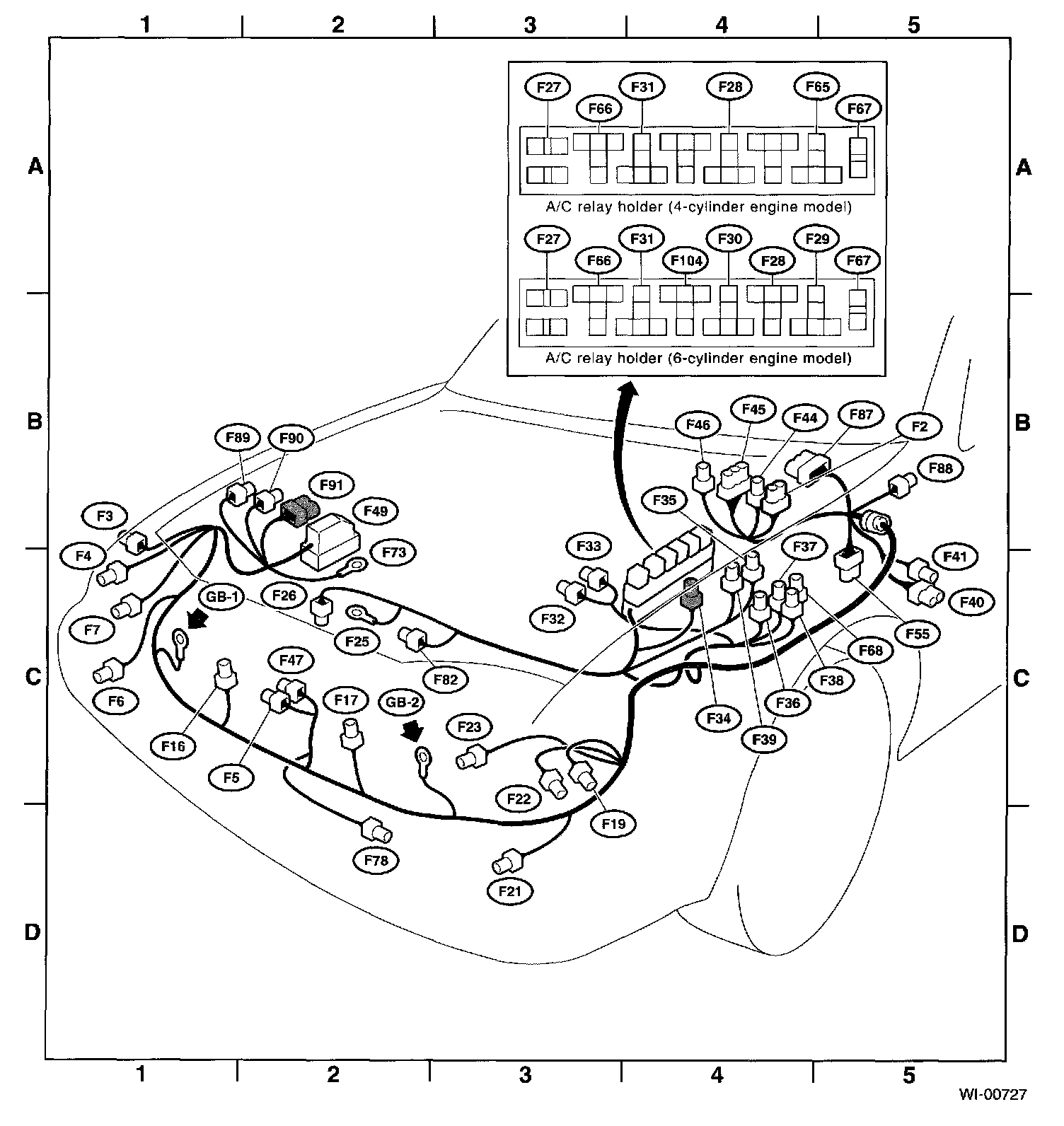

Area View:
