Locations
>>
Connector Locations
>>
B30-B329
B30-B329

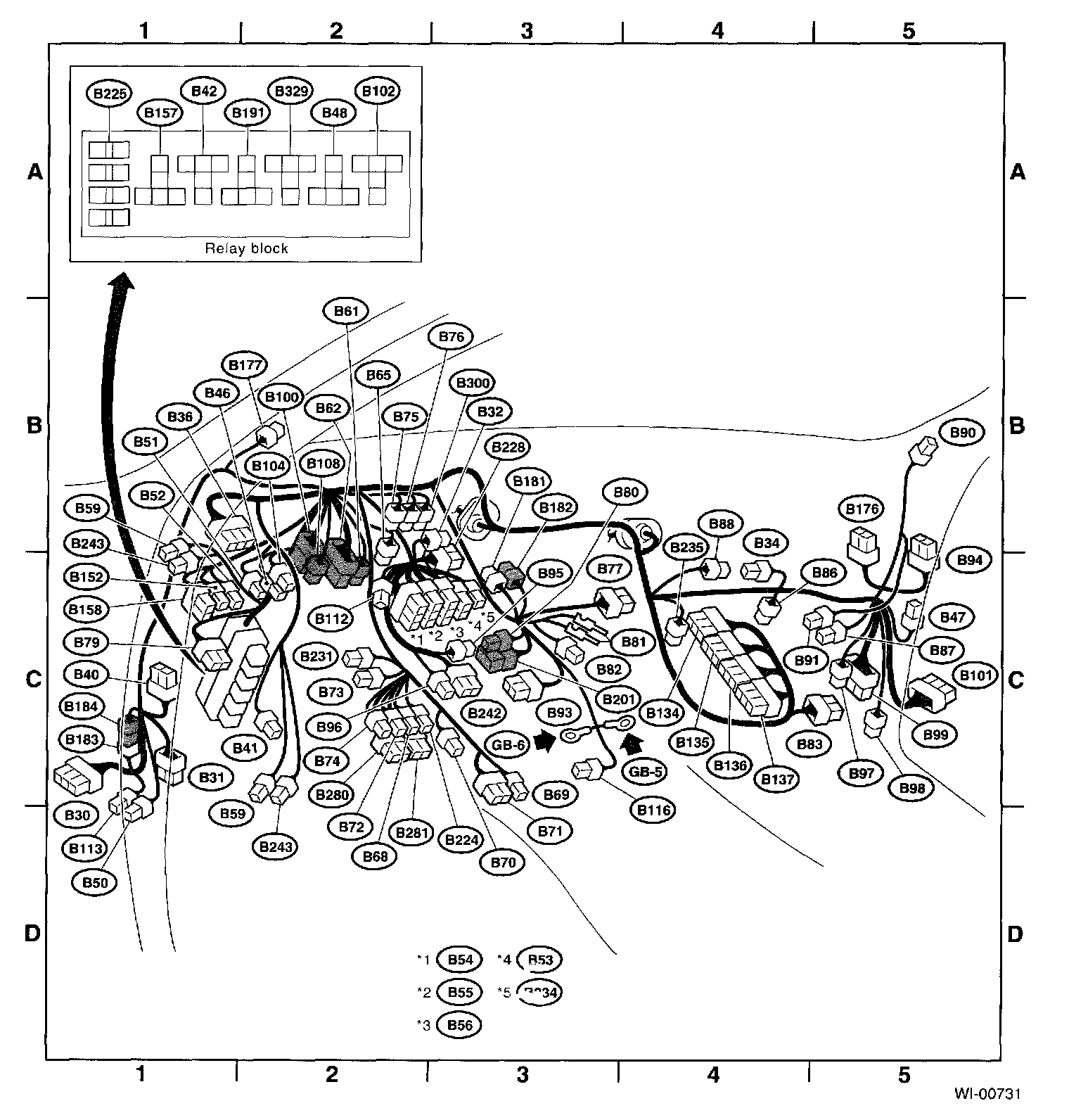

Bulkhead Wiring Harness (In Compartment)

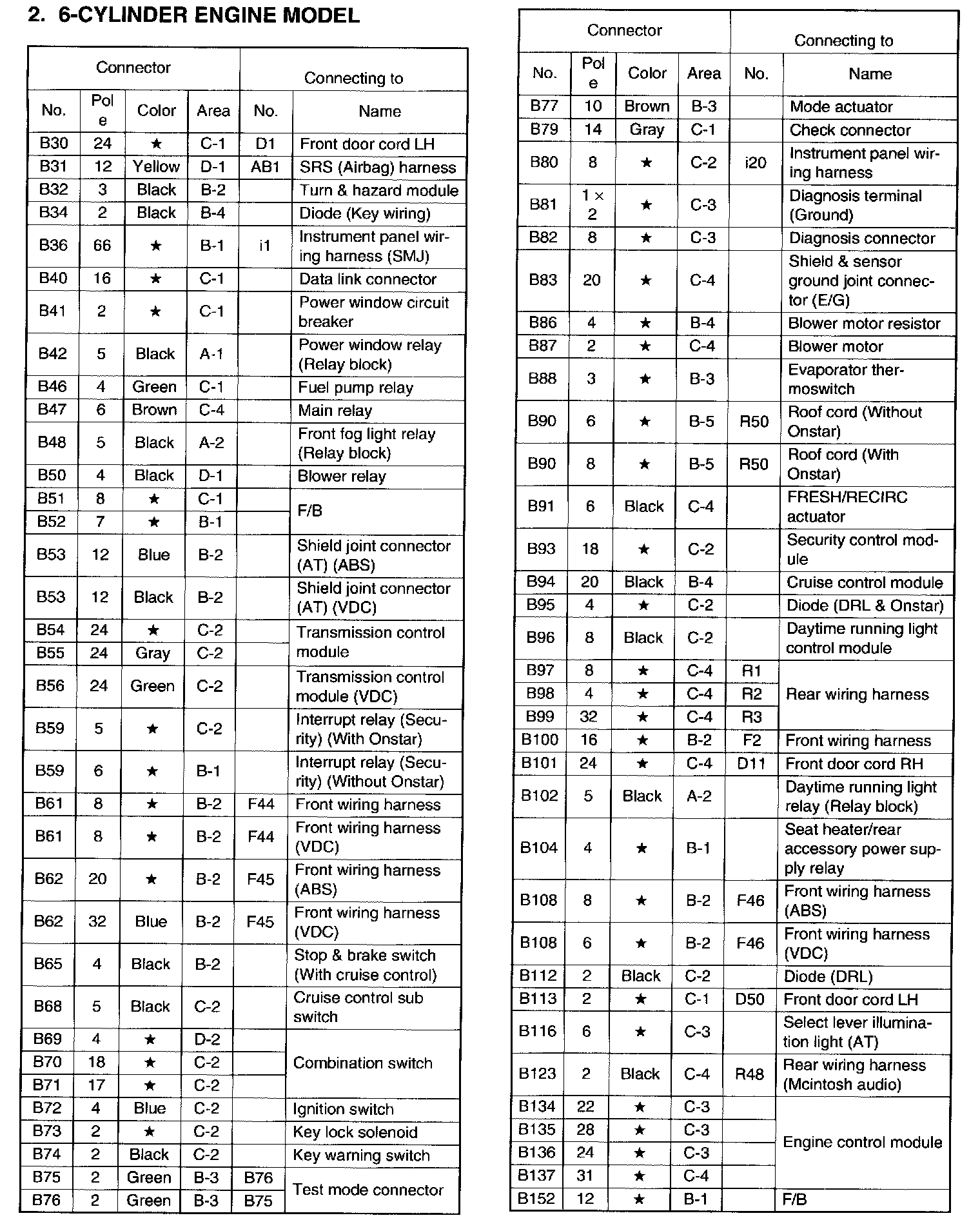

B30-B152:

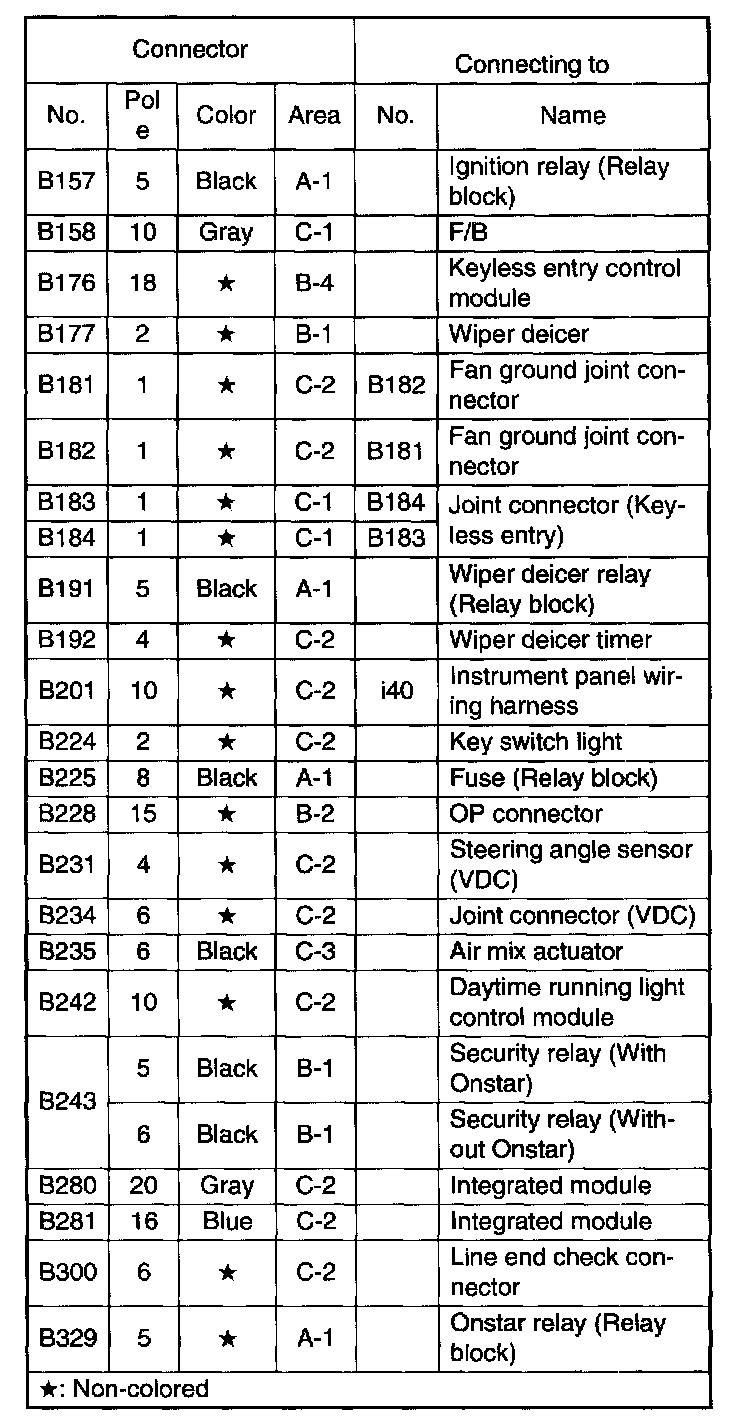

B157-B329:
Area View:
