Subaru
>>
2003
>>
Outback F6-3.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
Emission Control Systems
Emission Control Systems

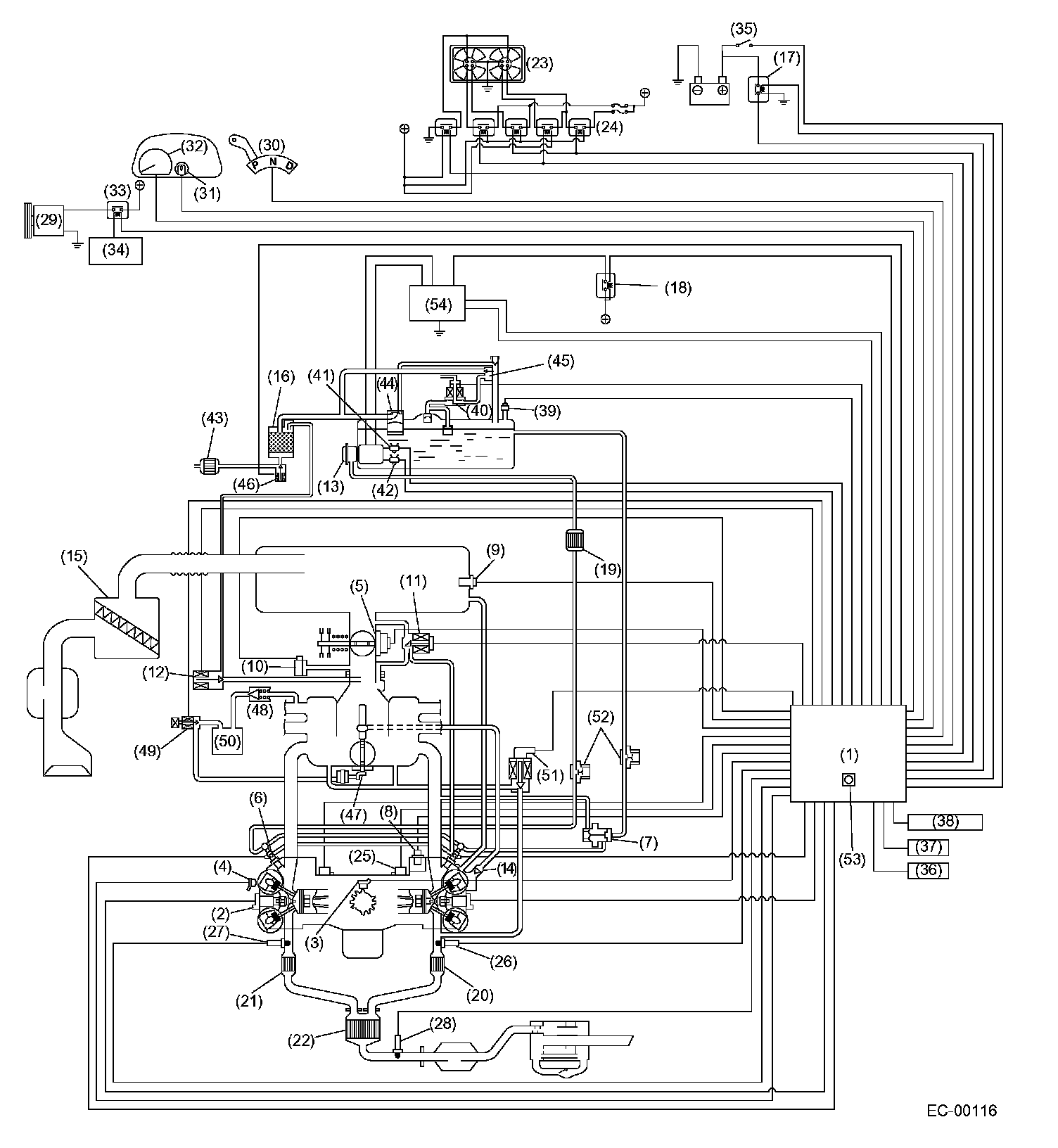

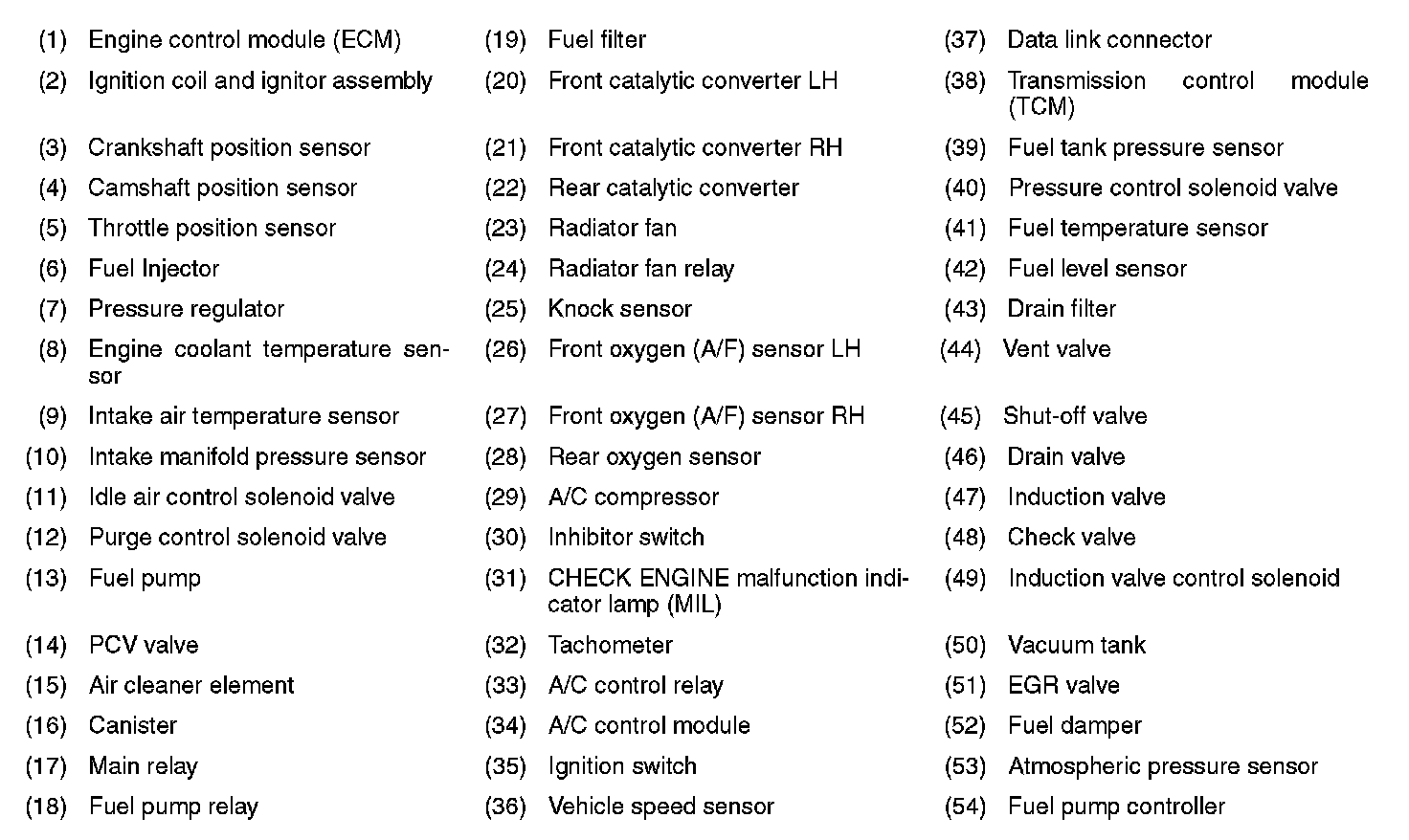

Schematic Diagrams Part 1:
Schematic Diagrams Part 2:
