Global Positioning System

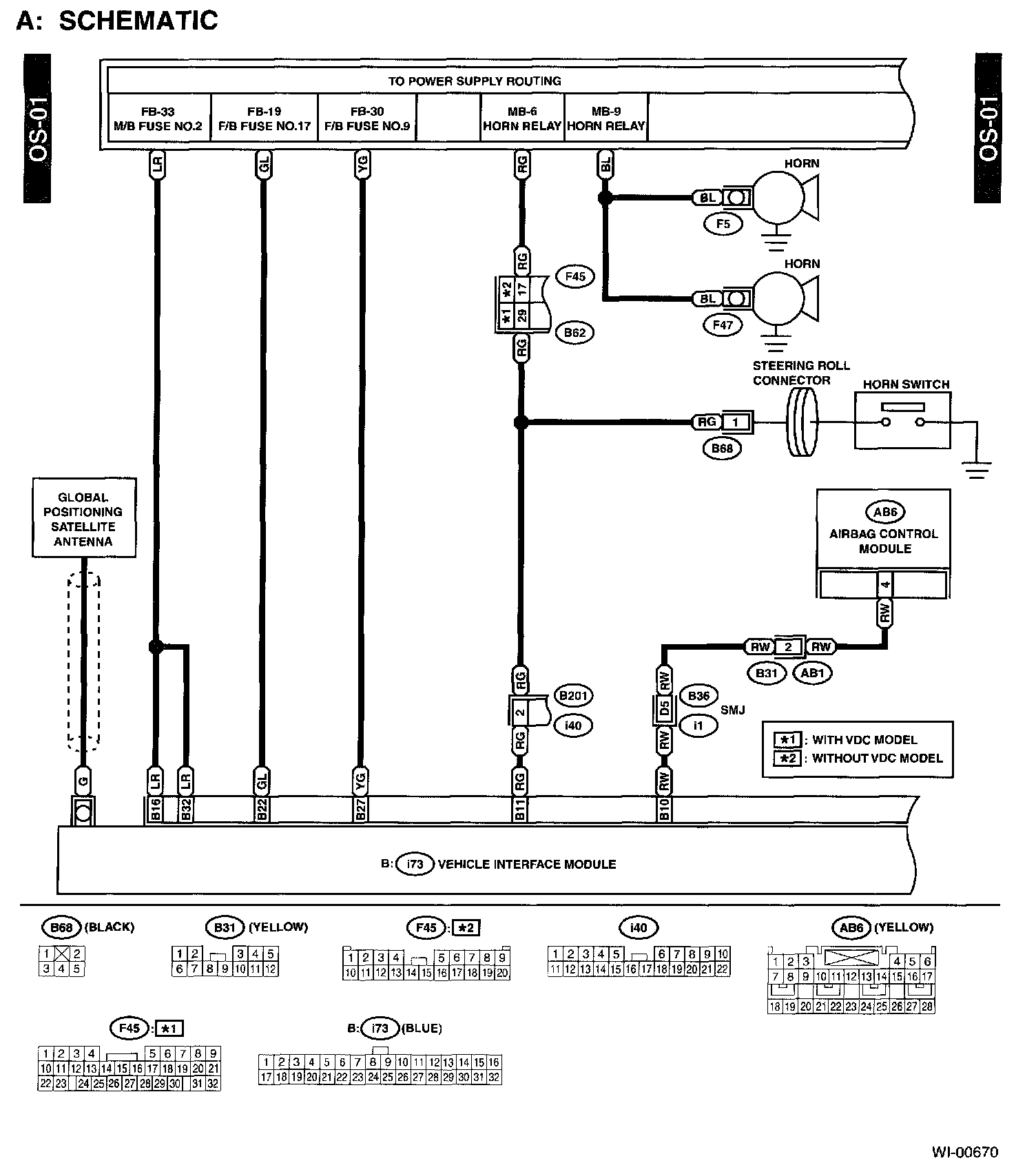

OS-01:

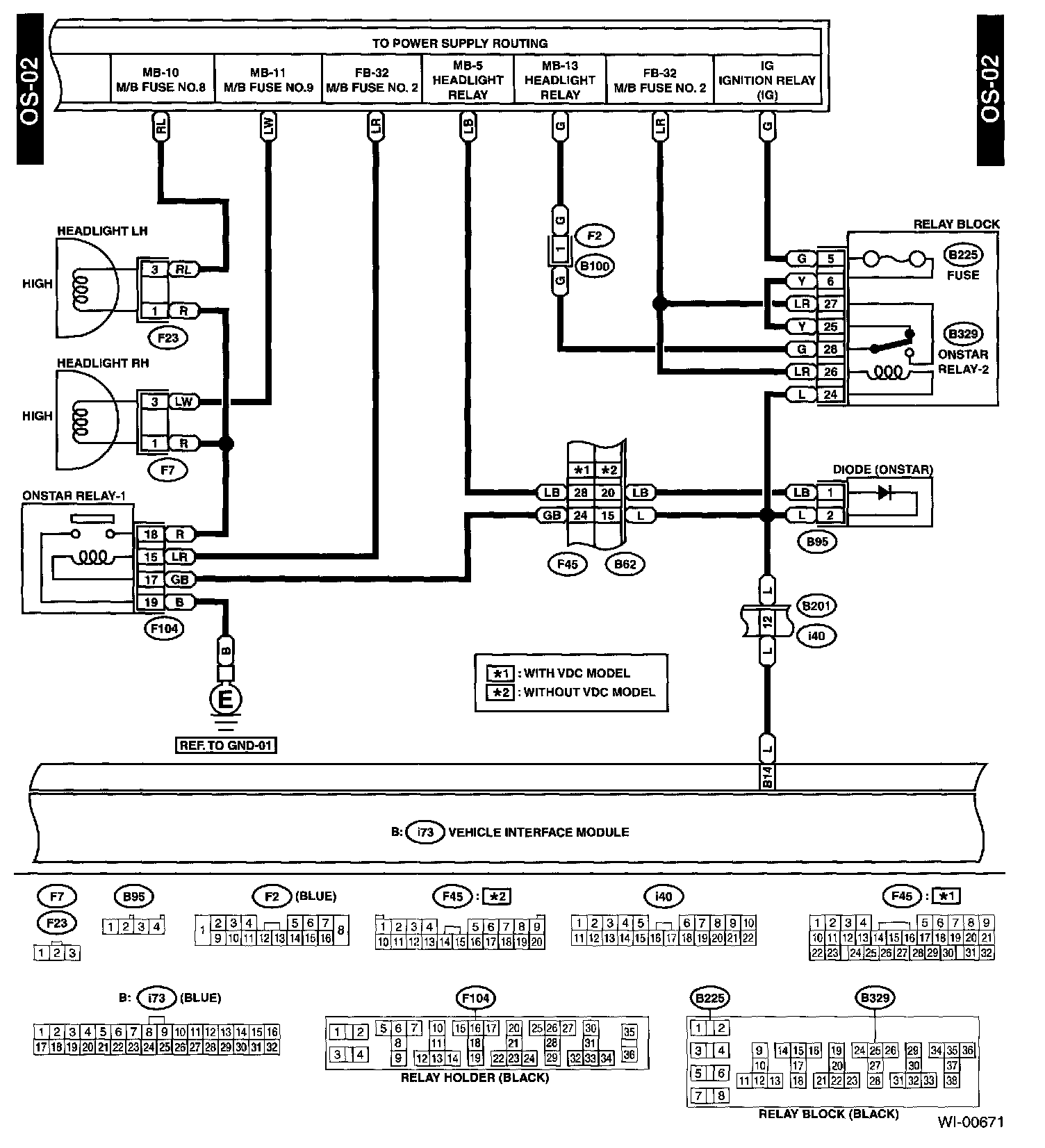

OS-02:

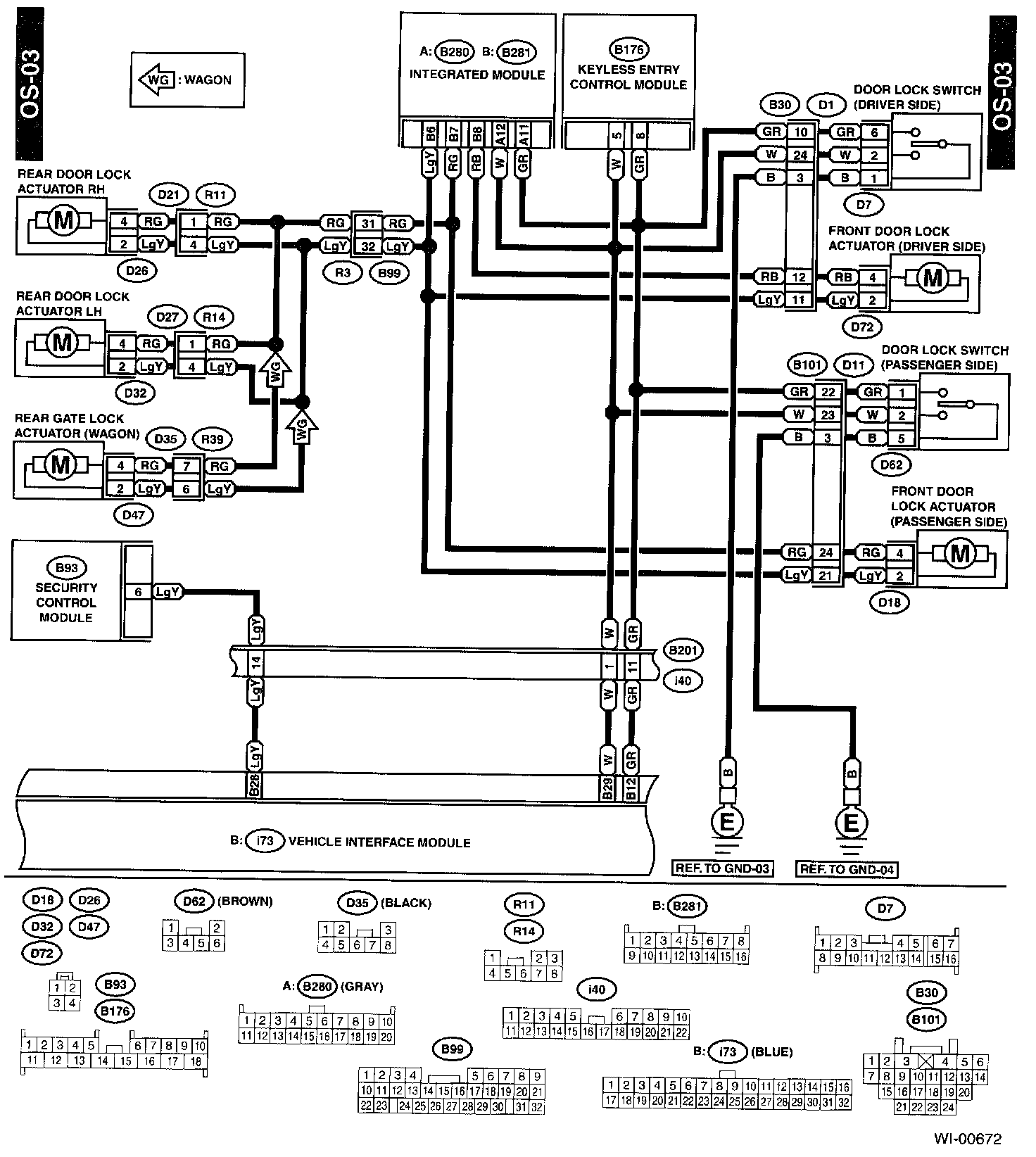

OS-03:

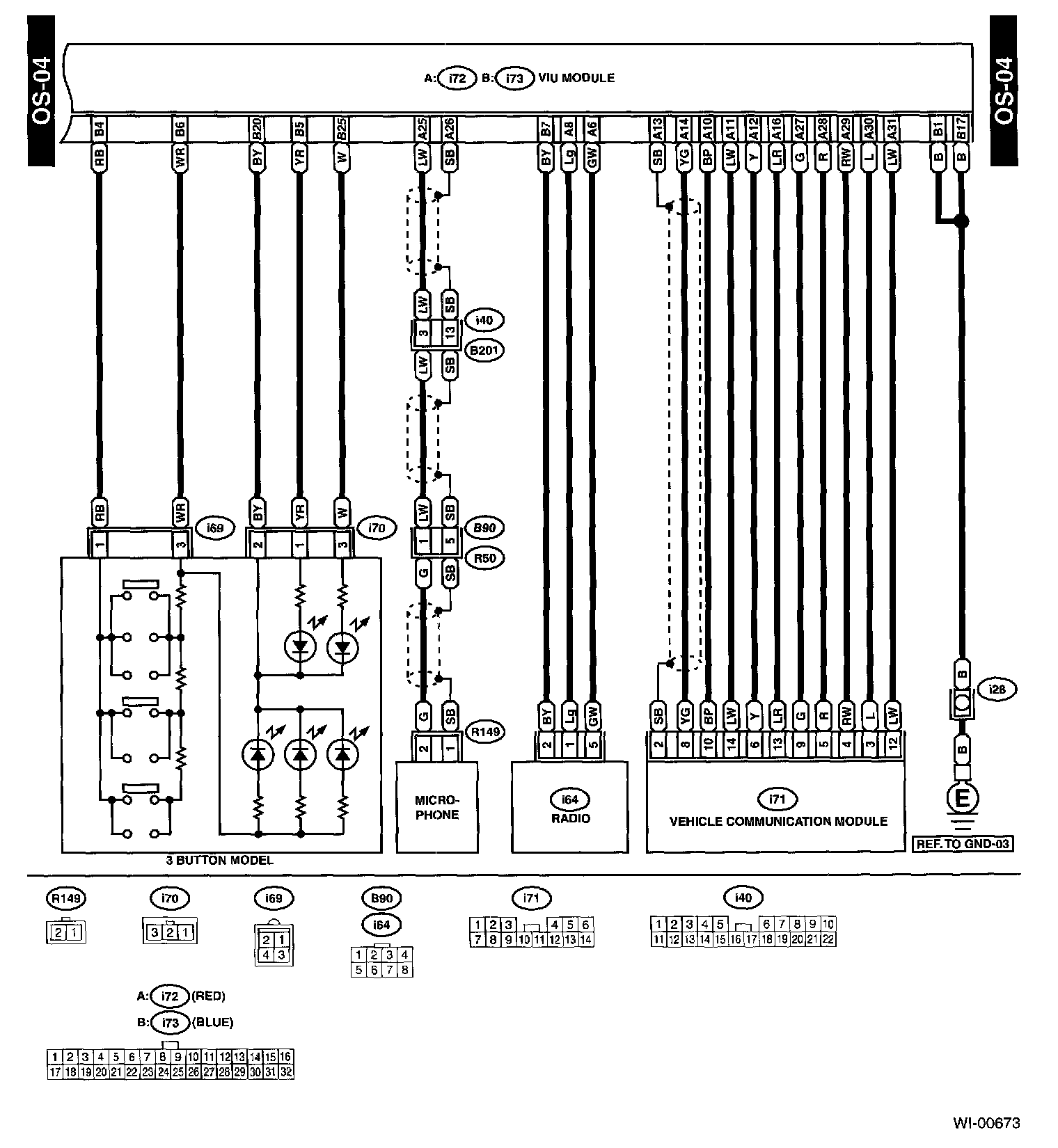

OS-04:

Diagrams: Other diagrams referred to by name within these diagrams (i.e. "REF. TO GND-01", etc) can be found at Diagrams by Diagram Name. Diagrams By Diagram Name
