Home >> Subaru >> 1987 >> Justy L3-1189cc 1.2L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> System Specifications >> Torque Sequences

Torque Sequences

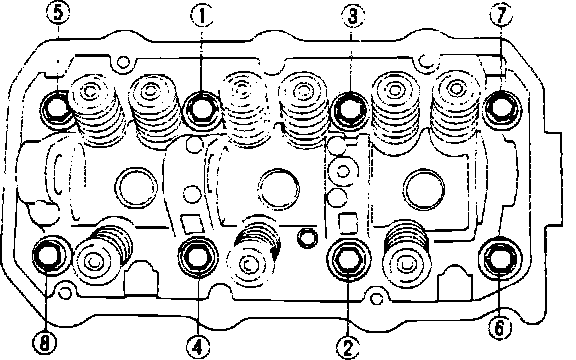

Cylinder Head Removal:

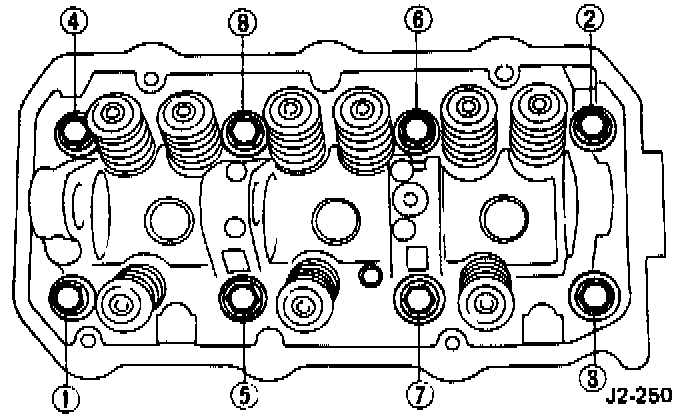

Fig. 30 Cylinder Head Bolt Tightening Sequence:
