Ignition System: Description and Operation

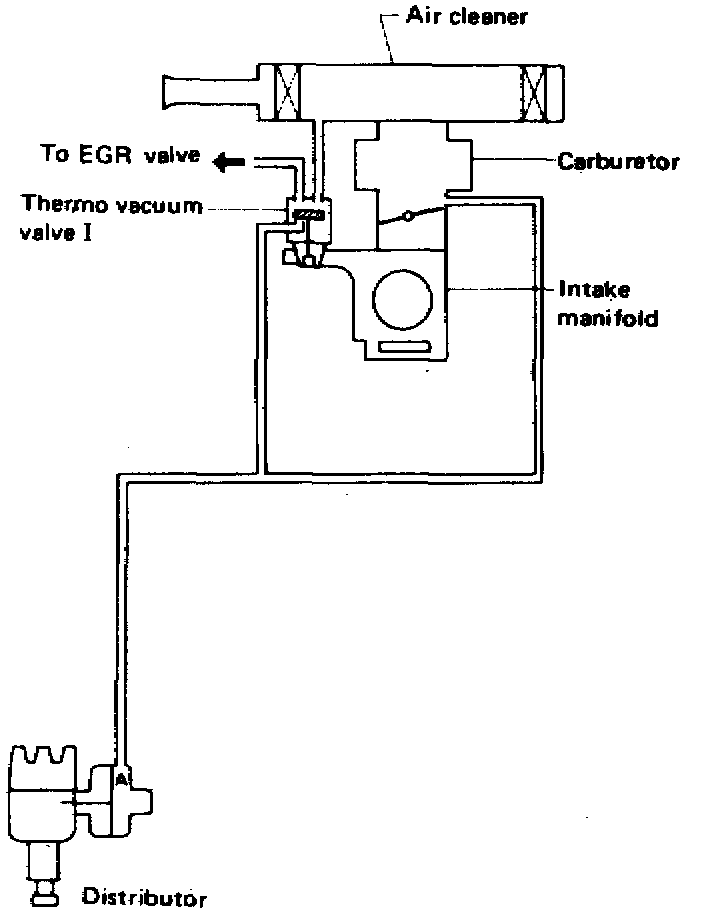

Fig.37 - Ignition Control System:

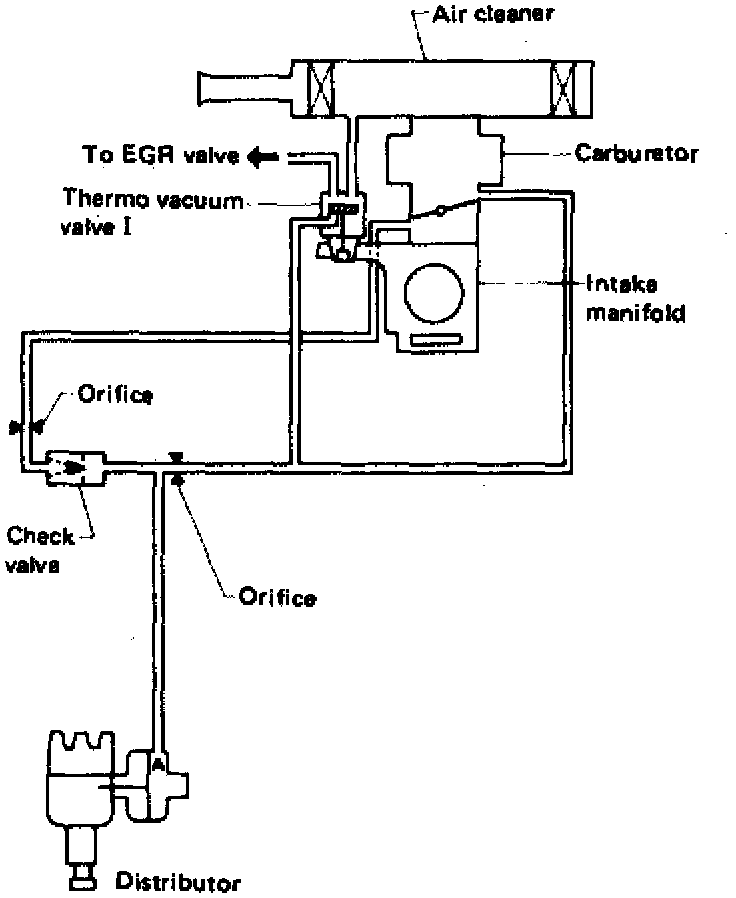

Fig.38 - Ignition Control System:

The ignition control system, Figs. 37 and 38, reduces HC, CO and NOx emission during all operating conditions. Actual ignition timing is controlled by the combination of a centrifugal advancer and a vacuum controller on the distributor.
