Engine Control Module

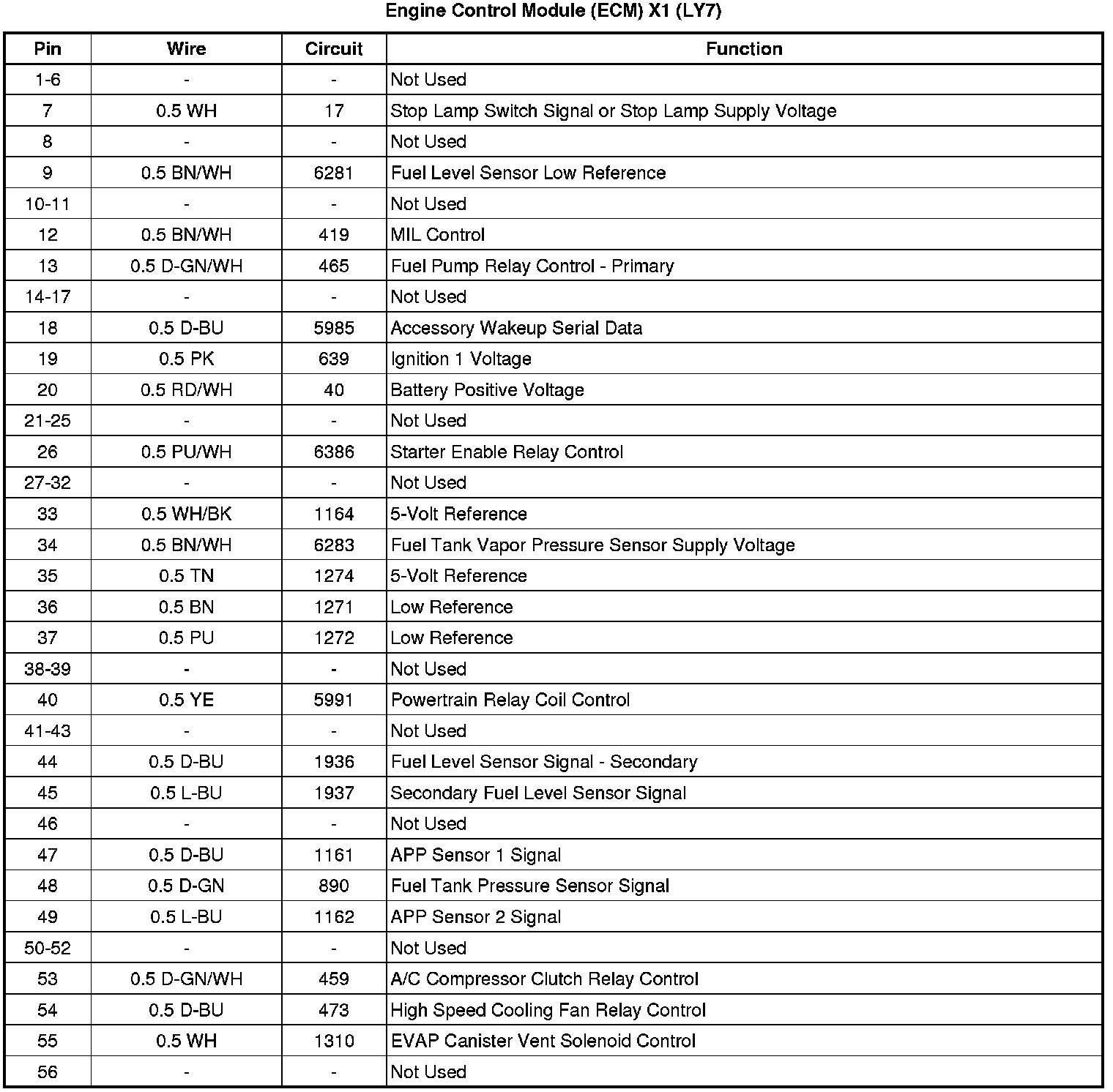

Engine Control Module (ECM) X1

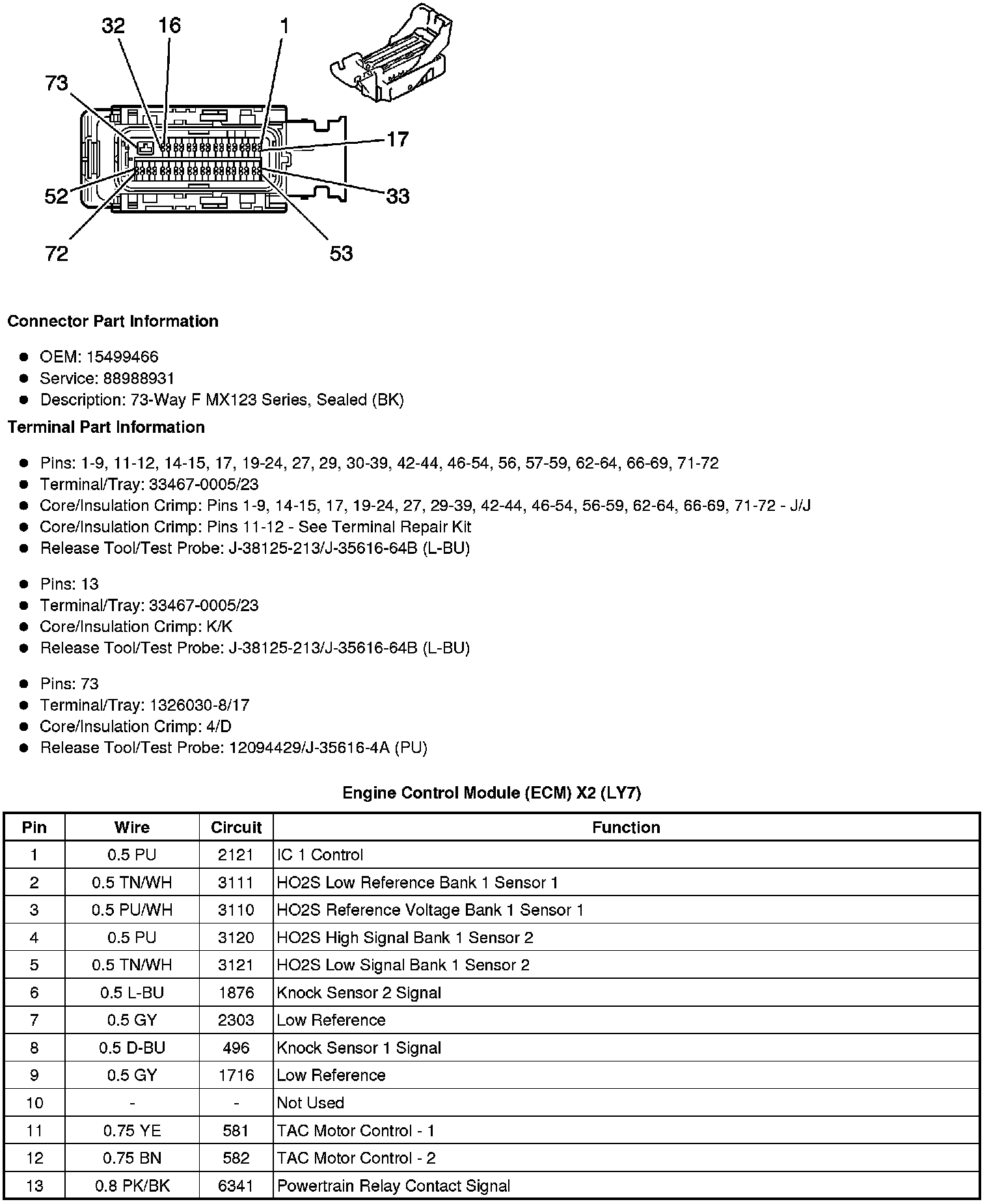

Engine Control Module (ECM) X2

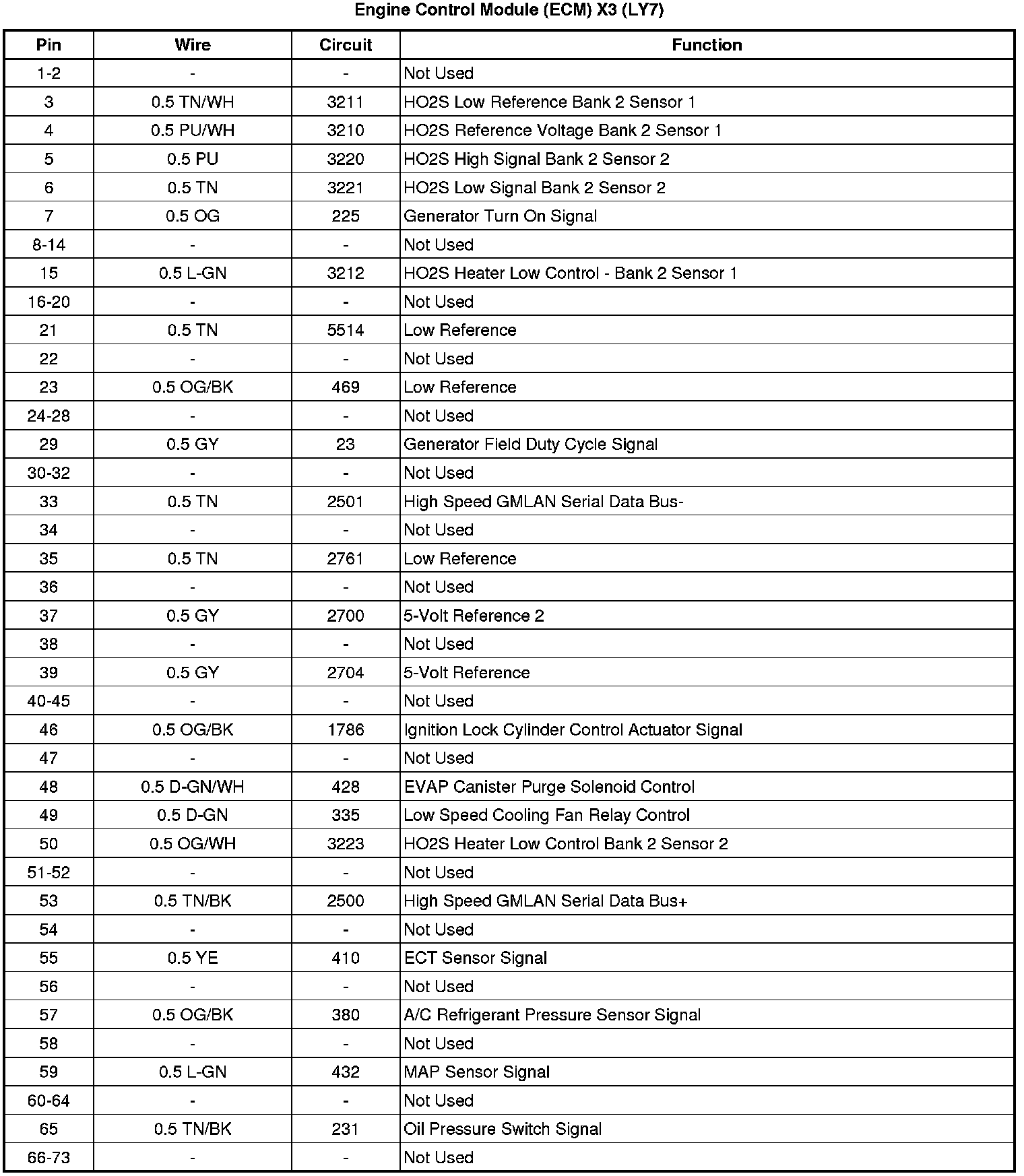

Engine Control Module (ECM) X3
