RELAY AWD V6-3.9L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Transmission Control Systems
>>
Diagrams
>>

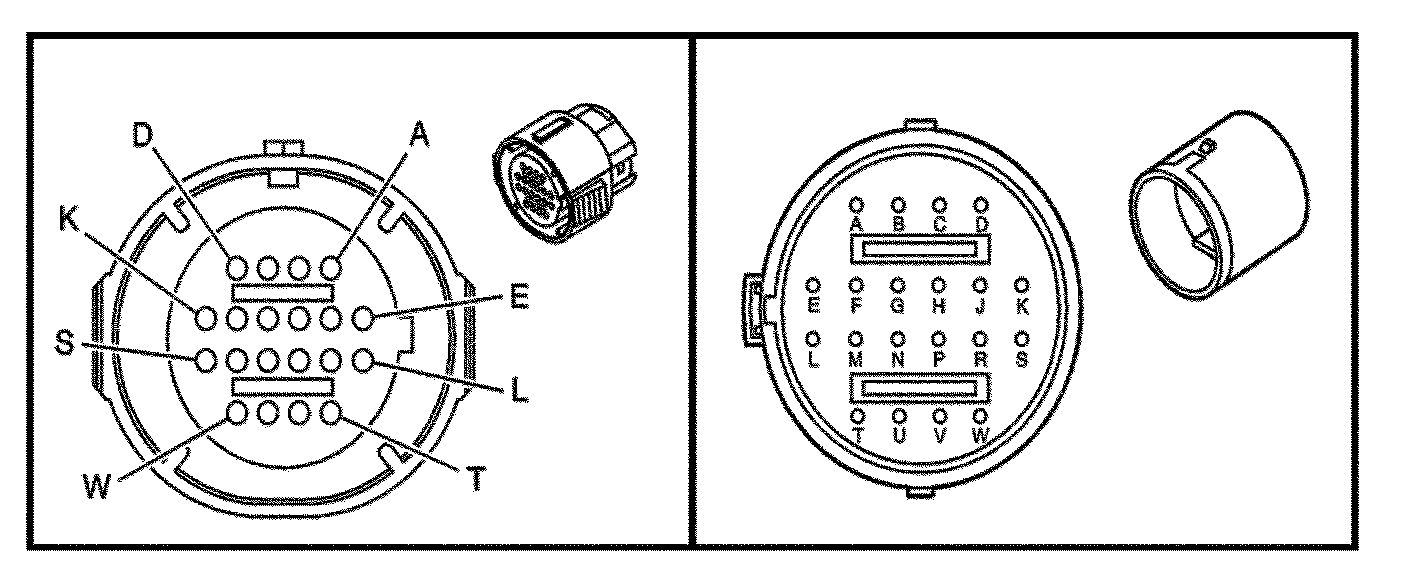

Connector Views
Connector Views

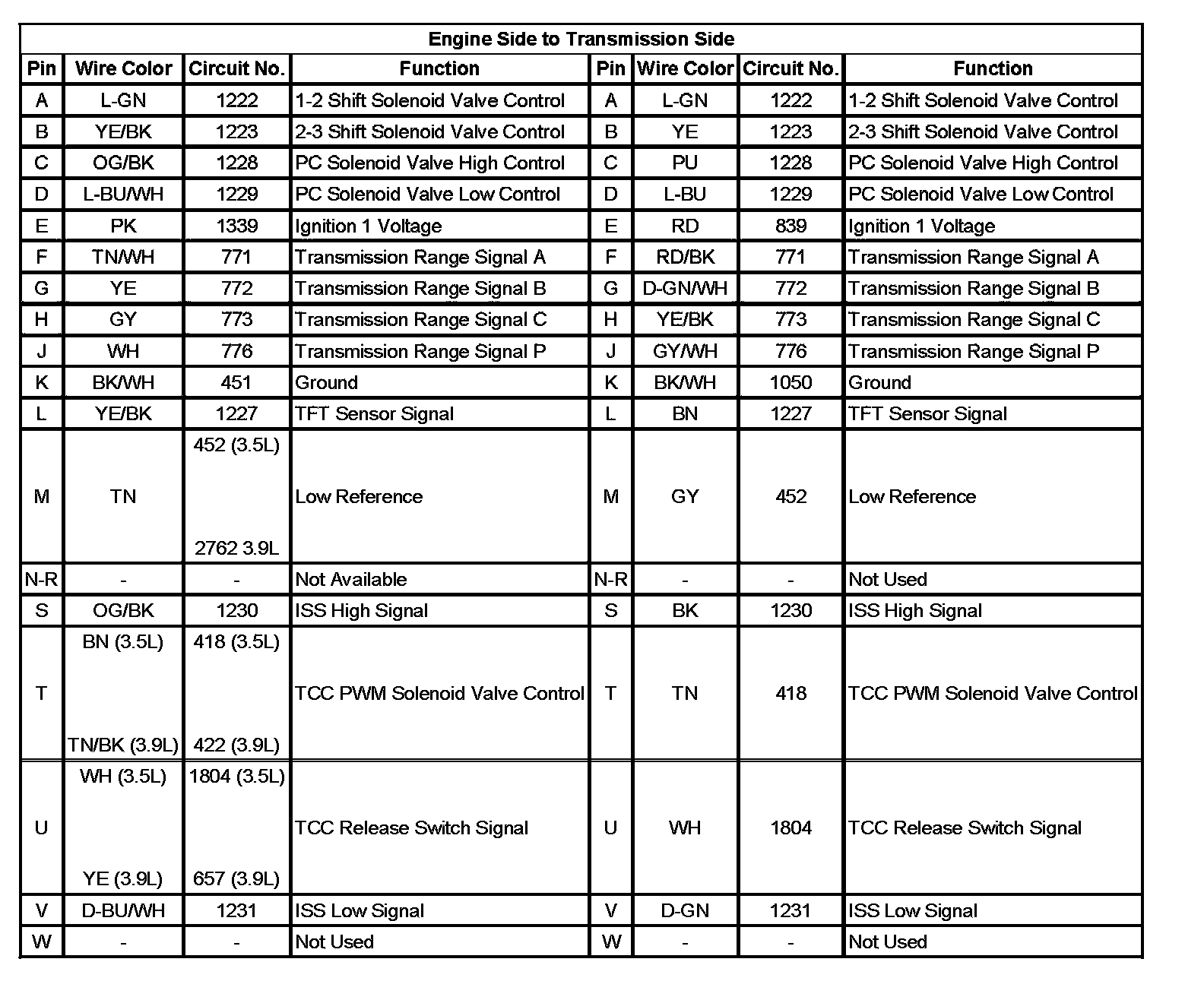

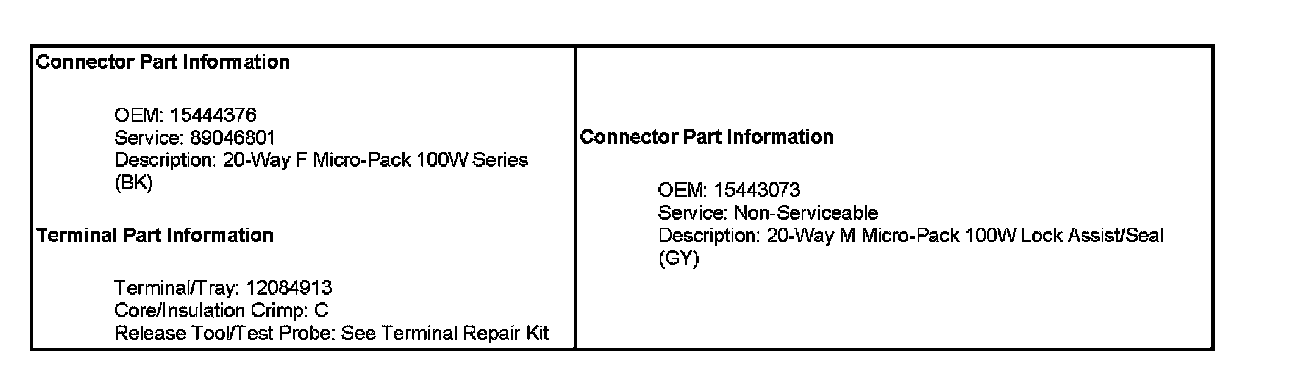

Engine Side to Transmission Side
Engine Side To Transmission Side:
