Home >> Saturn >> 2007 >> RELAY AWD V6-3.9L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Variable Induction Control Valve

Variable Induction Control Valve

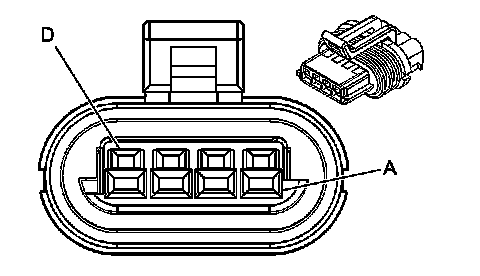

Engine Controls Connector End Views

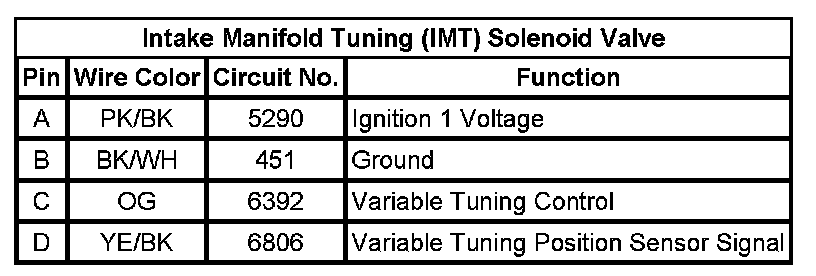

Intake Manifold Tuning (IMT) Solenoid Valve
