Home >> Saturn >> 2007 >> RELAY AWD V6-3.9L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Map Light

Map Light

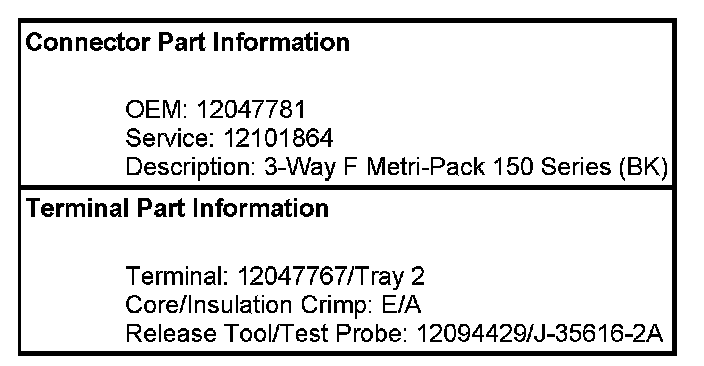

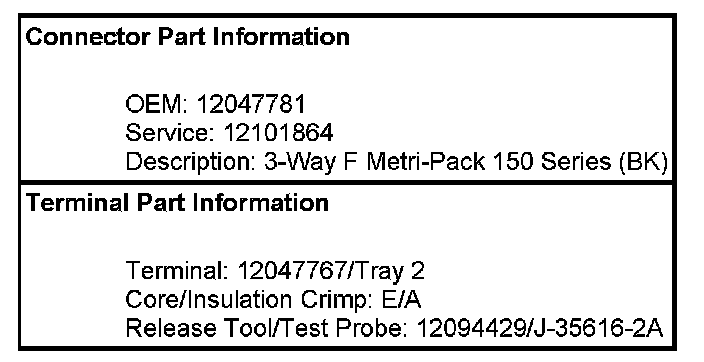

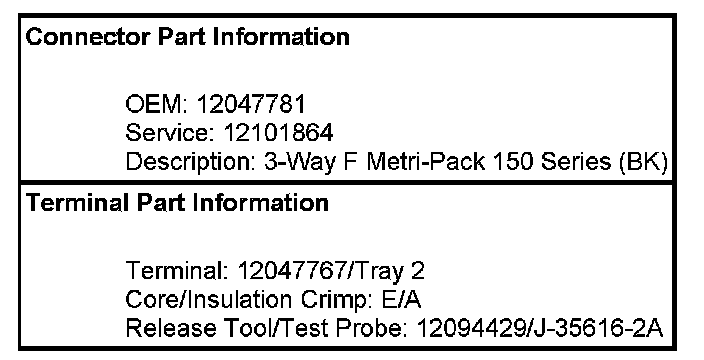

Lighting Systems Connector End Views

Courtesy/Reading Lamp - Center

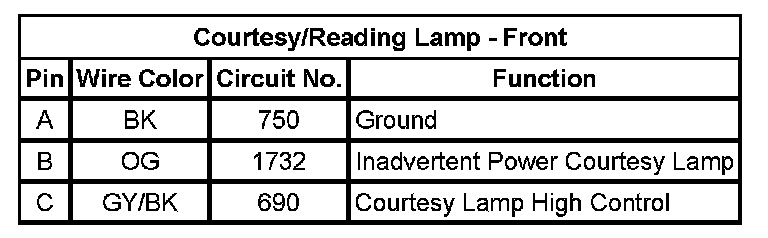

Courtesy/Reading Lamp - Front

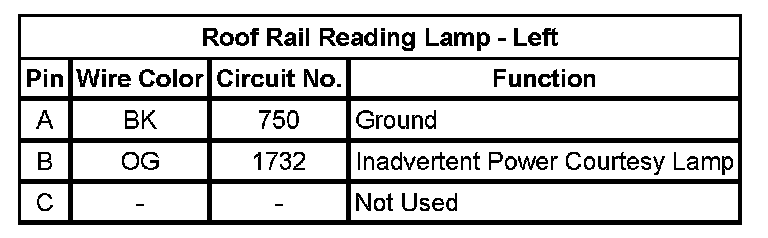

Roof Rail Reading Lamp - Left

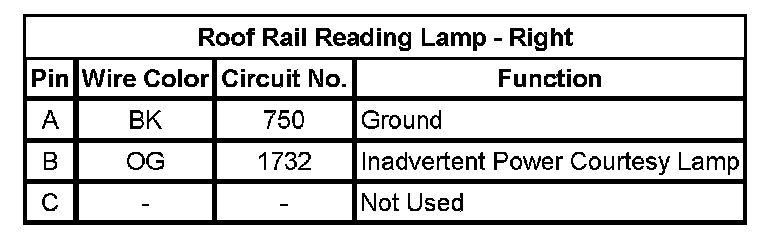

Roof Rail Reading Lamp - Right
