RELAY AWD V6-3.9L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Keyless Entry Module
Keyless Entry Module
Remote Function Connector End Views

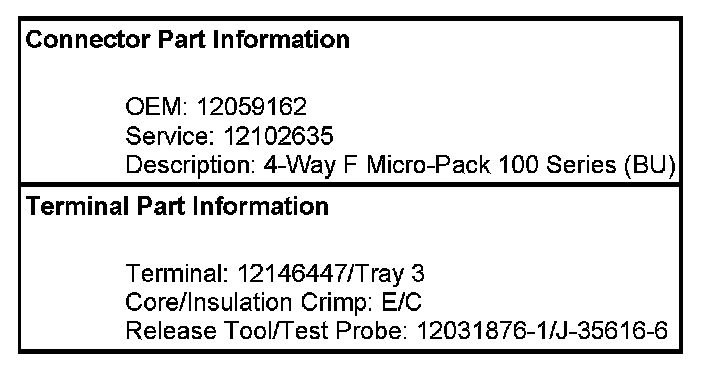

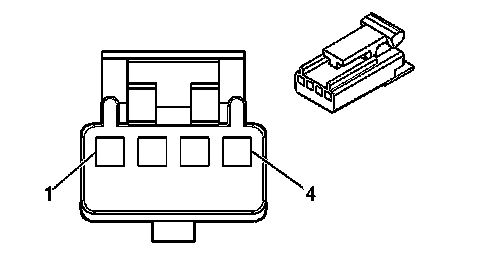

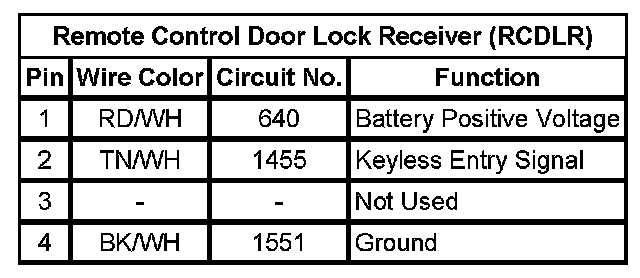

Remote Control Door Lock Receiver (RCDLR)
Tire Pressure Monitor (TPM) Module:
