Engine Control Module



Engine Control Module Connector End Views

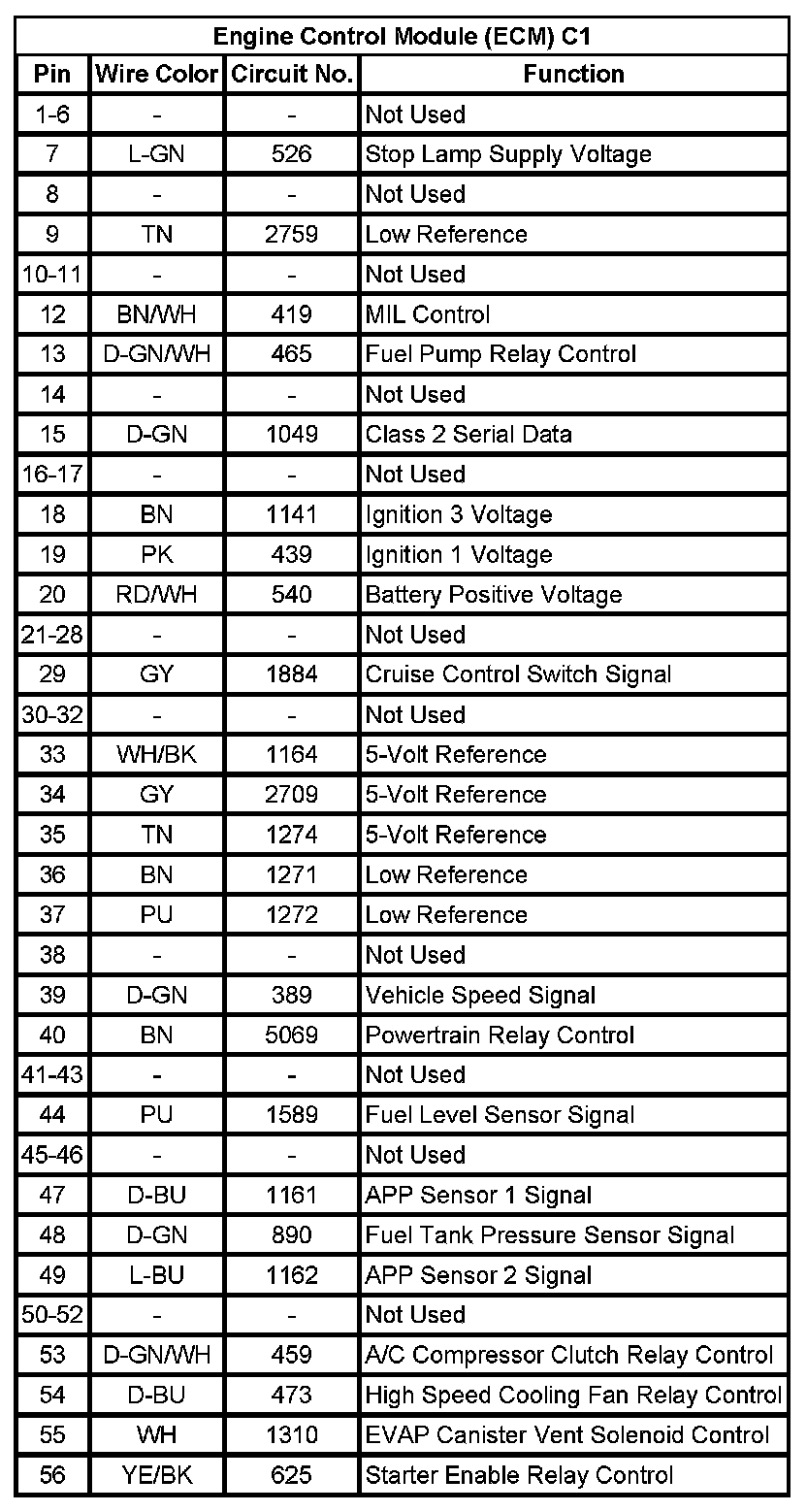

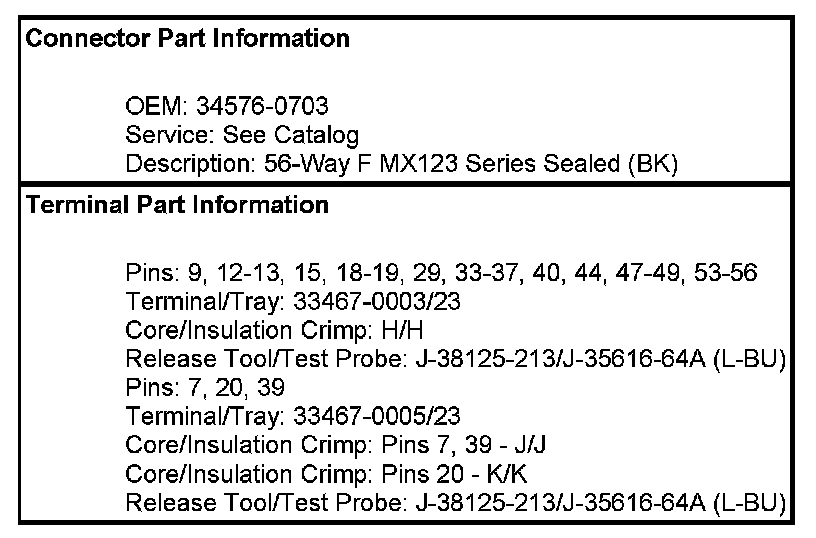

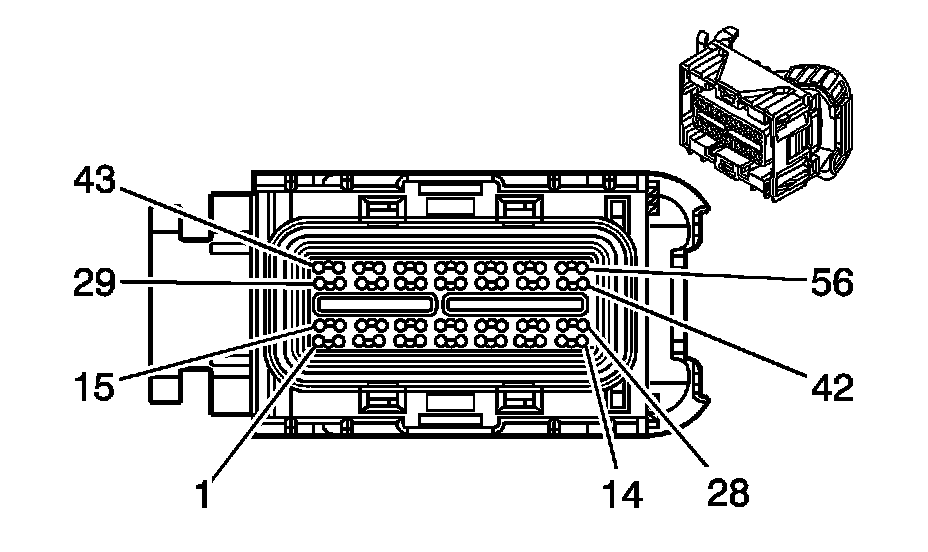

Engine Control Module (ECM) C1

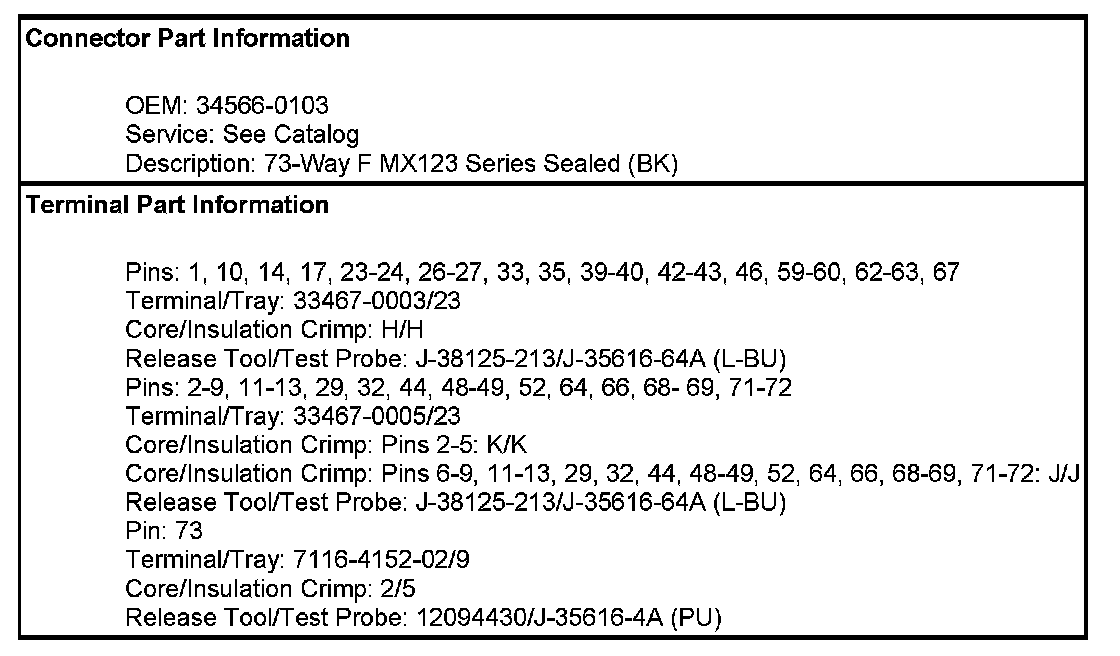

Engine Control Module (ECM) C2

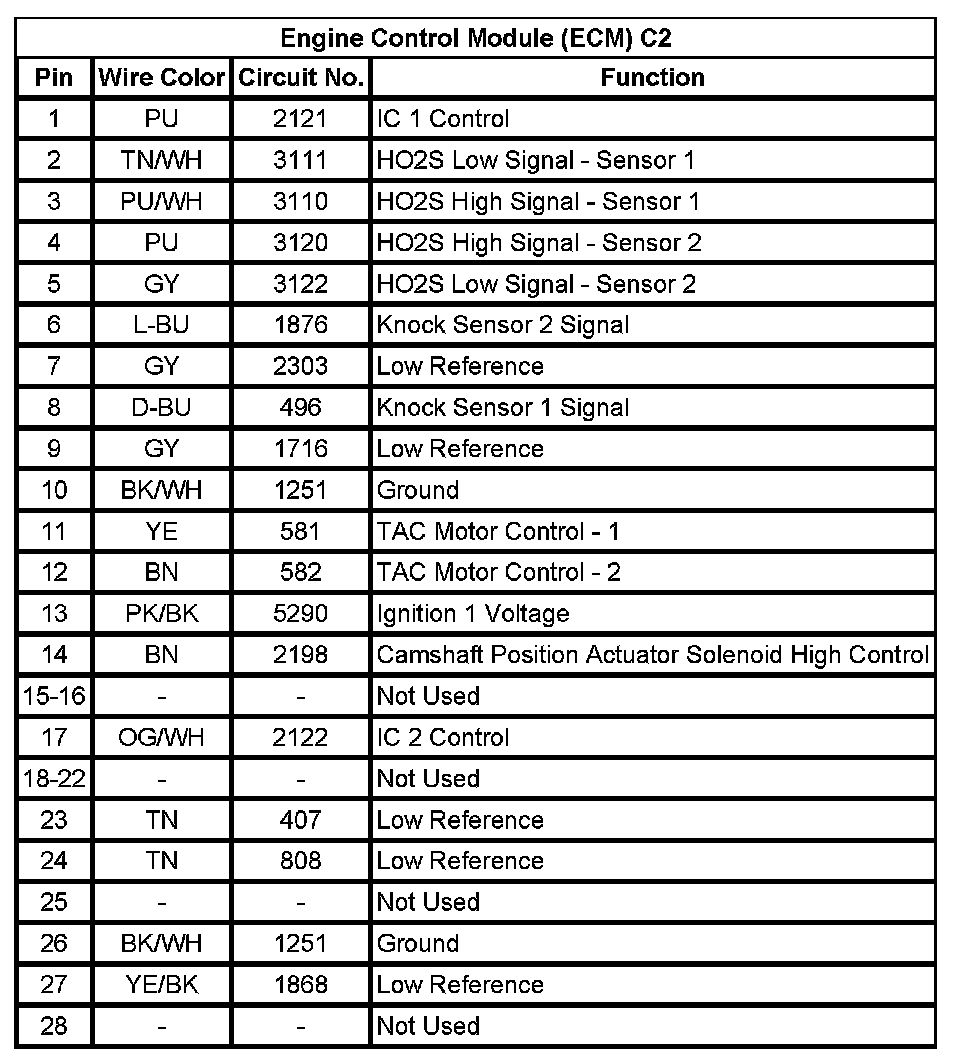

Engine Control Module (ECM) C2 (Pin 1 To 28):

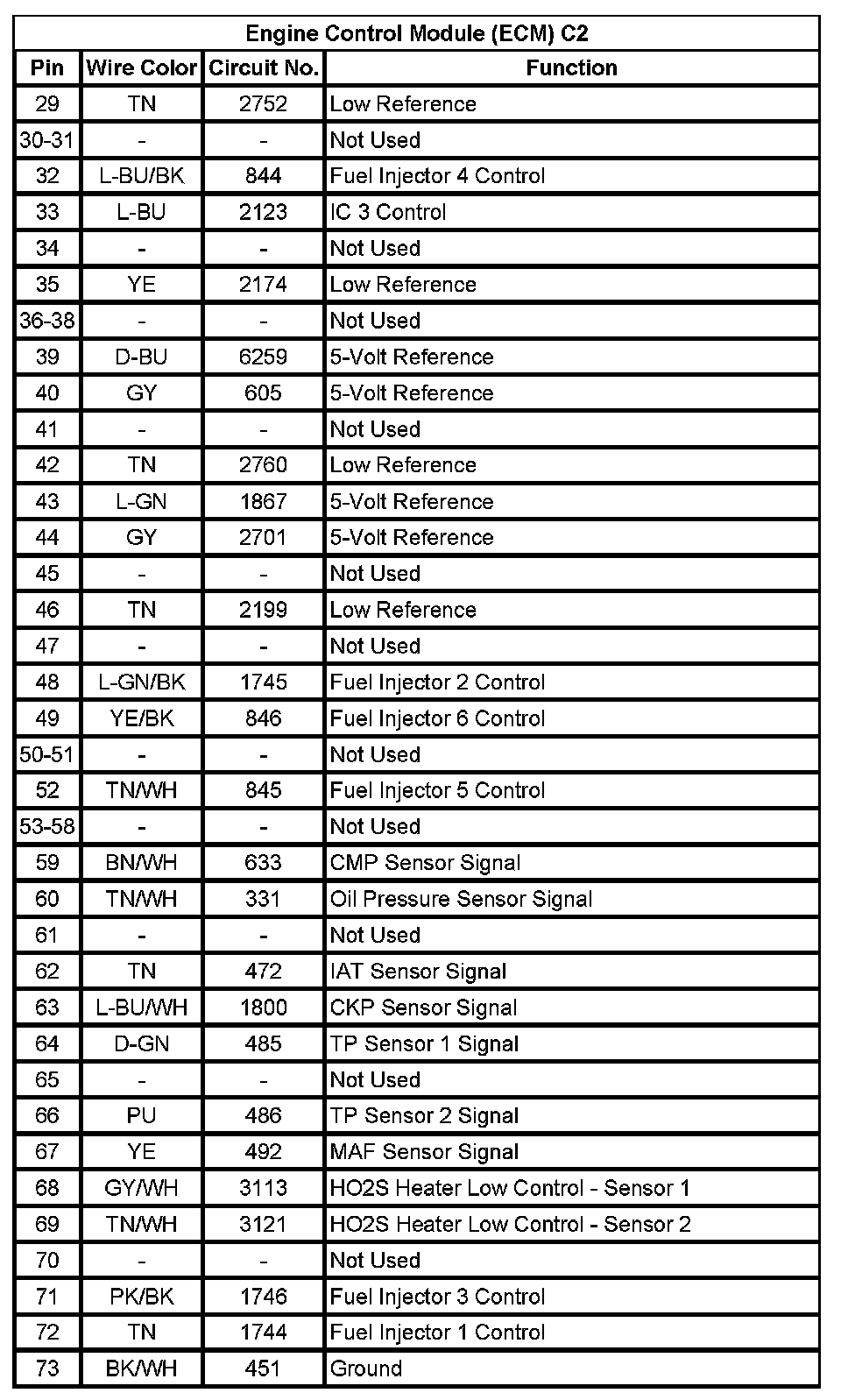

Engine Control Module (ECM) C2 (Pin 29 To 73):

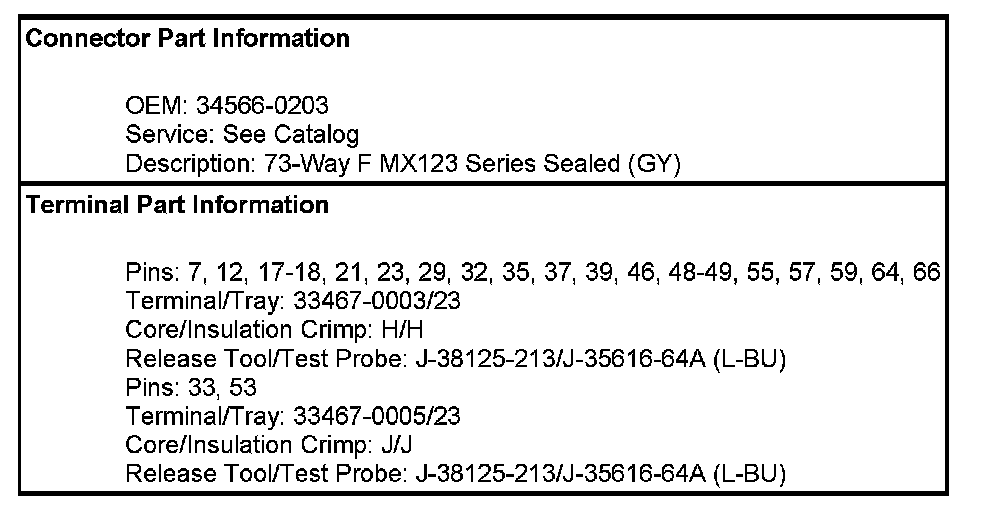

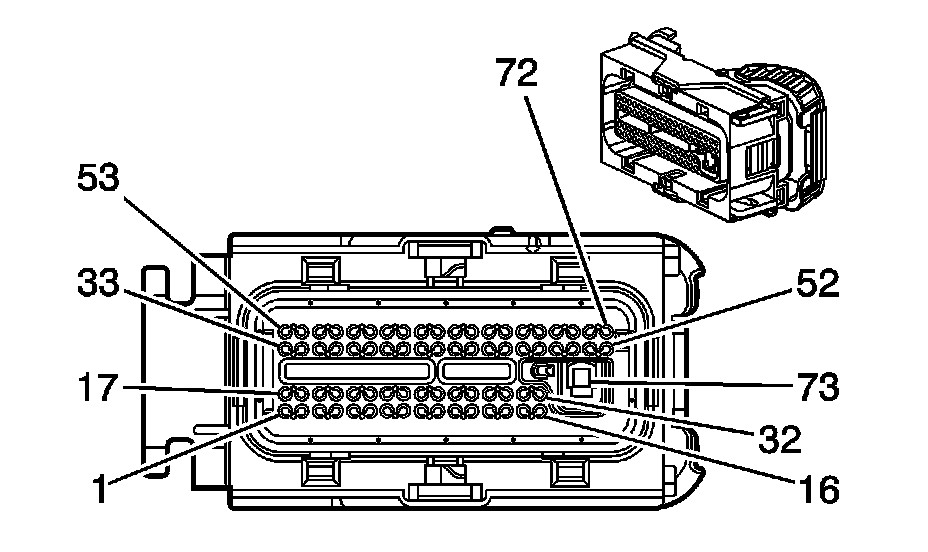

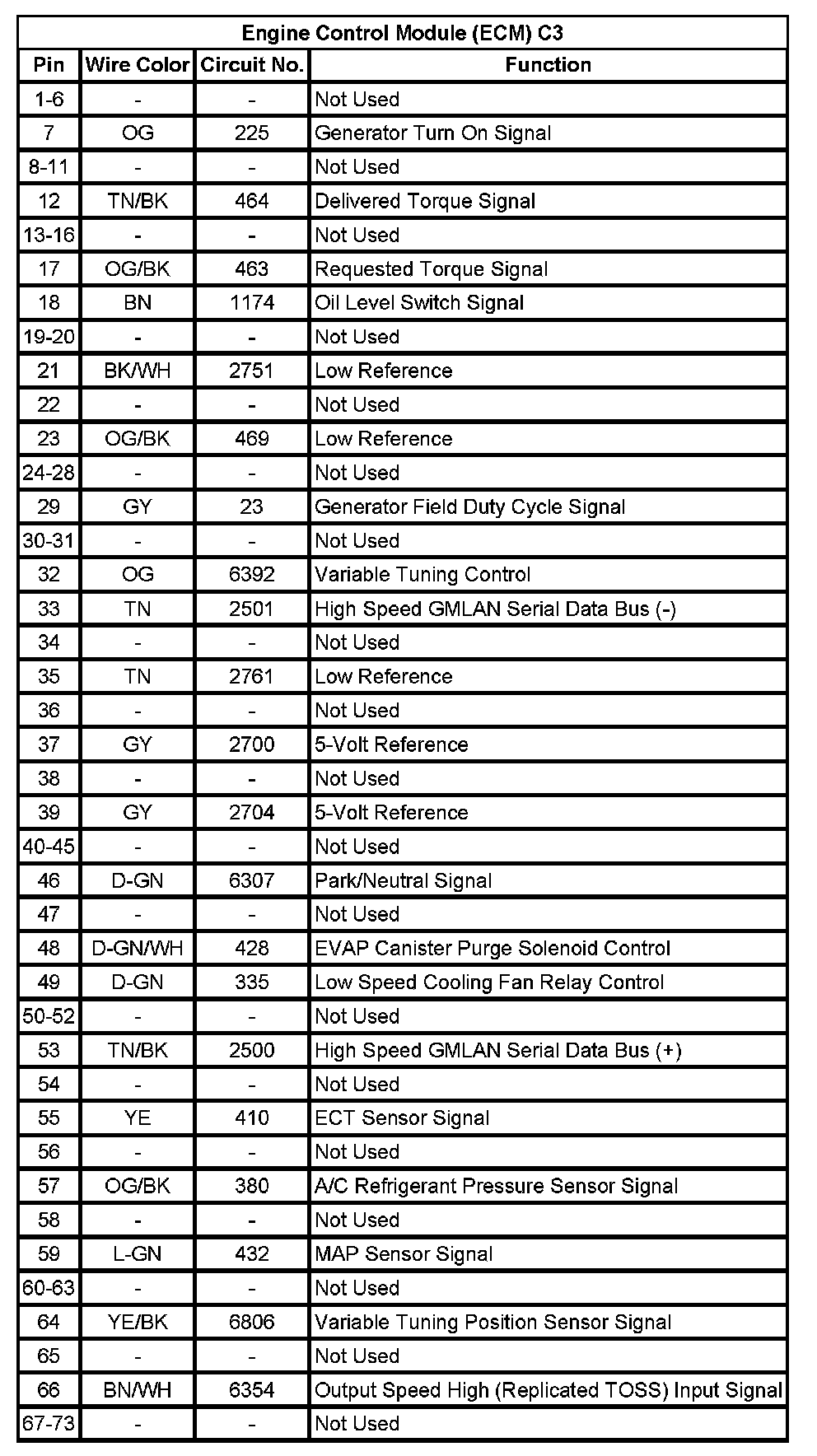

Engine Control Module (ECM) C3
