Ignition Lock: Diagrams

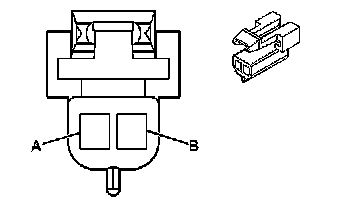

Power and Grounding Connector End Views

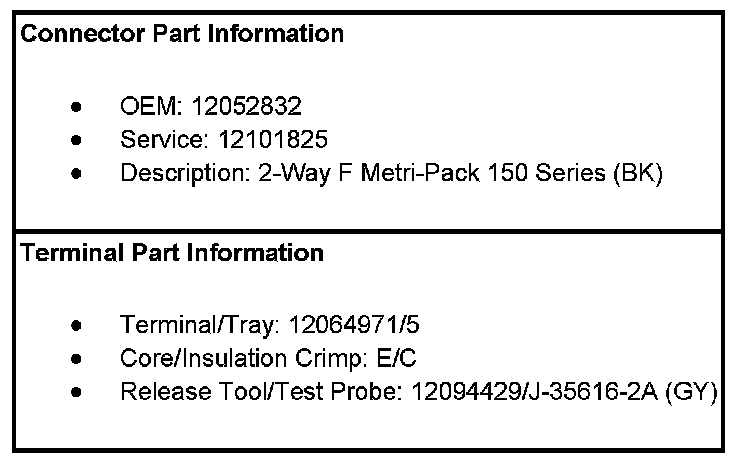

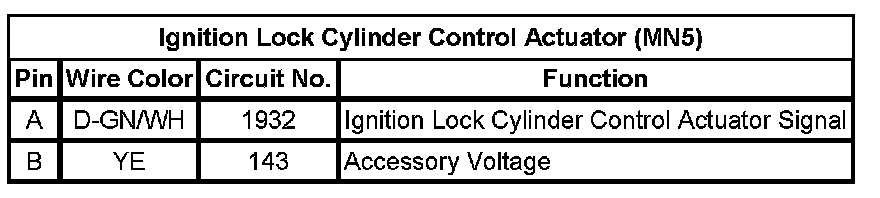

Ignition Lock Cylinder Control Actuator (MN5)
A/T Shift Lock Control Solenoid:
