Starting and Charging: Locations

Engine Electrical Component Views

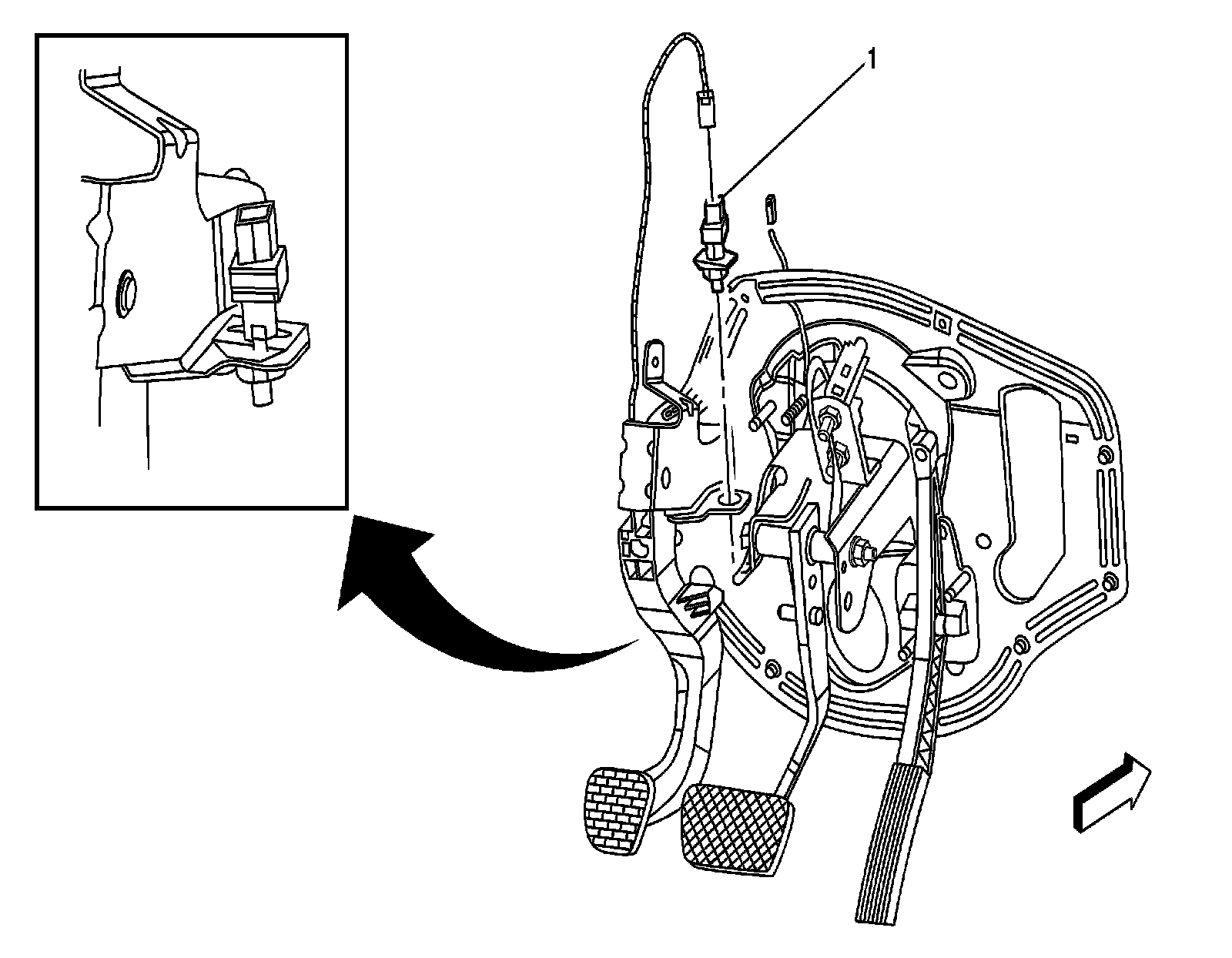

Left Side of the I/P in the Pedal Bracket (M/T)




1 - Clutch Start Switch

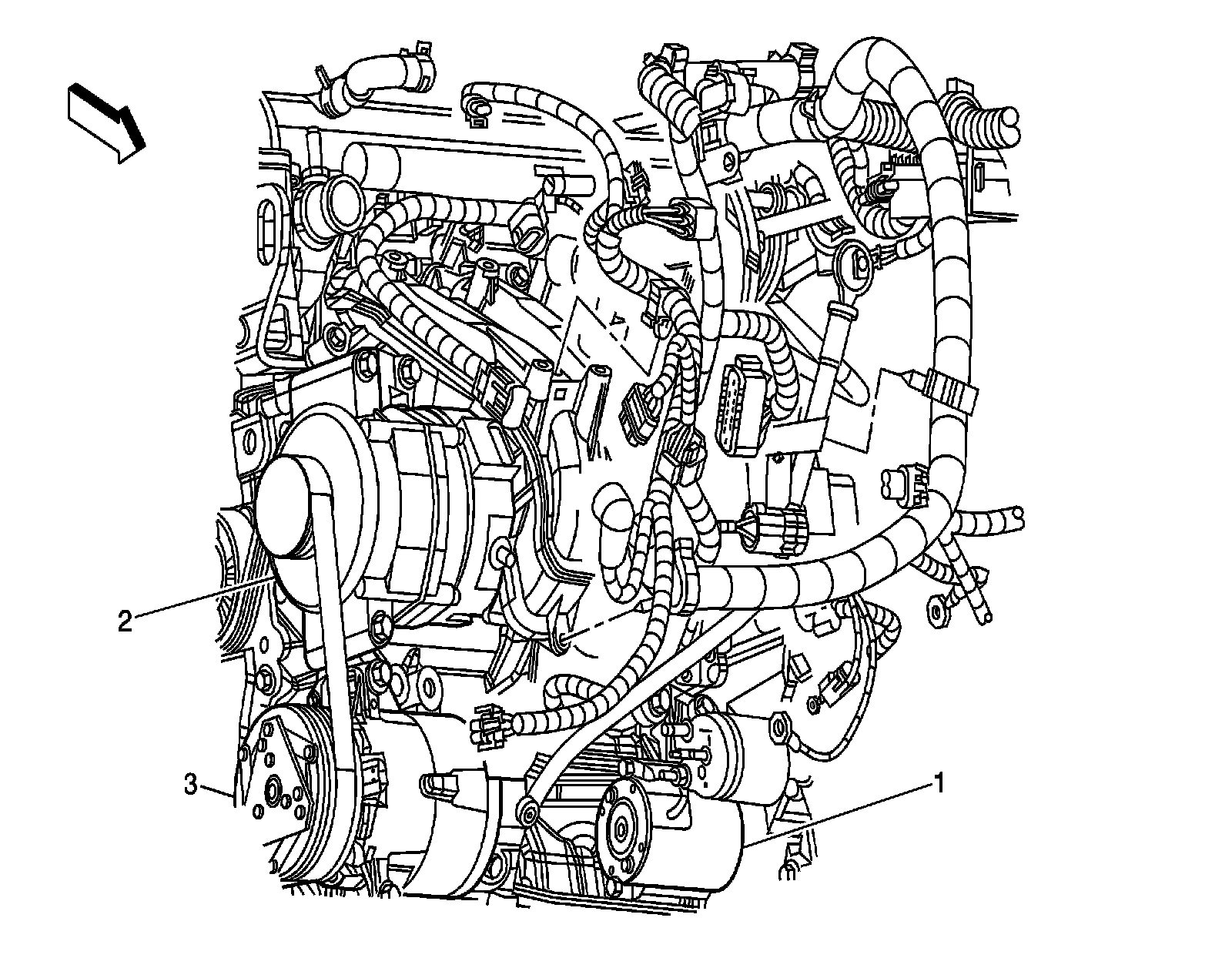

Right Front Side of the Engine




1 - Starter
2 - Generator
3 - A/C Compressor Clutch
