Steering
>>
Steering Control Module
Steering Control Module
Power Steering Connector End Views

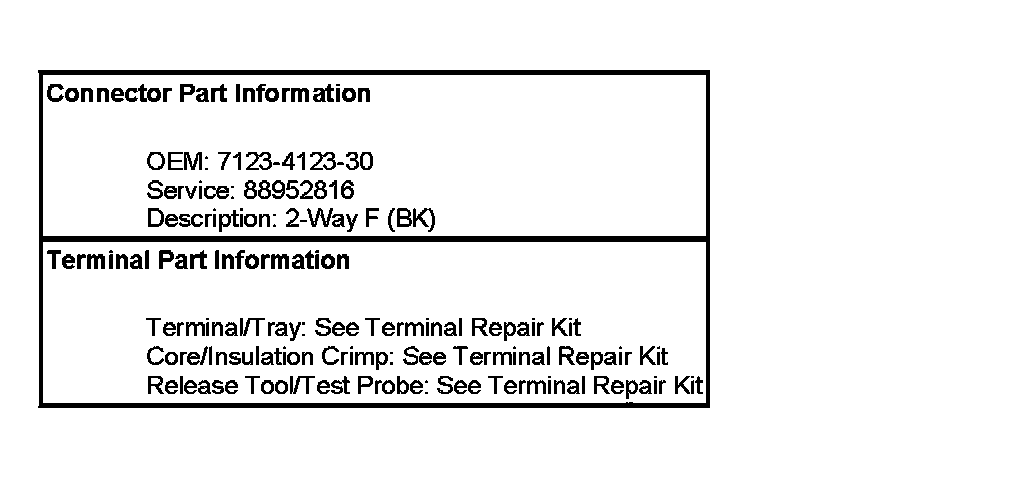

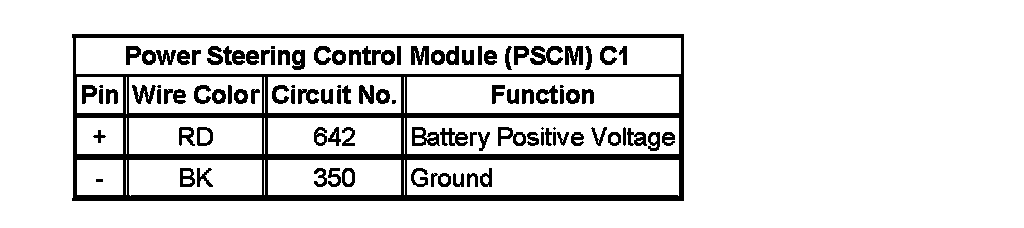

Power Steering Control Module (PSCM) C1:

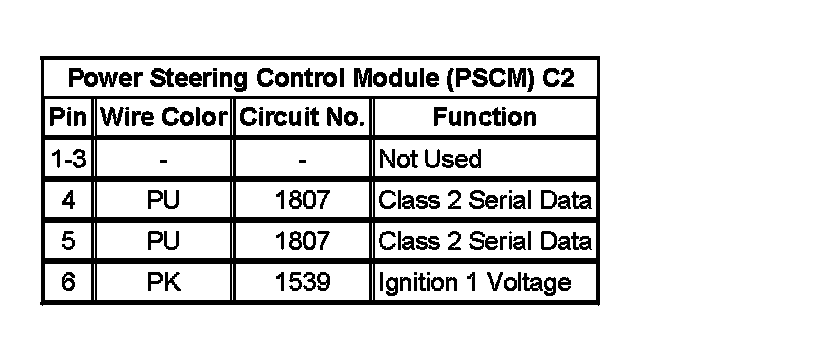

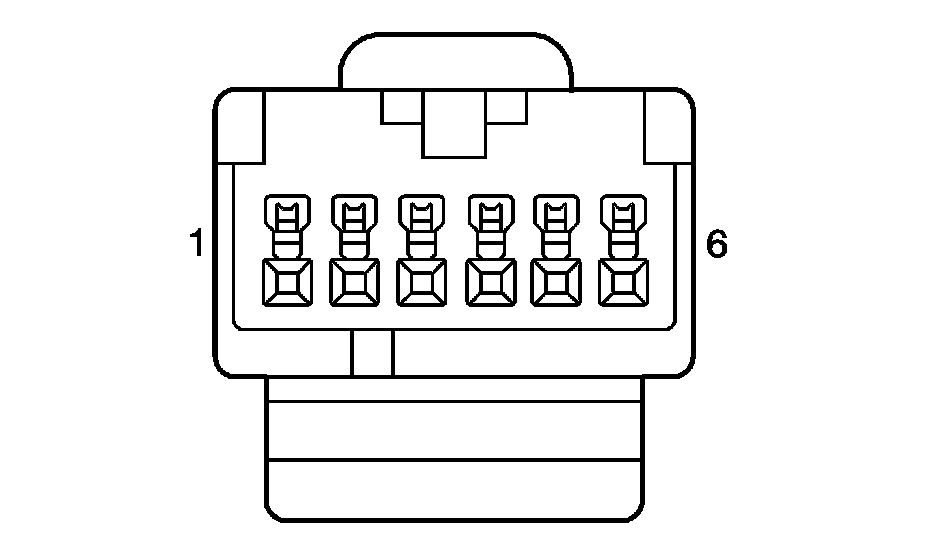

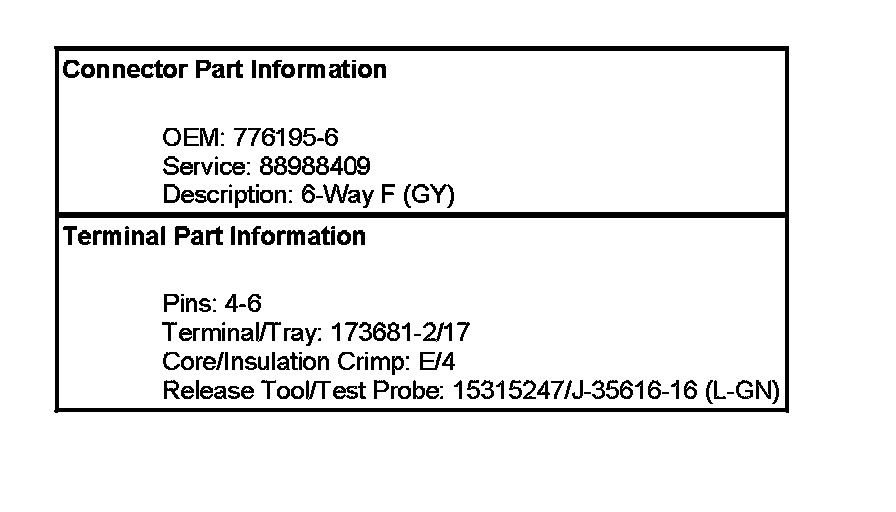

Power Steering Control Module (PSCM) C2:

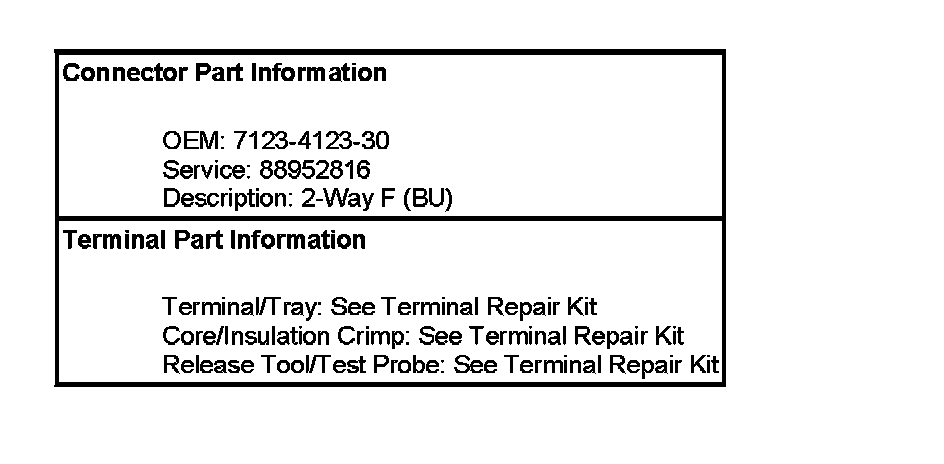

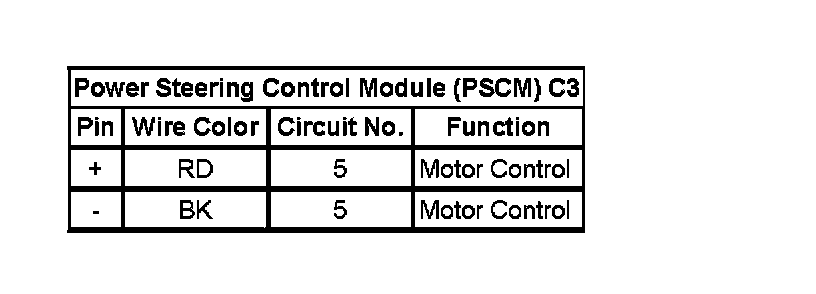

Power Steering Control Module (PSCM) C3:
