Home >> Saturn >> 2007 >> ION L4-2.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Window Motor

Power Window Motor

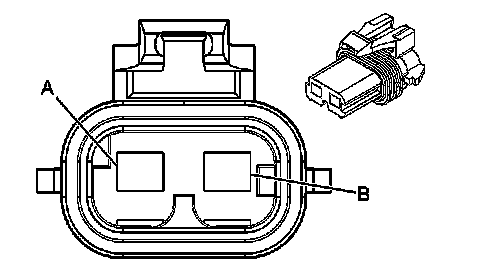

Window Systems Connector End Views

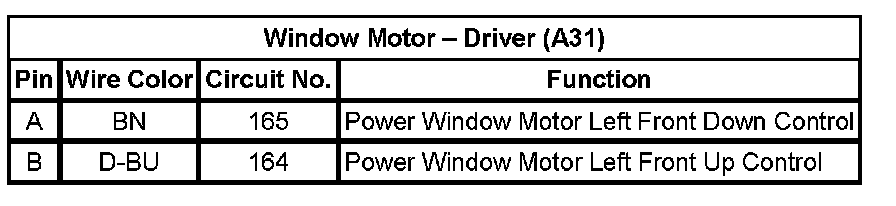

Window Motor - Driver (With RPO Code A31)

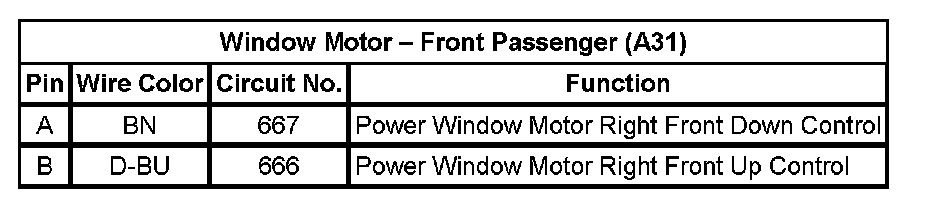

Window Motor - Front Passenger (With RPO Code A31)

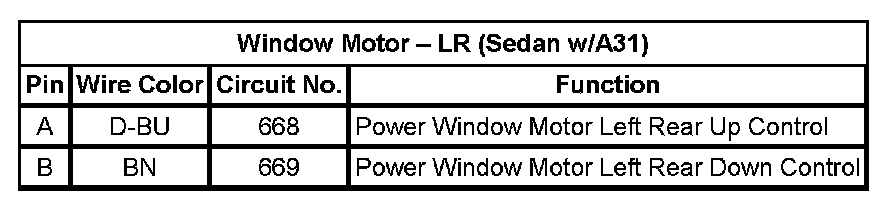

Window Motor - LR (Sedan With RPO Code A31)

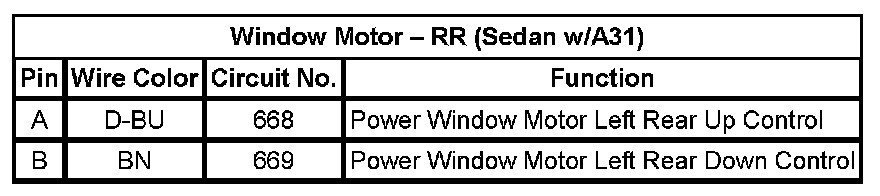

Window Motor - RR (Sedan With RPO Code A31)
