Home >> Saturn >> 2007 >> ION L4-2.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Mirrors >> System Diagram

System Diagram



Mirror Connector End Views

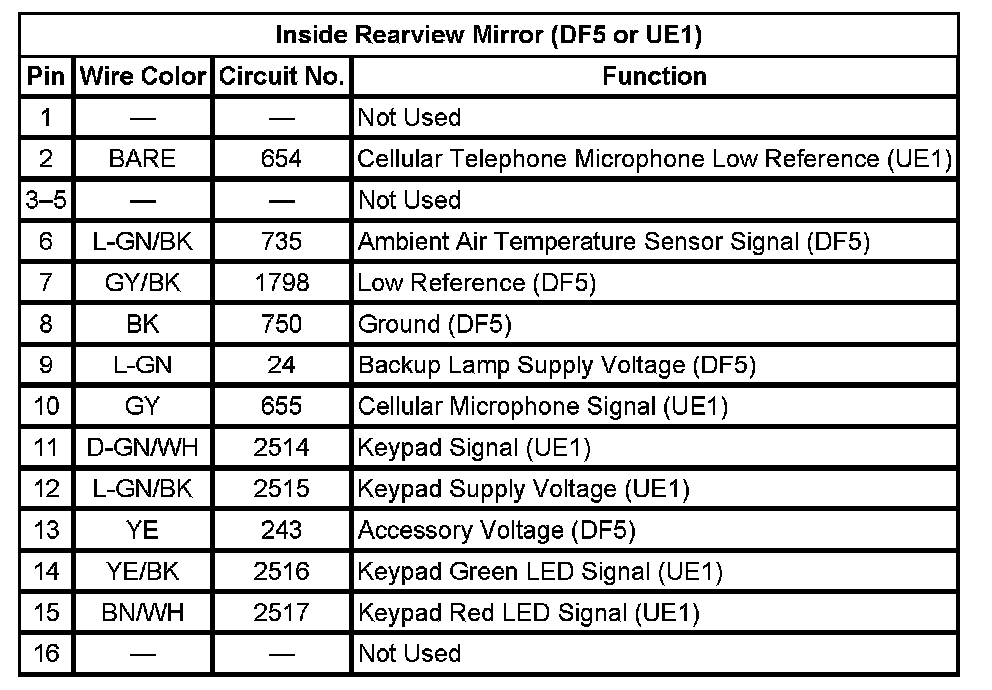

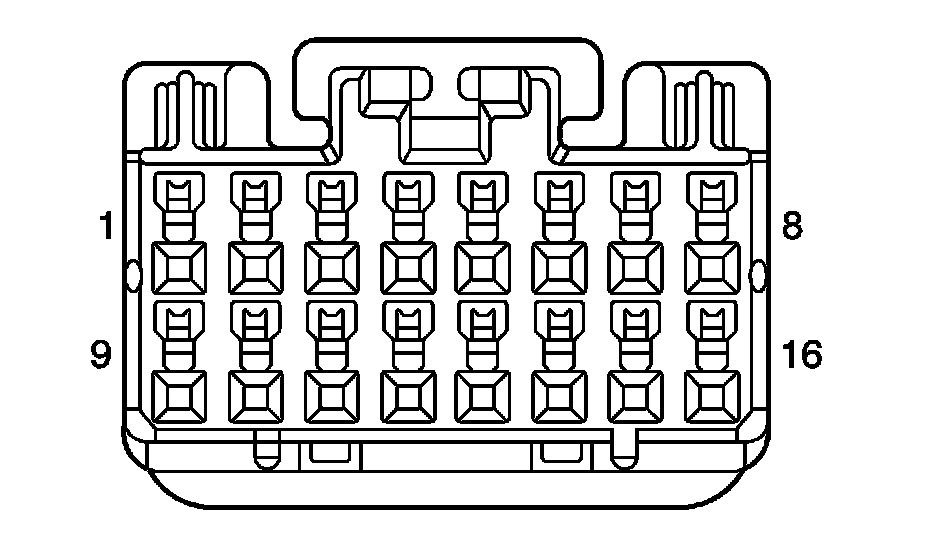

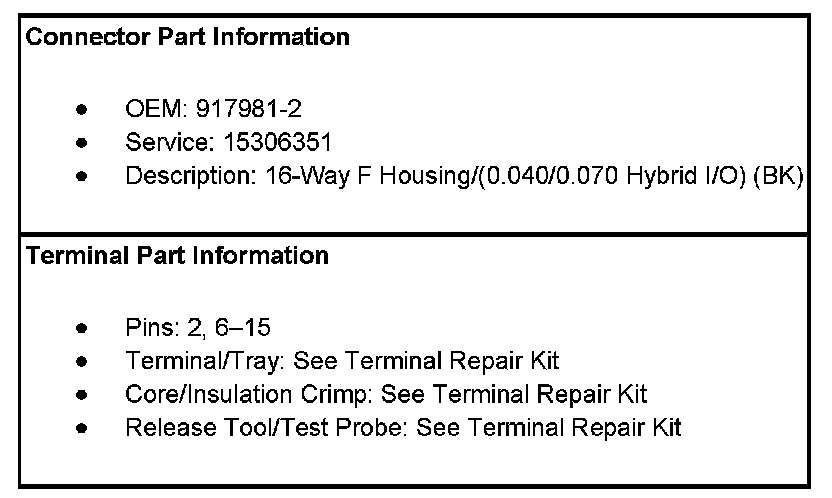

Inside Rearview Mirror (DF5 or UE1)

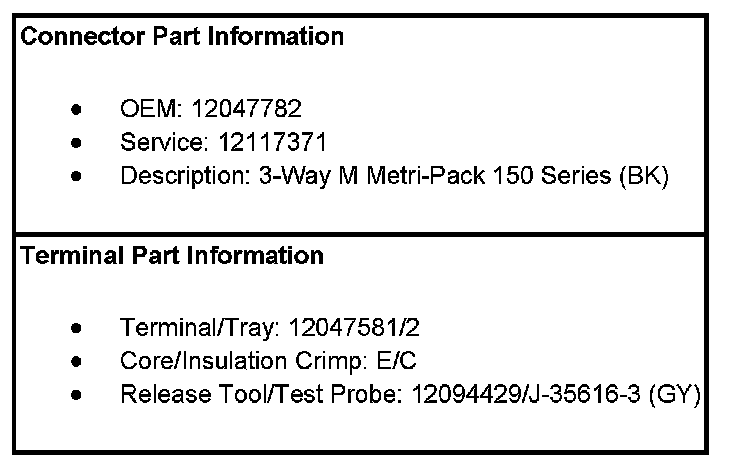

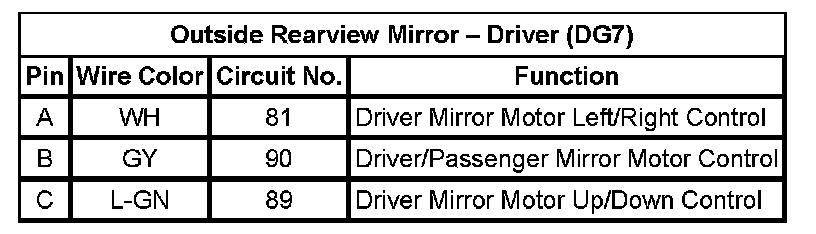

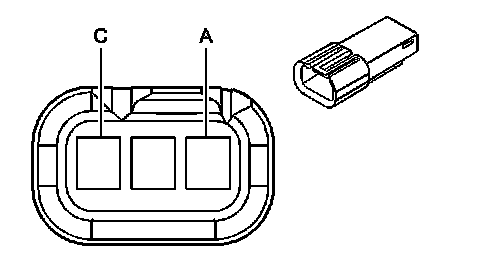

Outside Rearview Mirror - Driver (DG7)

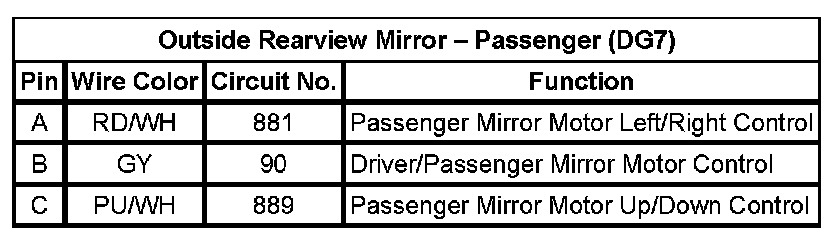

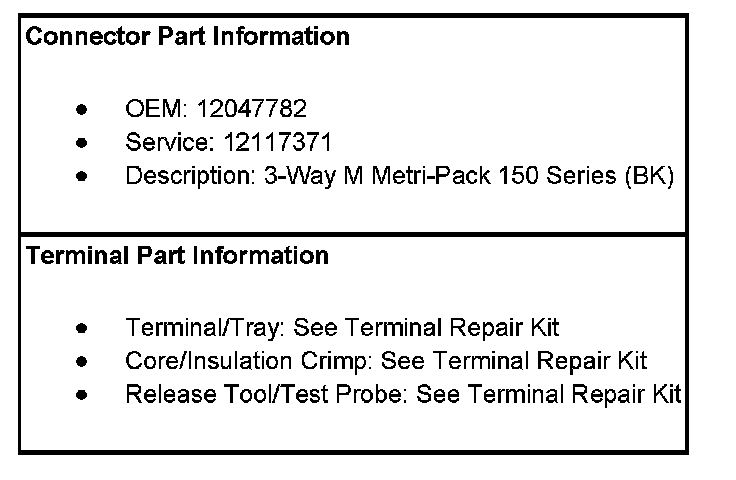

Outside Rearview Mirror - Passenger (DG7)
