Home >> Saturn >> 2007 >> ION L4-2.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Front Door Latch

Front Door Latch

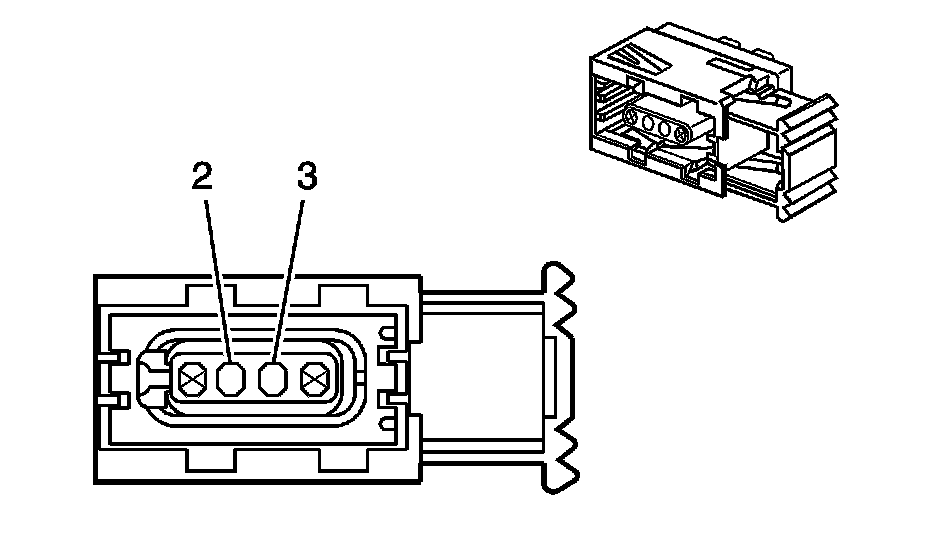

Vehicle Access Connector End Views

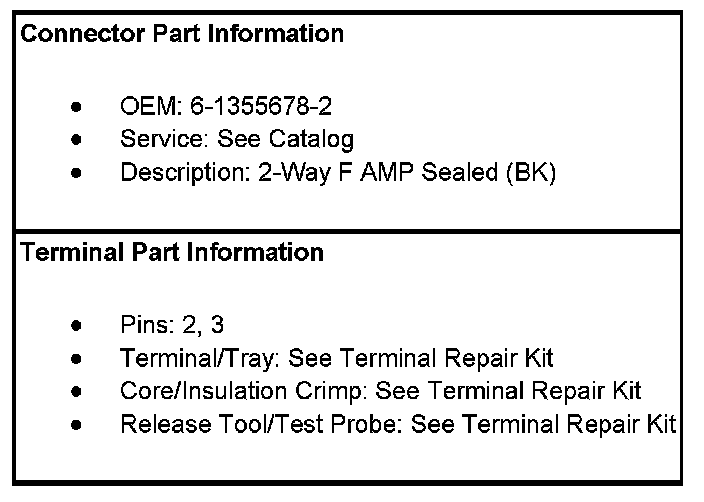

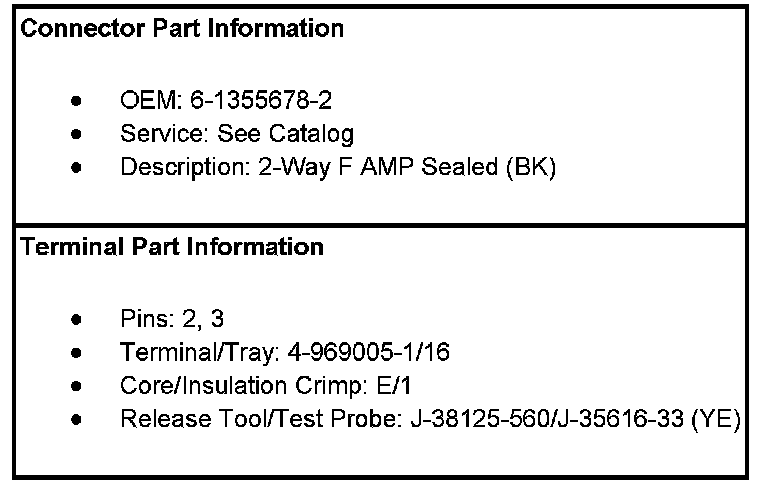

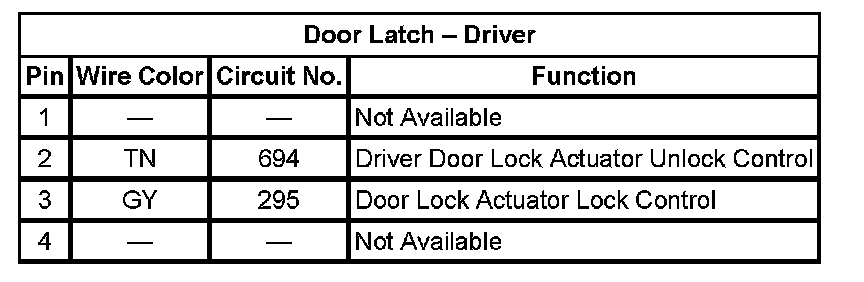

Door Latch - Driver

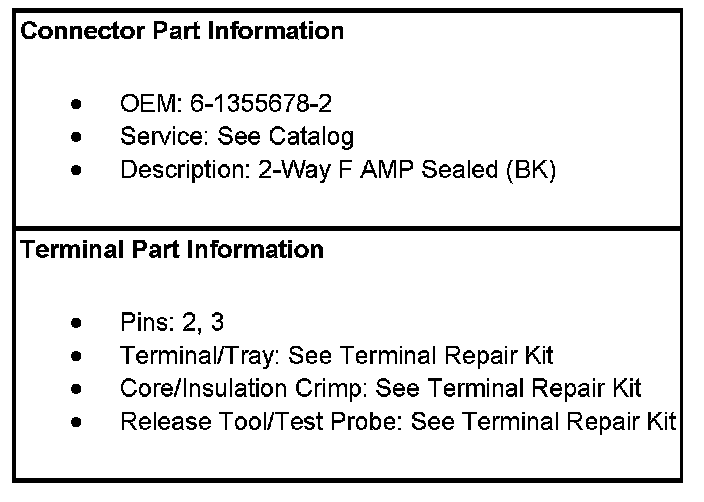

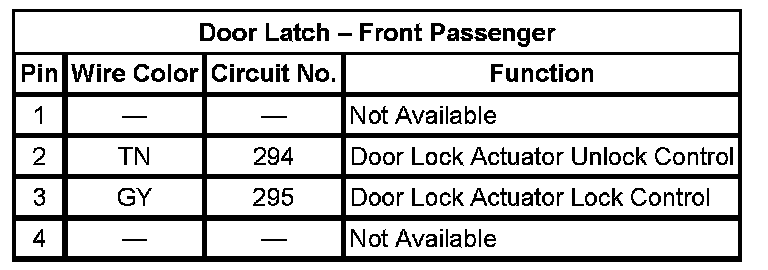

Door Latch - Front Passenger

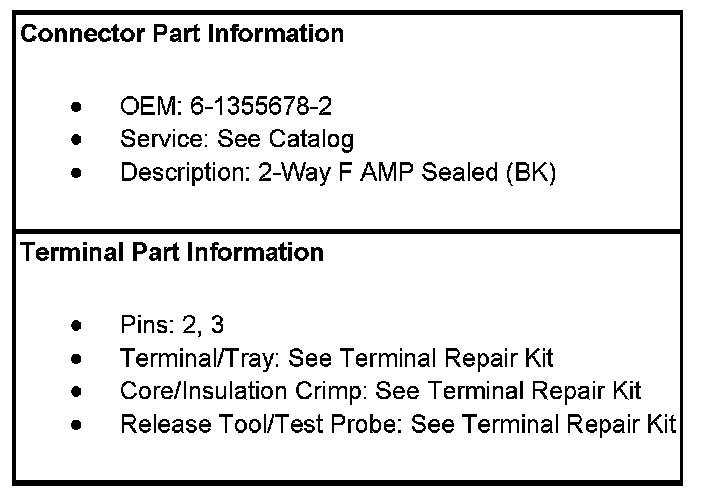

Door Latch - LR (Sedan)

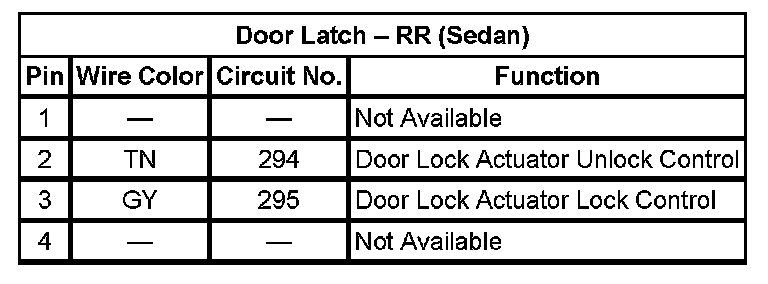

Door Latch - RR (Sedan)
