Electronic Brake Control Module



Antilock Brake System Connector End Views

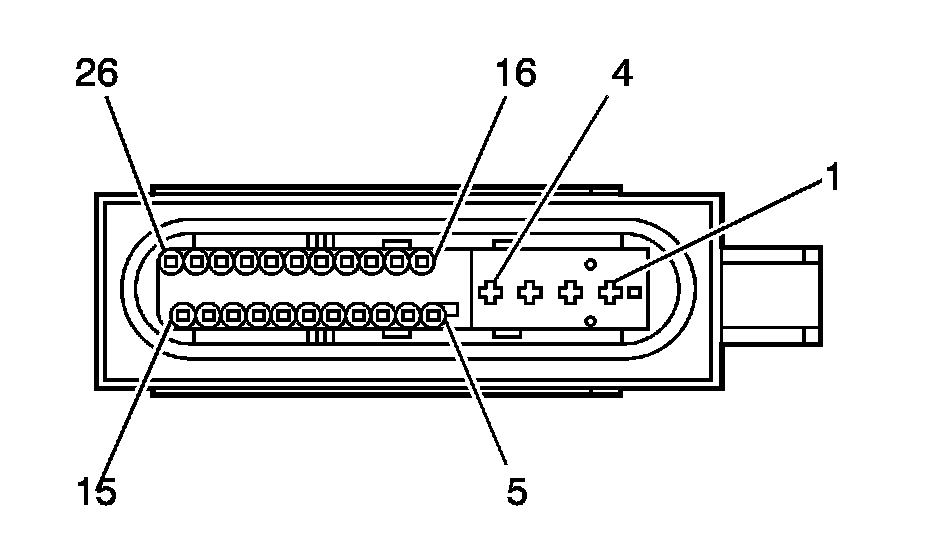

Electronic Brake Control Module (EBCM) (JM4/JL9)

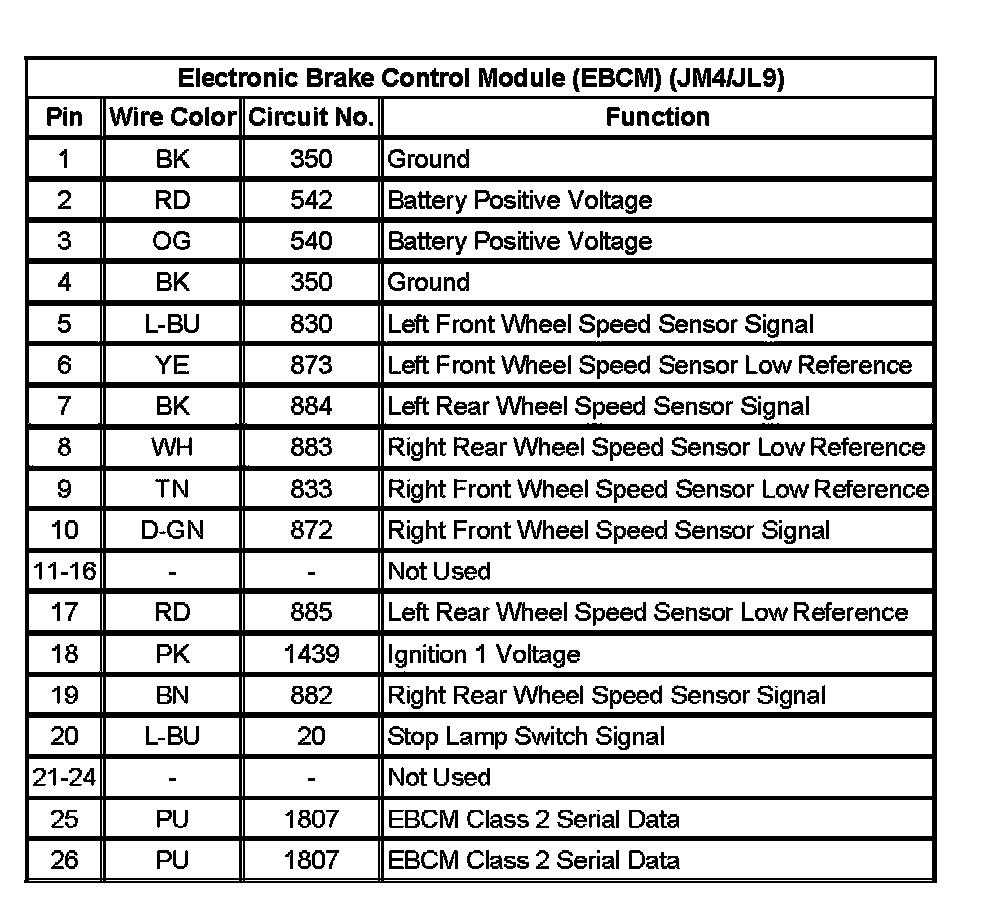

Electronic Brake Control Module (EBCM) (JM4/JL9):
