Body Control Module (BCM) C3

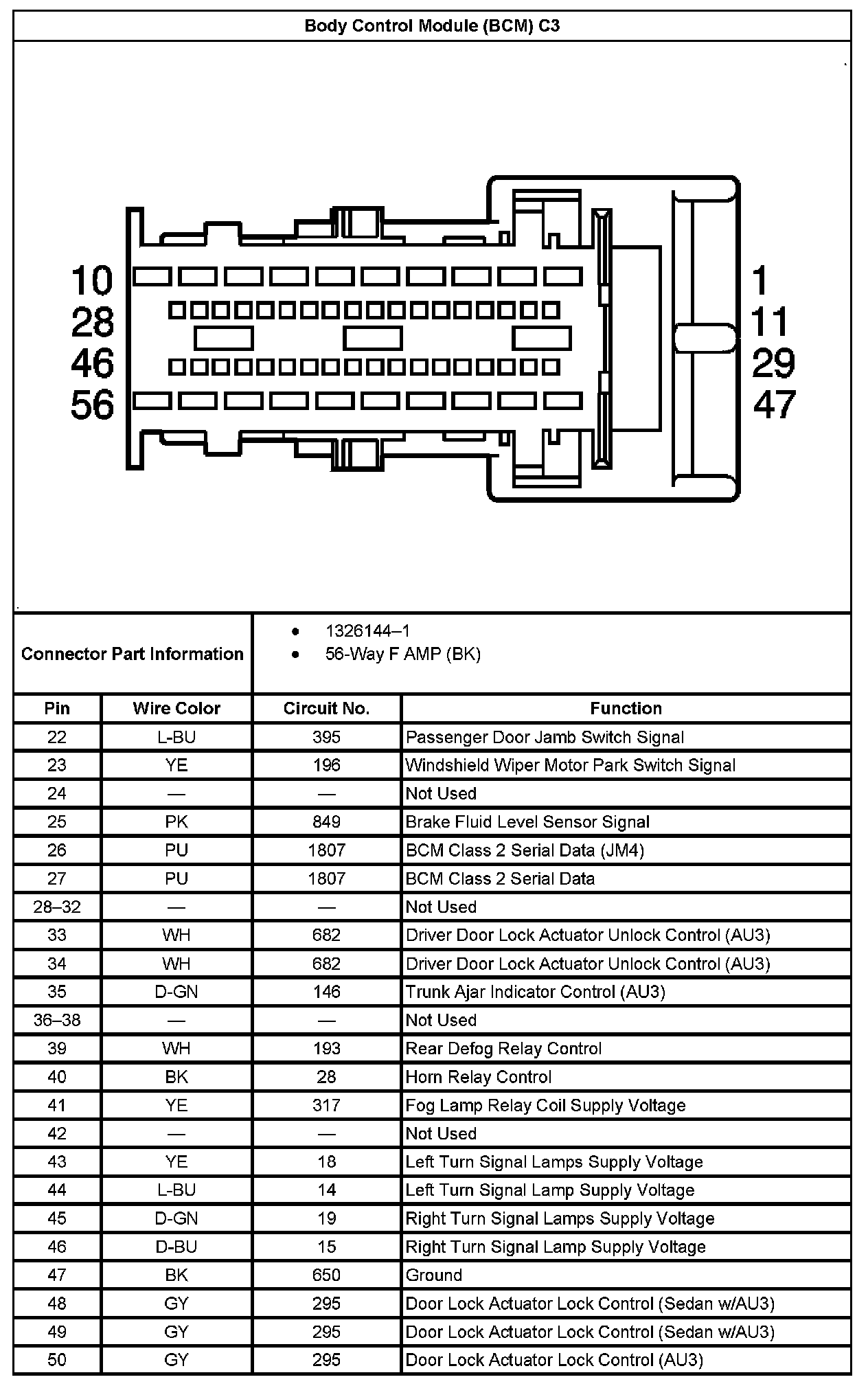

Body Control Module (BCM) C3 Part 1:

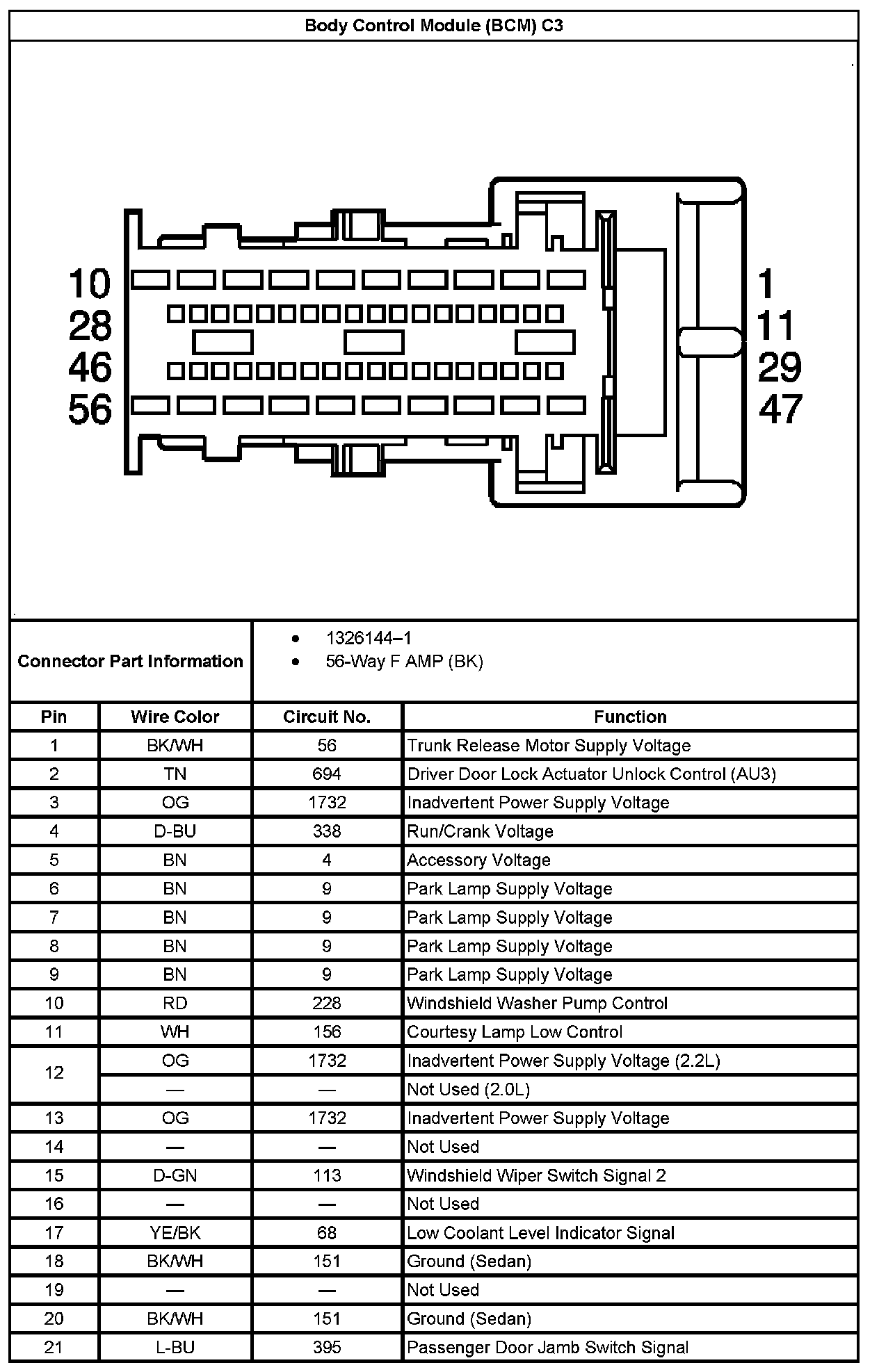

Body Control Module (BCM) C3 Part 2:

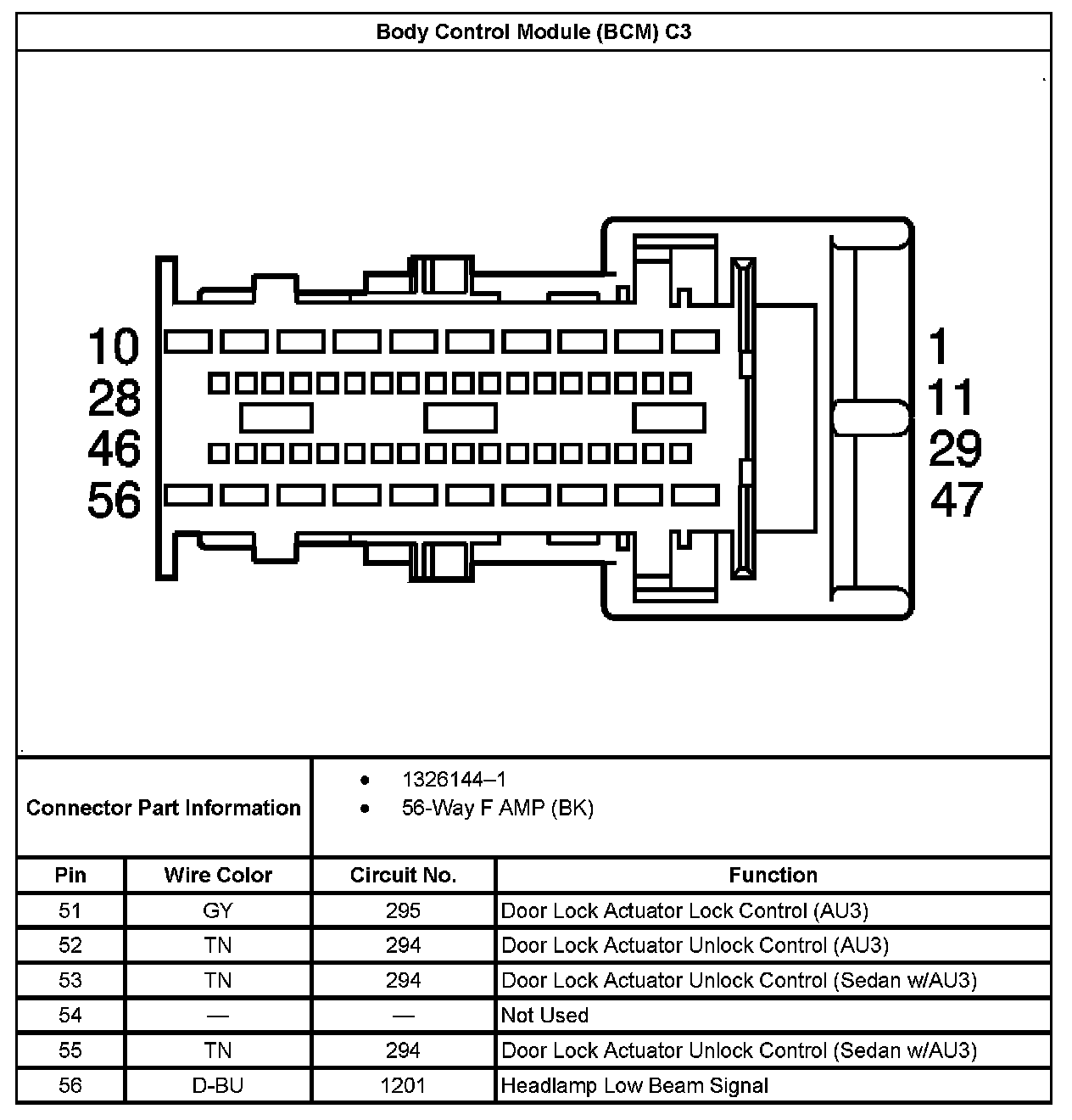

Body Control Module (BCM) C3 Part 3:

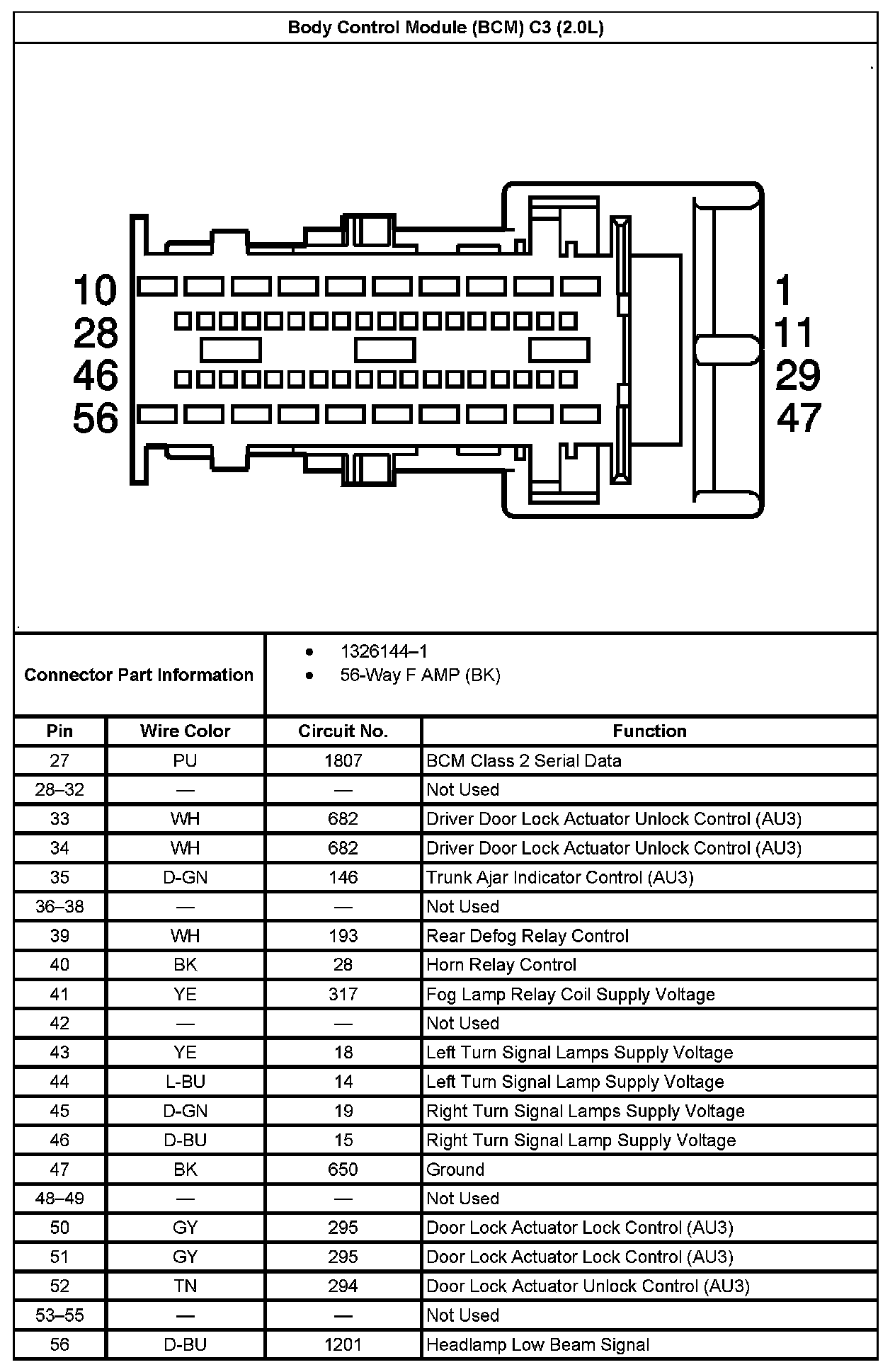

Body Control Module (BCM) C3 Part 1:

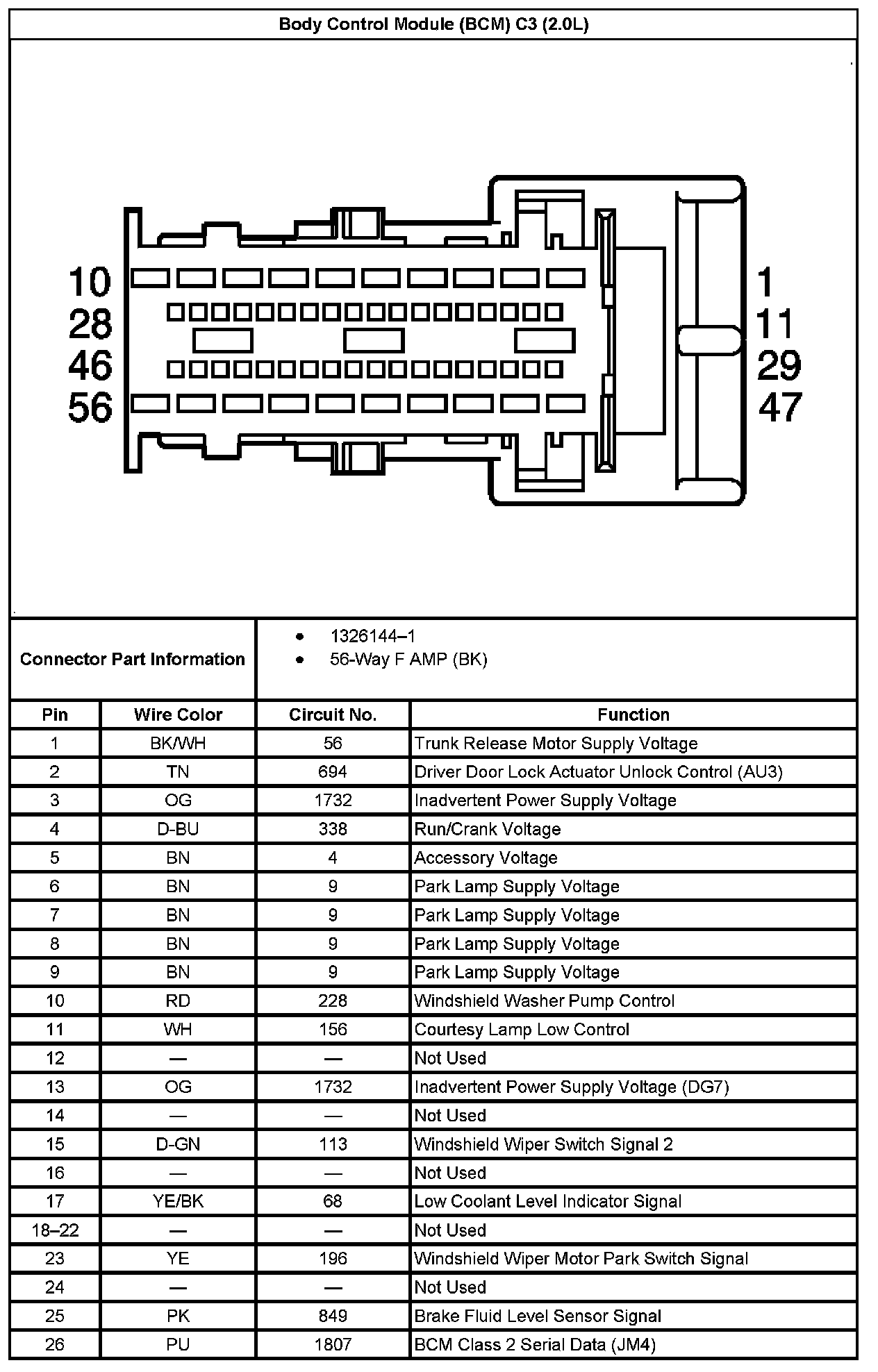

Body Control Module (BCM) C3 Part 2:
