ION L4-2.0L SC VIN P
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Steering Column
>>
Steering Column Control Module
Steering Column Control Module

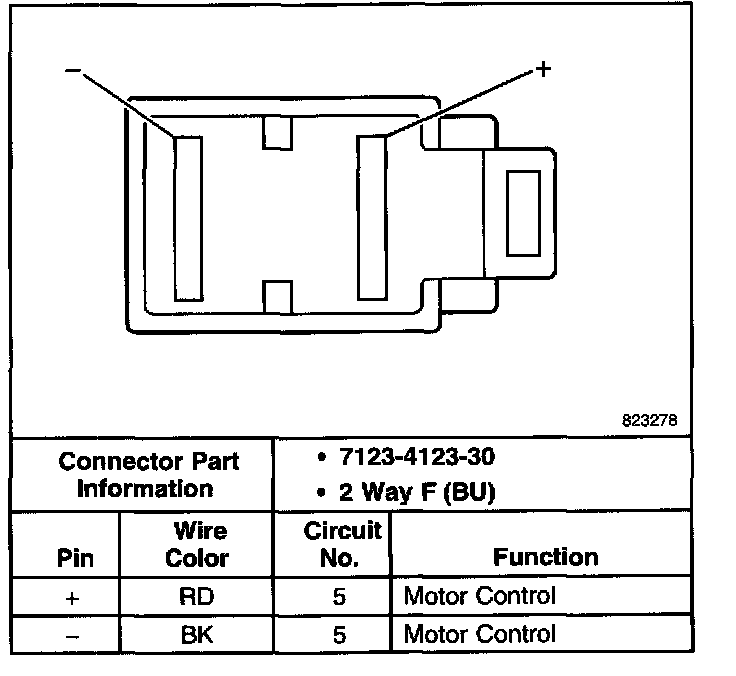

Power Steering Control Module (PSCM) C1:

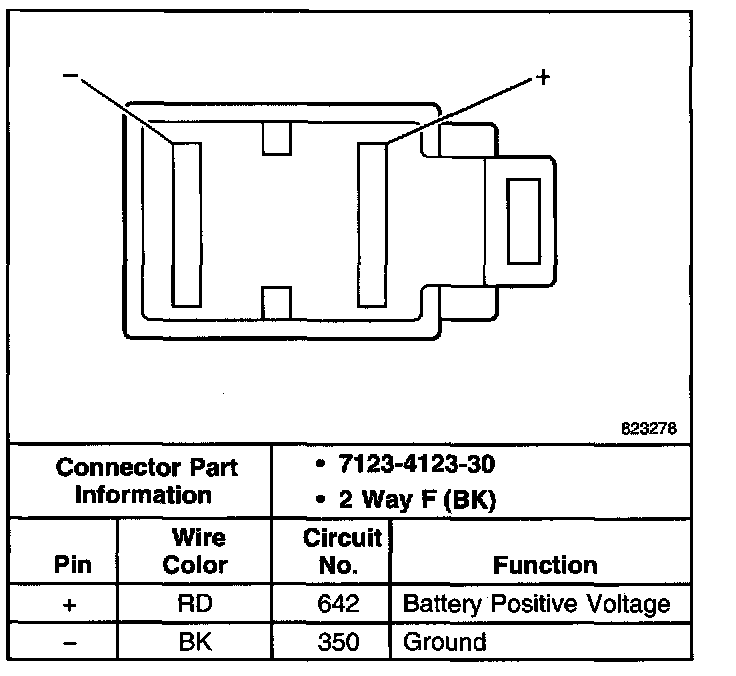

Power Steering Control Module (PSCM) C2:

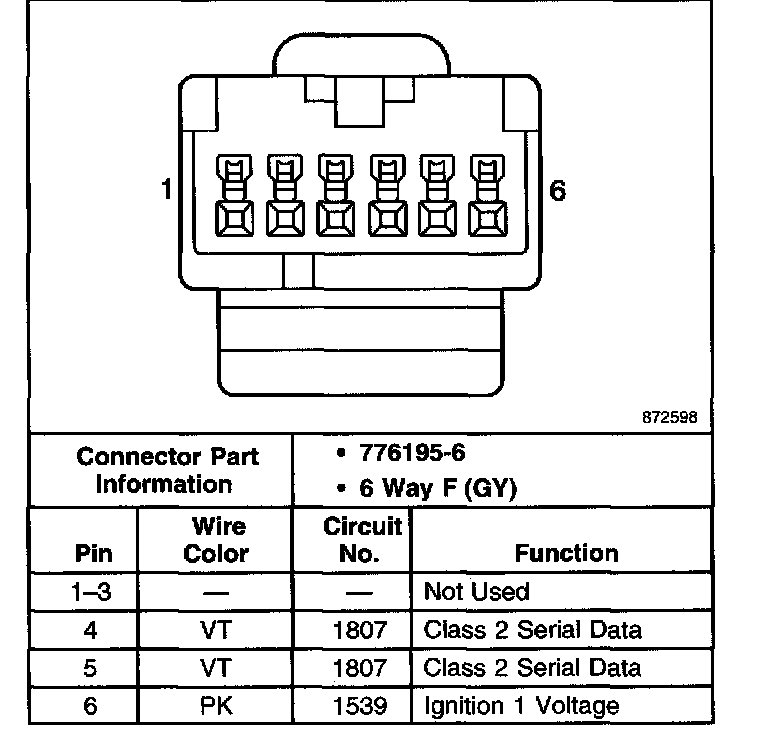

Power Steering Control Module (PSCM) C3:
