Home >> Saturn >> 2004 >> ION L4-2.0L SC VIN P >> Repair and Diagnosis >> Diagrams >> Connector Views >> Body Control Module >> Body Control Module (BCM) C2

Body Control Module (BCM) C2

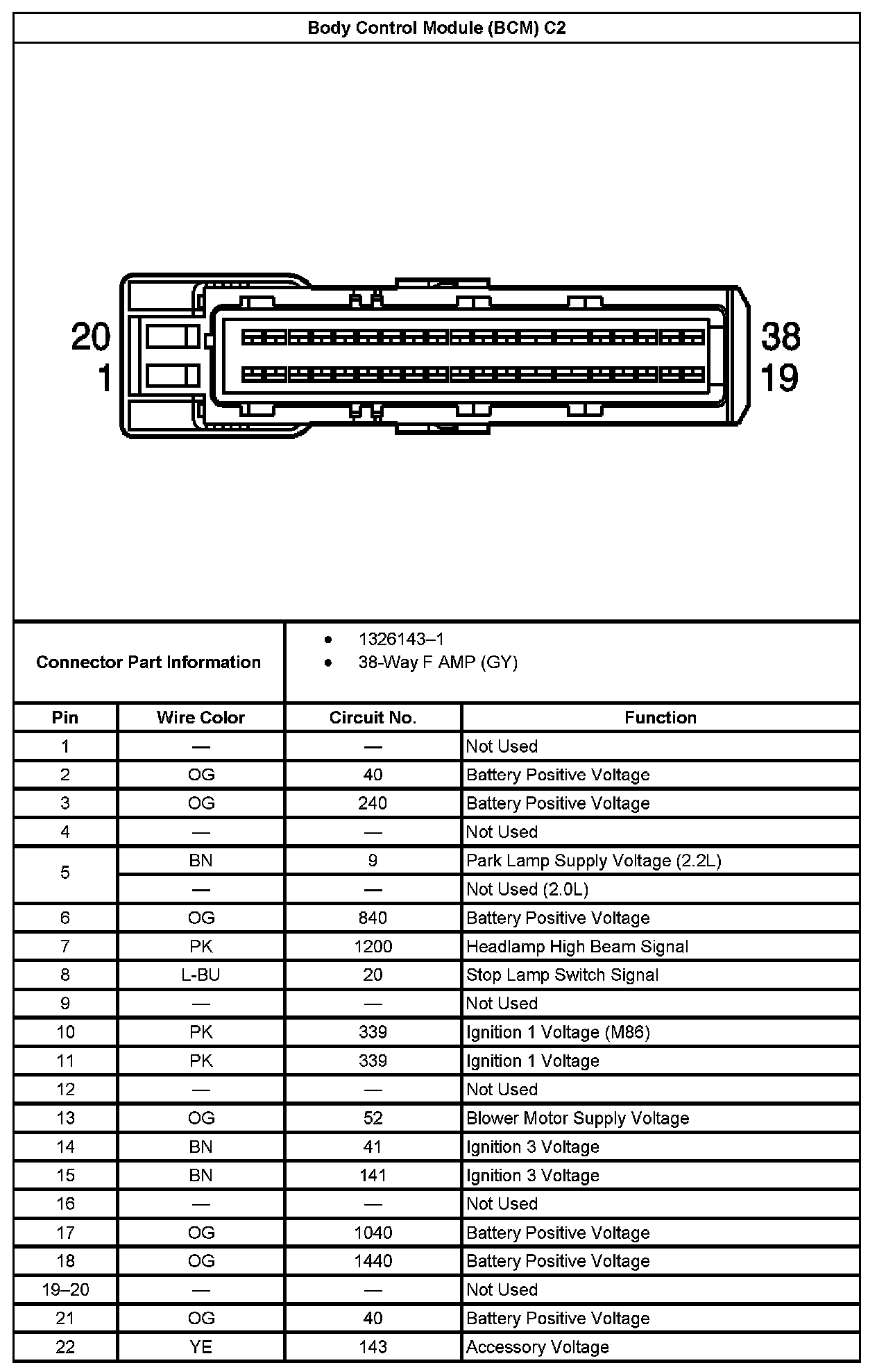

Body Control Module (BCM) C2 Part 1:

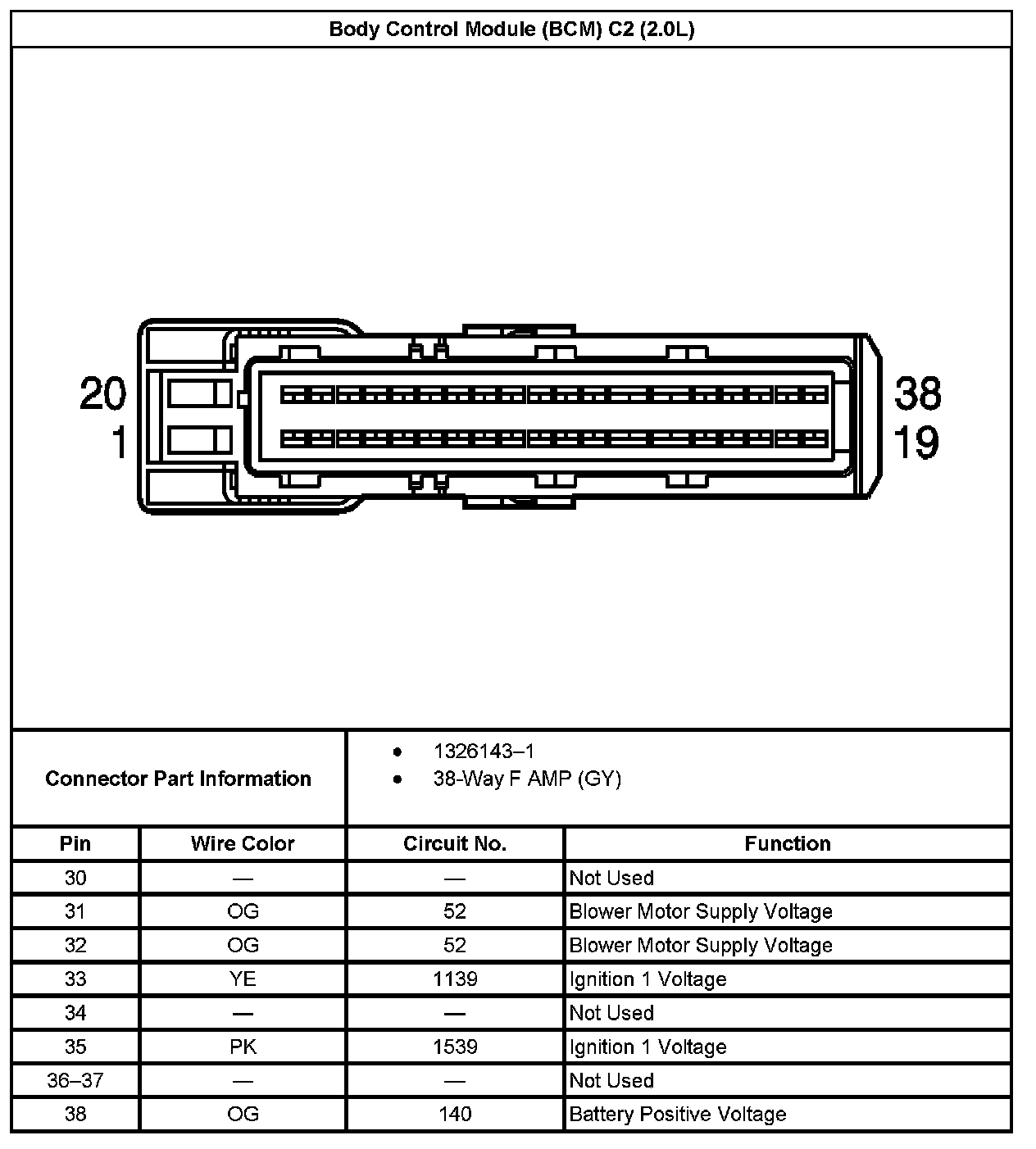

Body Control Module (BCM) C2 Part 2:

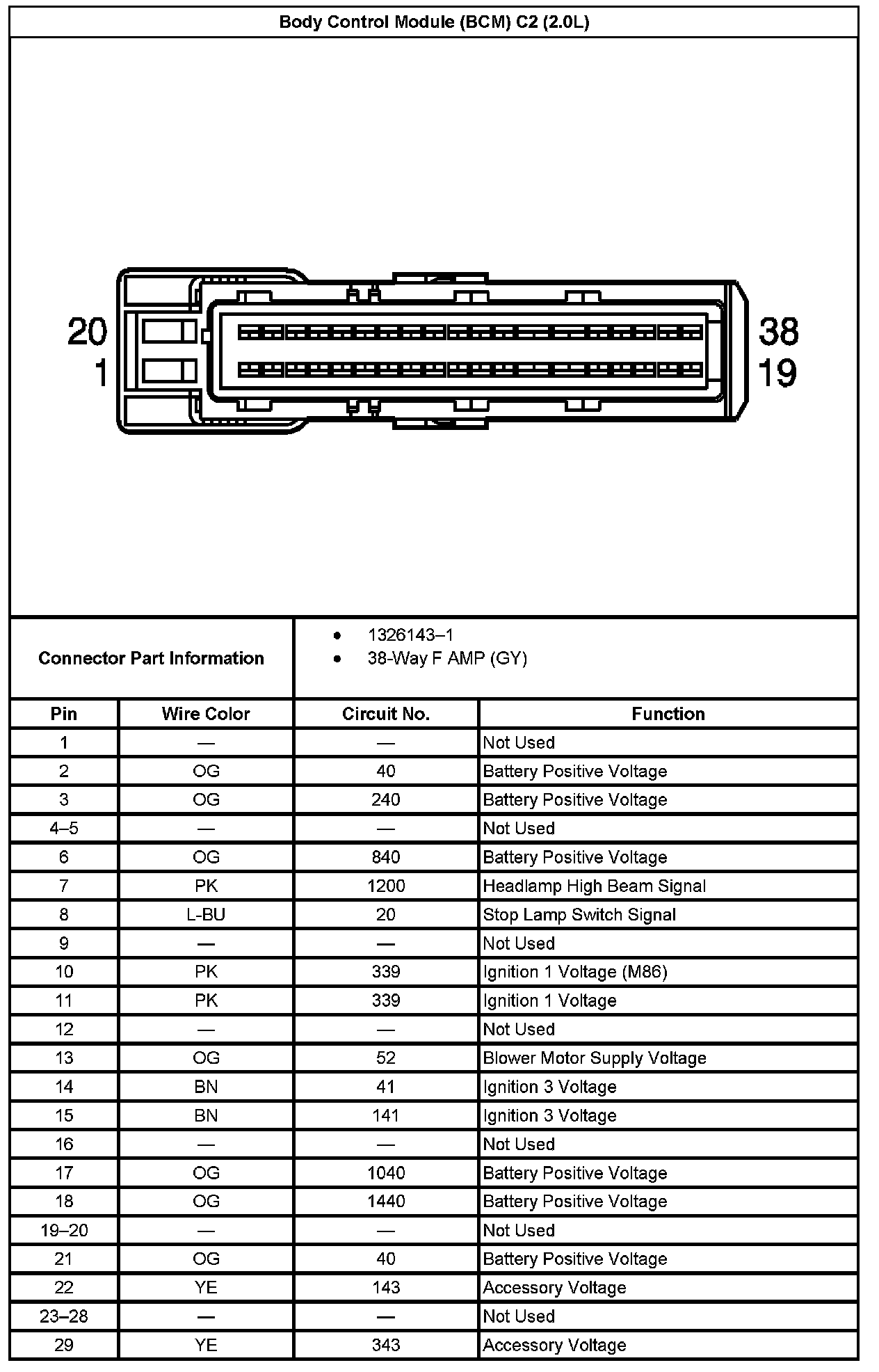

Body Control Module (BCM) C2 Part 1:

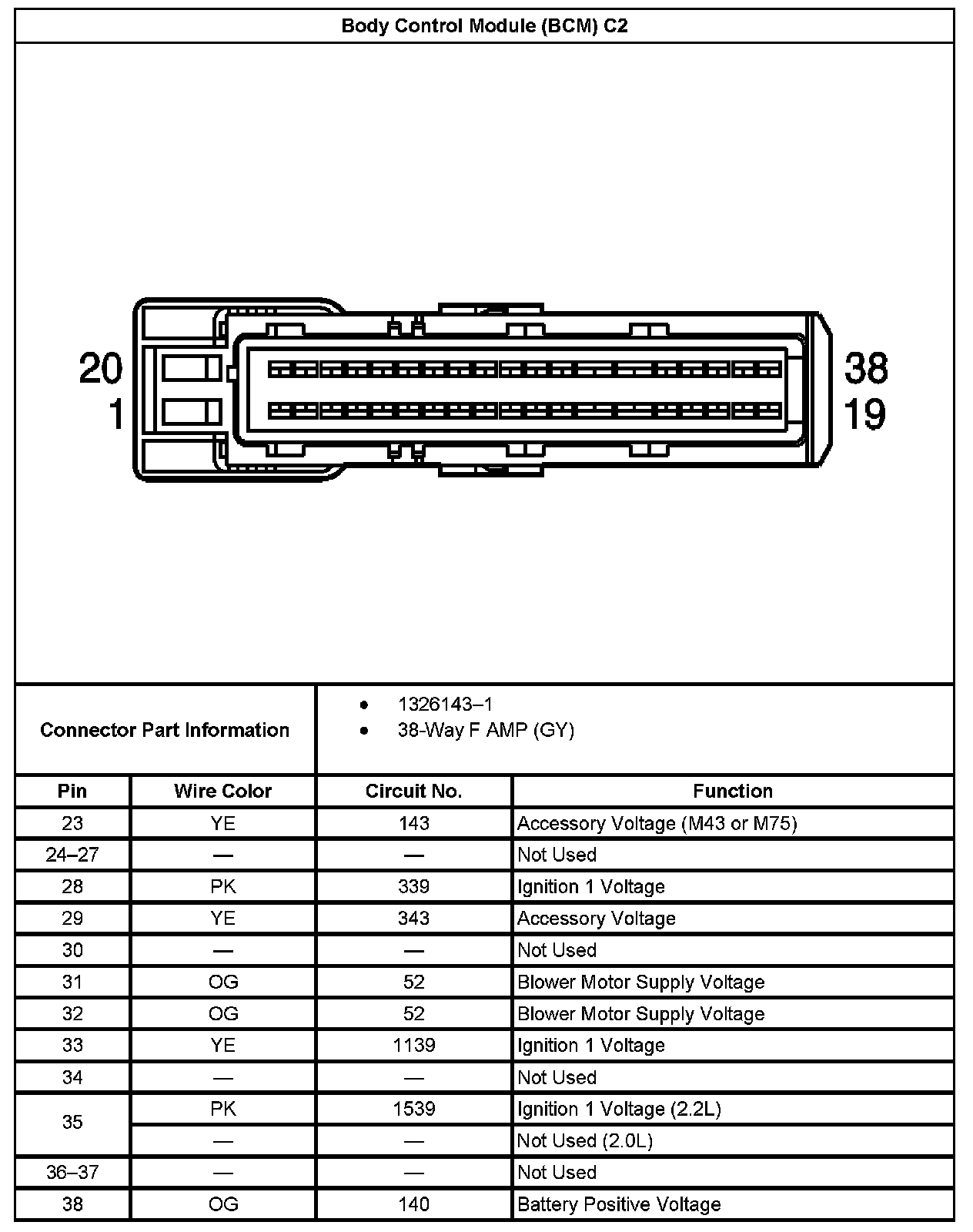

Body Control Module (BCM) C2 Part 2:
