Home >> Saturn >> 2004 >> ION L4-2.0L SC VIN P >> Repair and Diagnosis >> Diagrams >> Connector Views >> Body Control Module >> Body Control Module (BCM) C1

Body Control Module (BCM) C1

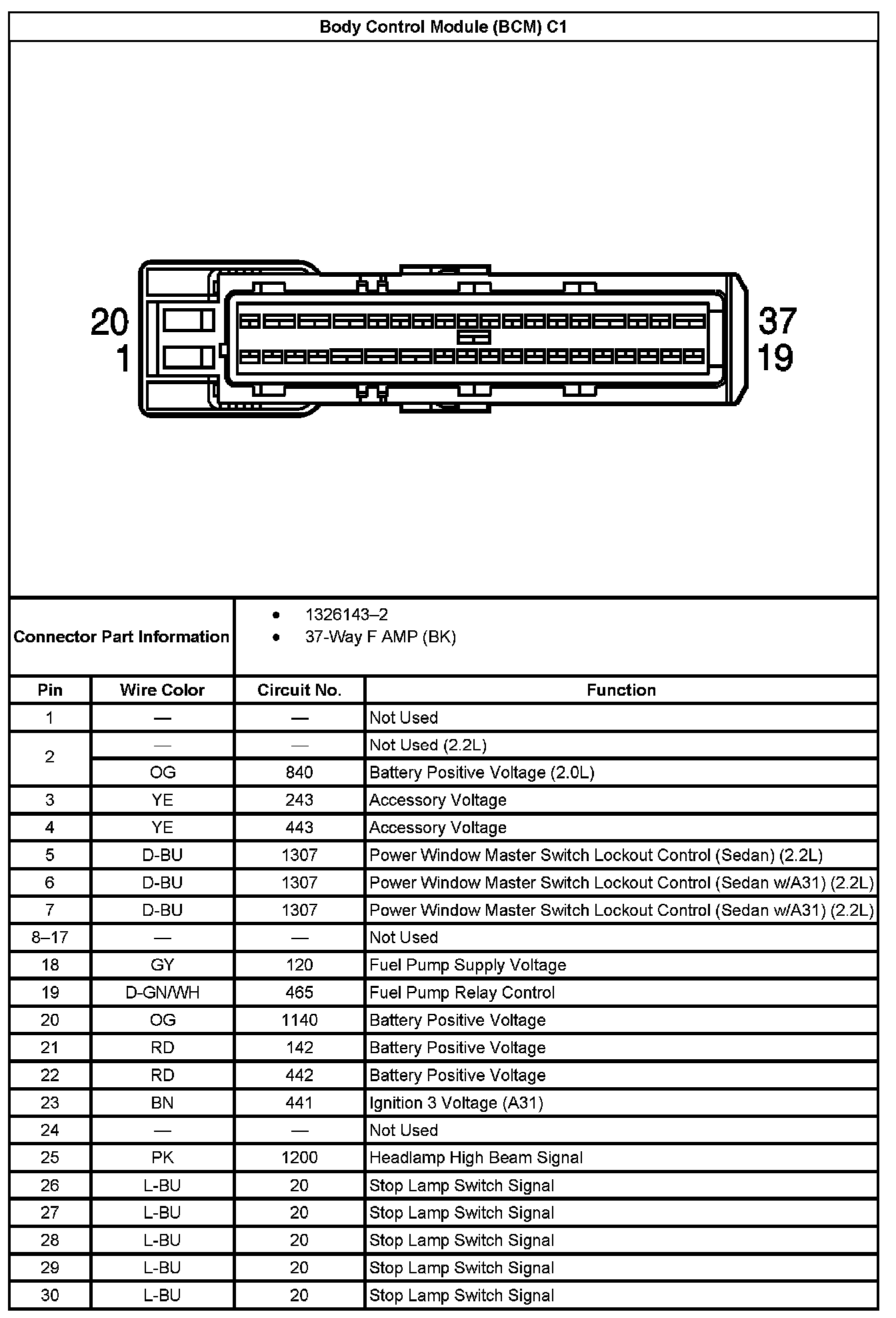

Body Control Module (BCM) C1 Part 1:

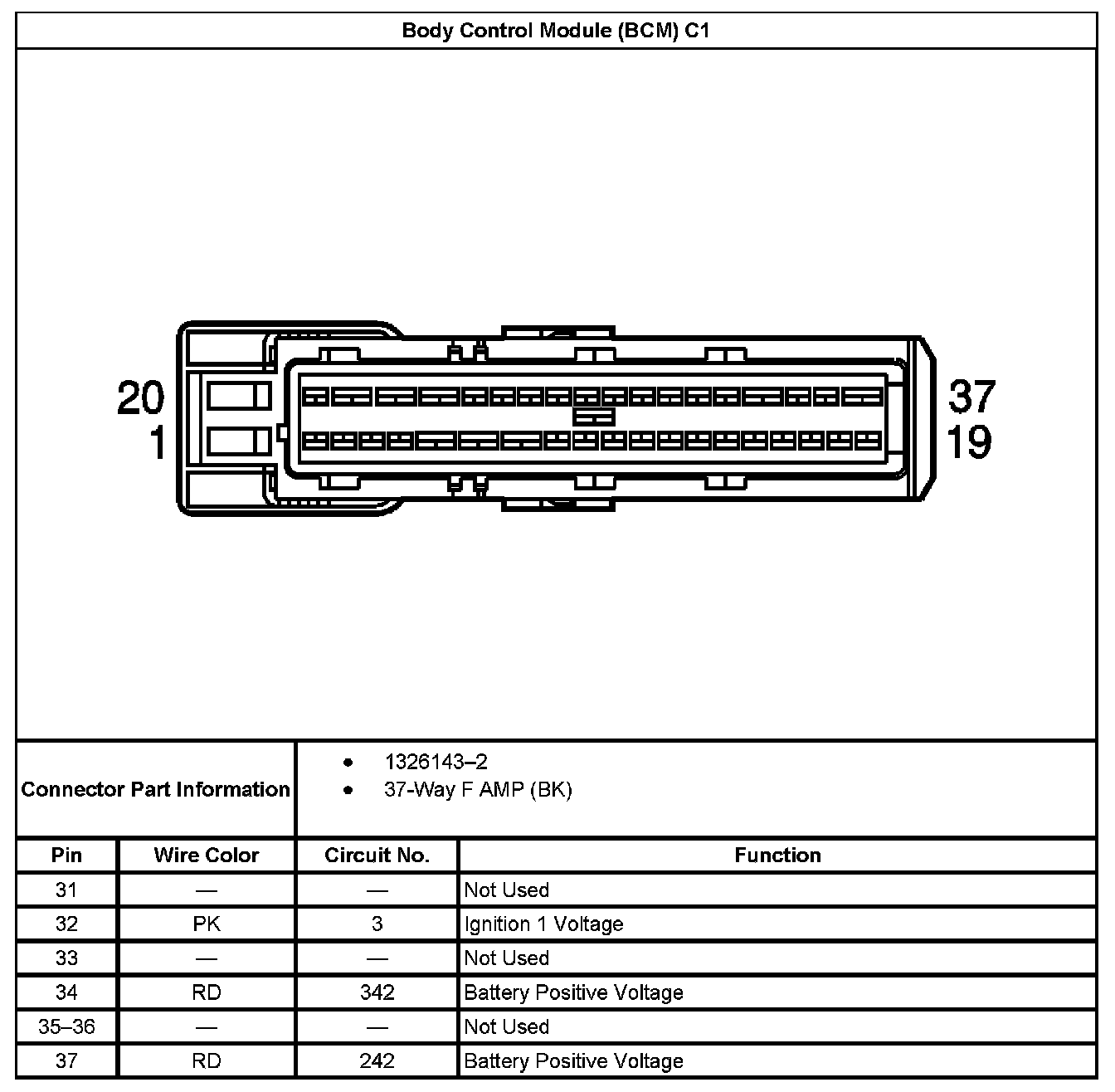

Body Control Module (BCM) C1 Part 2:

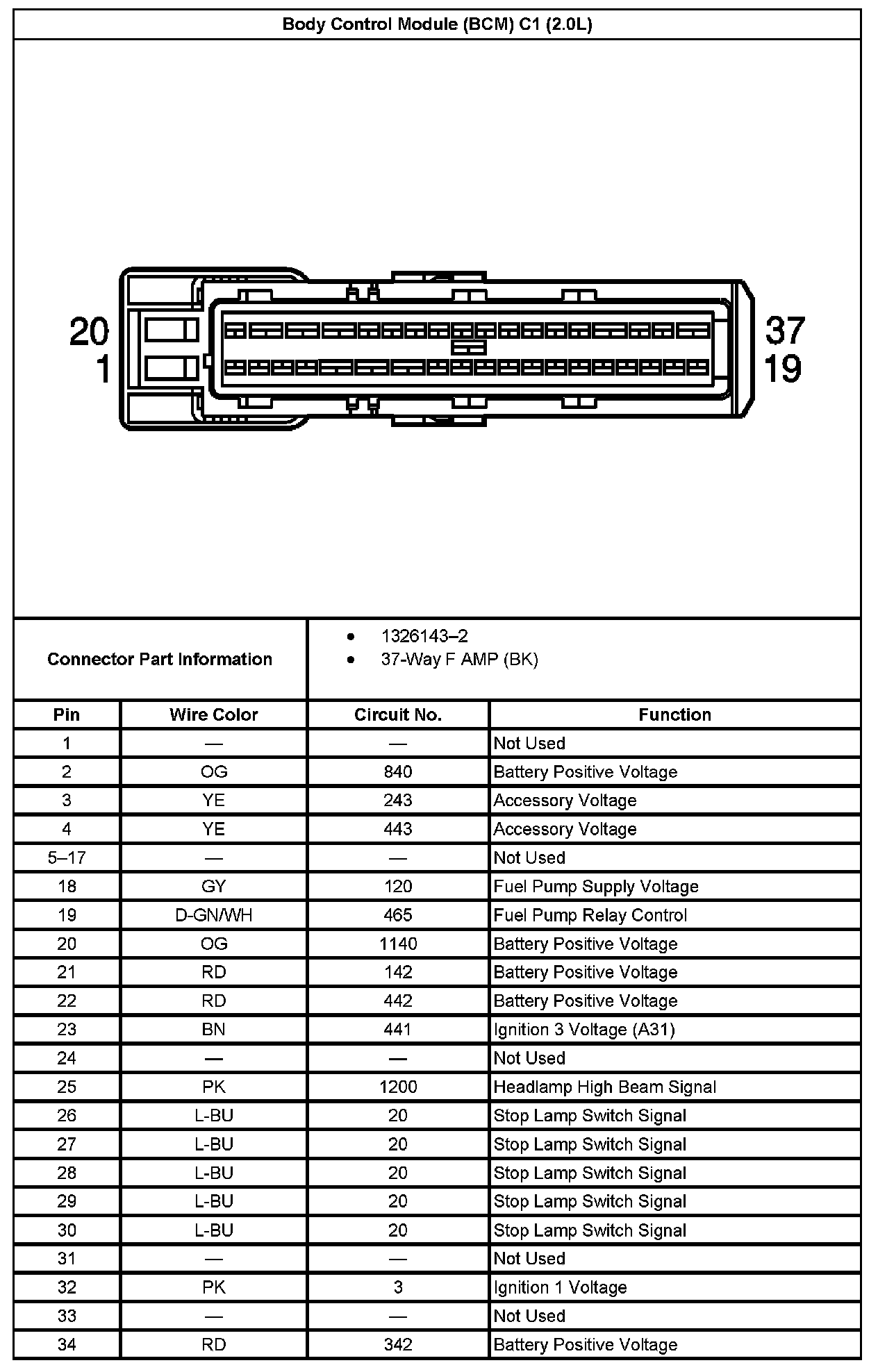

Body Control Module (BCM) C1 Part 1:

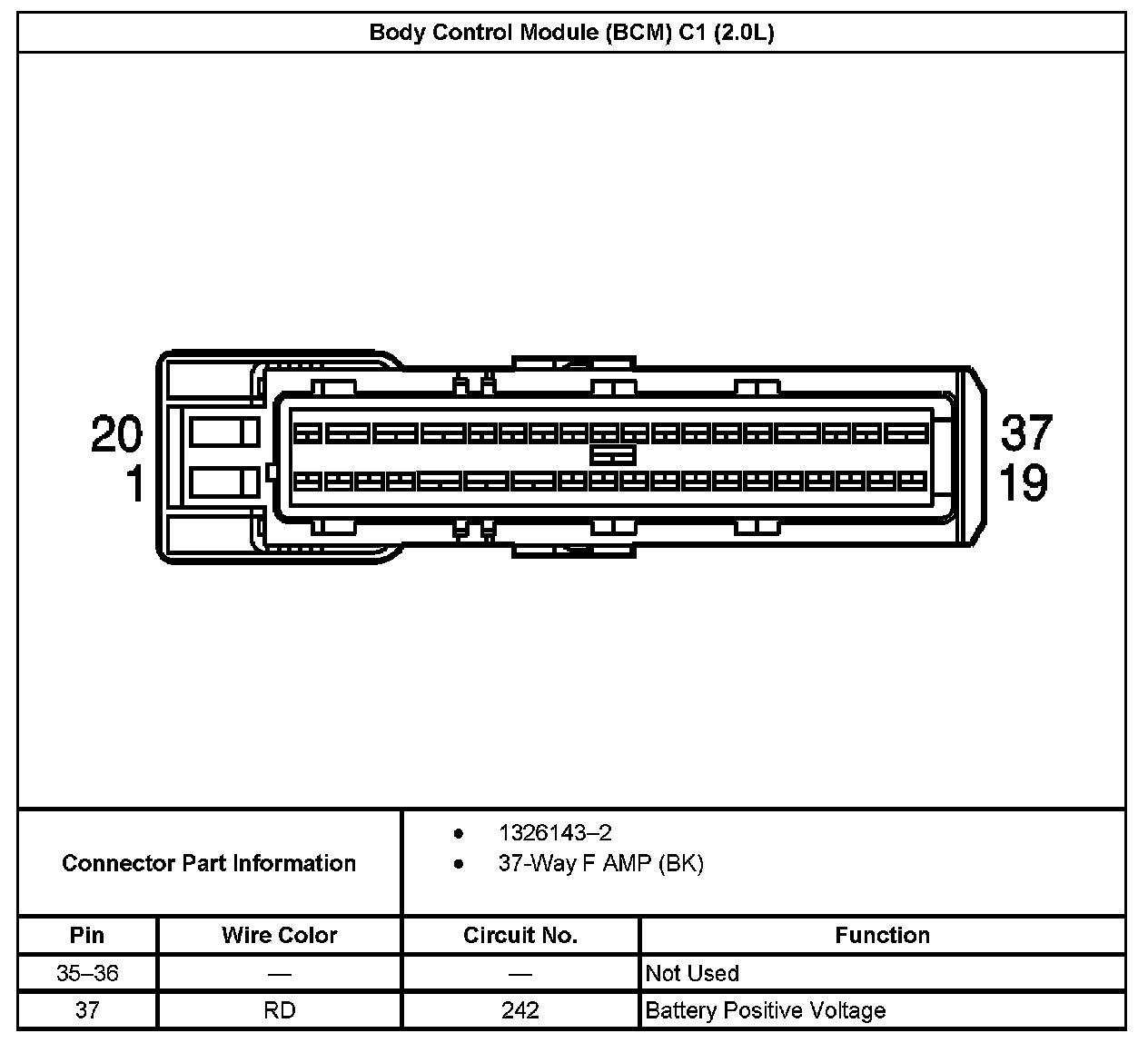

Body Control Module (BCM) C1 Part 2:
