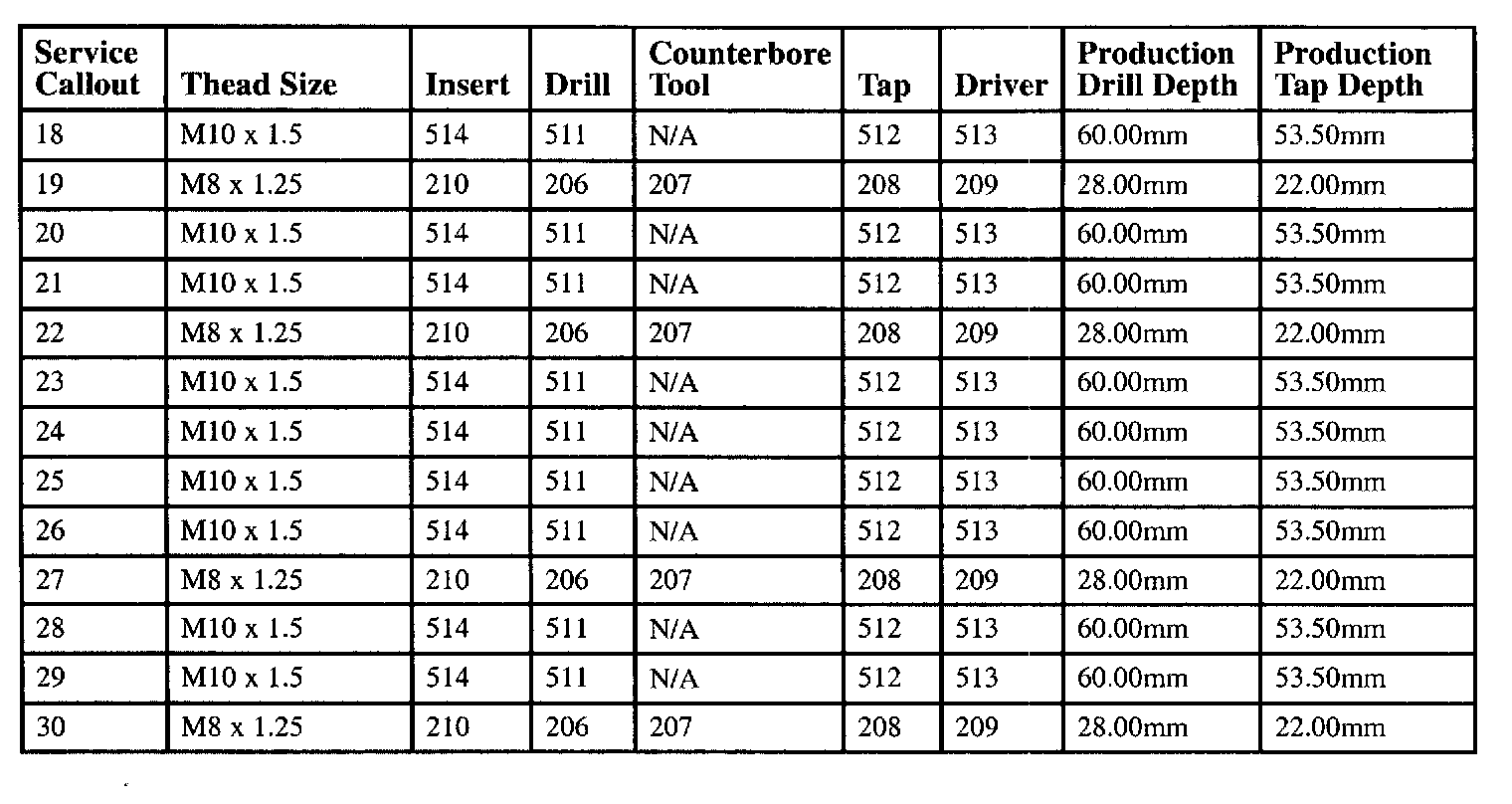

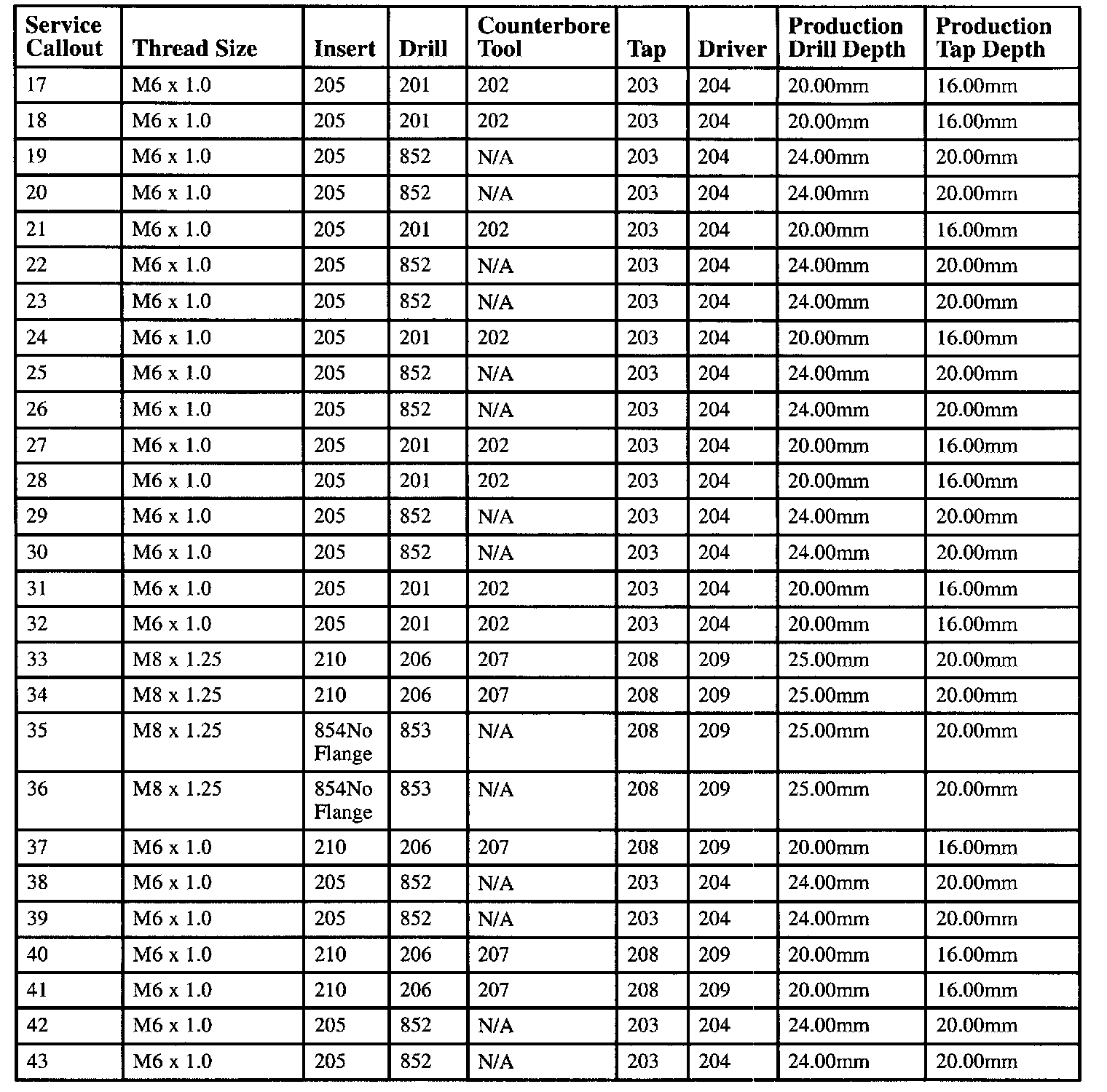

Thread Repair Specifications

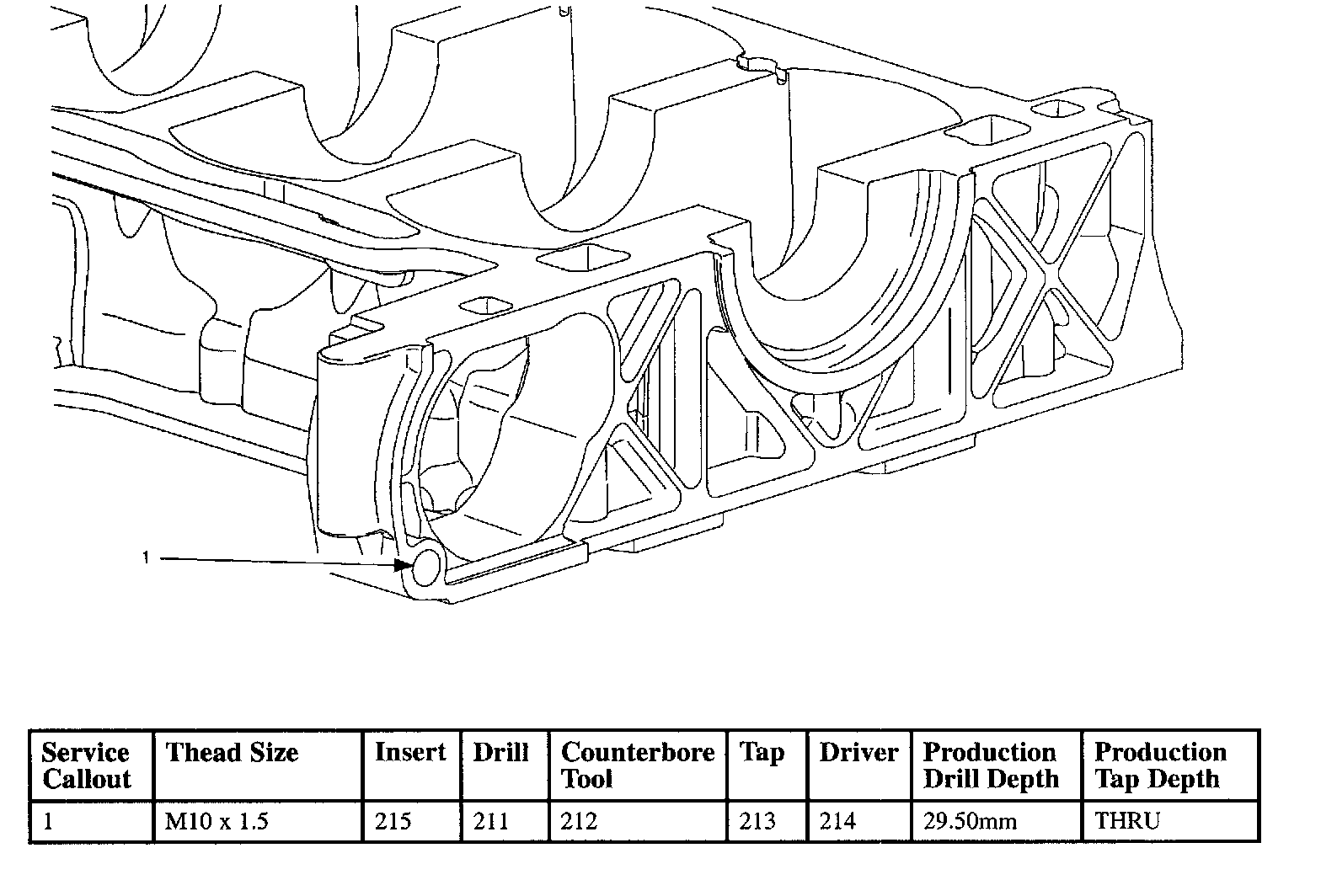

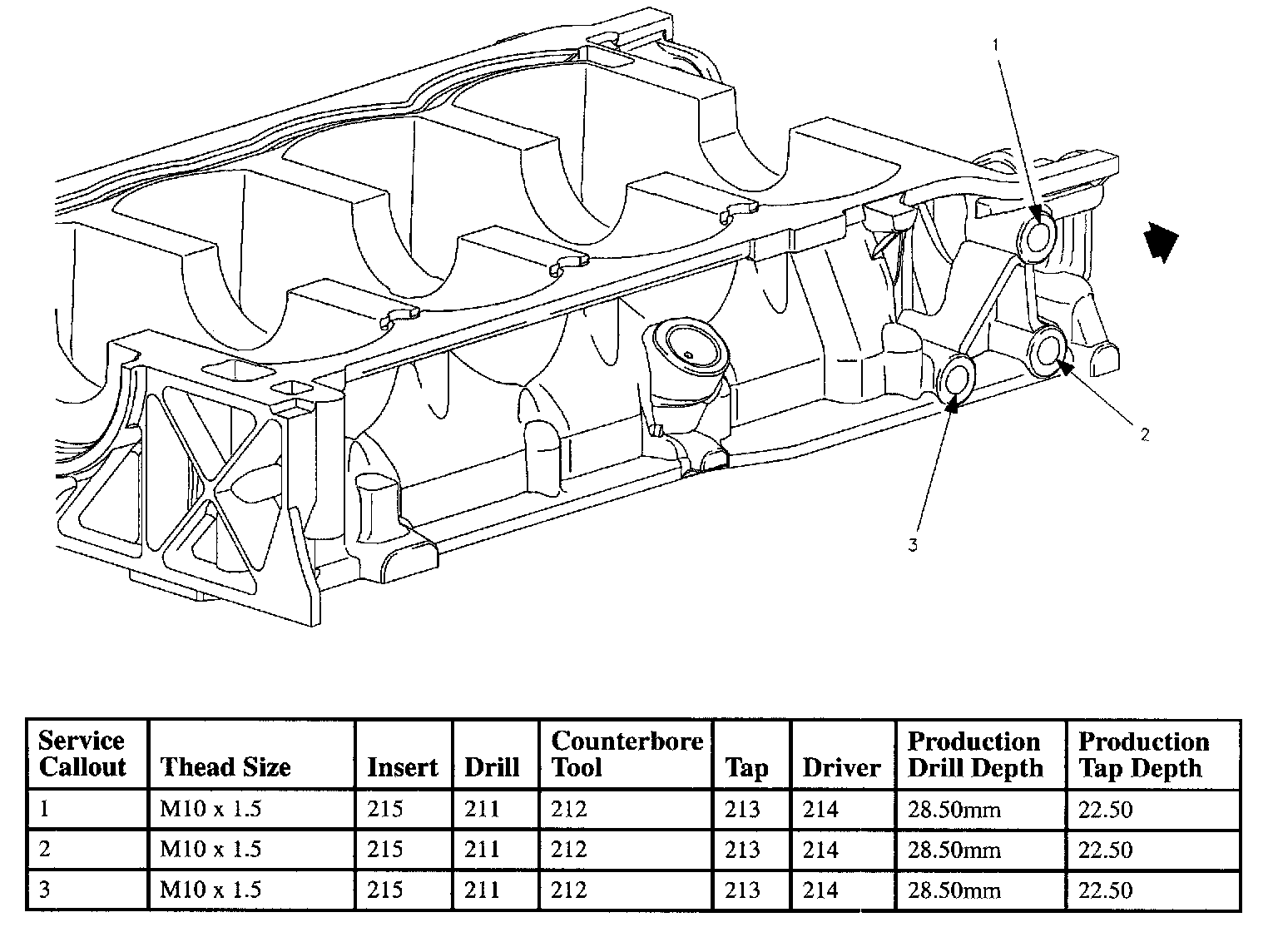

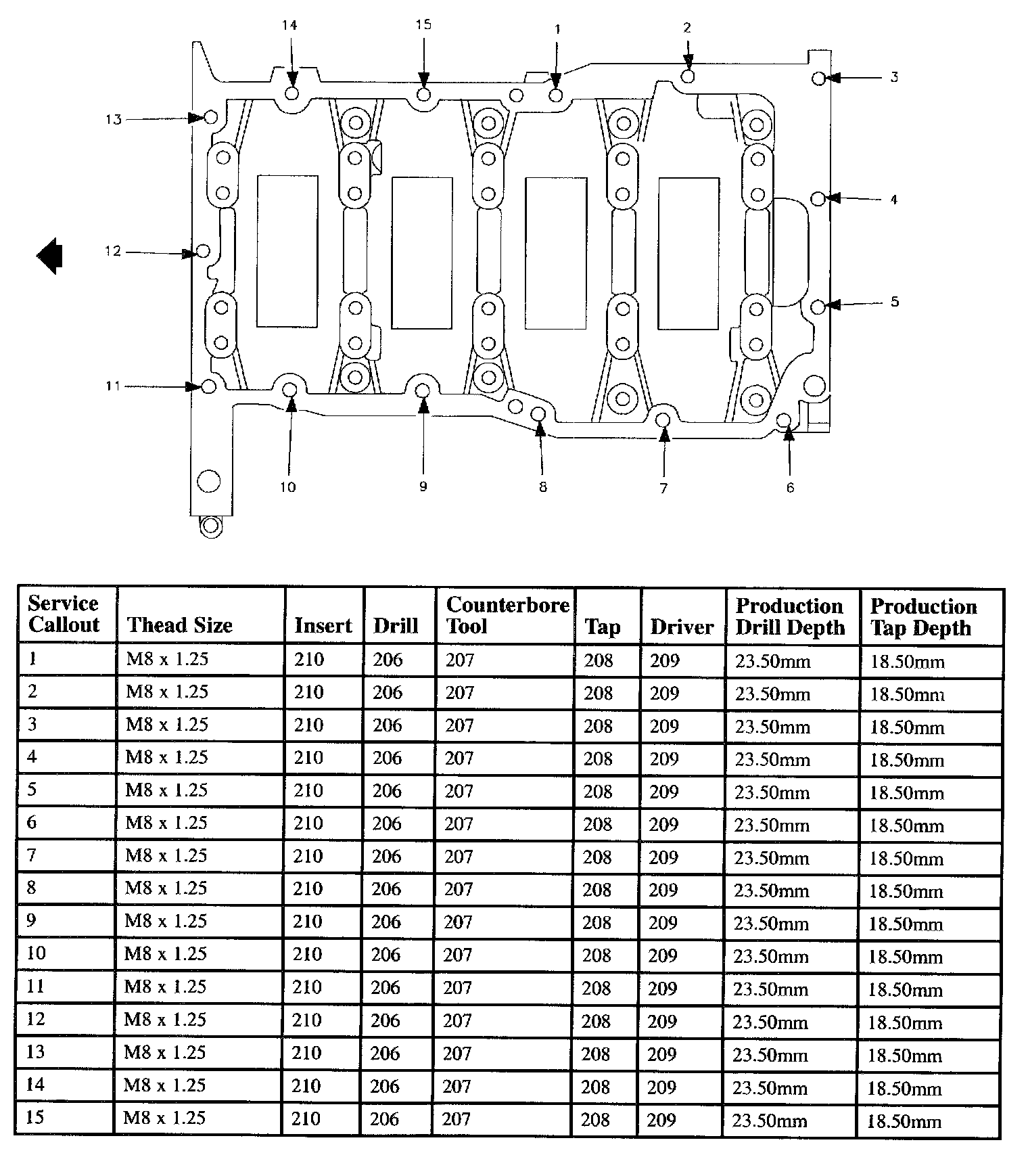

Lower Crankcase - Back View

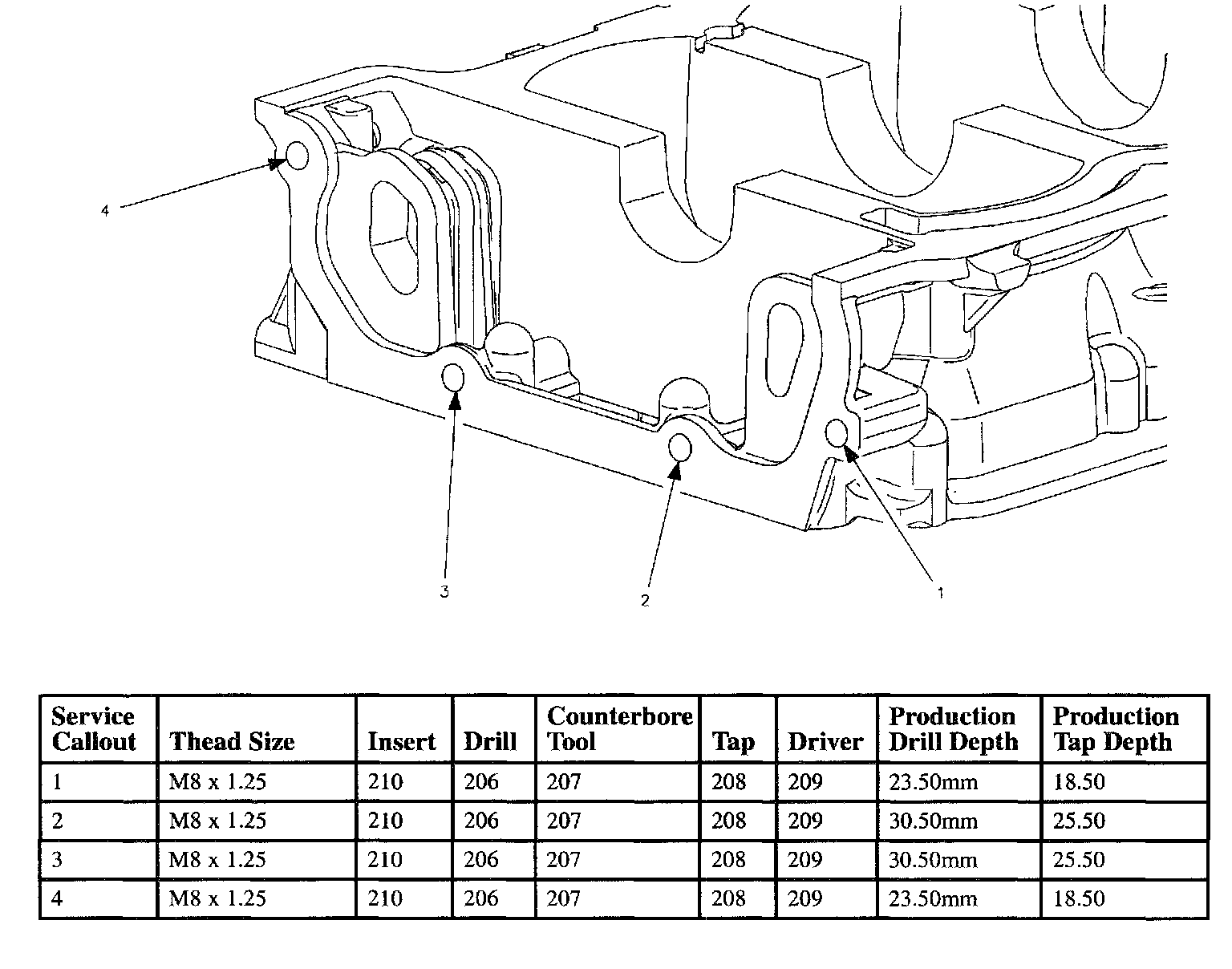

Lower Right Crankcase
Lower Left Crankcase

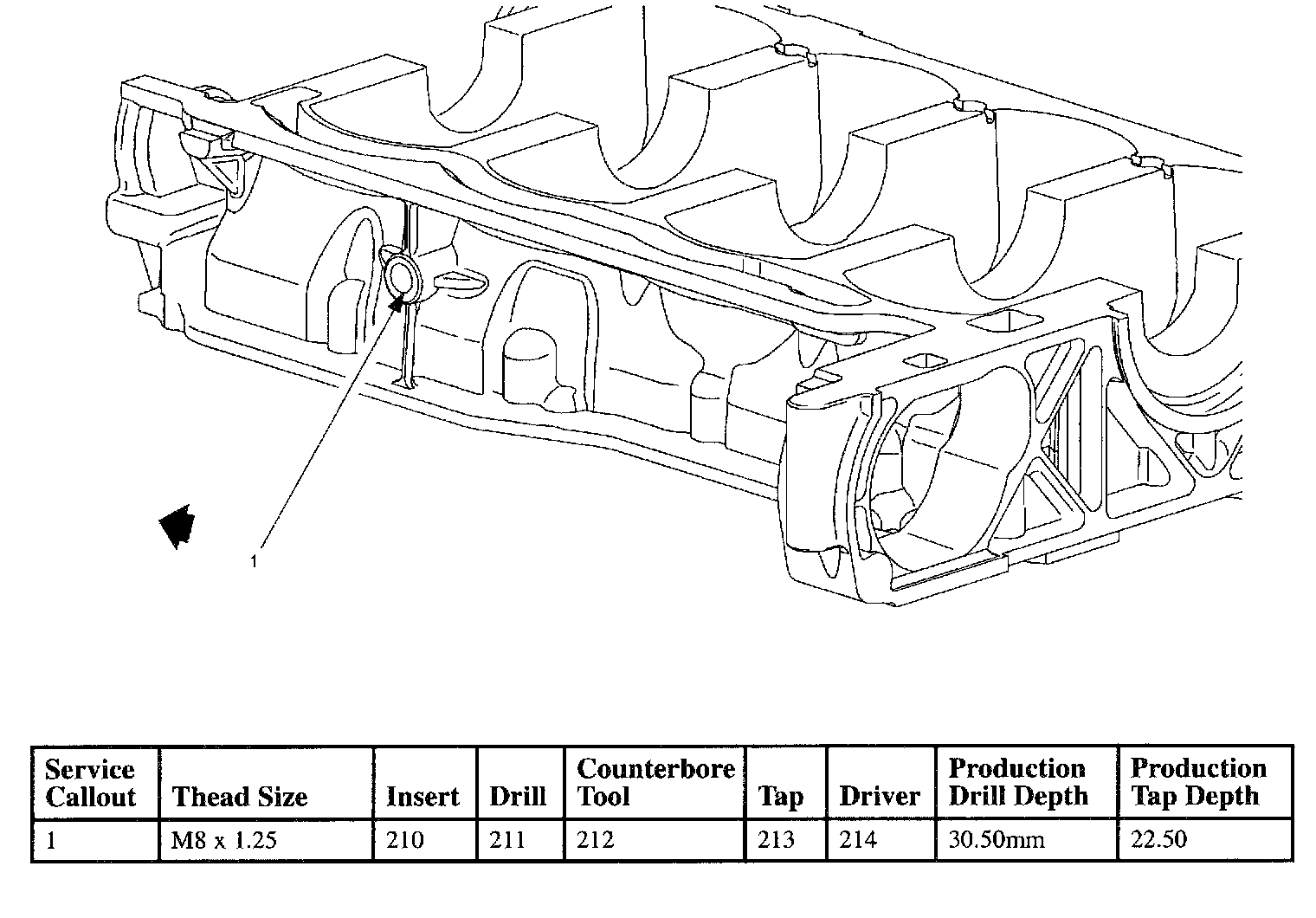

Lower Crankcase - Front View

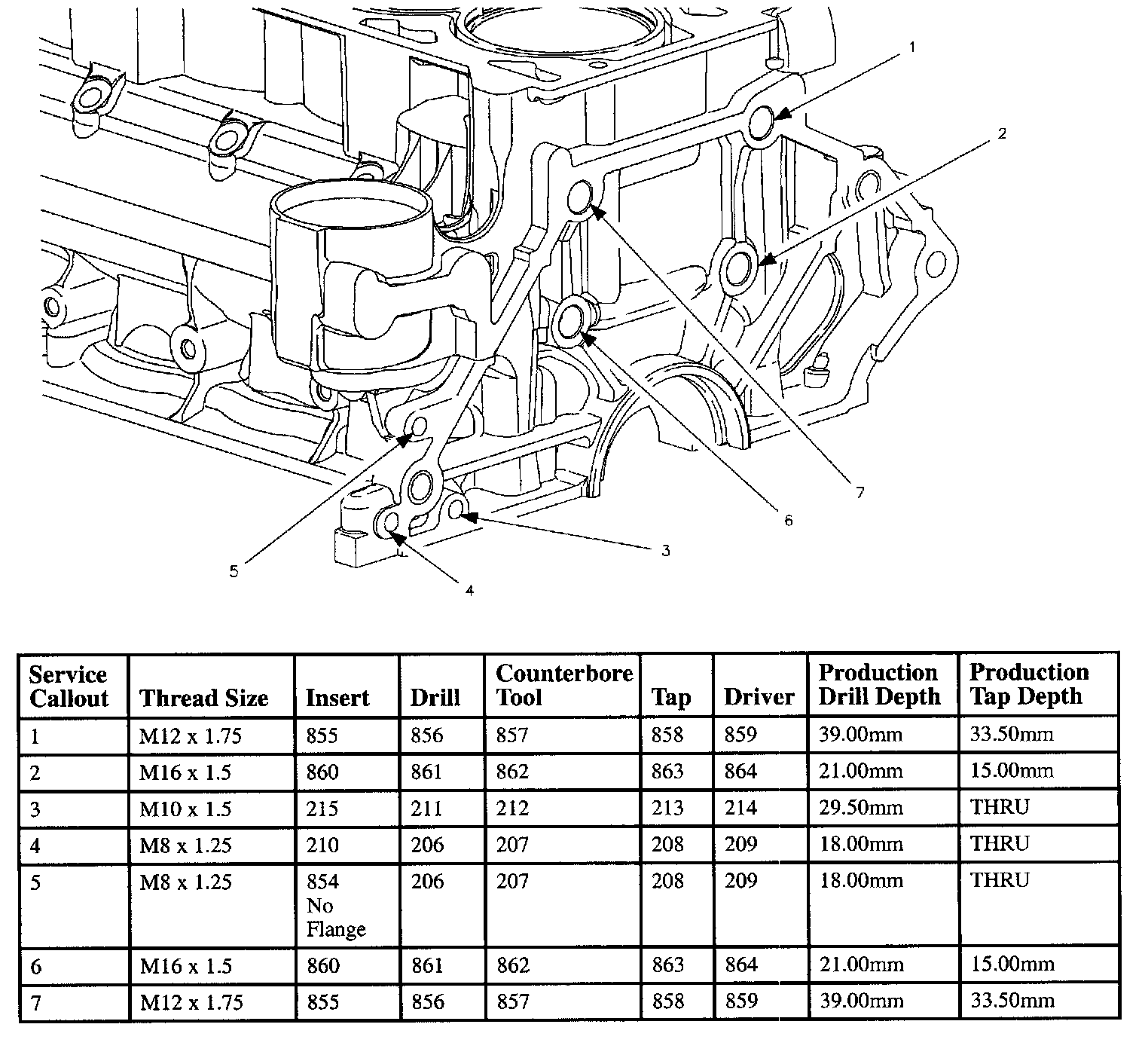

Engine Block - Front View
Engine Block - Back View

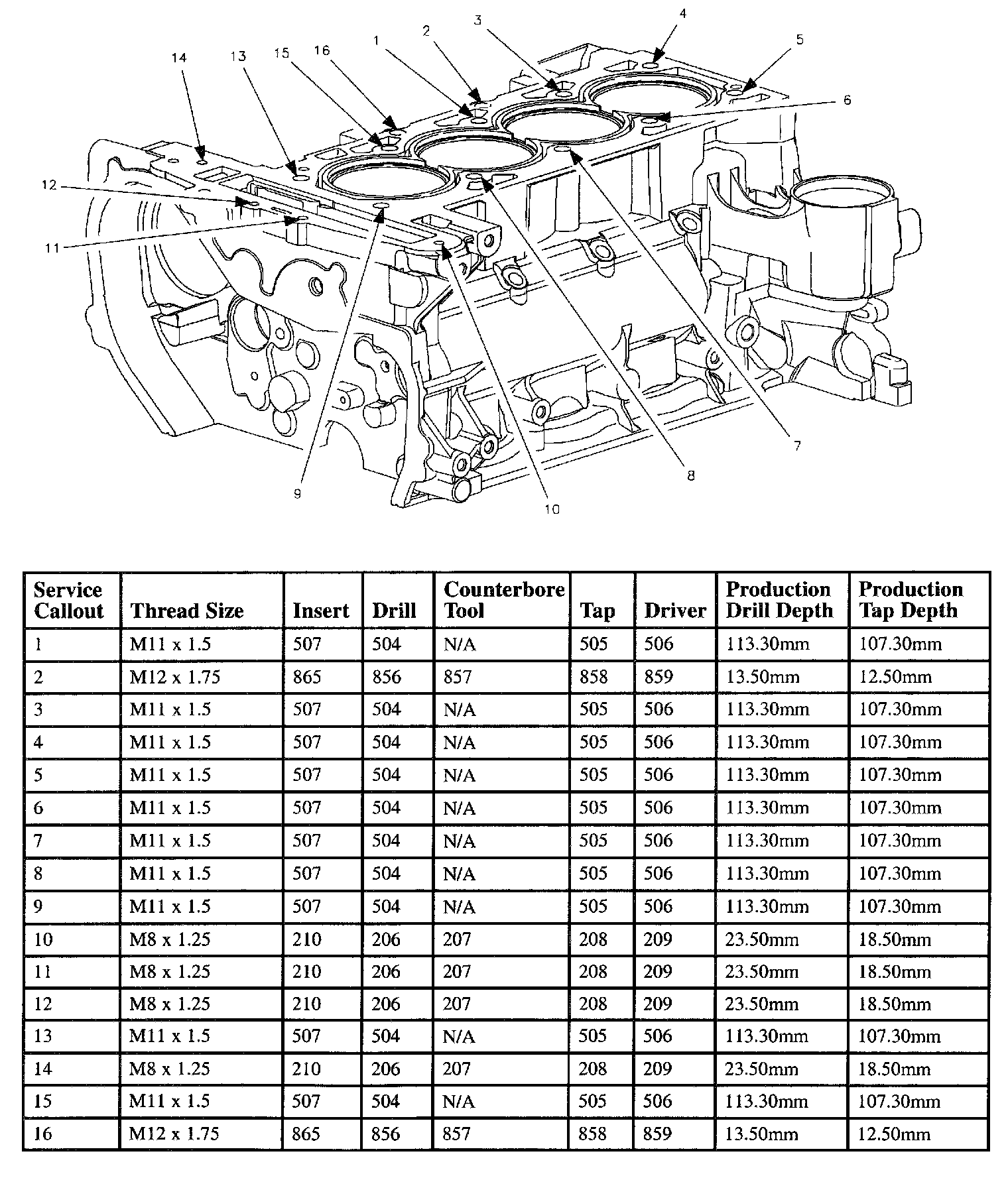

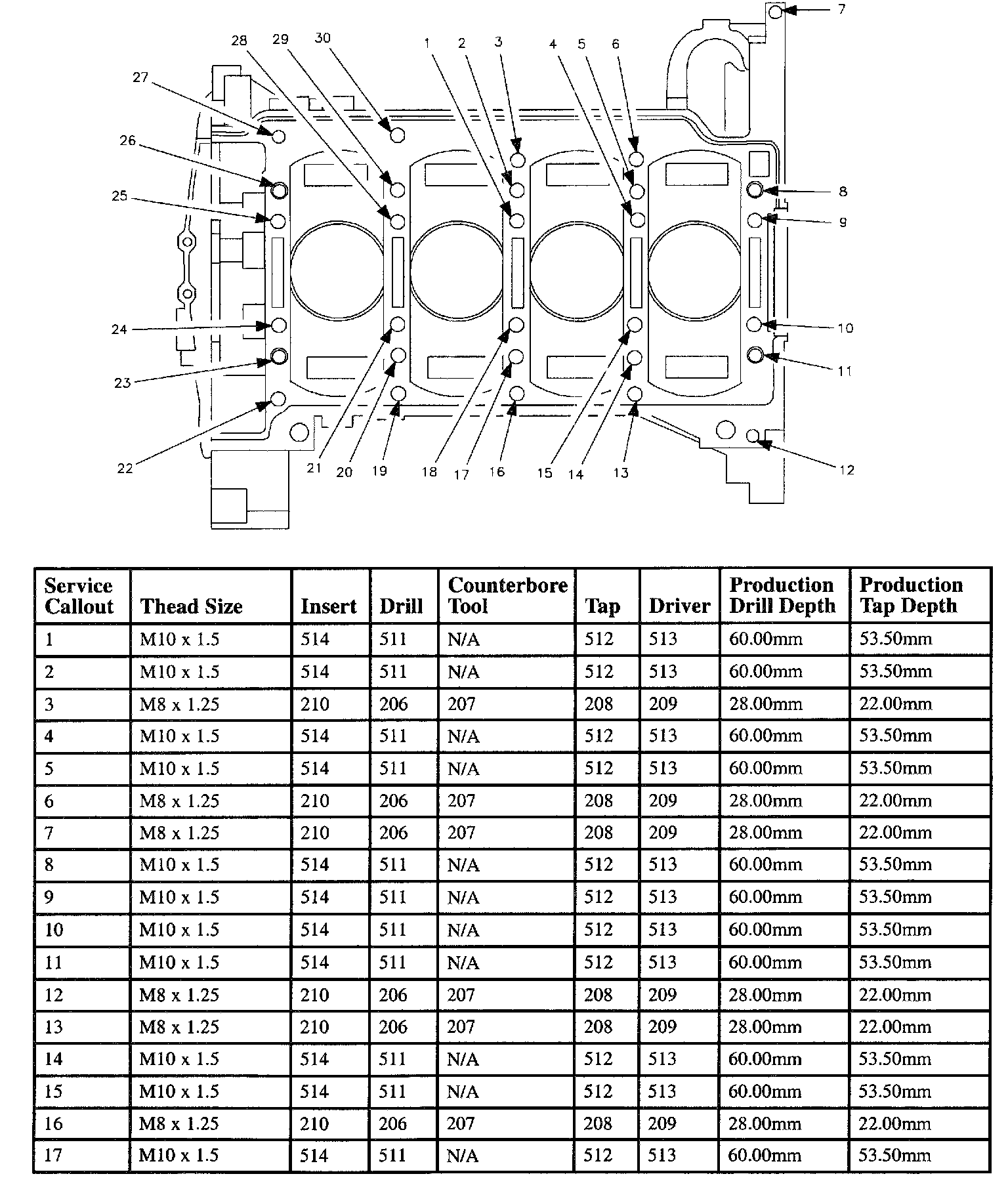

Engine Block - Top View

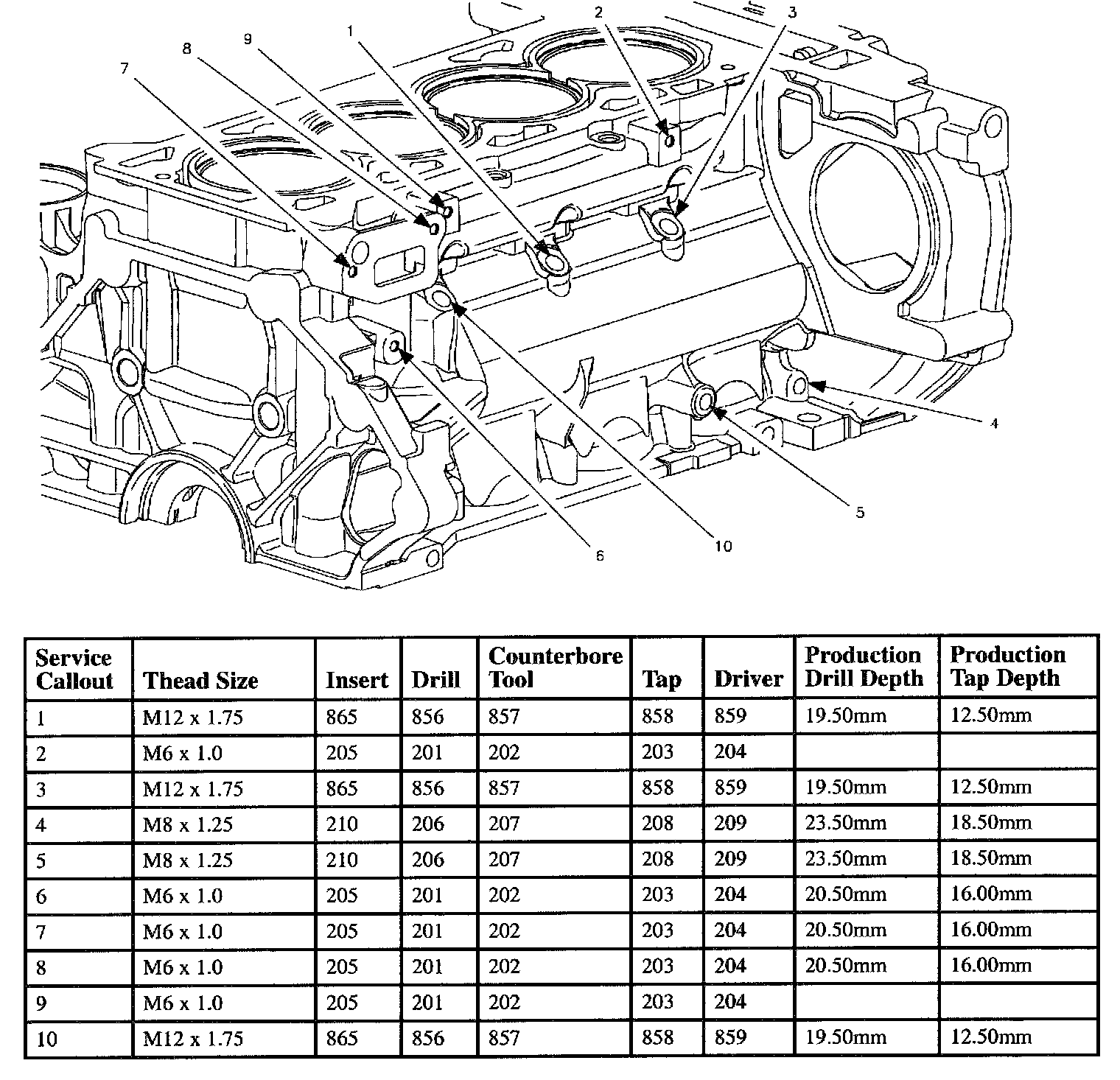

Upper Right Engine Block

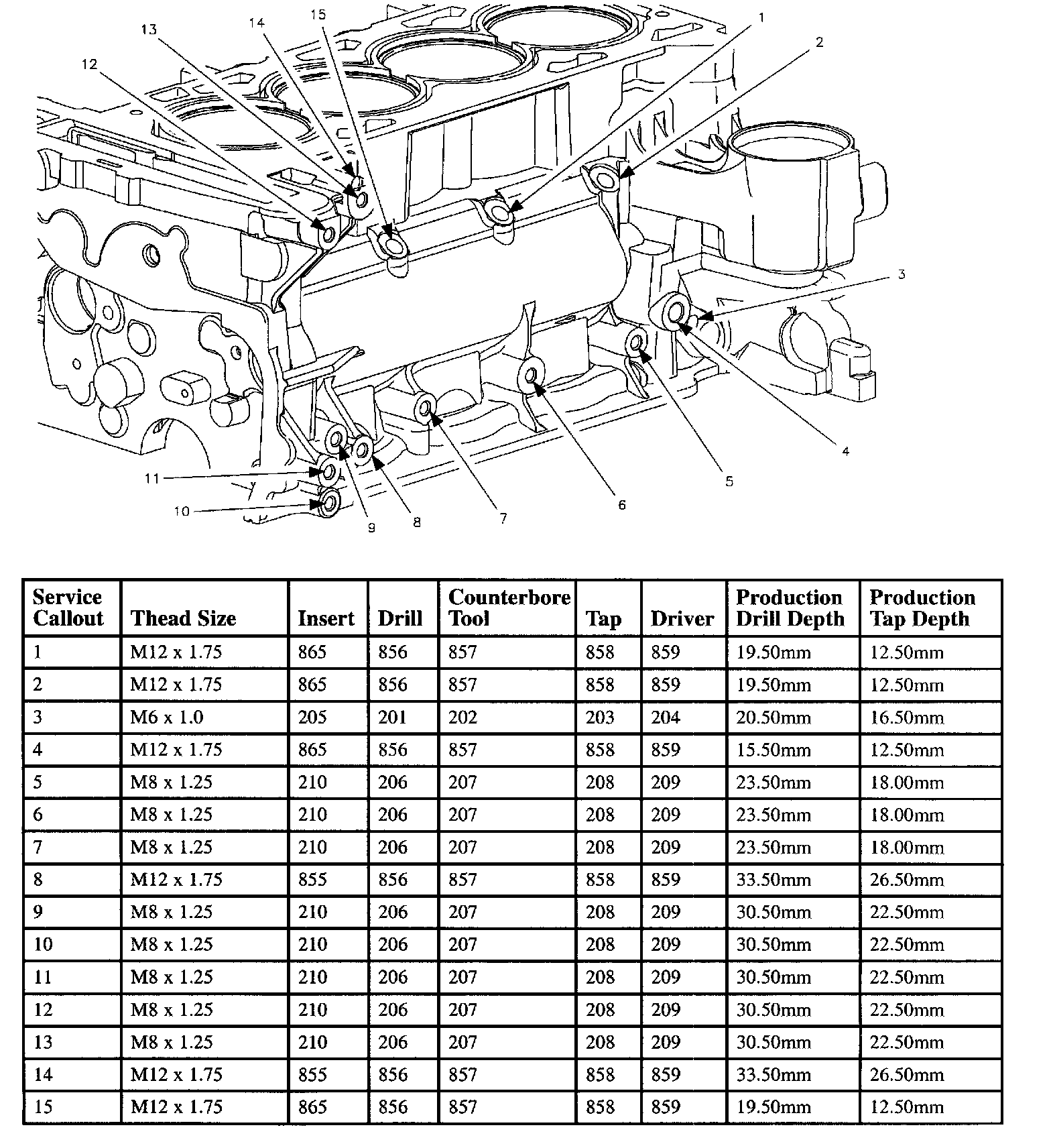

Engine Block - Left Side View
Engine Block- Bottom View
Lower Crankcase - Bottom View

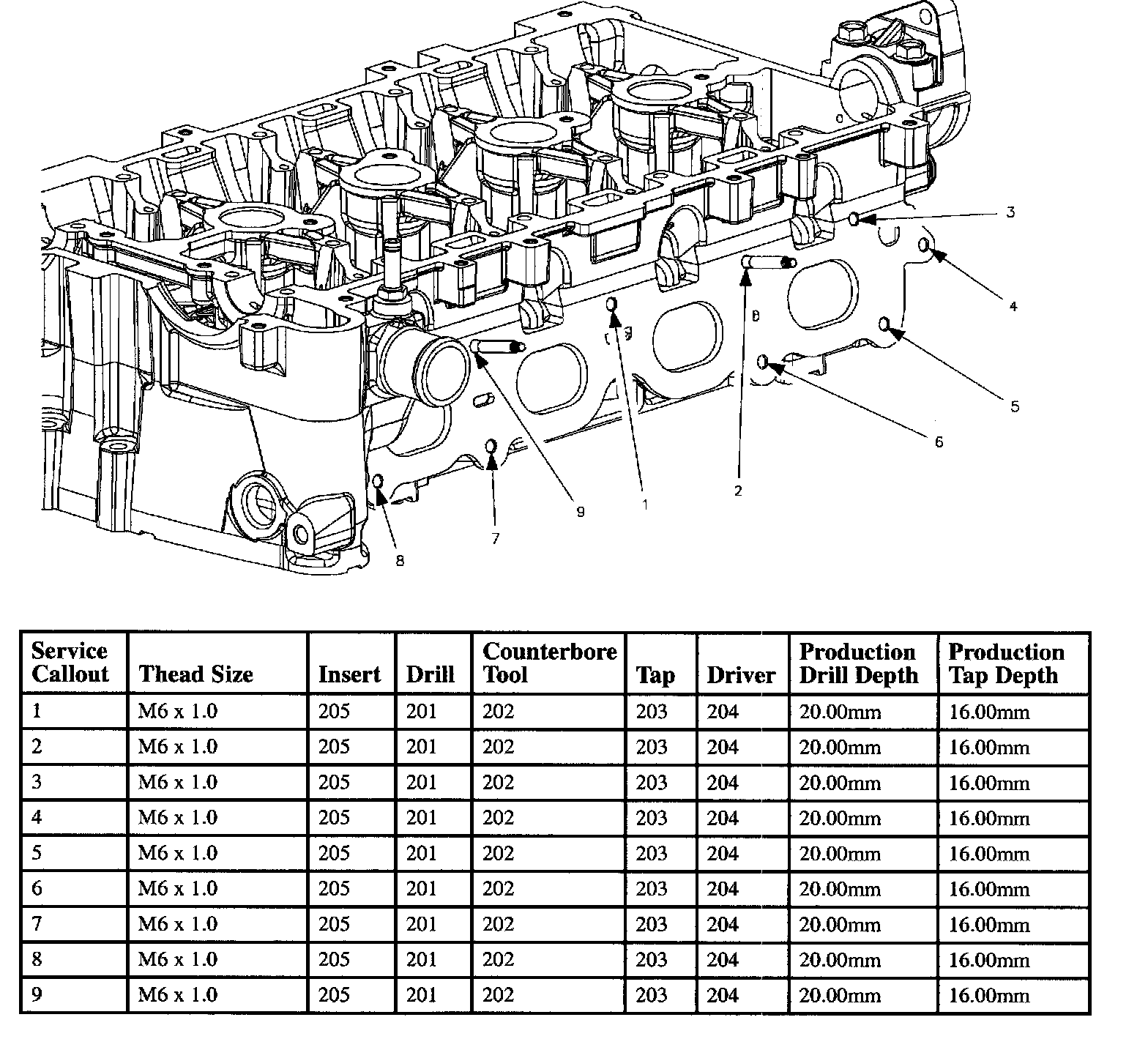

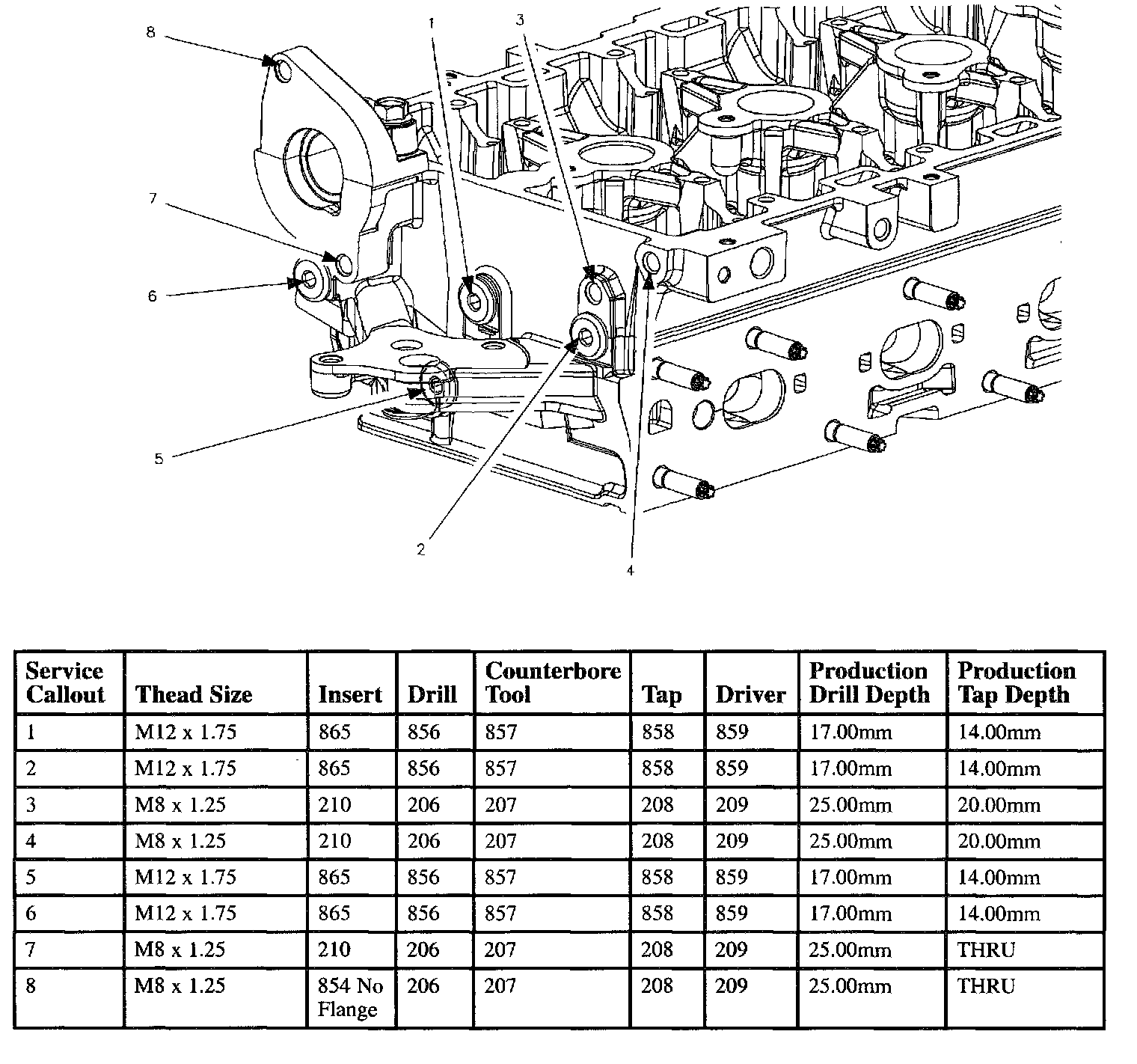

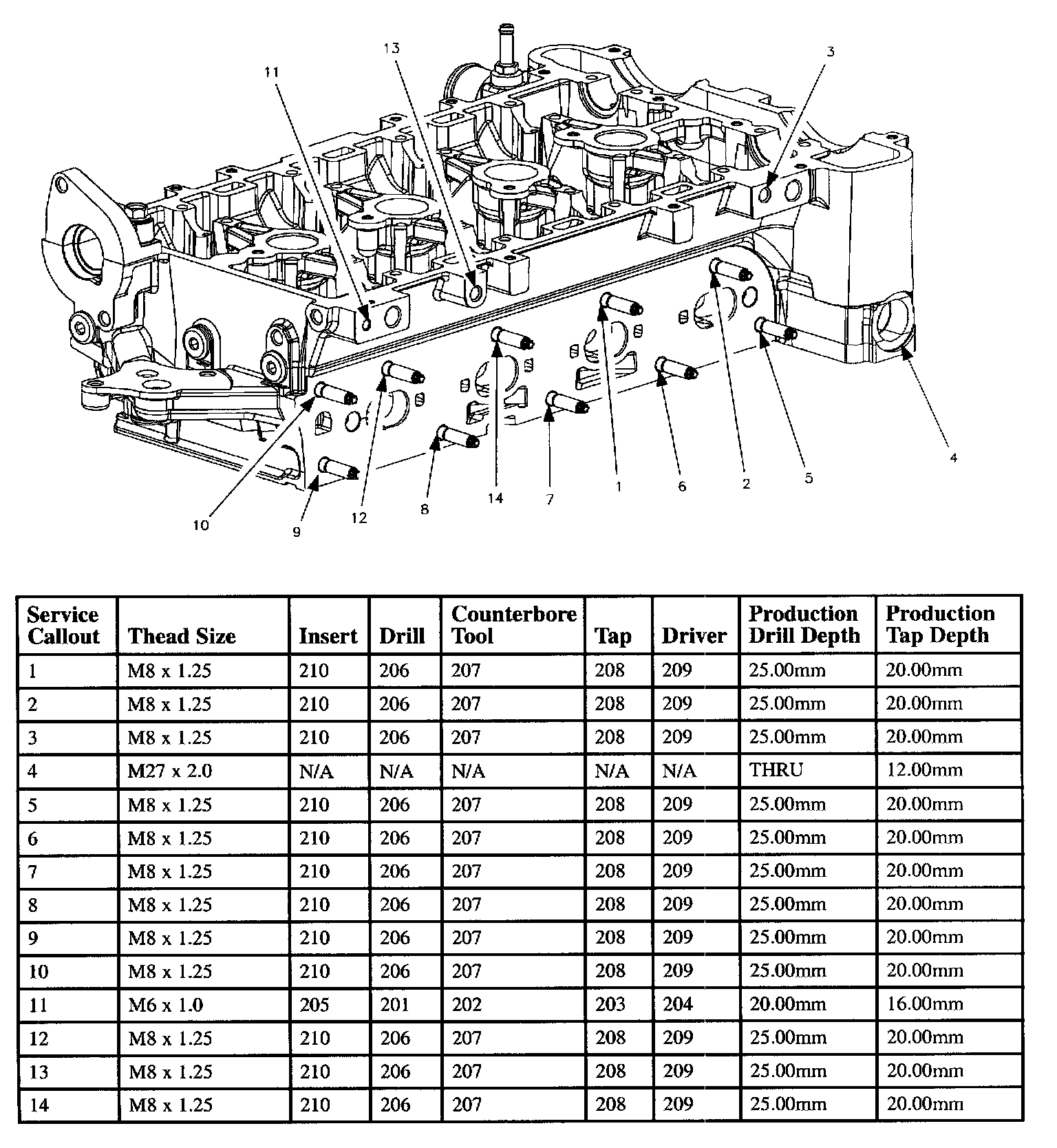

Cylinder Head - Right Side View

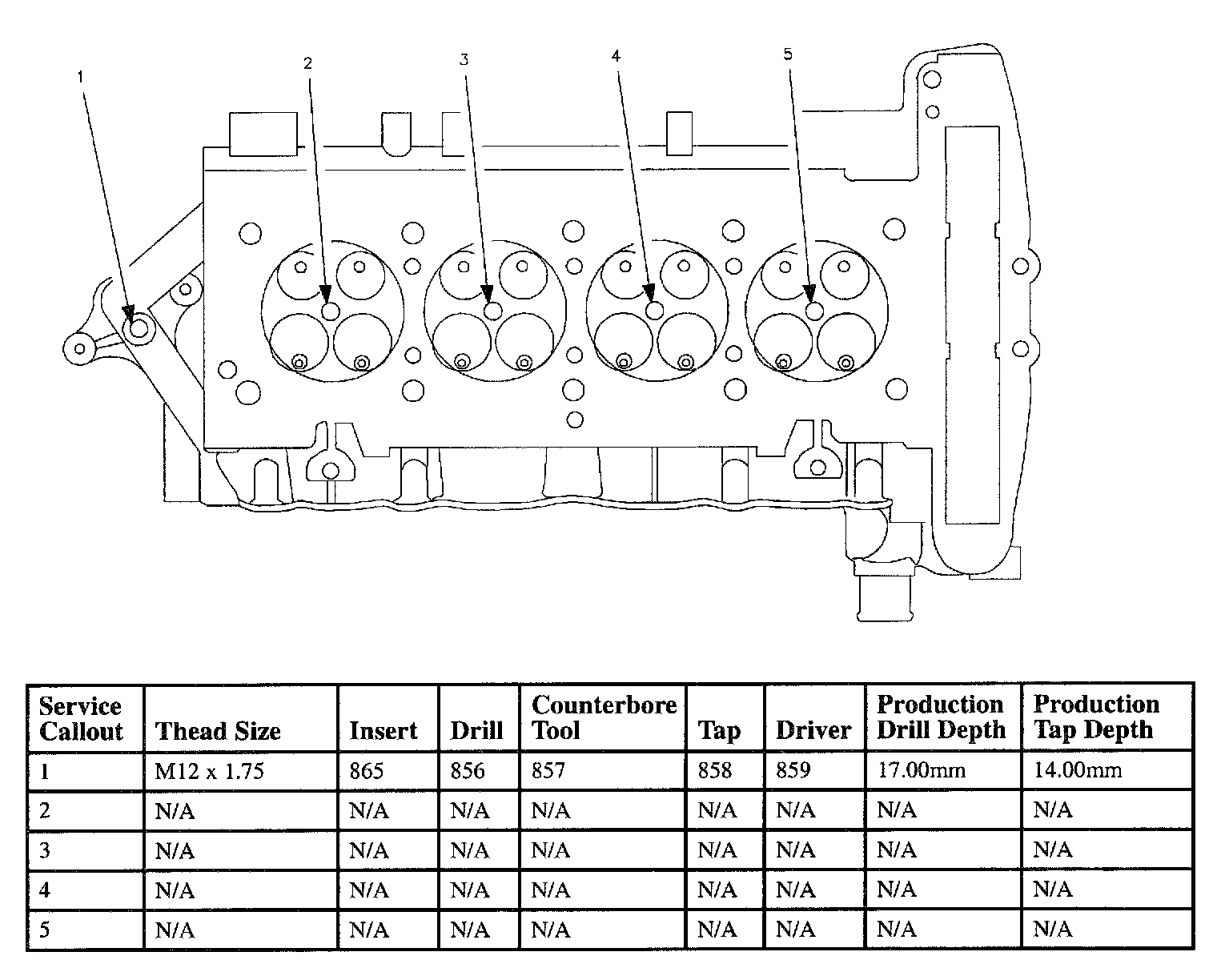

Cylinder Head- Bottom View

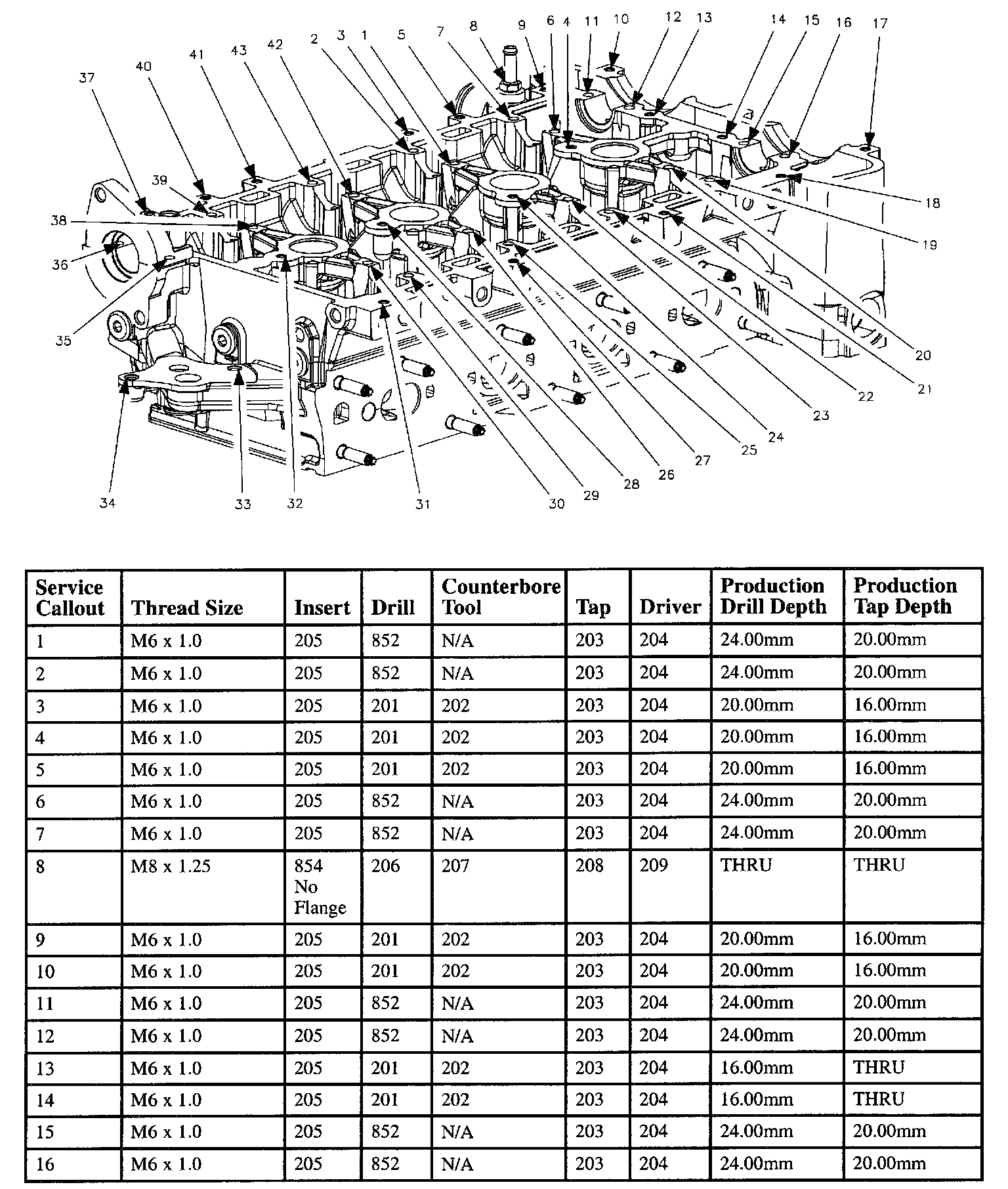

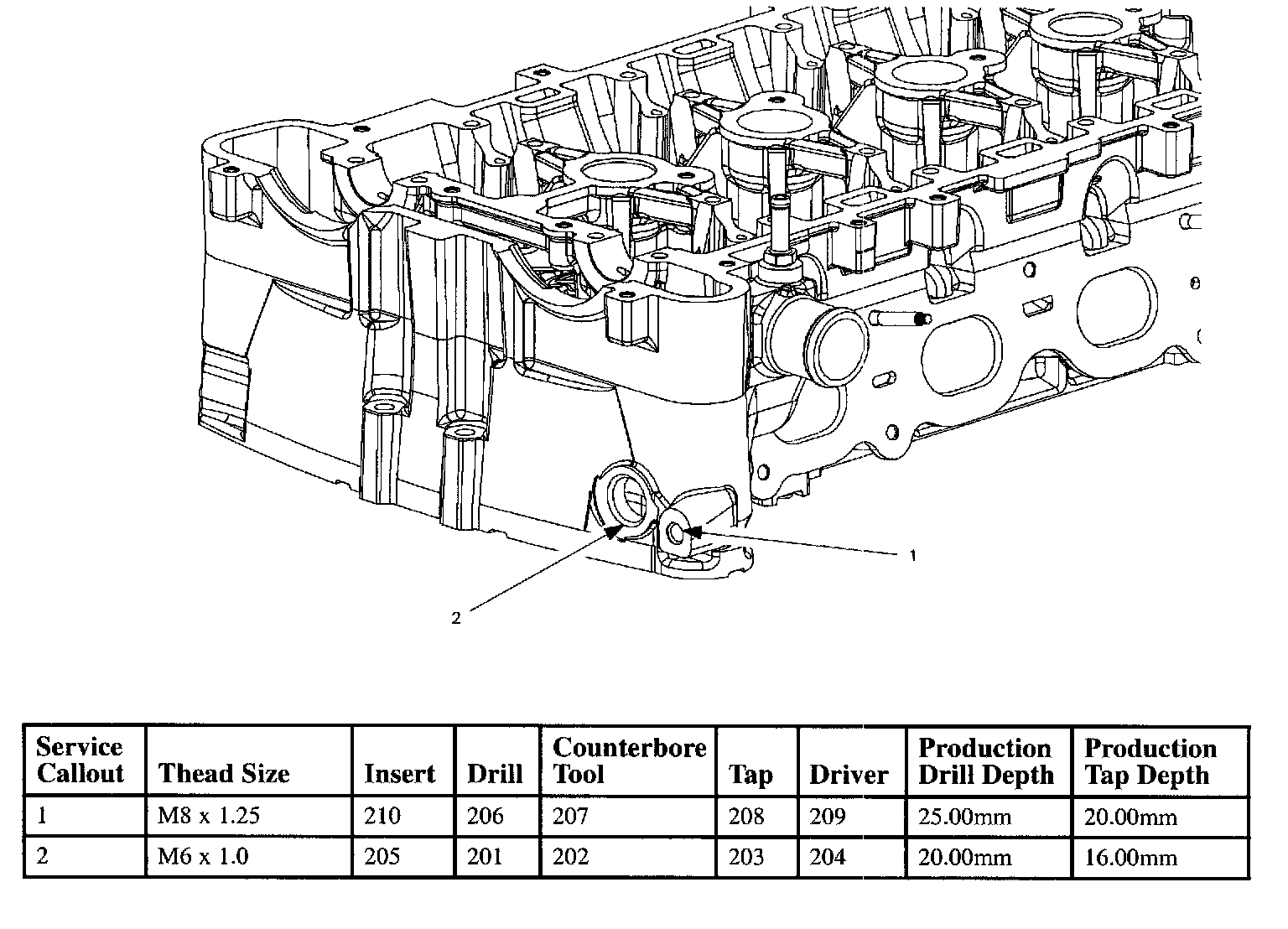

Cylinder Head - Left Side View
Cylinder Head - Back View
Cylinder Head - Front View
Cylinder Head - Top View
