Home >> Saturn >> 2002 >> L200 L4-2.2L VIN F >> Repair and Diagnosis >> Powertrain Management >> Ignition System >> Ignition Control Module >> Diagrams

Ignition Control Module: Diagrams

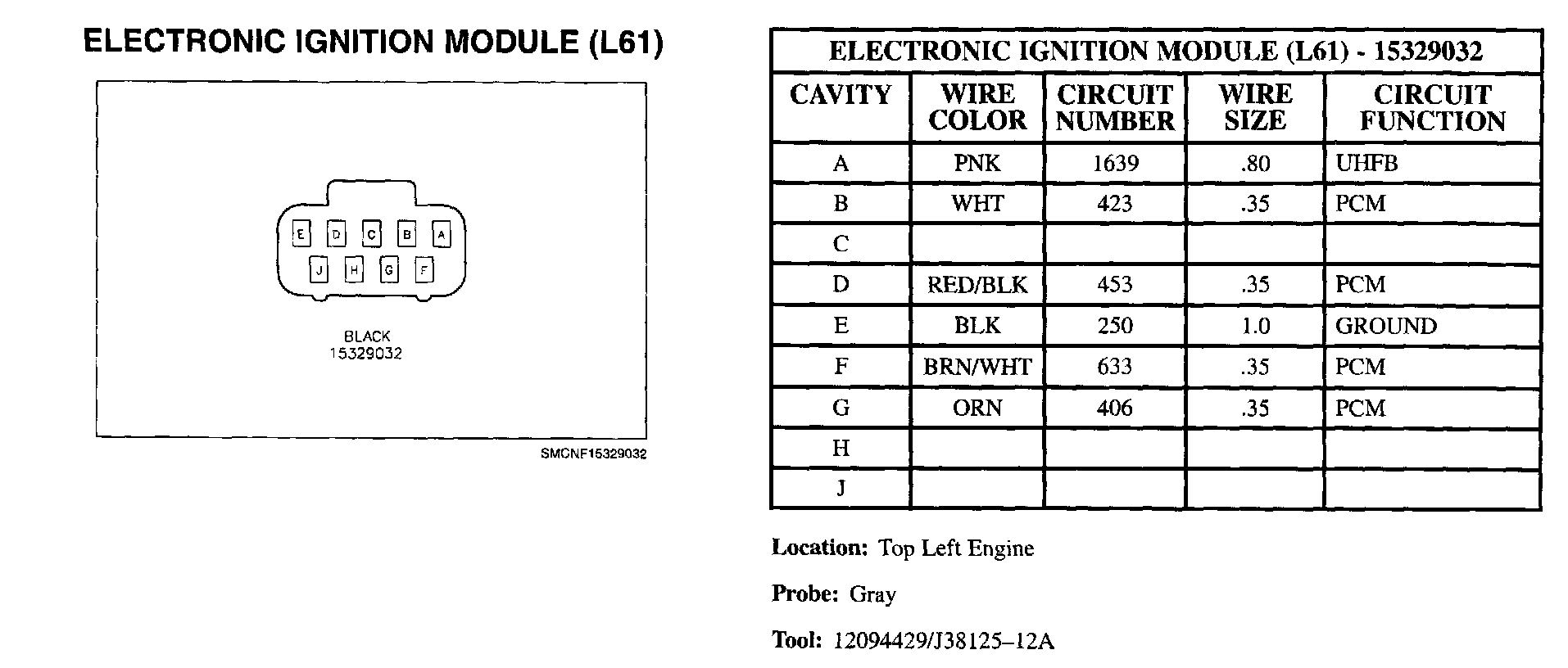

Electronic Ignition Module:
