Home >> Saturn >> 2002 >> L200 L4-2.2L VIN F >> Repair and Diagnosis >> Powertrain Management >> Diagrams >> Electrical Diagrams >> Engine Controls >> Device Controls

Device Controls

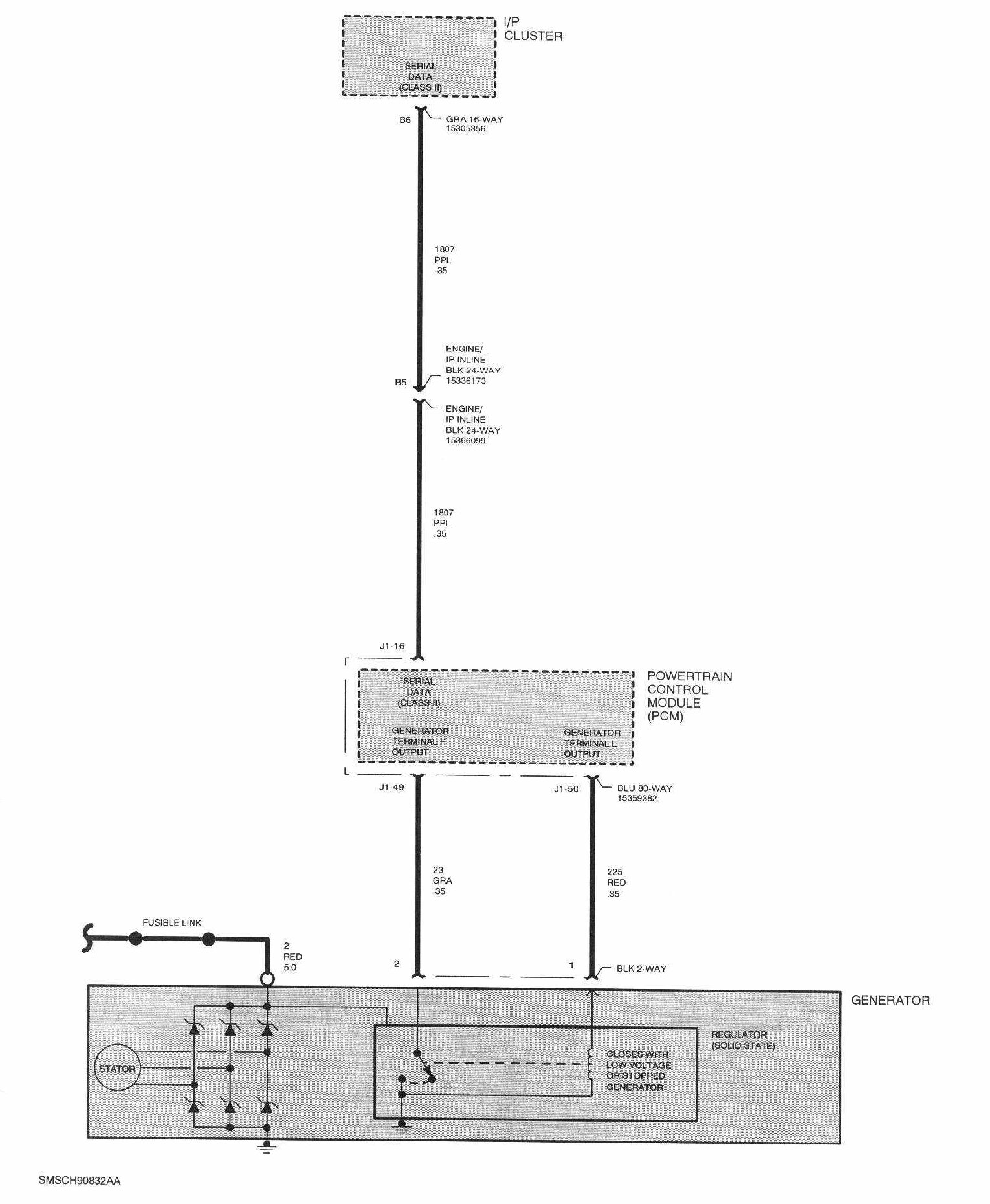

Powertrain Control Module (PCM) Schematics Part 9:

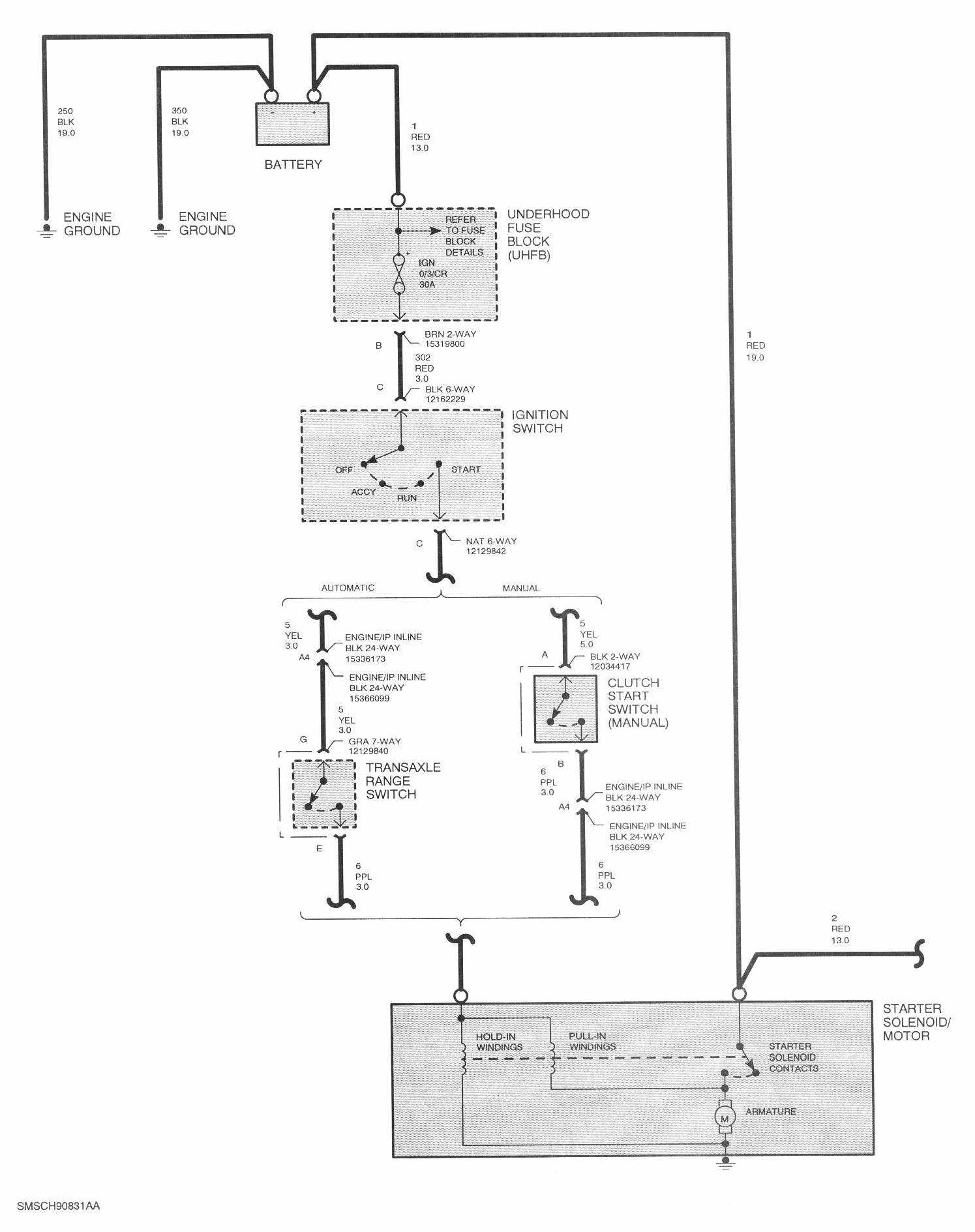

Starting And Charging Schematics Part 1:



Starting And Charging Schematics Part 2:
