Weather Pack Connectors

TERMINAL REMOVAL




1. Remove any terminal position assurance (TPA) devices.

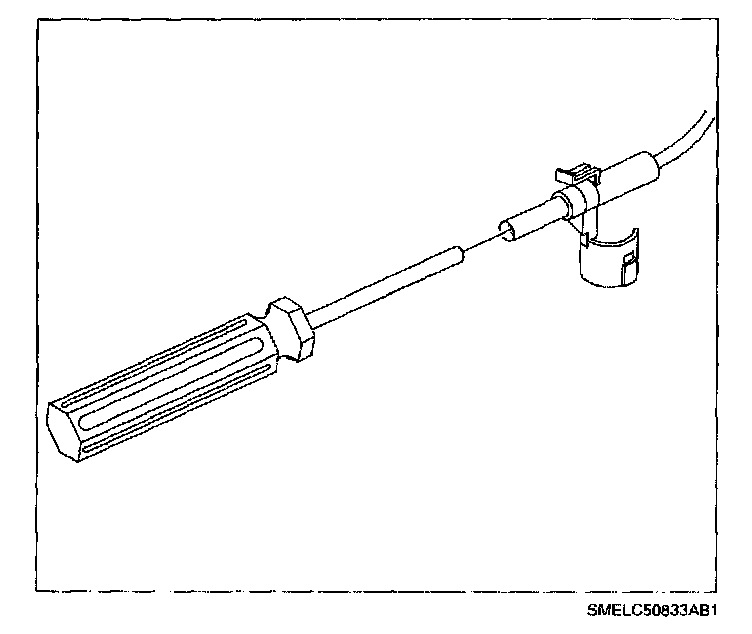

2. Insert the weather pack removal tool into the front of the terminal cavity.
