Body Control Module: Diagrams

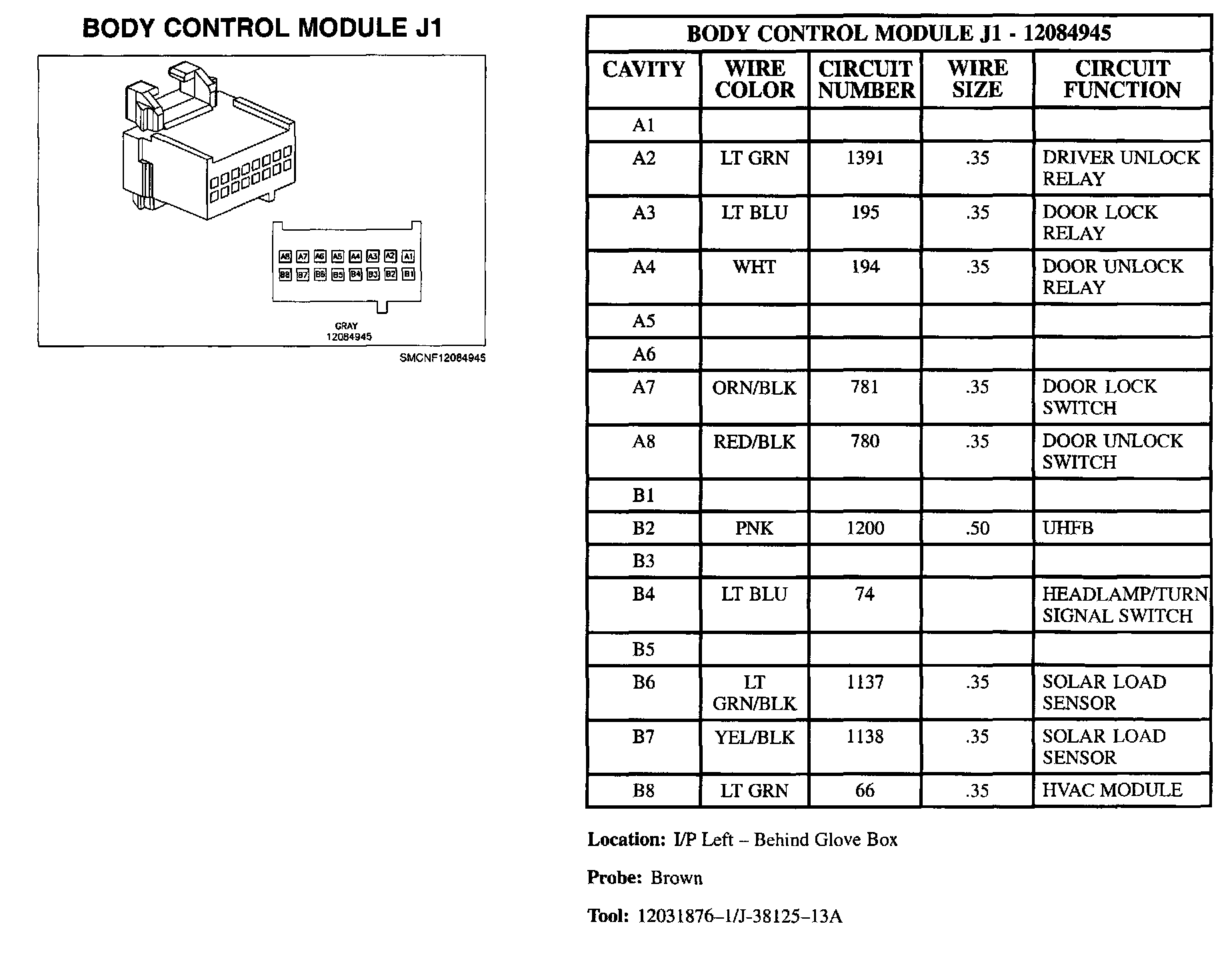

Body Control Module J1:

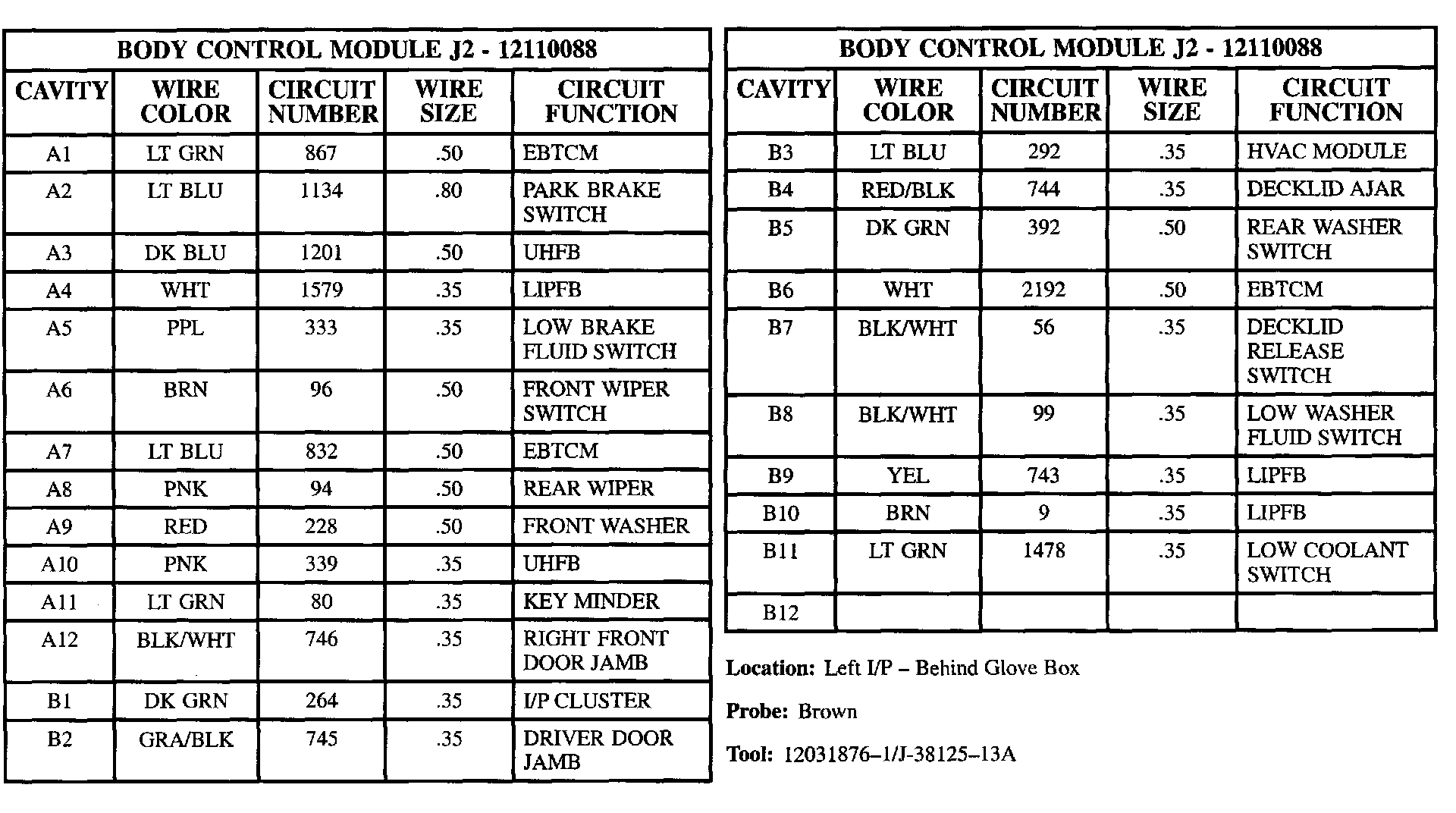

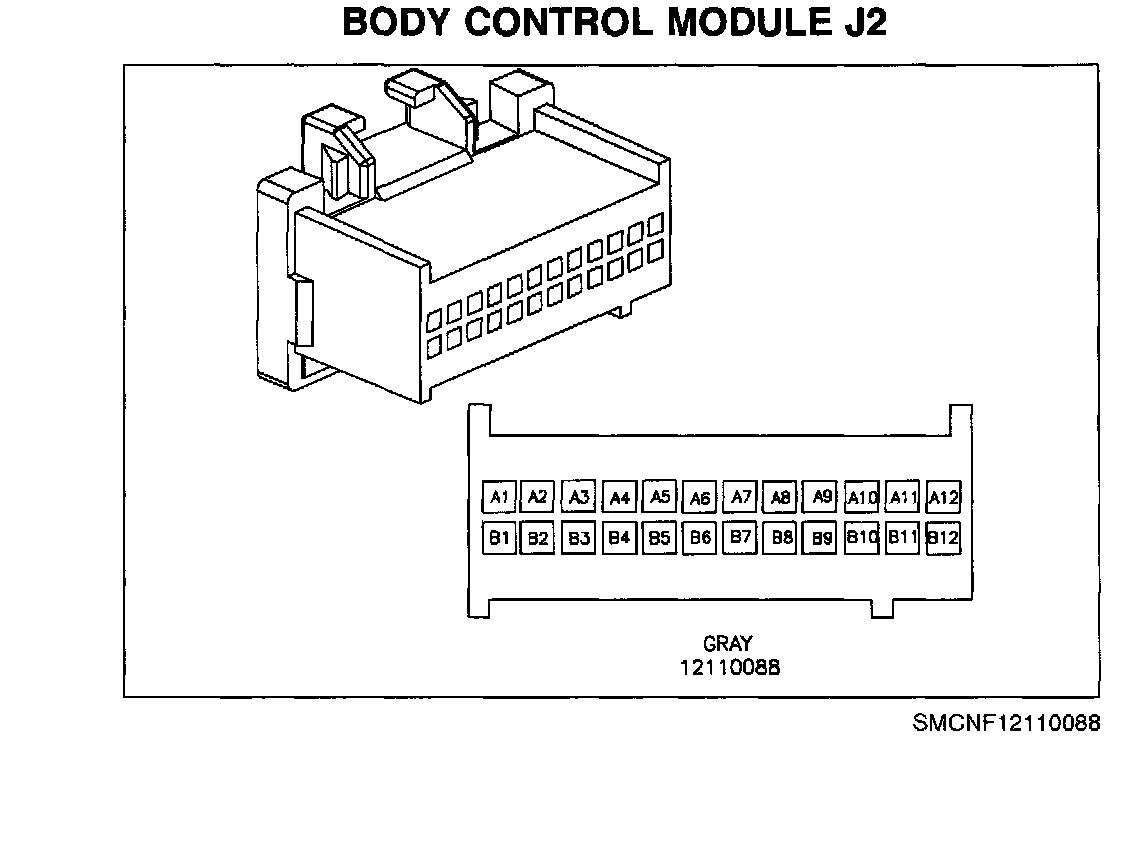

Body Control Module J2 Part 1:




Body Control Module J2 Part 2:

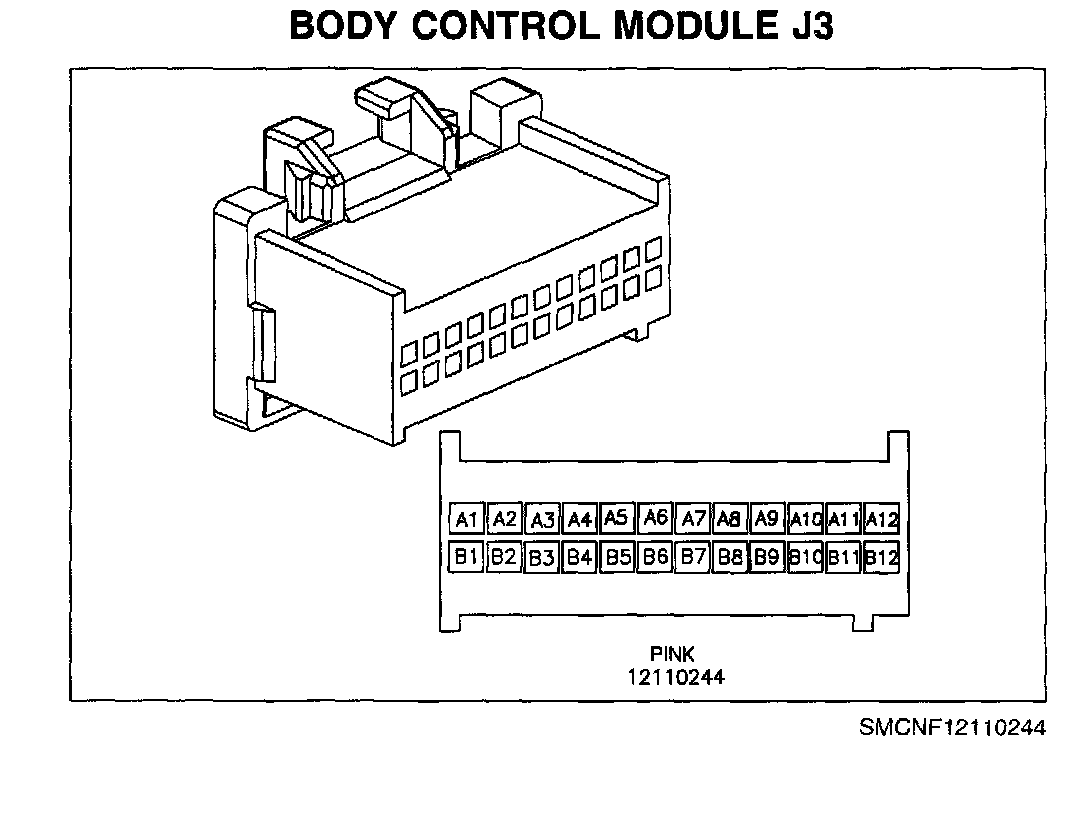

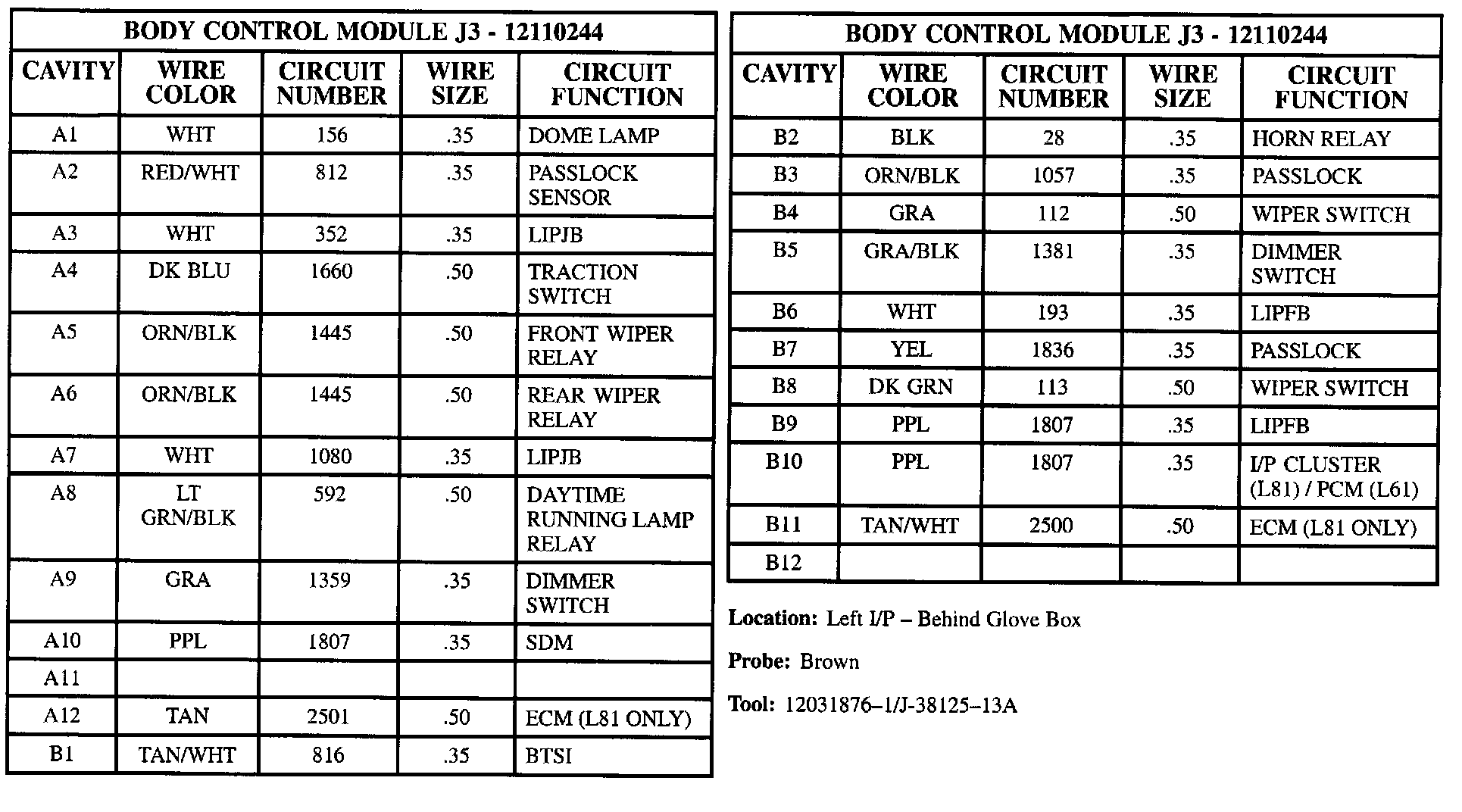

Body Control Module J3 Part 1:




Body Control Module J3 Part 2:

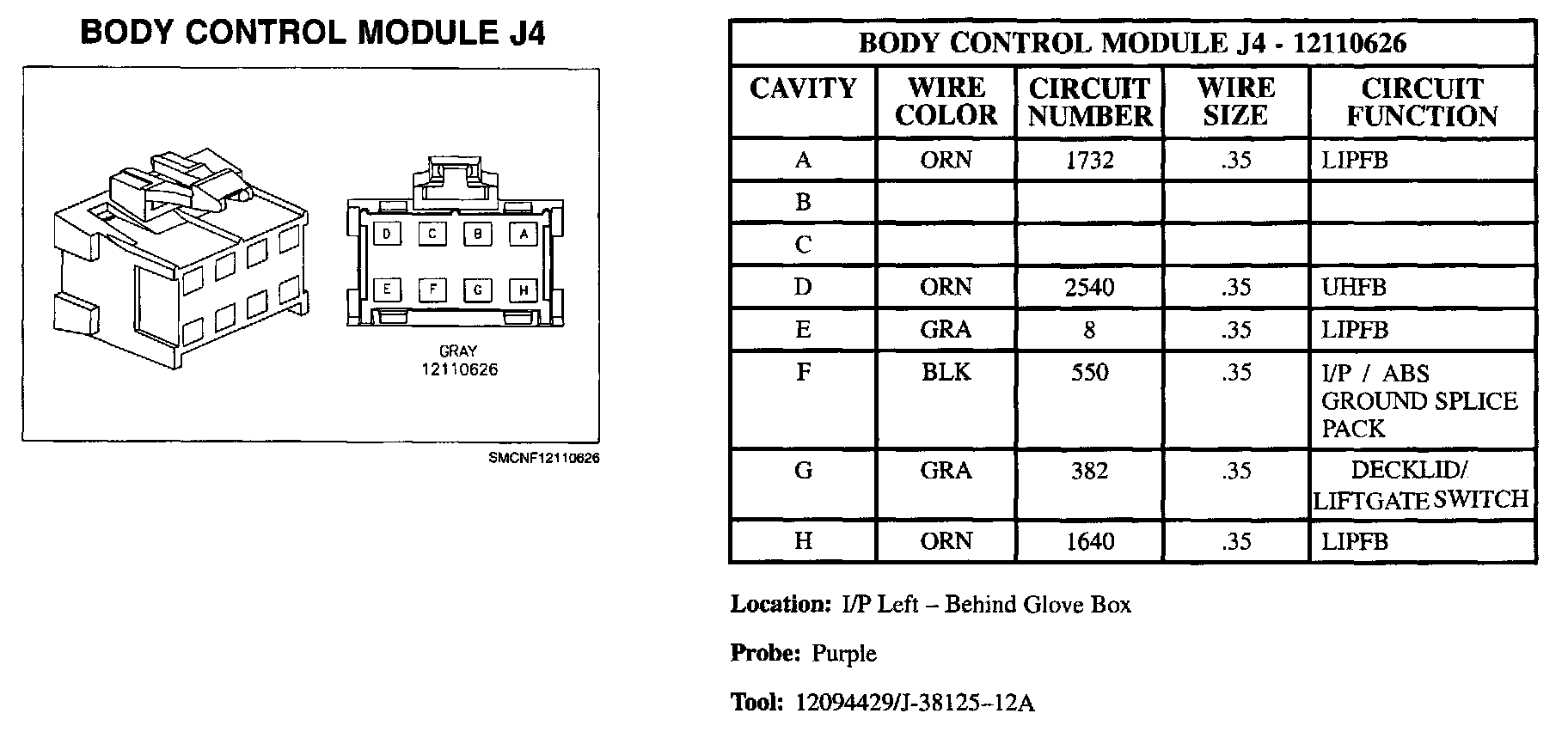

Body Control Module J4:
