Home >> Saturn >> 2002 >> L200 L4-2.2L VIN F >> Repair and Diagnosis >> Diagrams >> Connector Views >> Keyless Entry

Keyless Entry

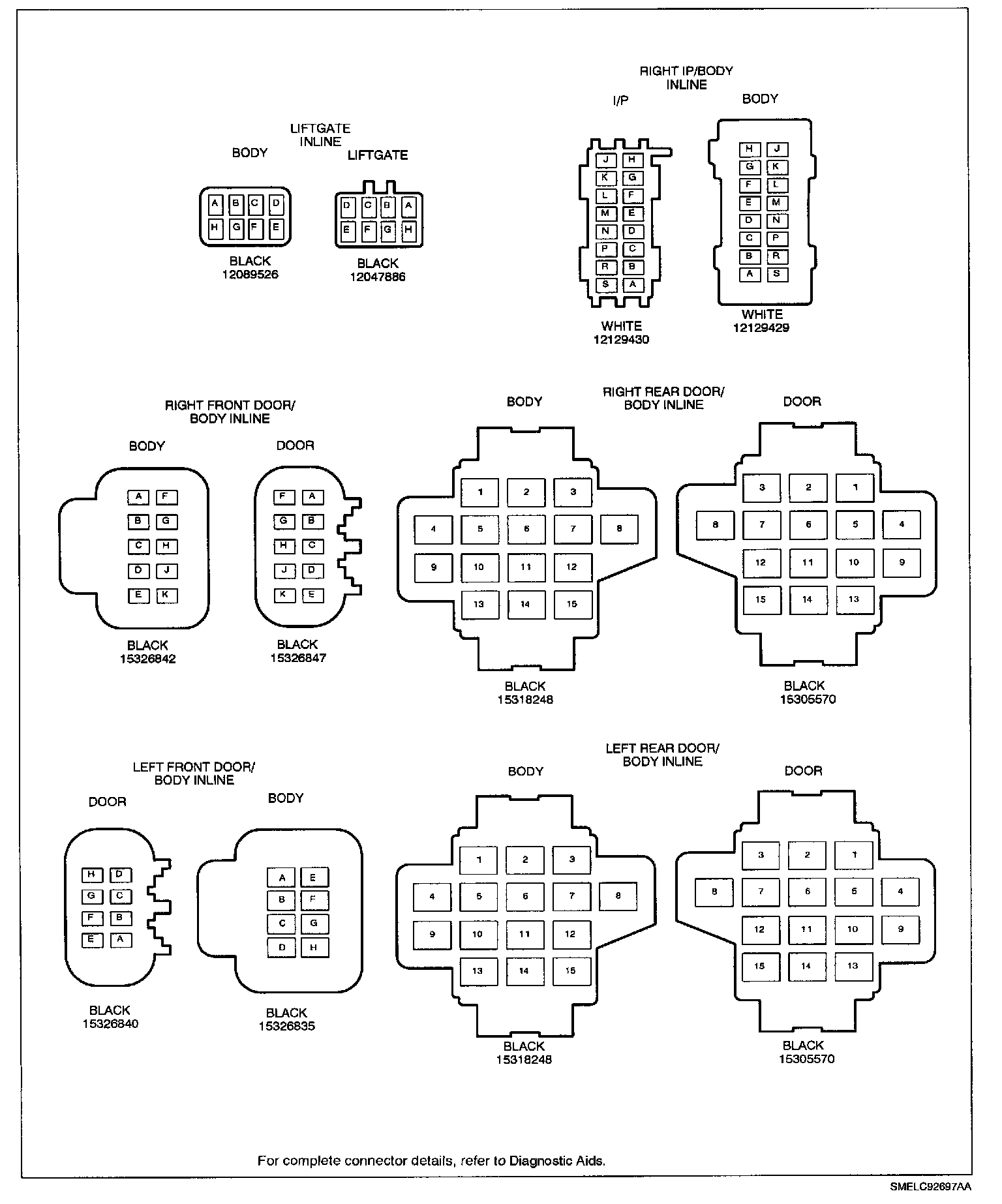

RKE/Security System Connector Face Views Part 1:

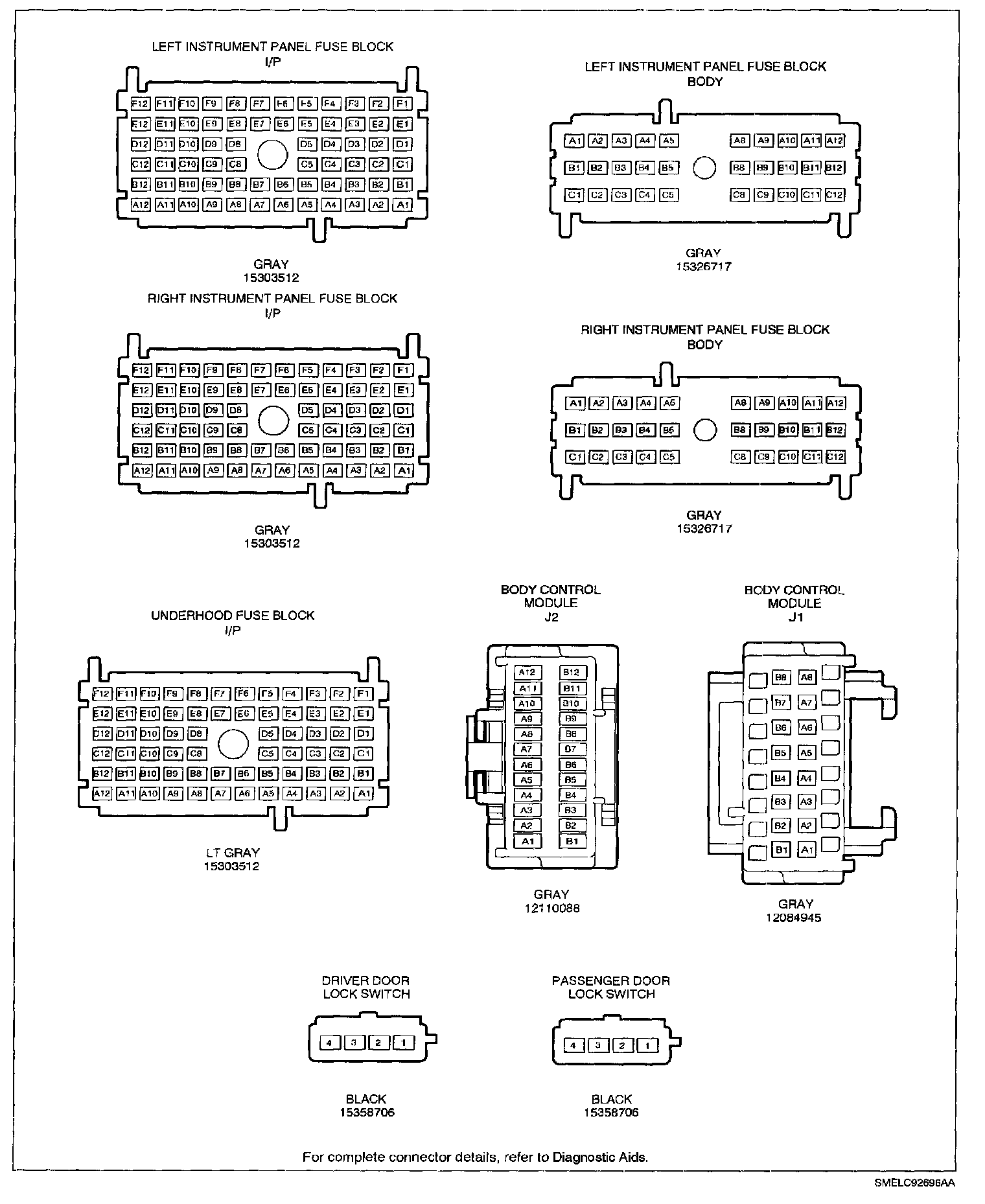

RKE/Security System Connector Face Views Part 2:
