Home >> Saturn >> 2002 >> L200 L4-2.2L VIN F >> Repair and Diagnosis >> Diagrams >> Connector Views >> Console

Console

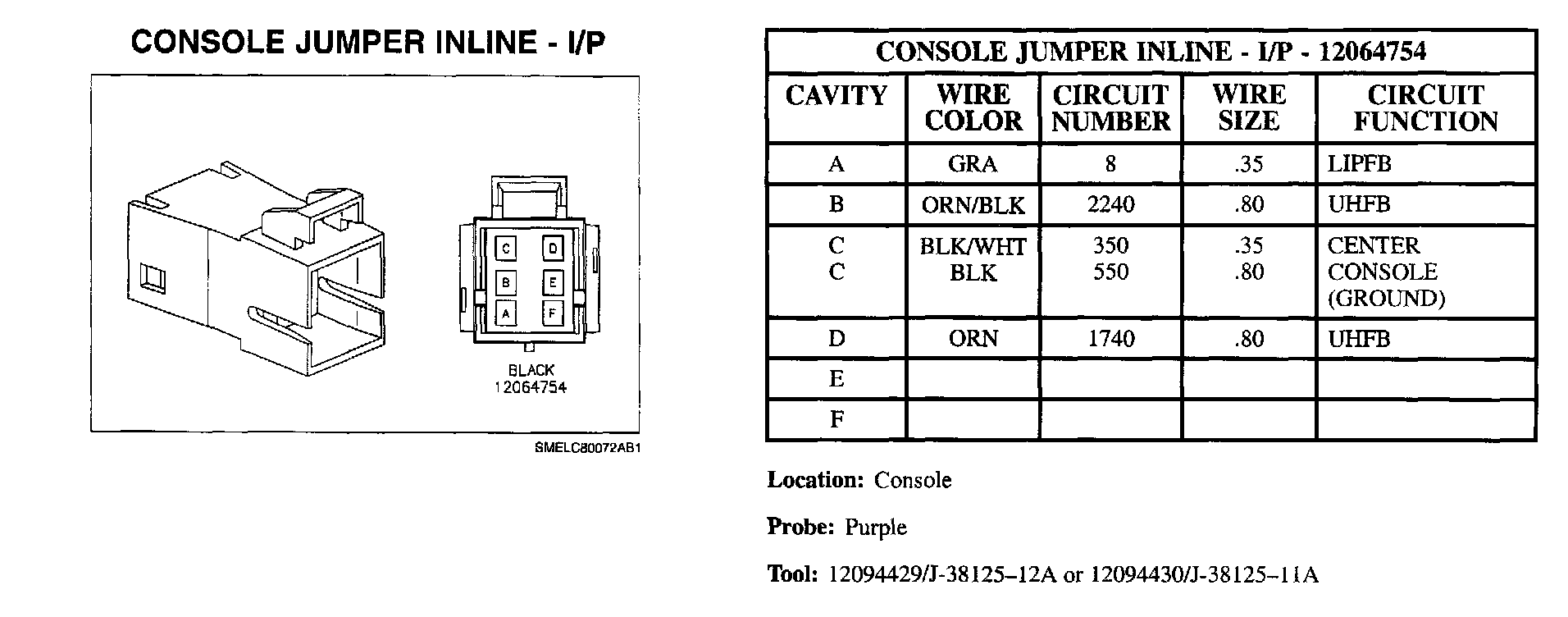

Console Jumper Inline - I/P:

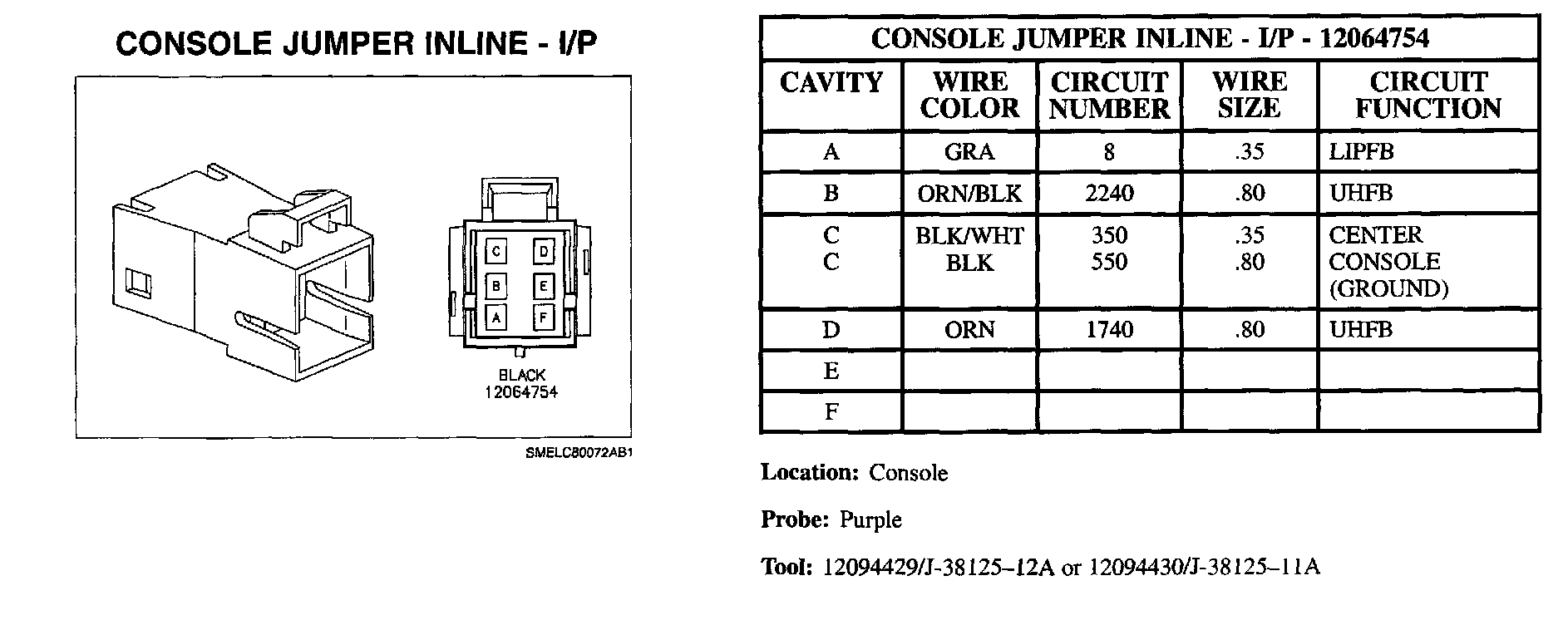

Console Jumper Inline - I/P:

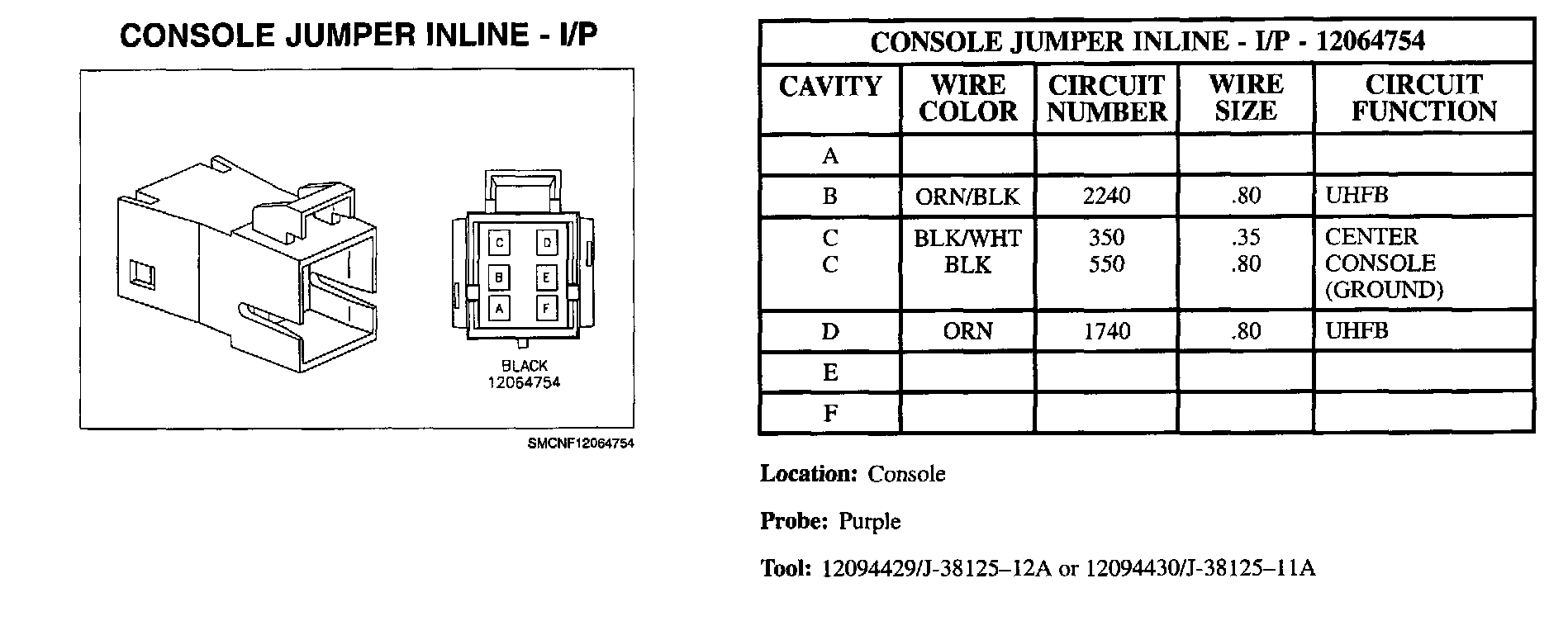

Console Jumper Inline - I/P:

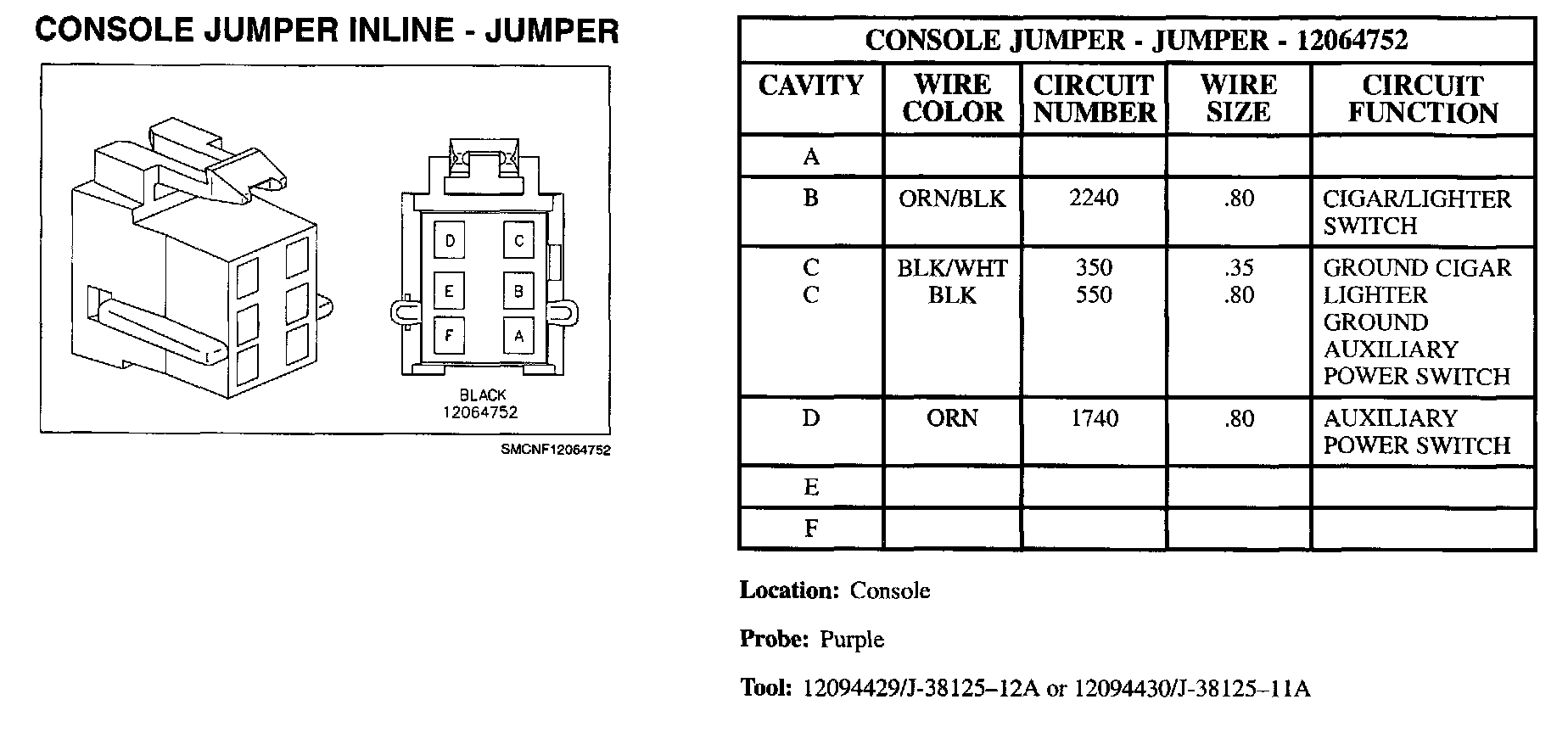

Console Jumper Inline - Jumper:
