lemon-mirror
:
Home
>>
Saturn
>>
2002
>>
L200 L4-2.2L VIN F
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Body Control Systems
Body Control Systems

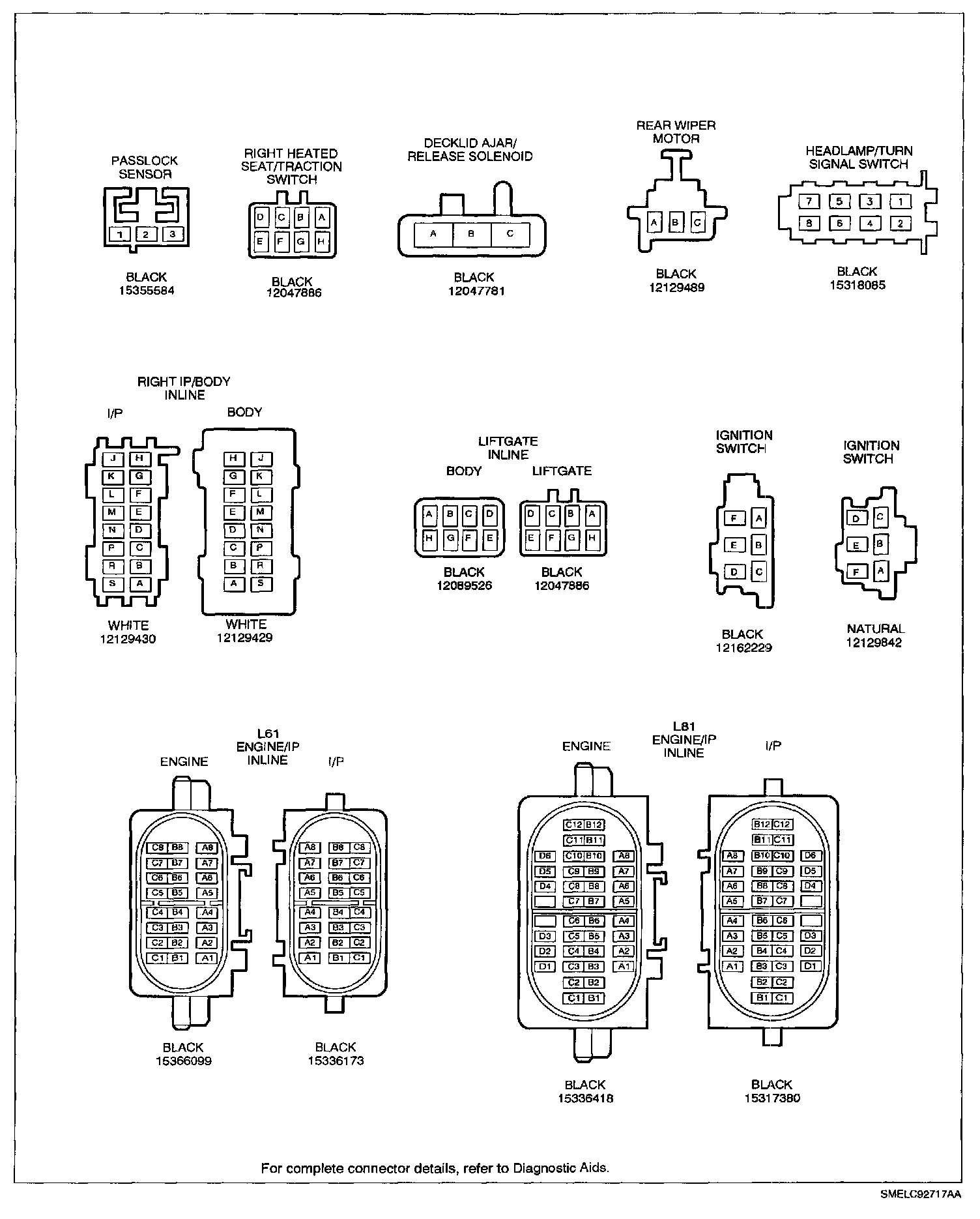

BCM Connector Face Views Part 1:

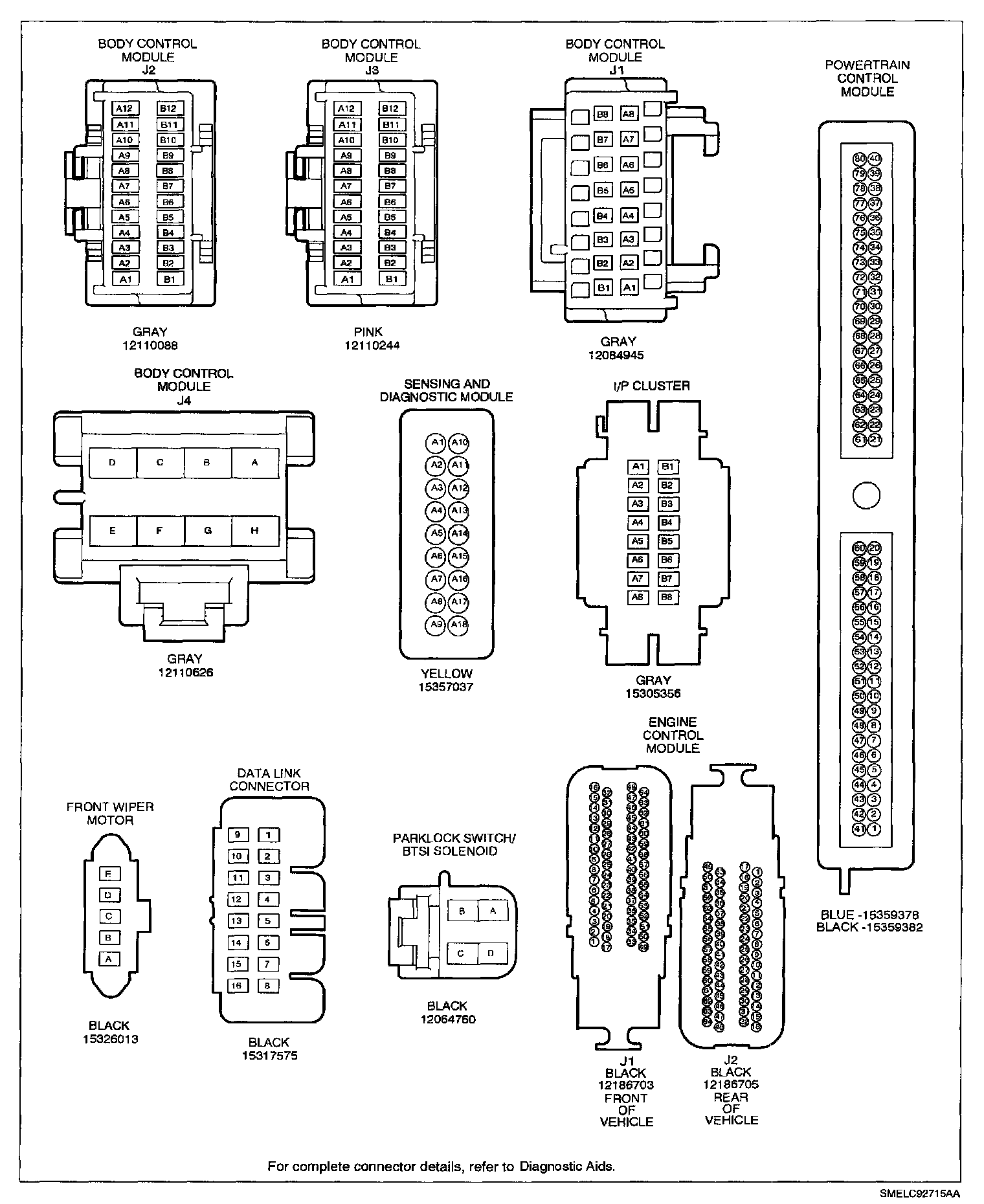

BCM Connector Face Views Part 2:

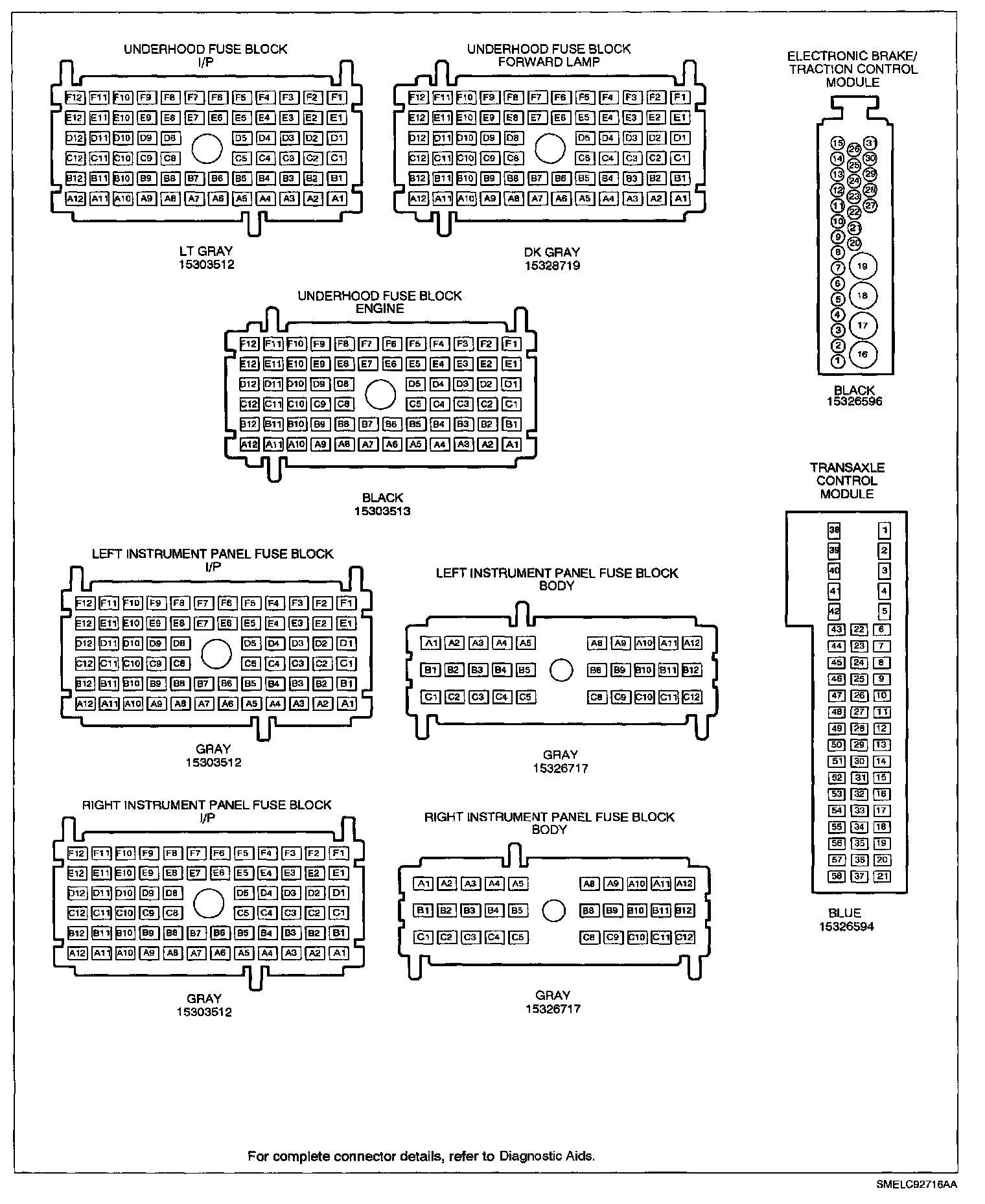

BCM Connector Face Views Part 3:
