lemon-mirror
:
Home
>>
Saturn
>>
2000
>>
LW1 L4-2.2L VIN F
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Engine Control Module
>>
Diagrams
>>

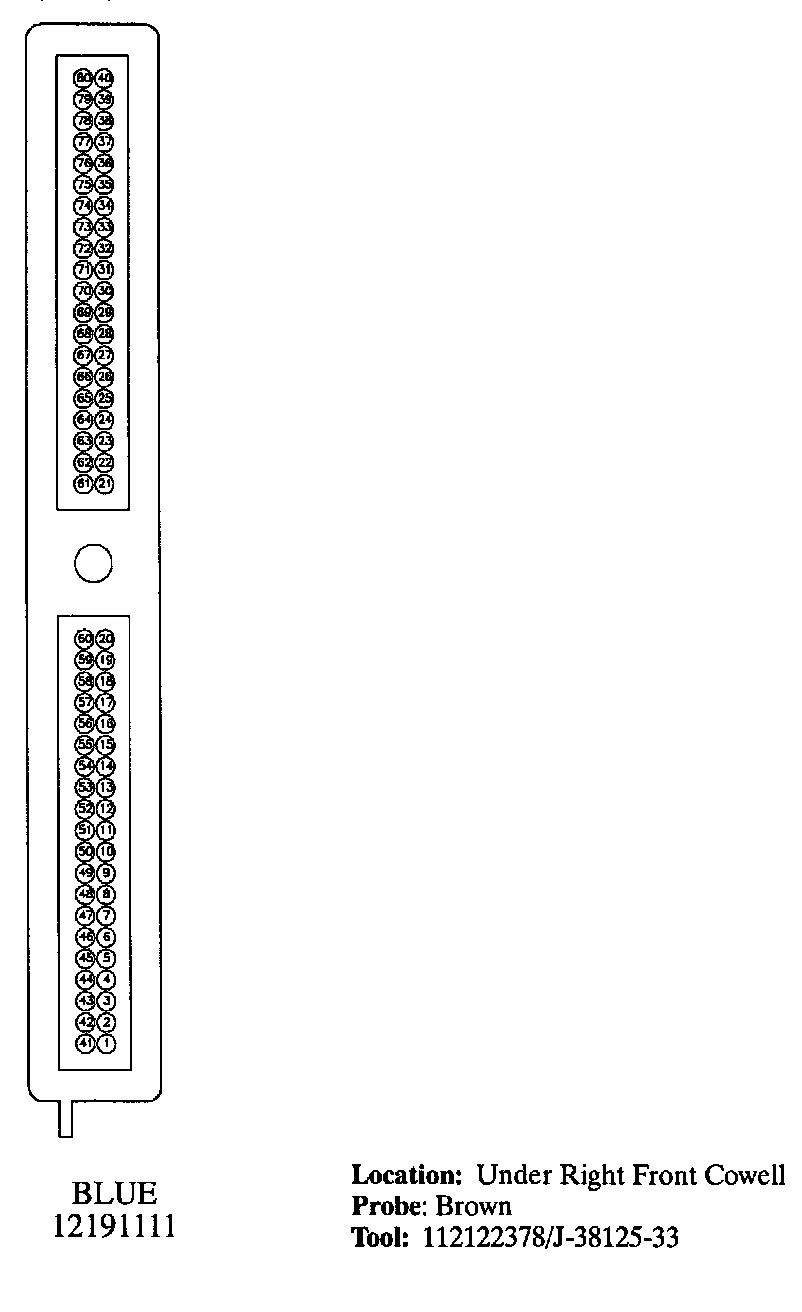

Connector Views
>>
J1
J1

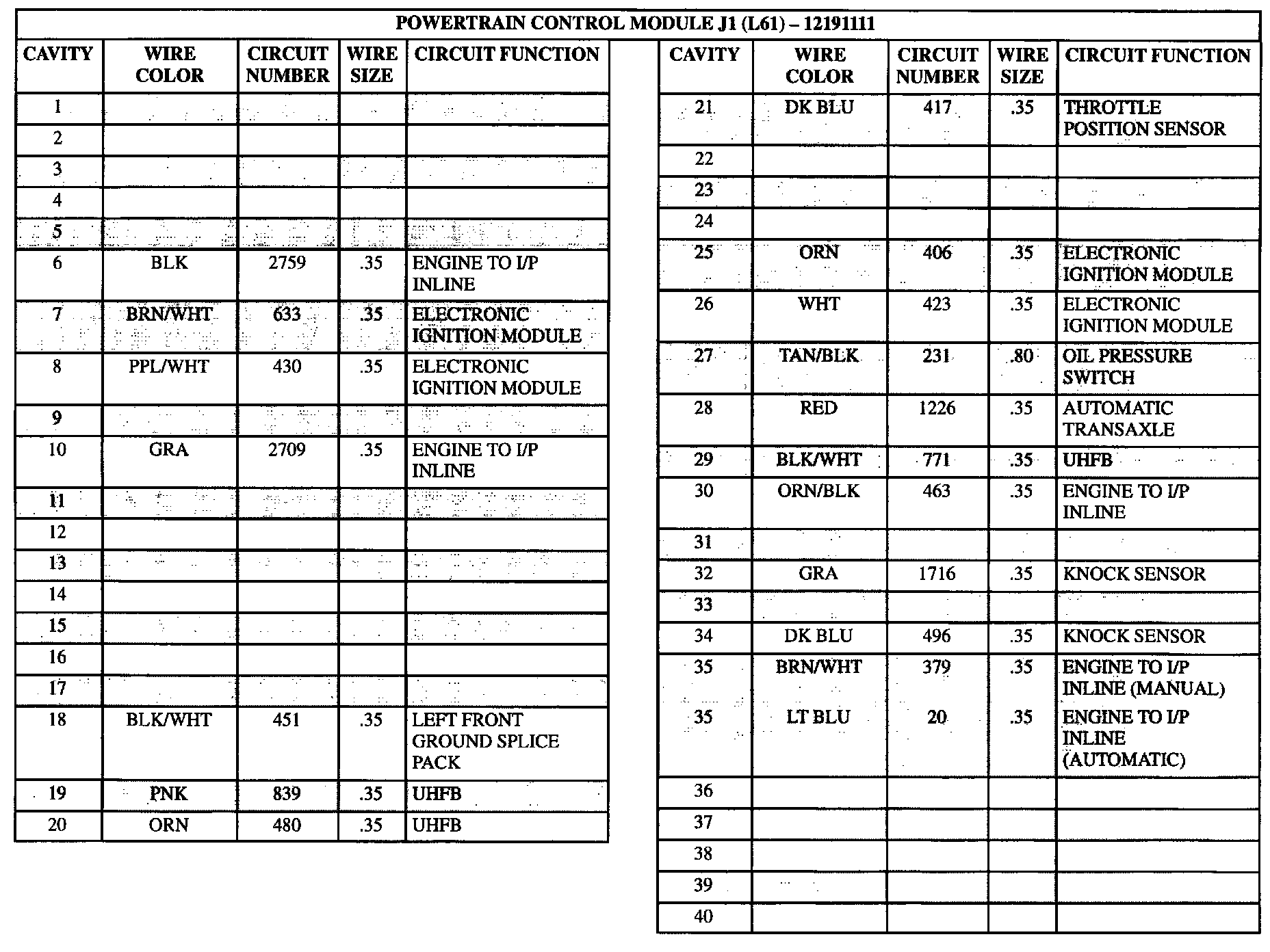

Powertrain Control Module J1 (Part 1 Of 3):

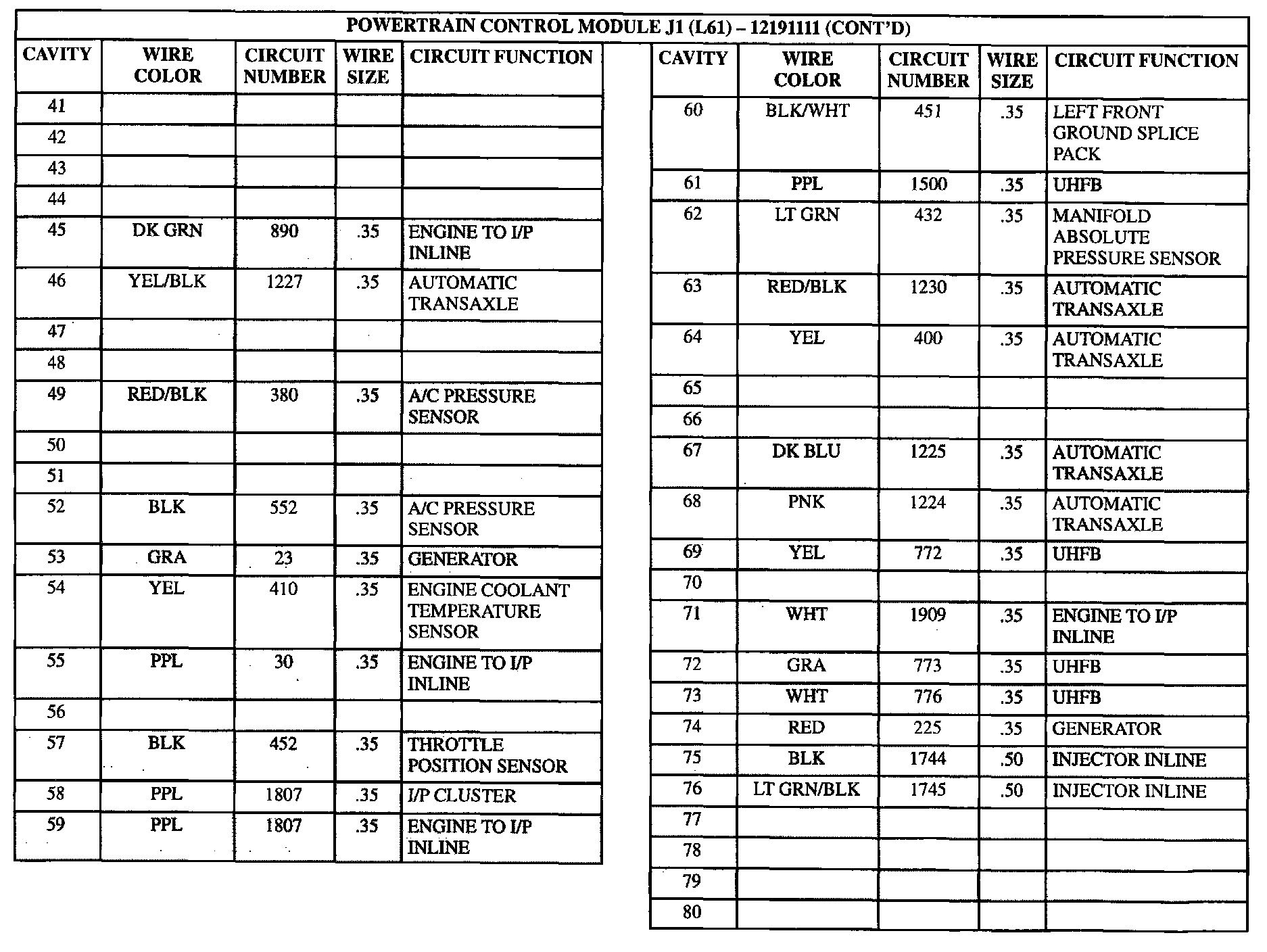

Powertrain Control Module J1 (Part 2 Of 3):
Powertrain Control Module J1 (Part 3 Of 3):
