Powertrain Management
>>
Engine Control Module
>>

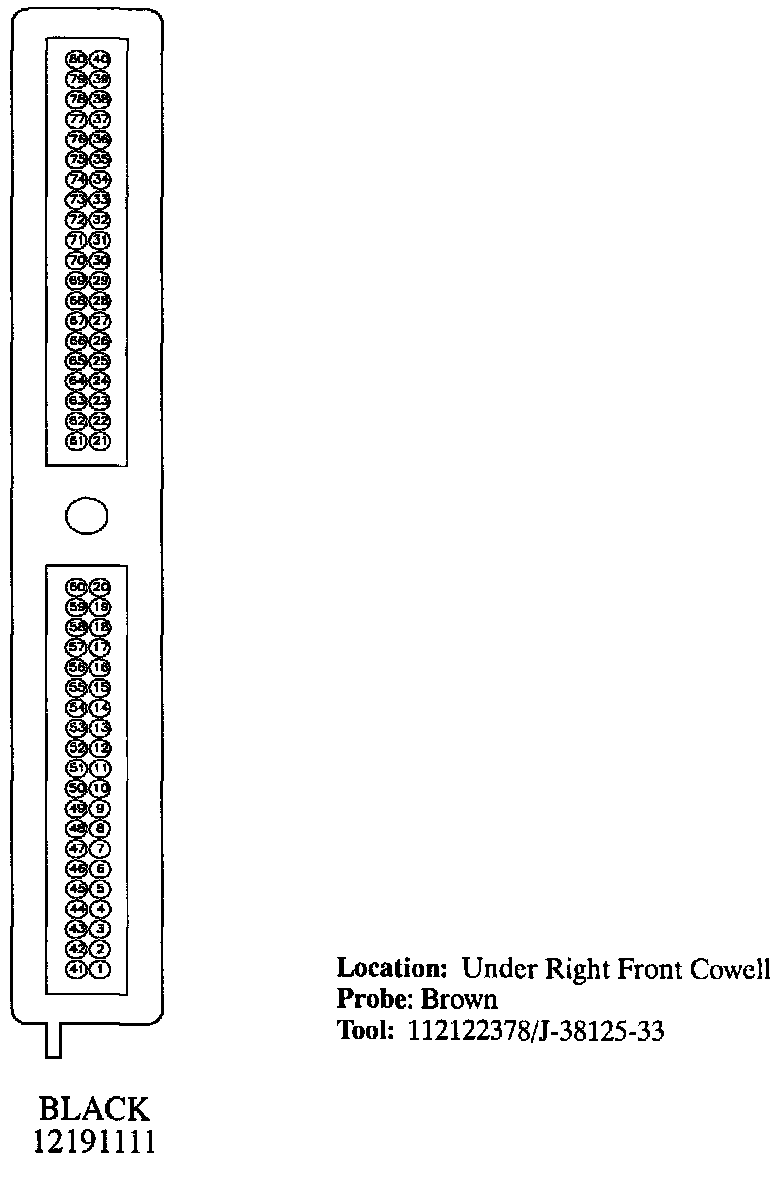

J2
J2

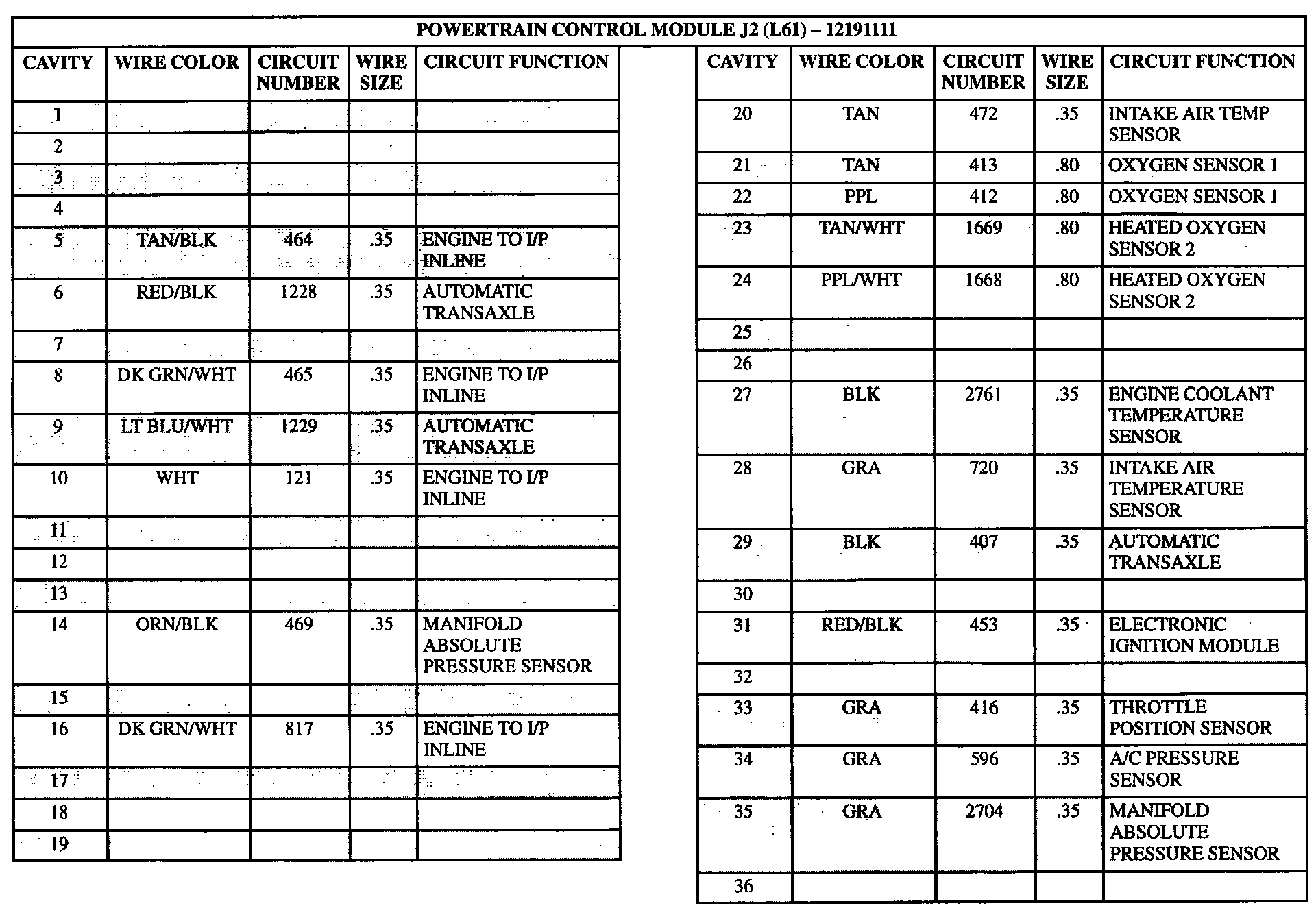

Powertrain Control Module J2 (Part 1 Of 4):

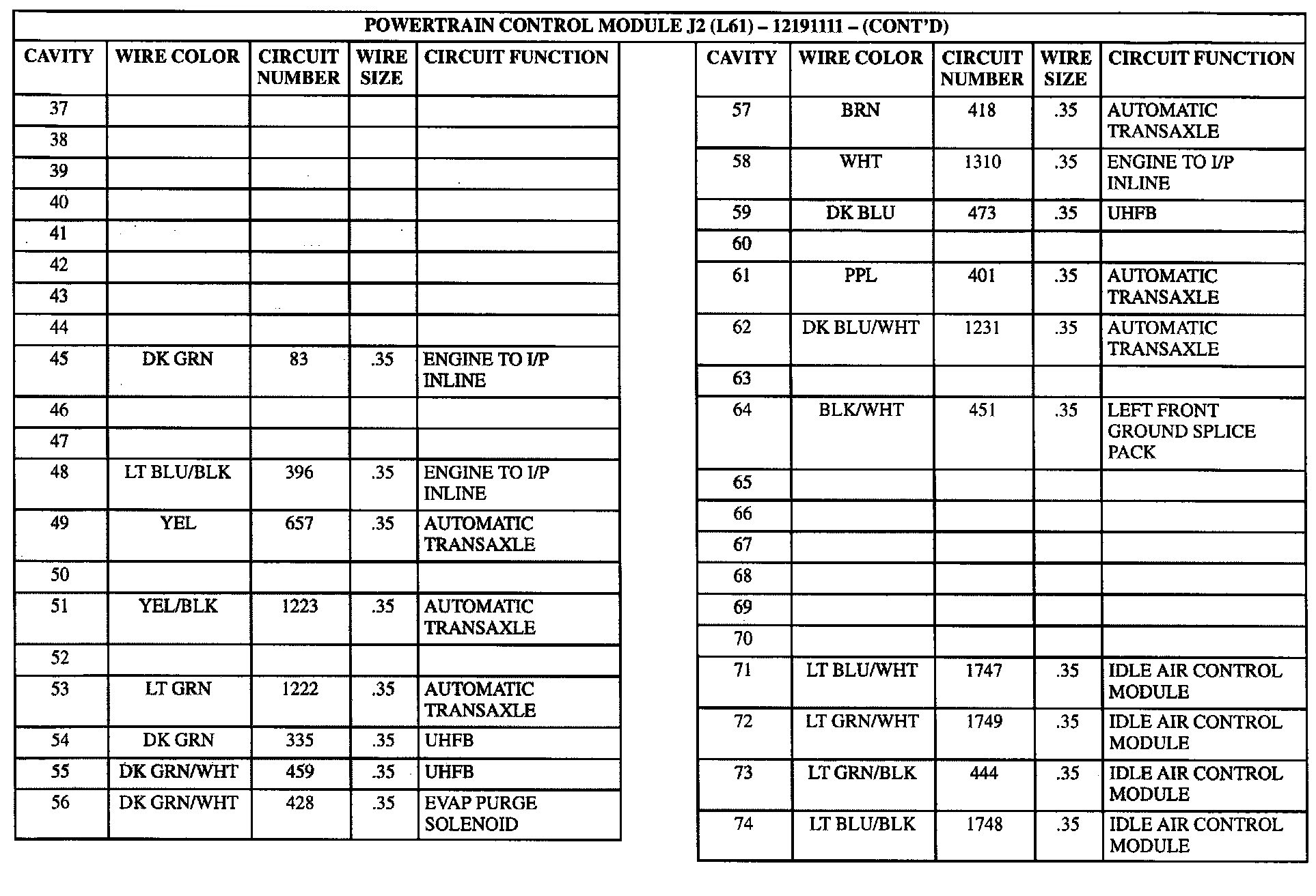

Powertrain Control Module J2 (Part 2 Of 4):
Powertrain Control Module J2 (Part 3 Of 4):

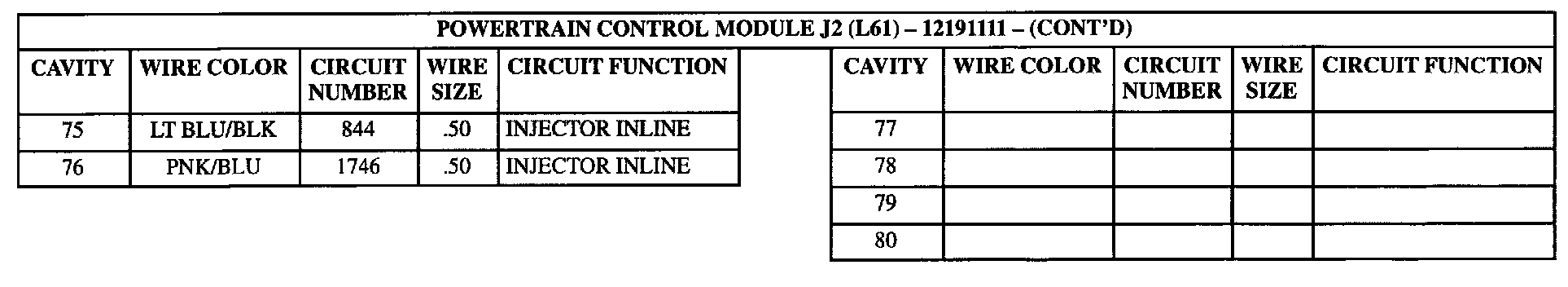

Powertrain Control Module J2 (Part 4 Of 4):
