Home >> Saab >> 2009 >> 9-7X V8-5.3L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Memory Positioning Module

Memory Positioning Module




Component Connector End Views

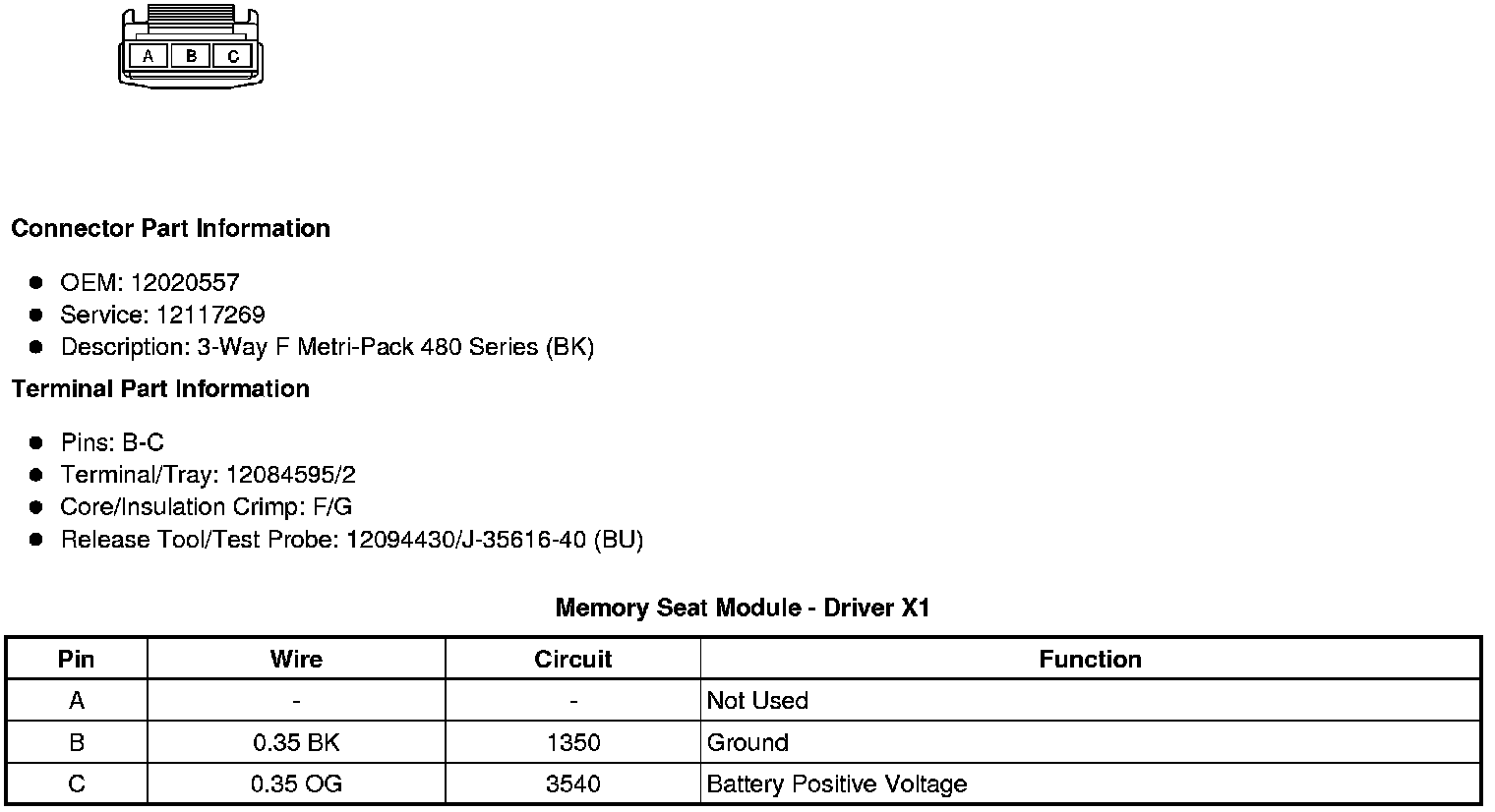

Memory Seat Module - Driver X1

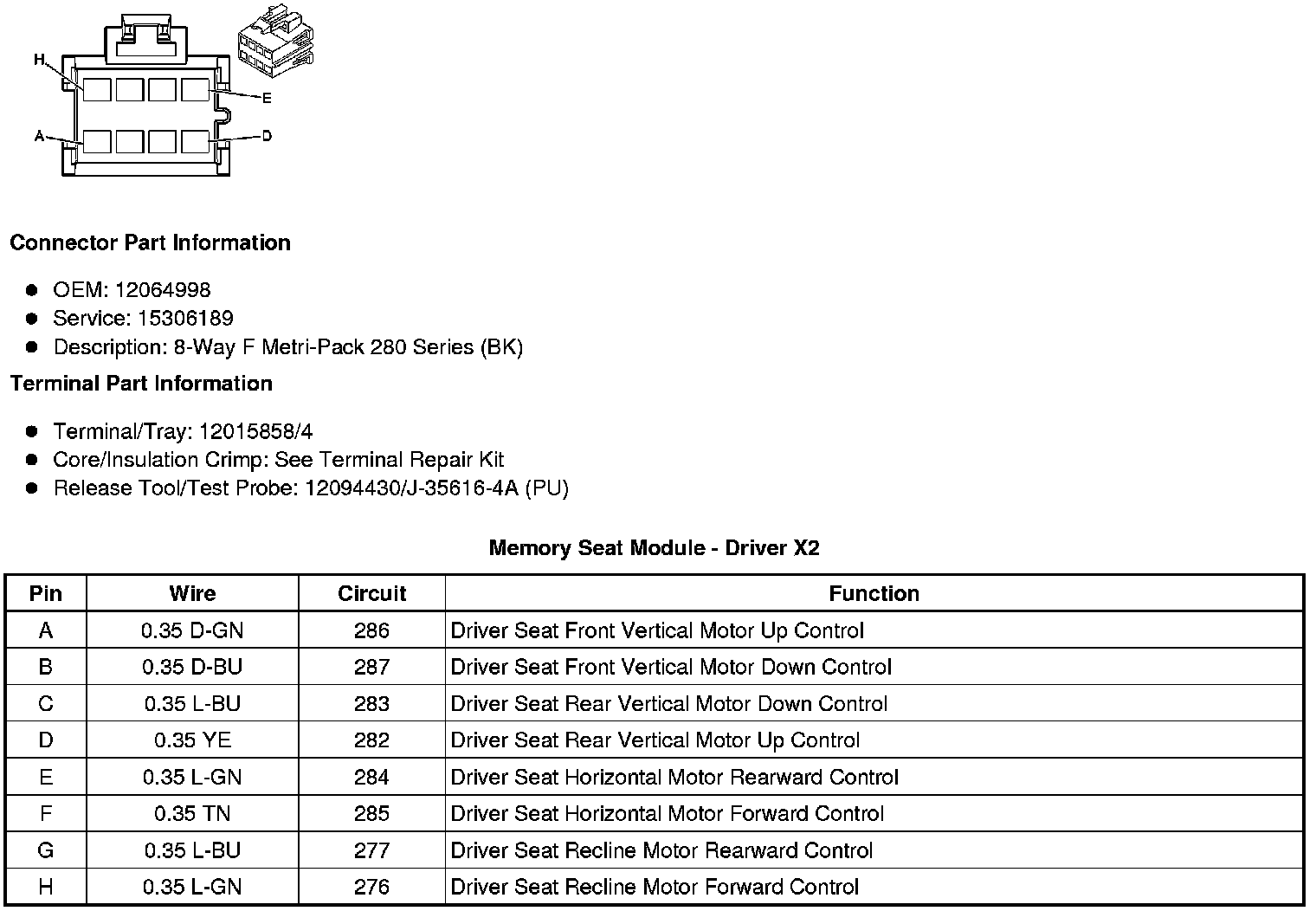

Memory Seat Module - Driver X2

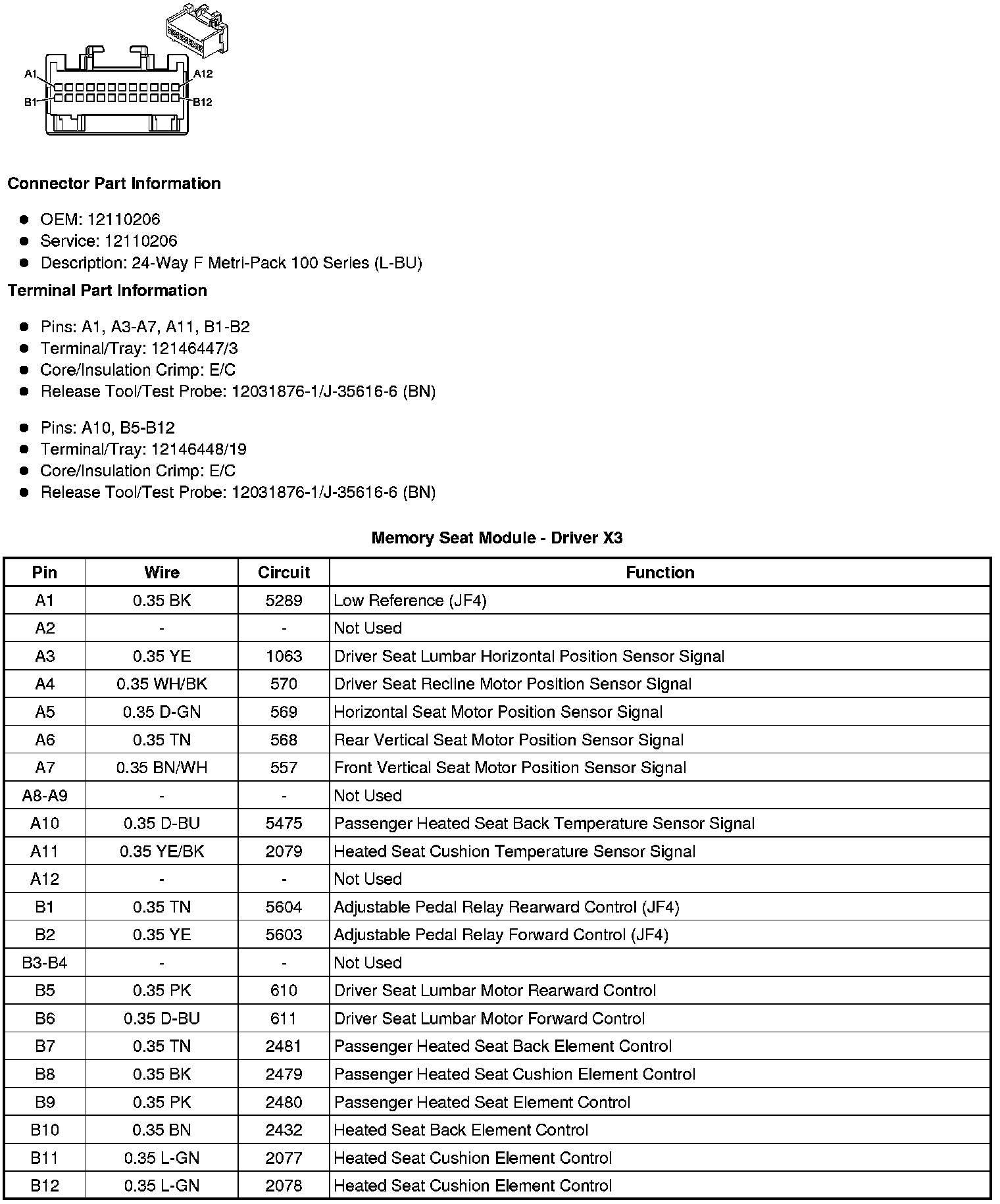

Memory Seat Module - Driver X3

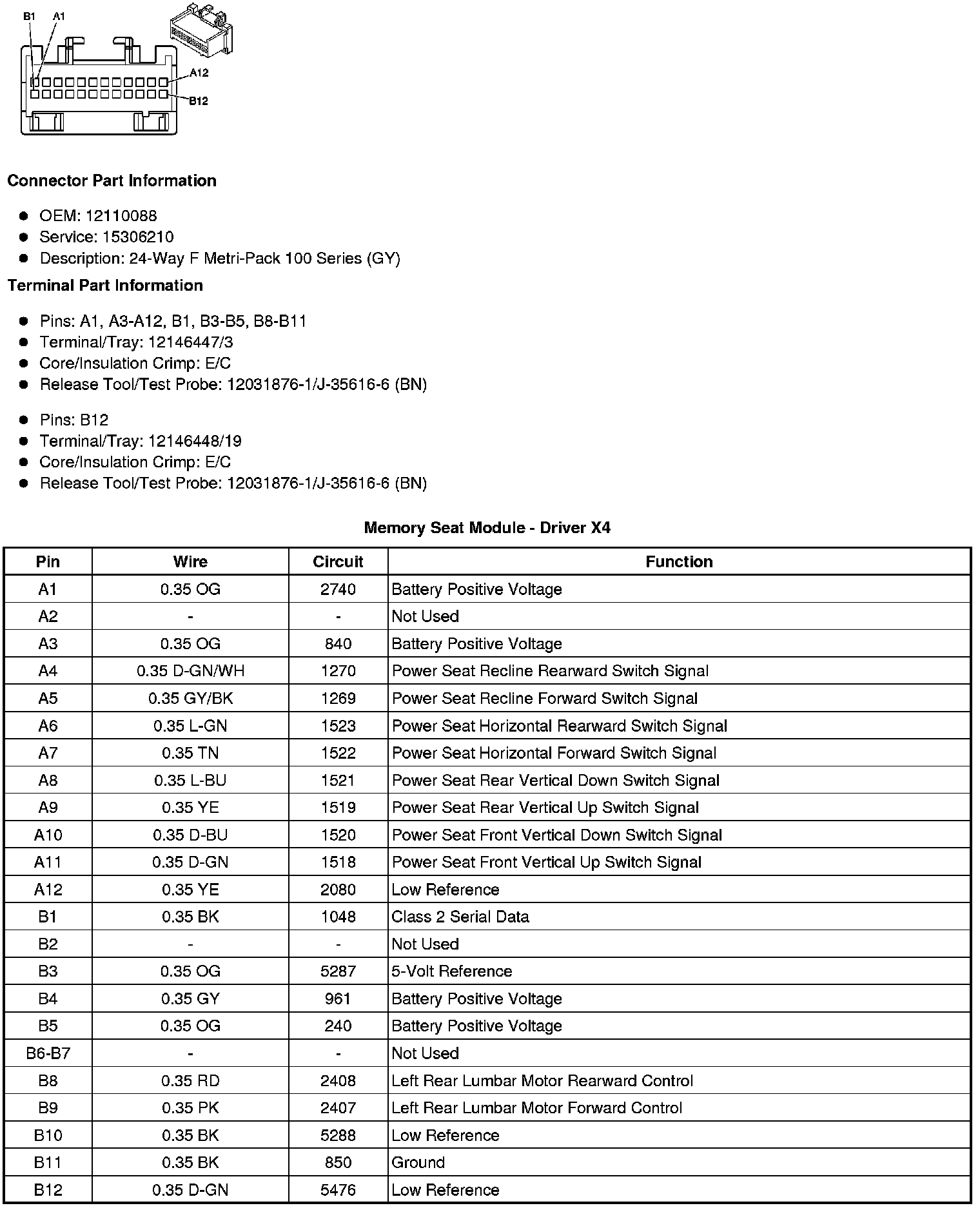

Memory Seat Module - Driver X4
