Home >> Saab >> 2009 >> 9-7X V8-5.3L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Electronic Brake Control Module

Electronic Brake Control Module

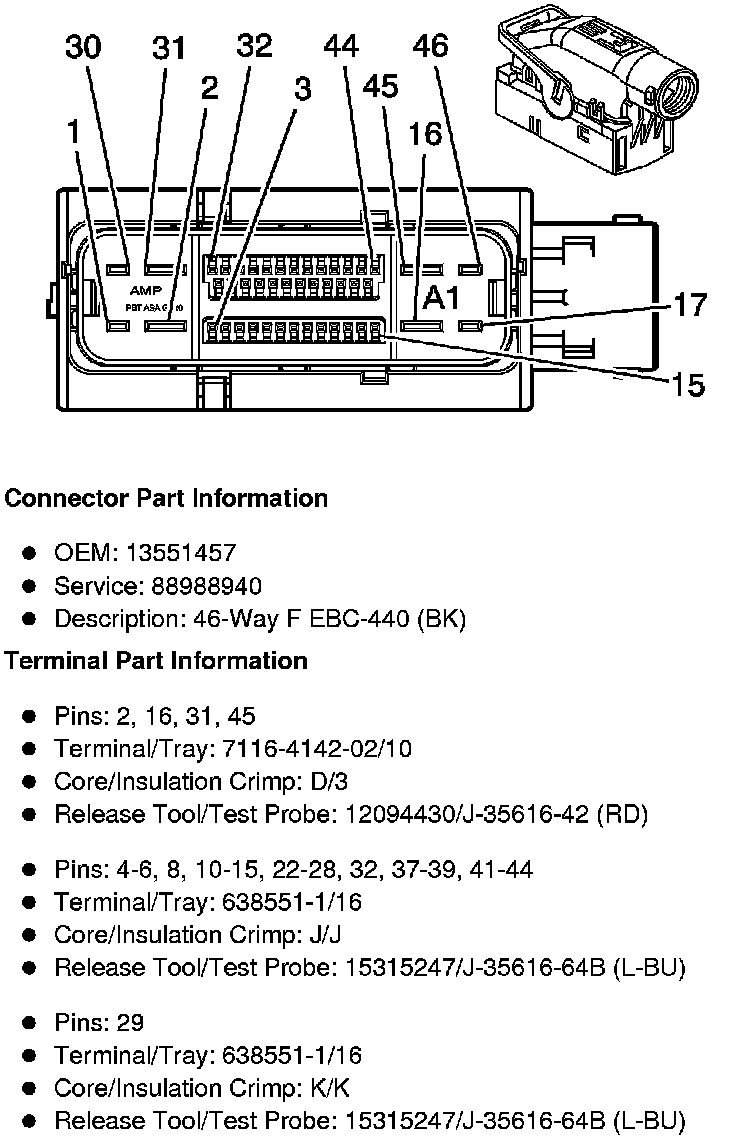

Component Connector End Views

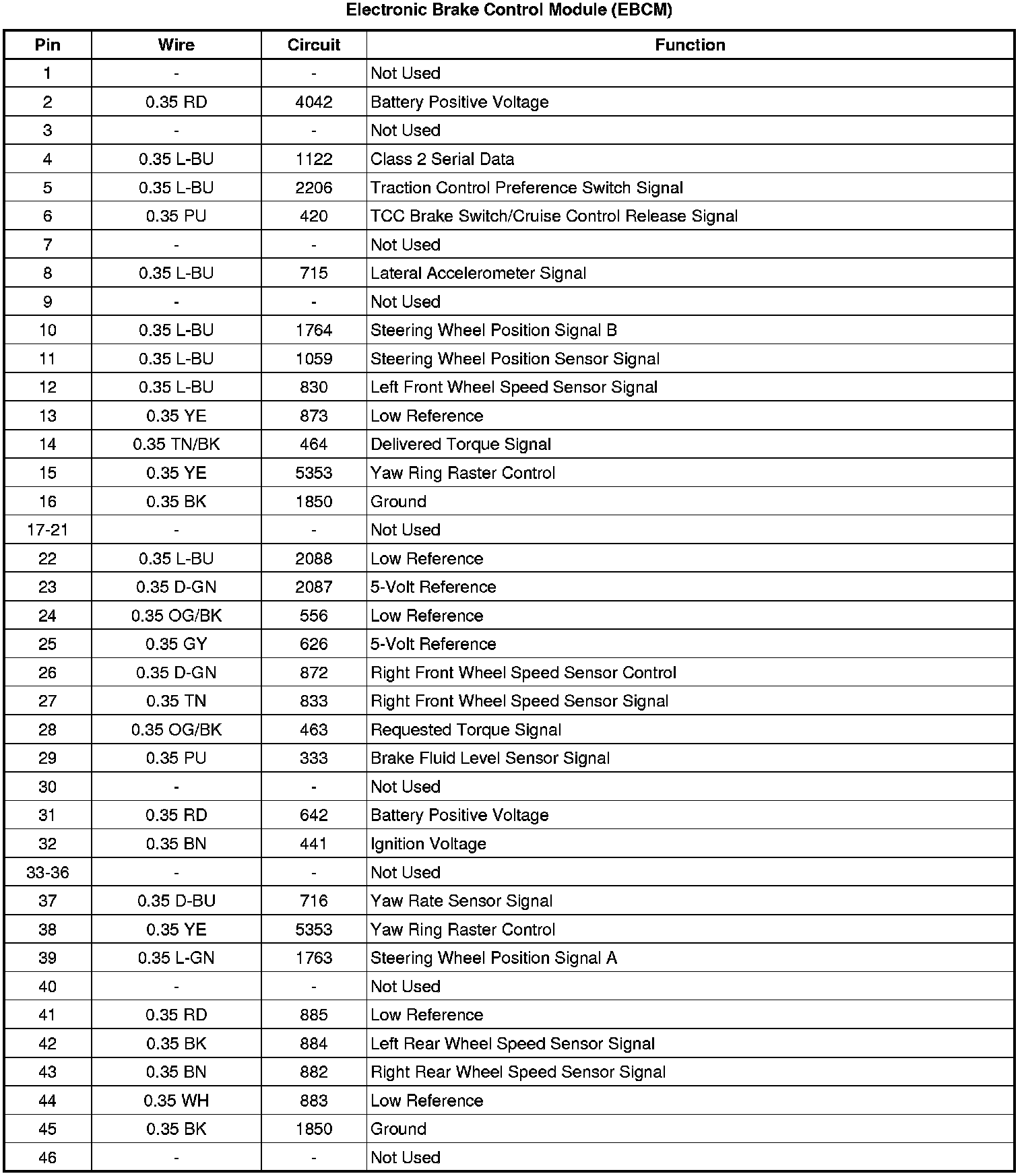

Electronic Brake Control Module (EBCM)
