Control Module HVAC




Component Connector End Views

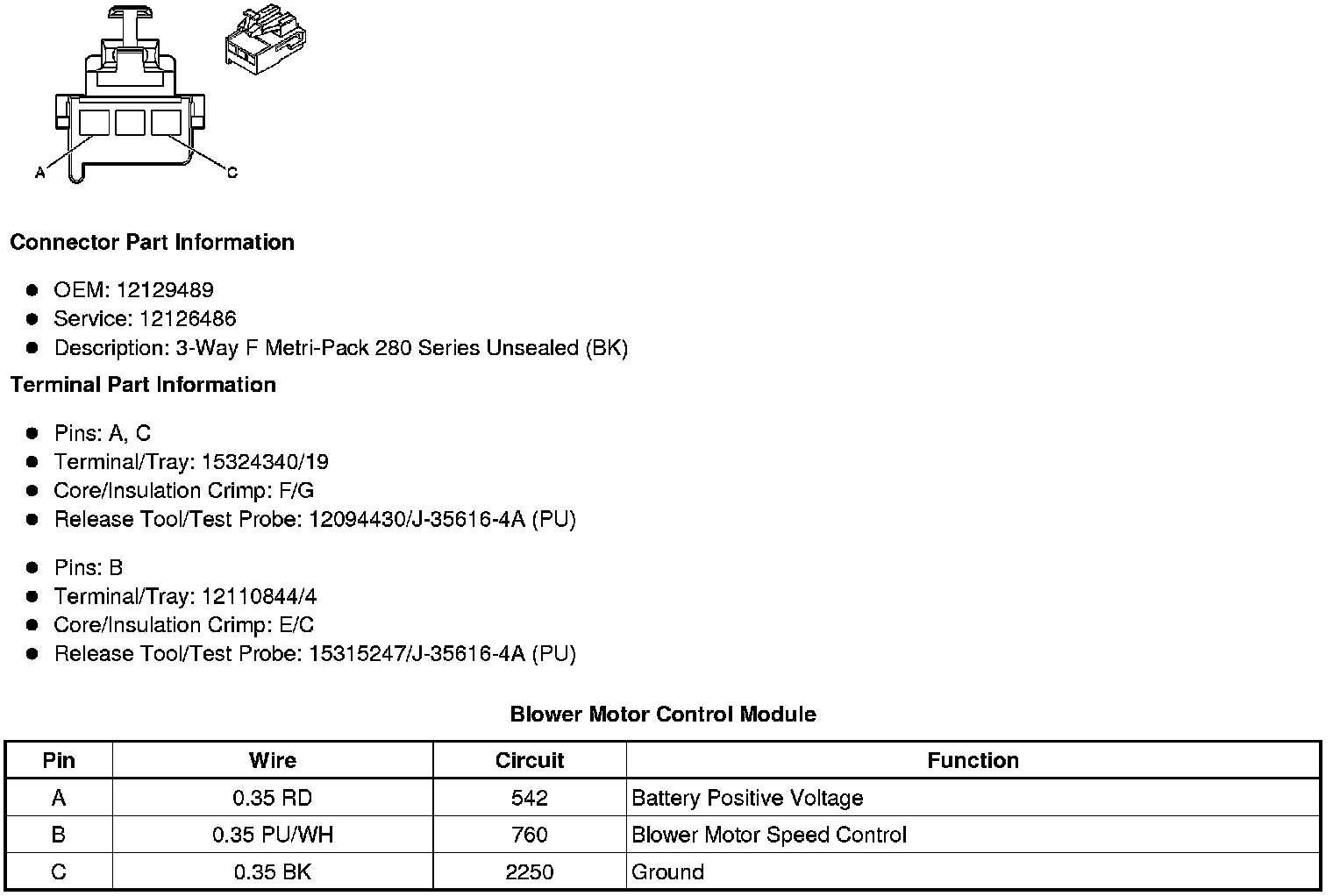

Blower Motor Control Module





Component Connector End Views

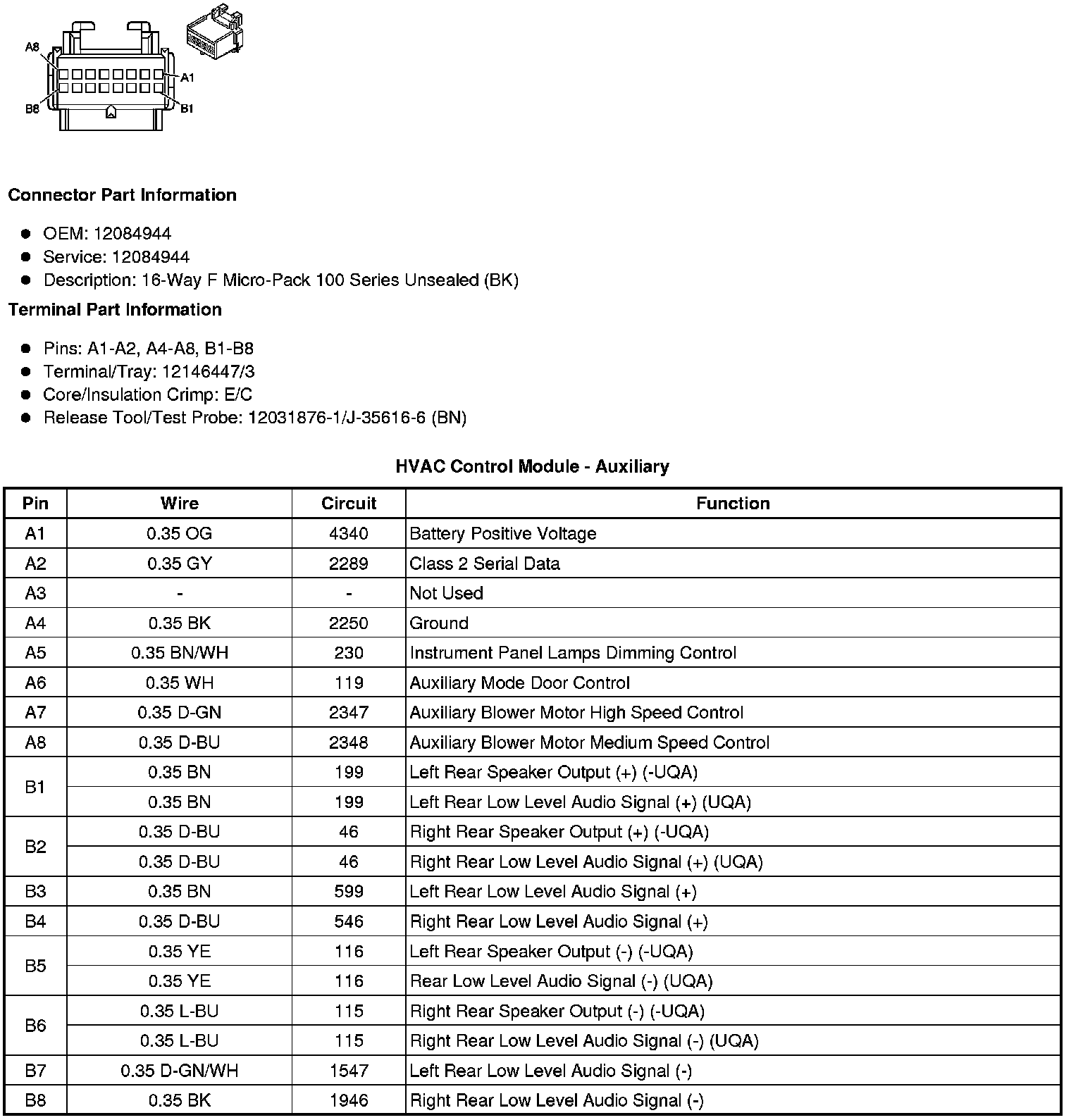

HVAC Control Module - Auxiliary

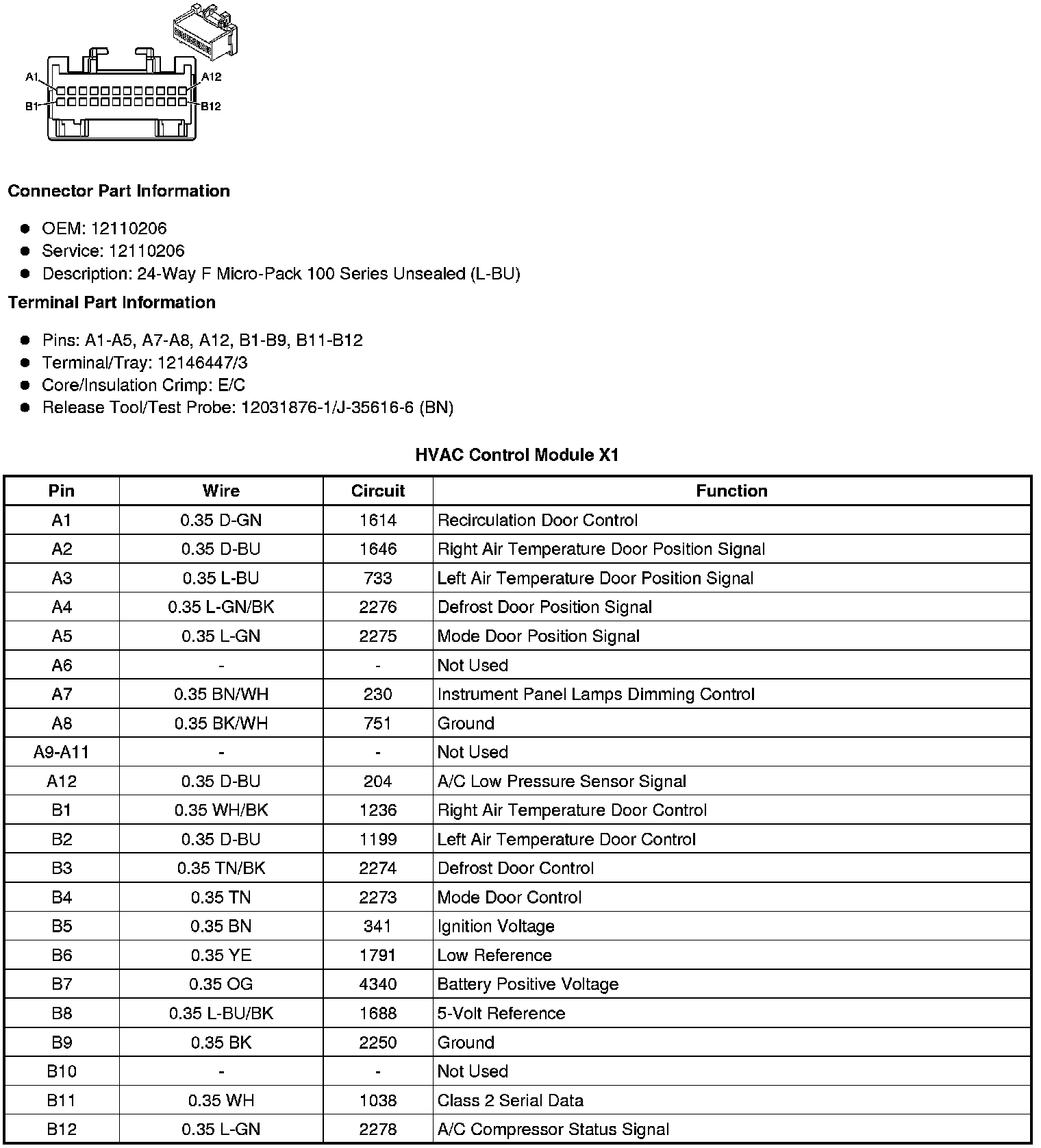

HVAC Control Module X1

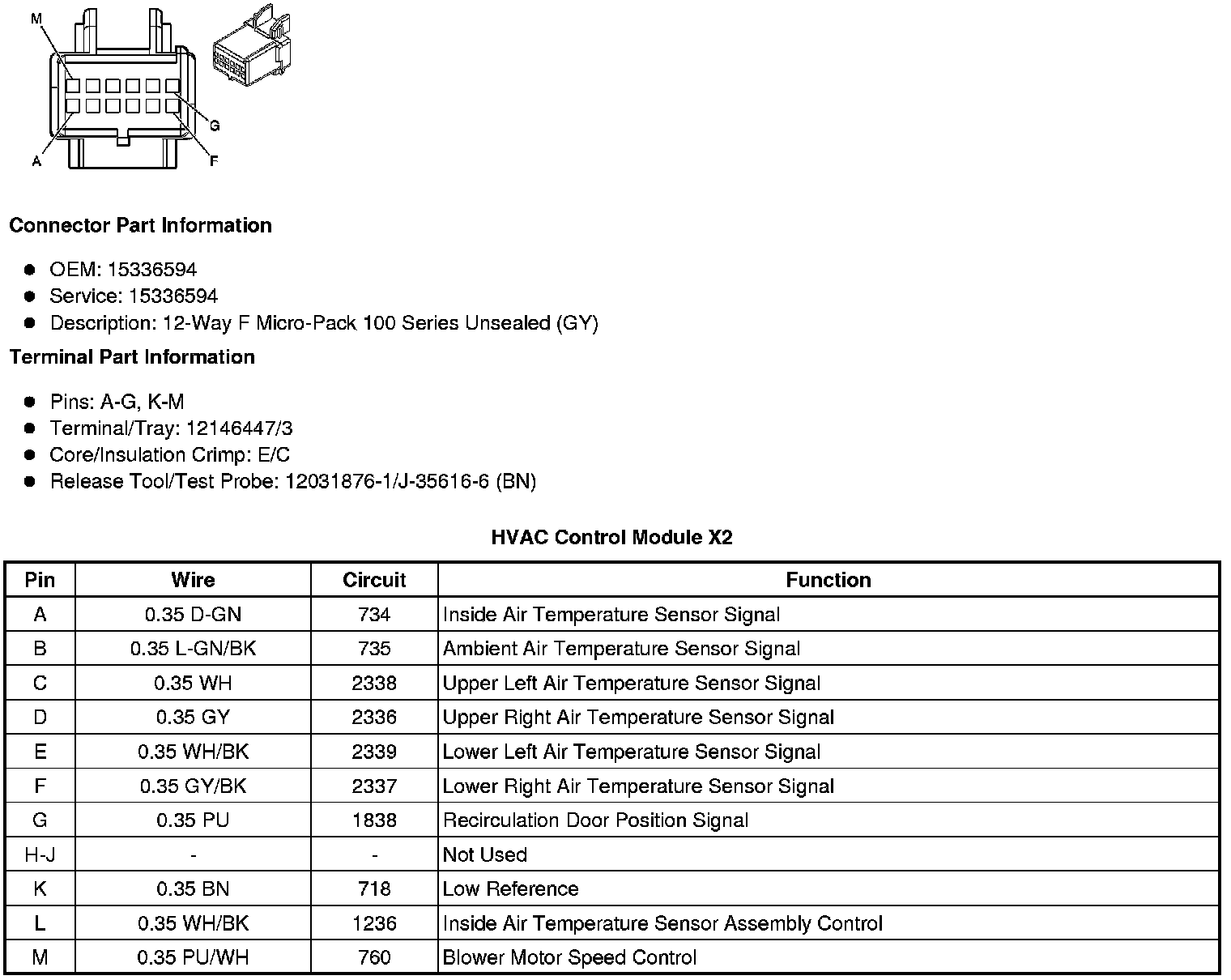

HVAC Control Module X2
