Body Control Module




Component Connector End Views

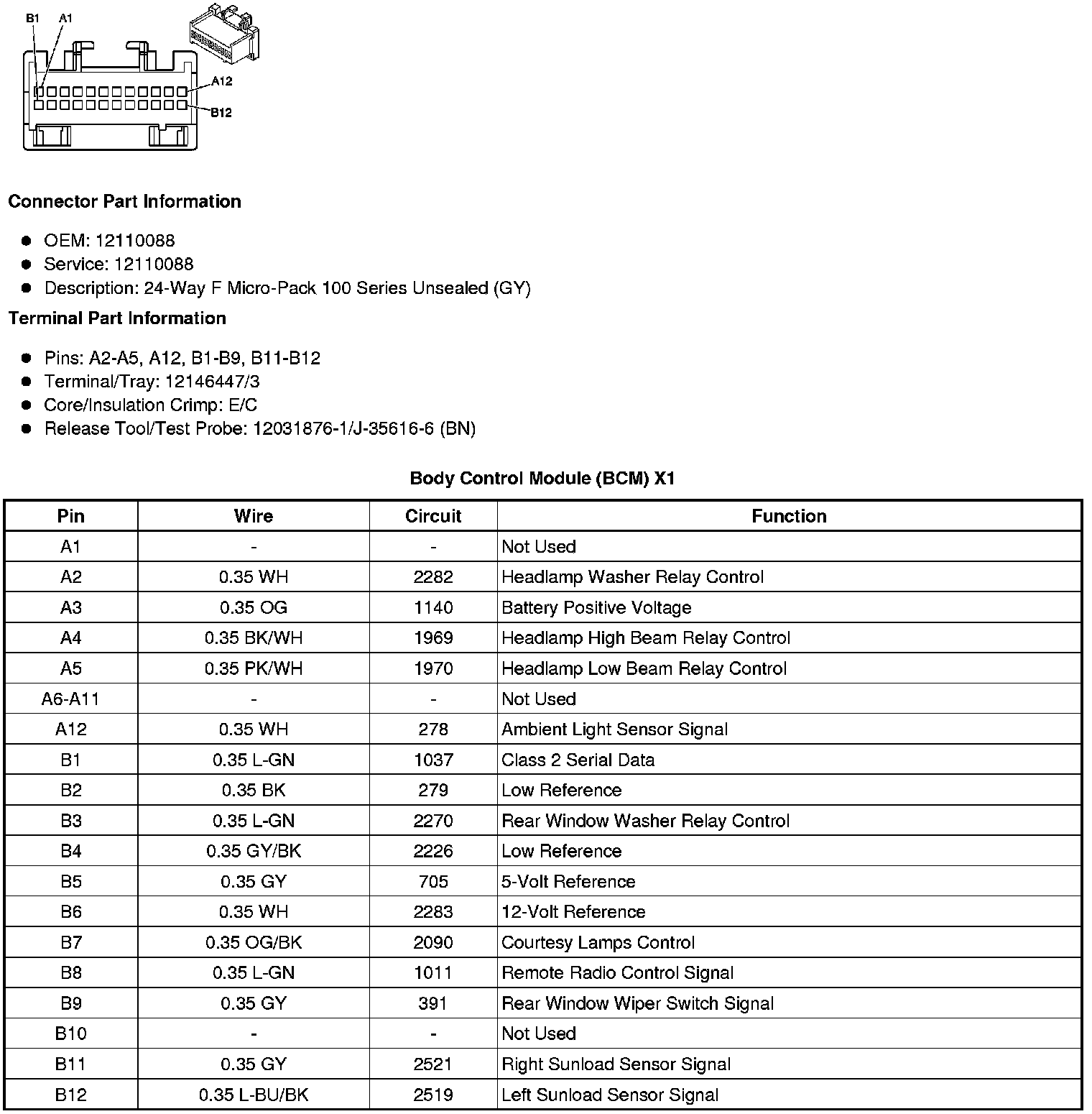

Body Control Module (BCM) X1

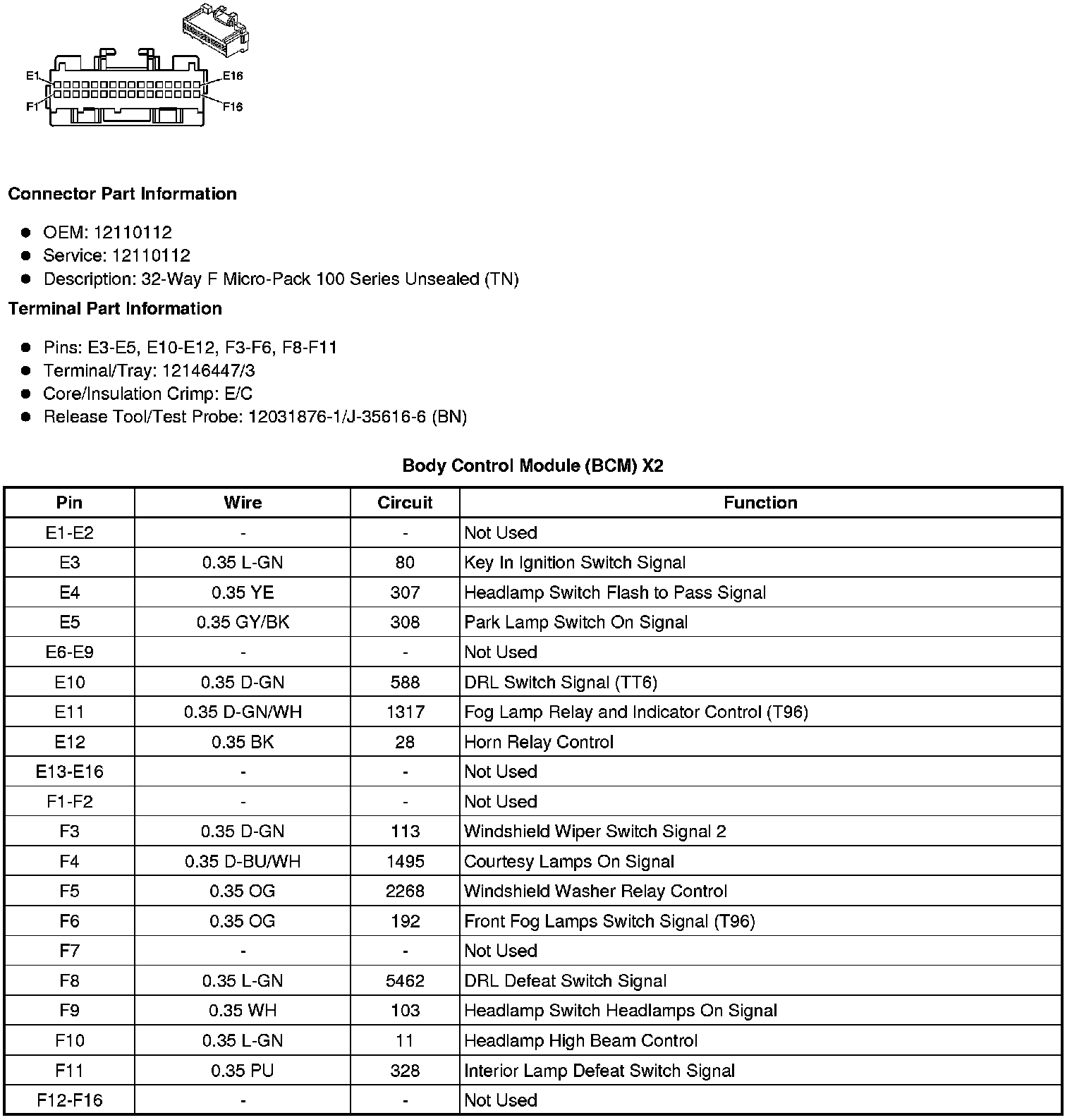

Body Control Module (BCM) X2

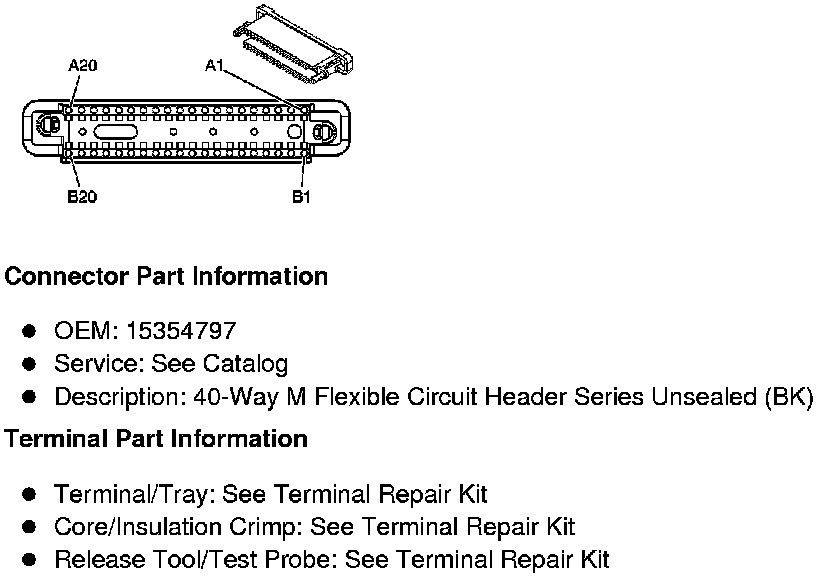

Body Control Module (BCM) X3
