Ignition Control Module: Diagrams

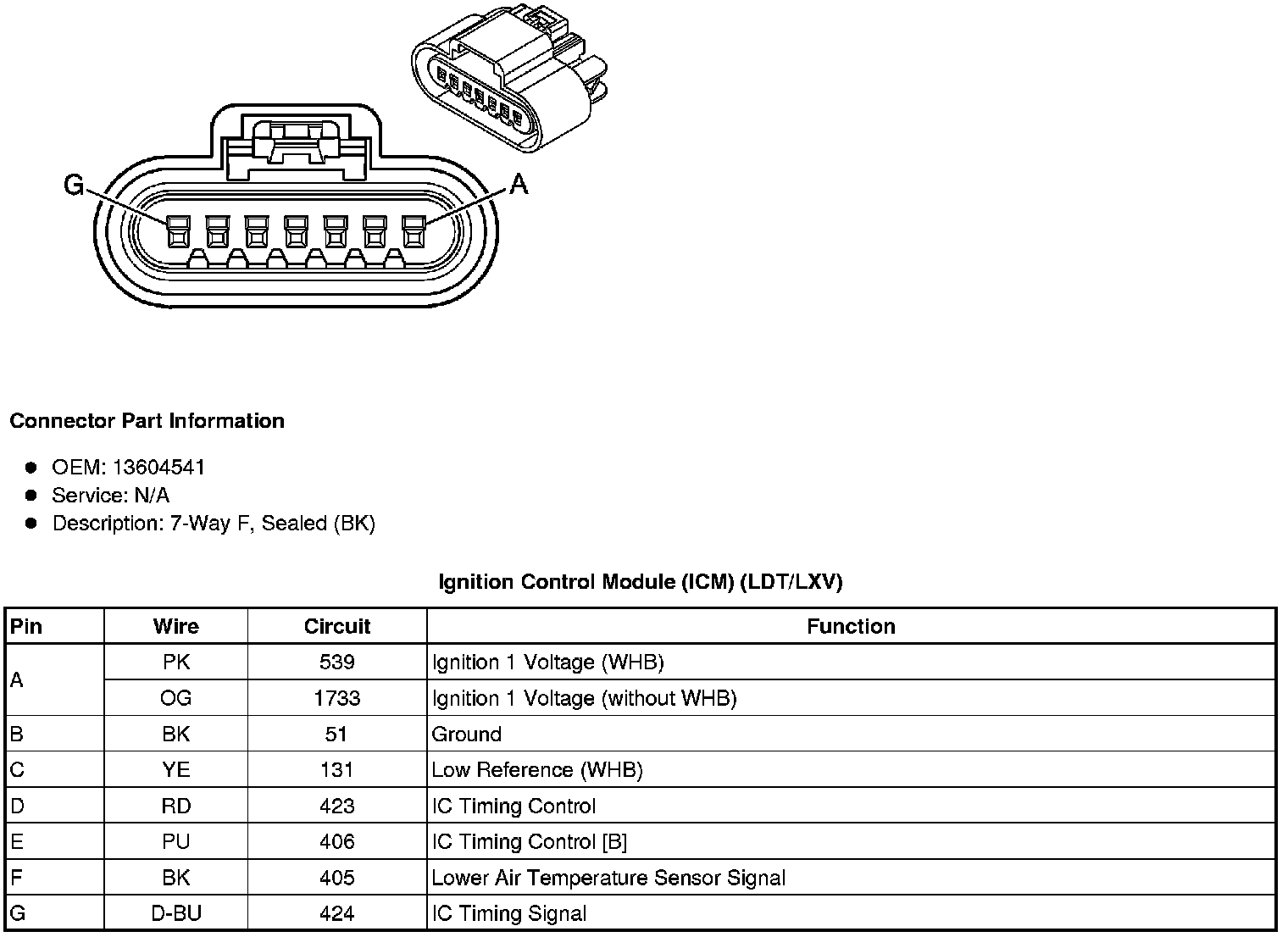

Component Connector End Views

Ignition Control Module (ICM) (LDT/LXV)
