Engine Control Module




Component Connector End Views

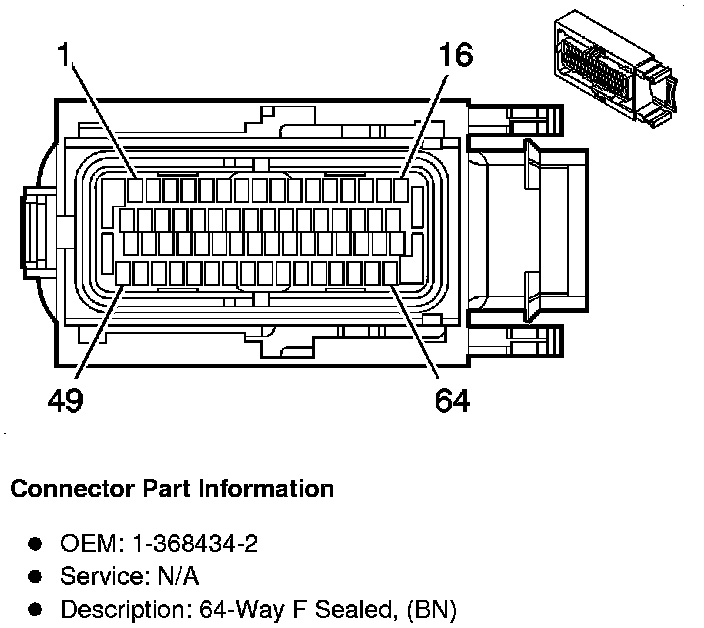

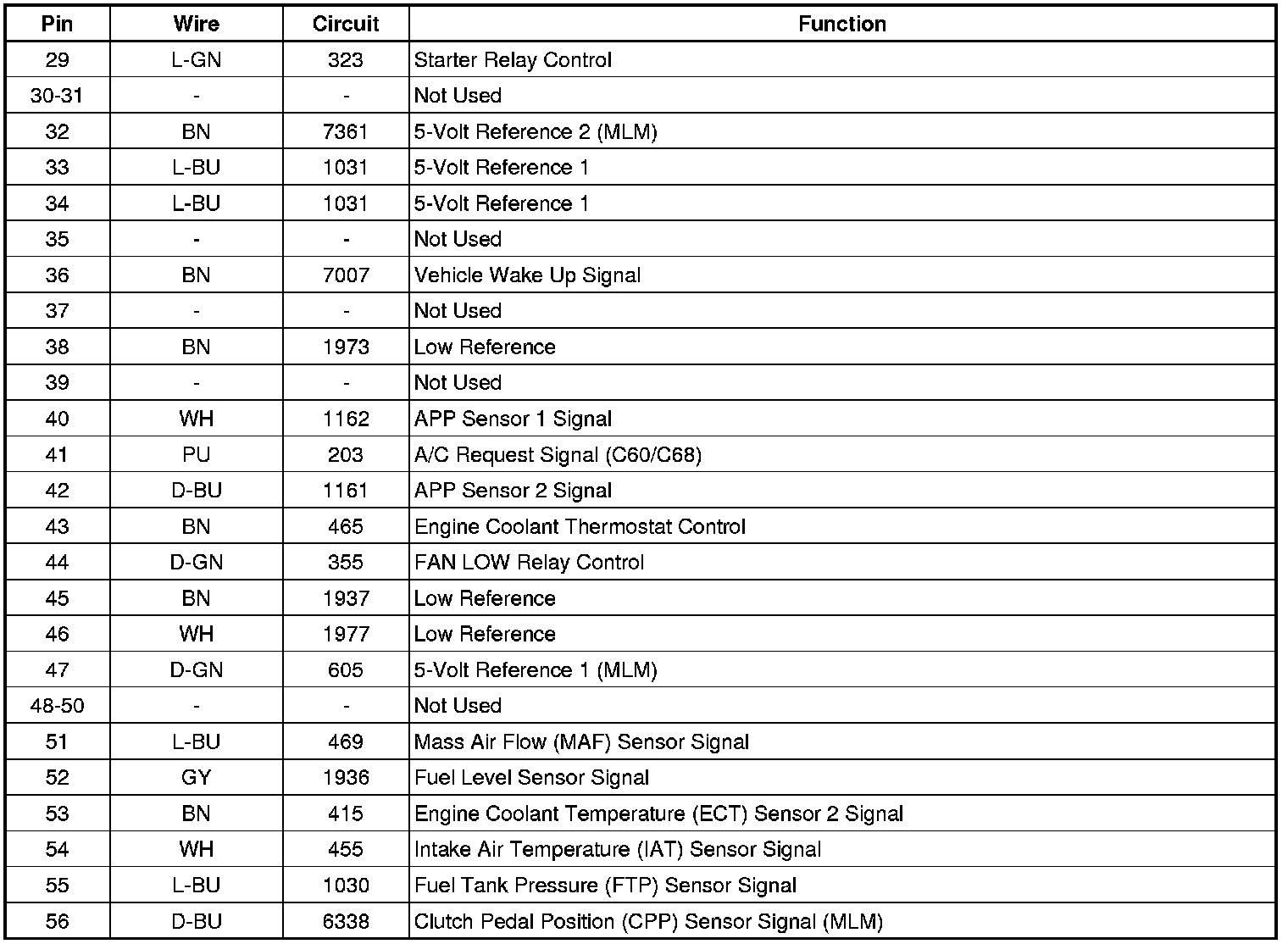

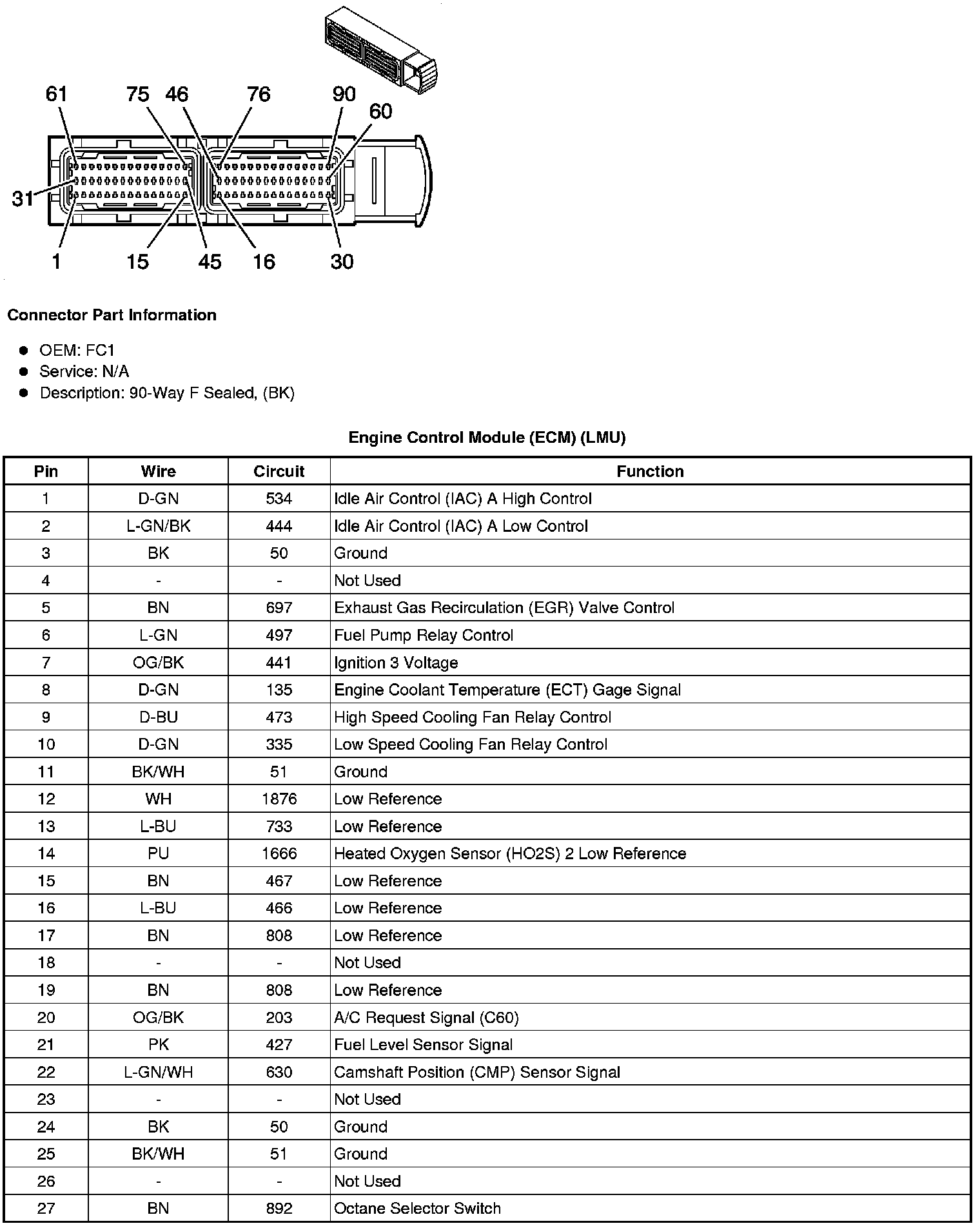

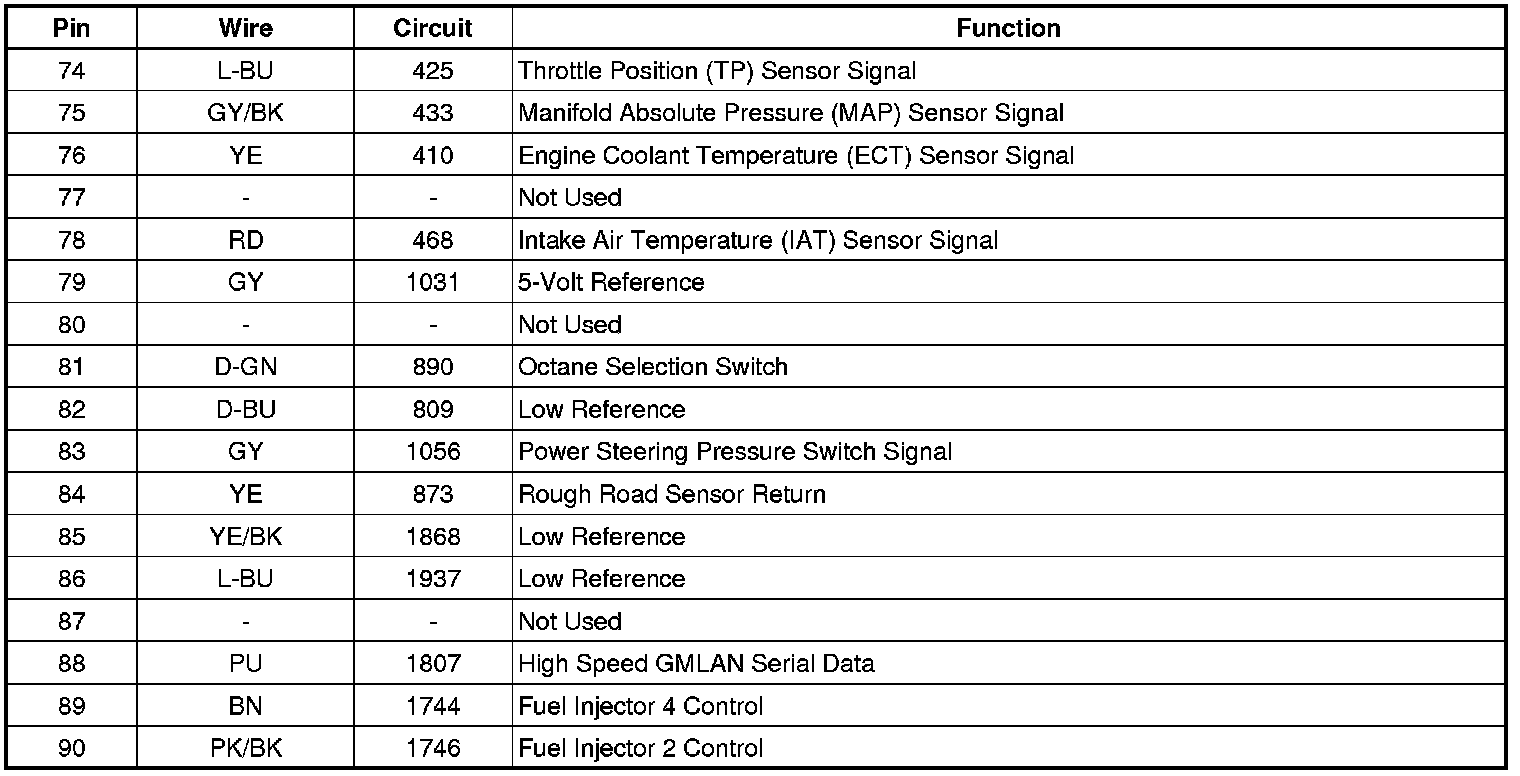

Engine Control Module (ECM) (LMU)

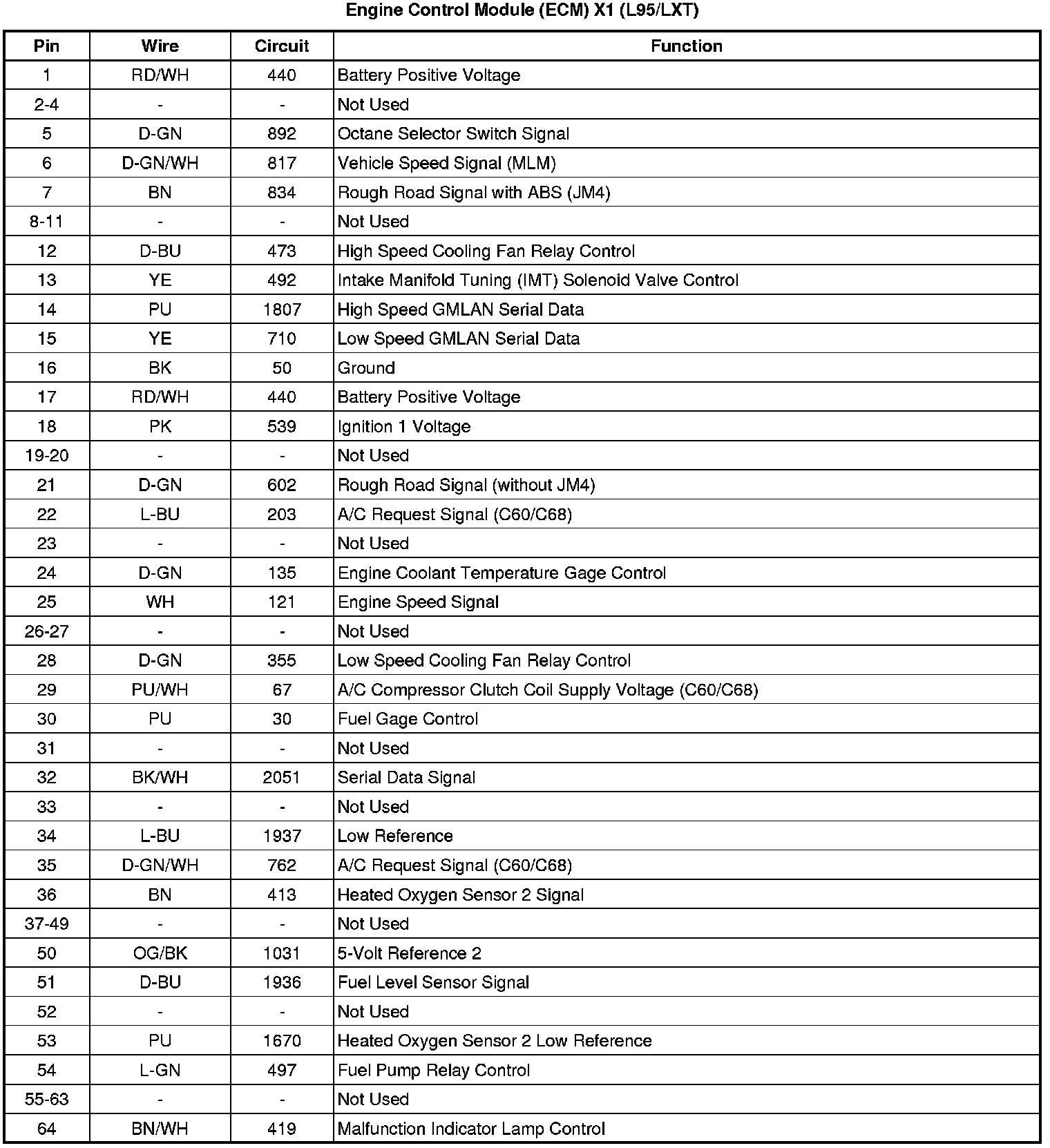

Engine Control Module (ECM) X1 (L95/LXT)

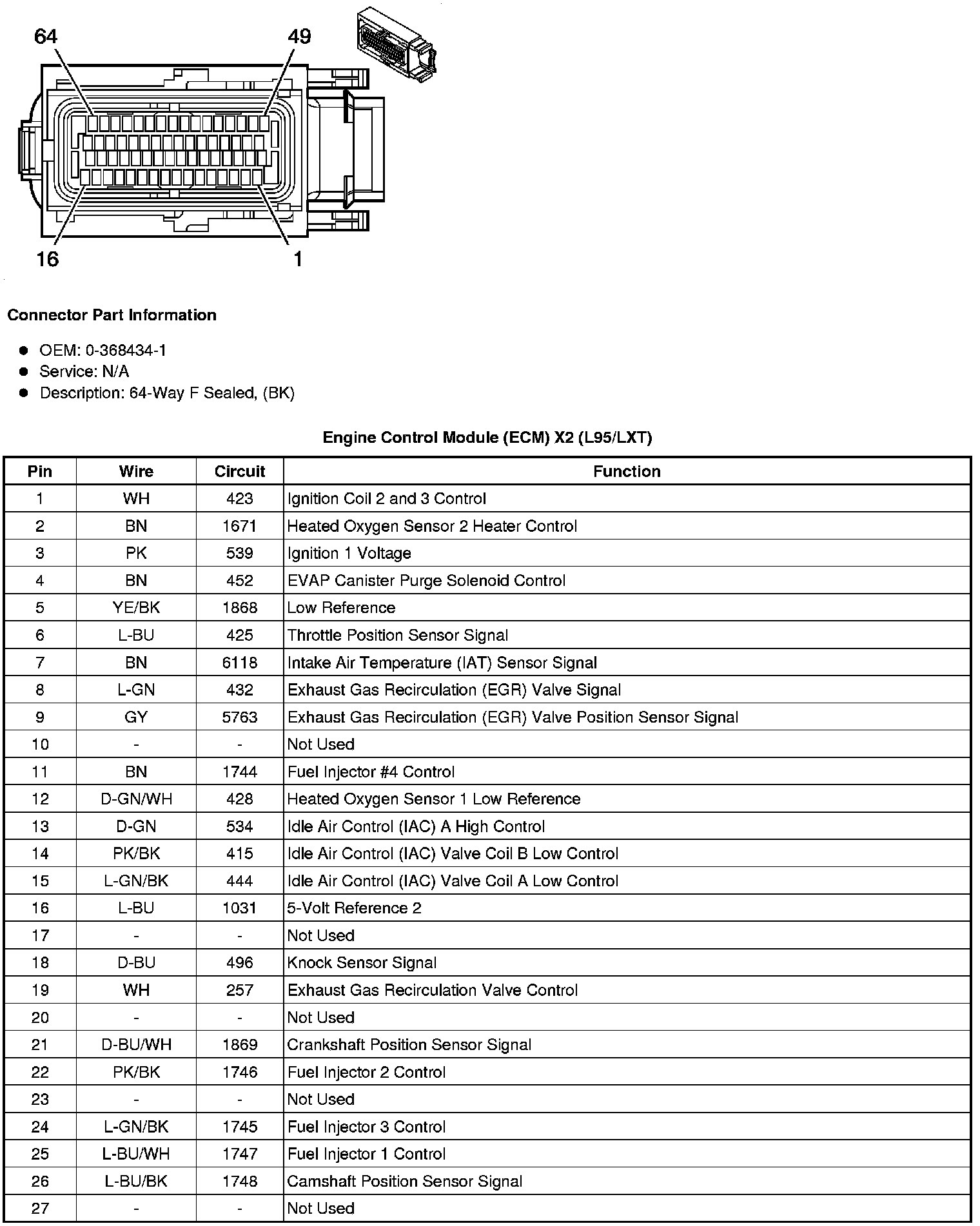

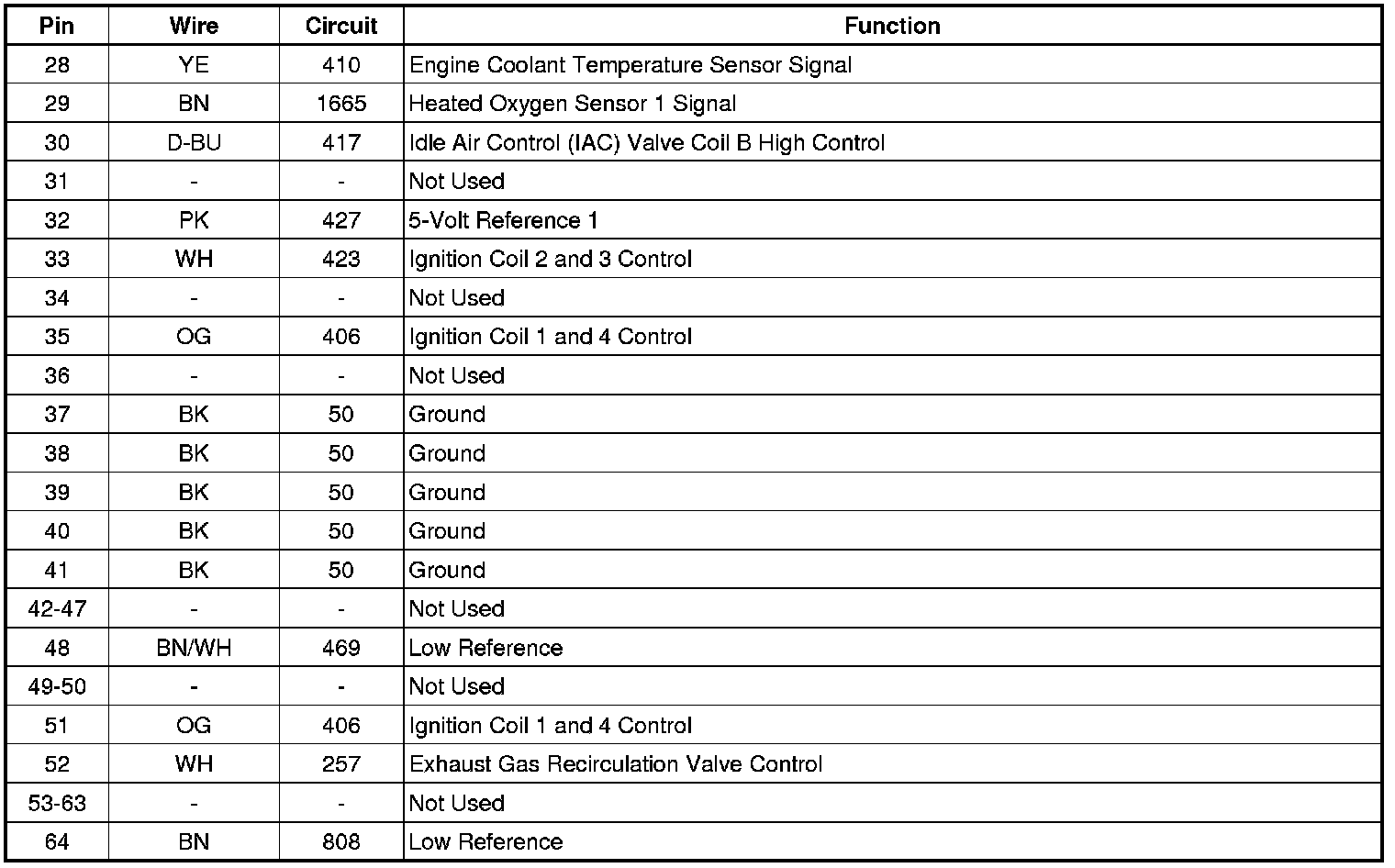

Engine Control Module (ECM) X2 (L95/LXT)

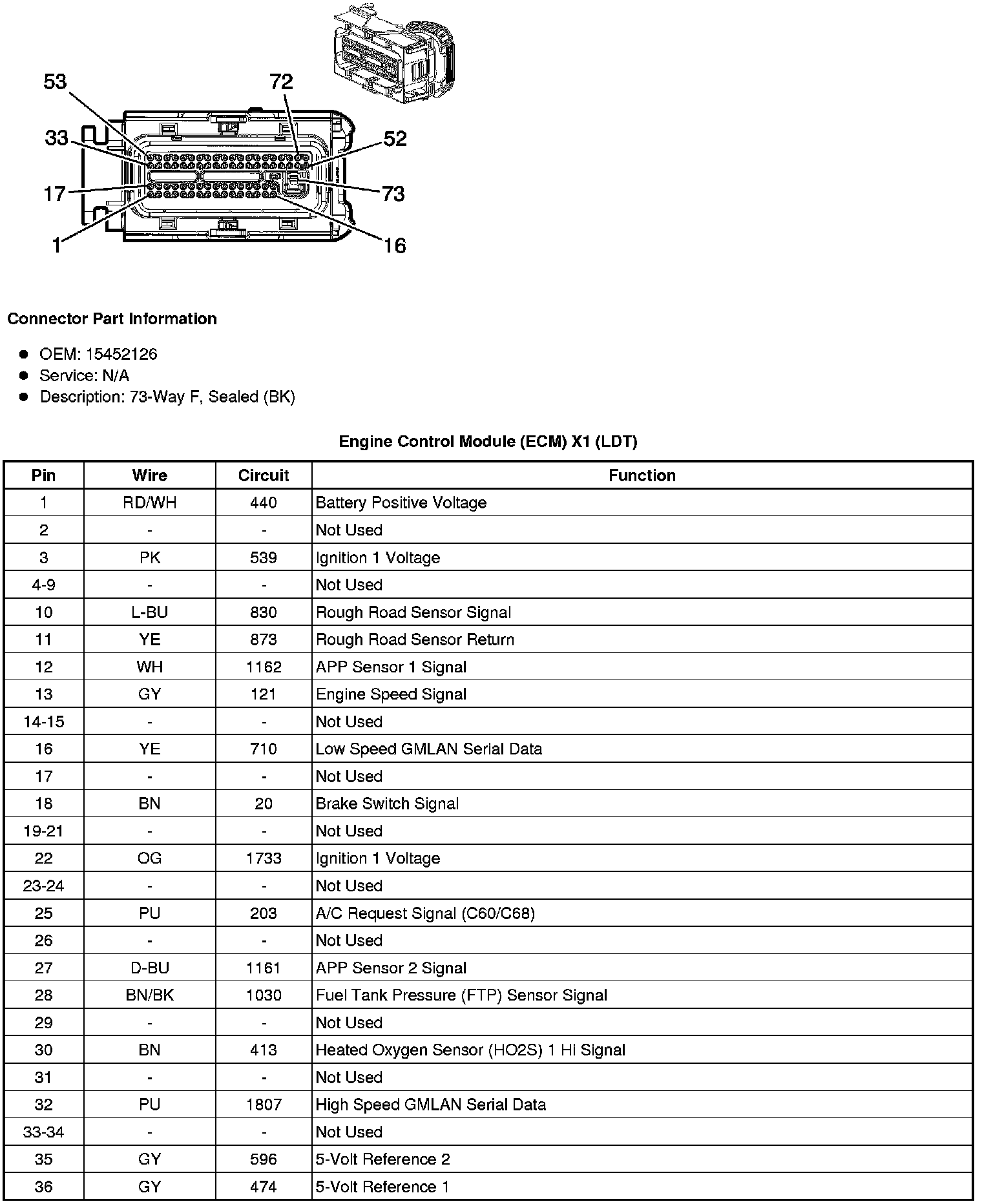

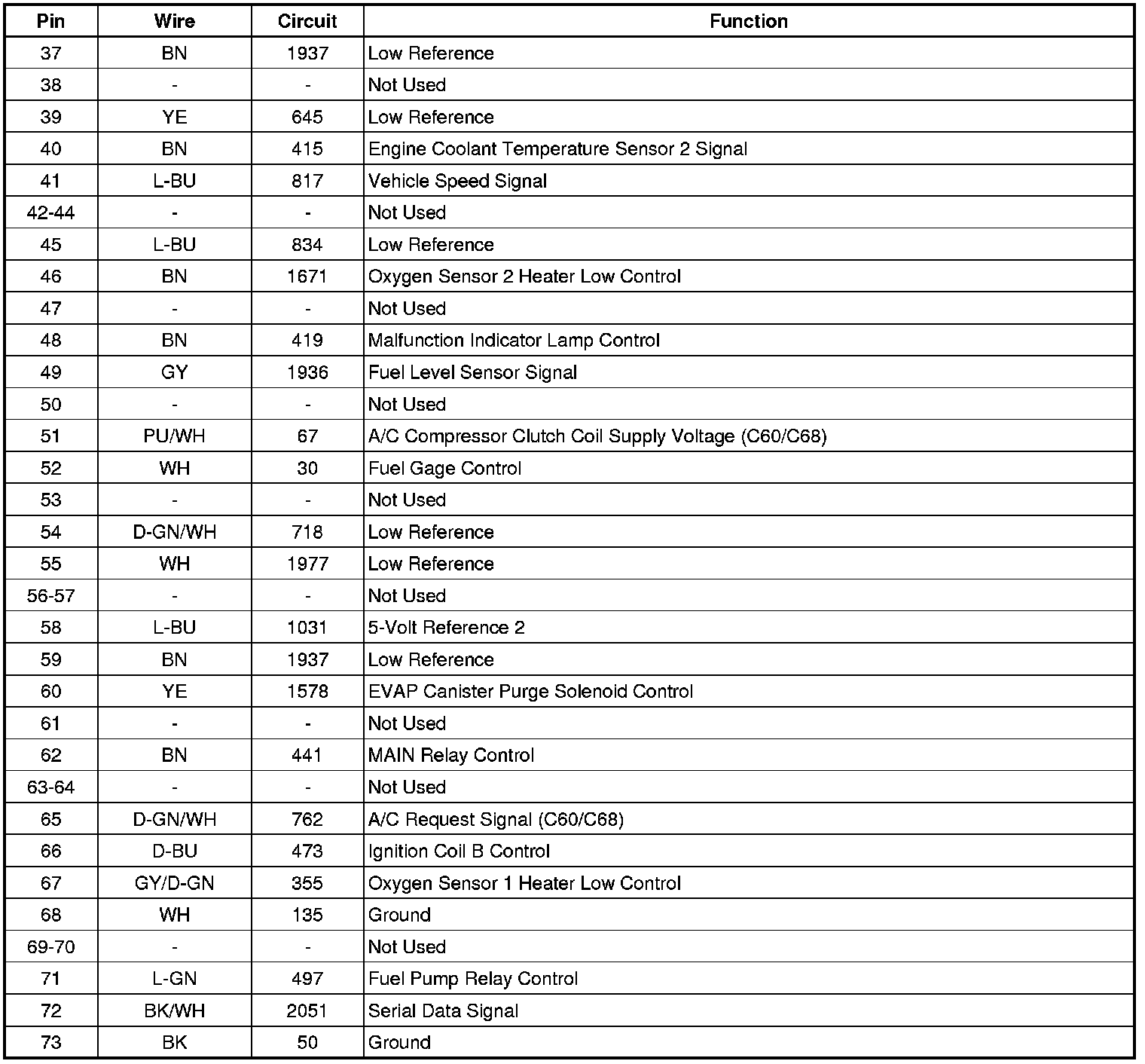

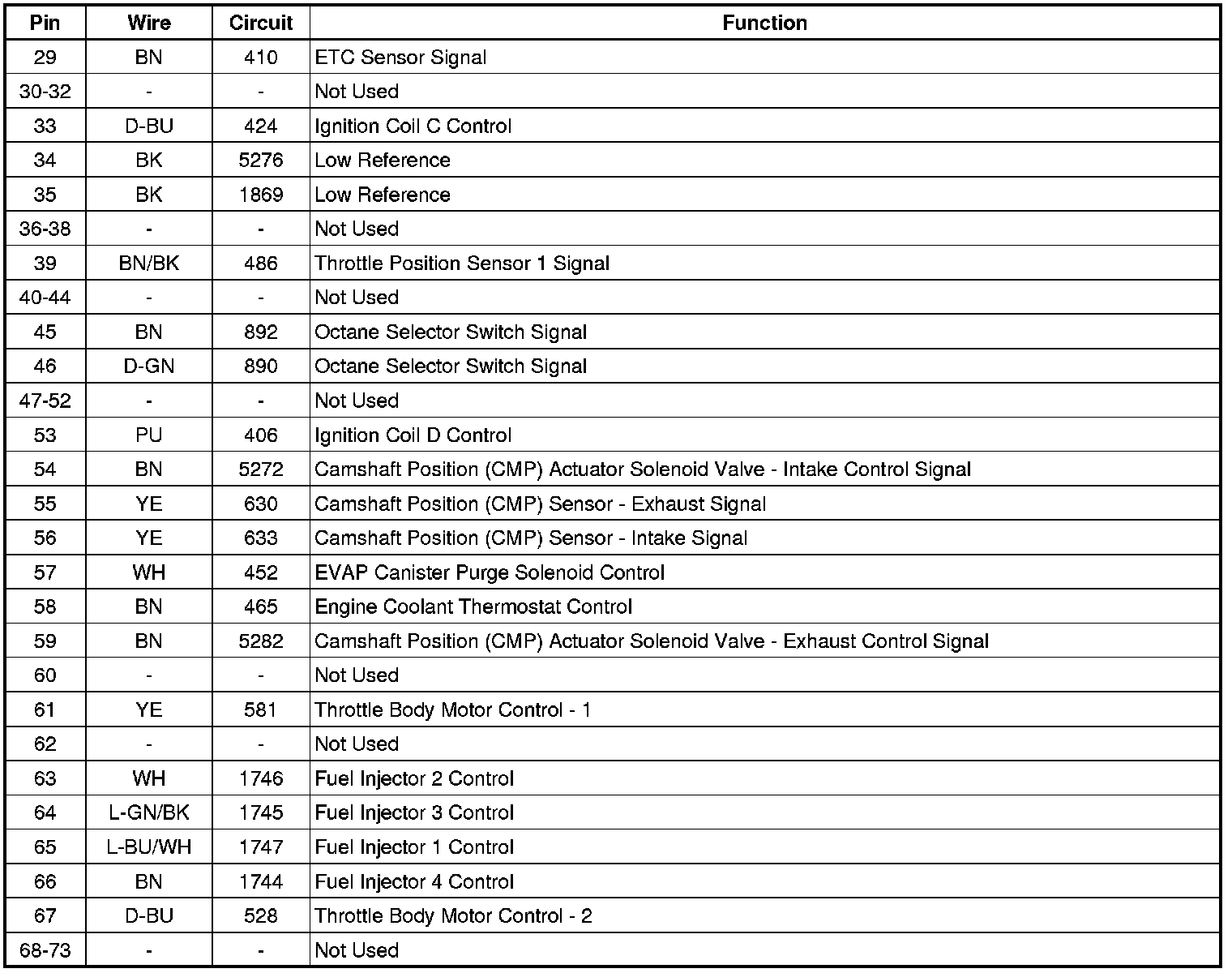

Engine Control Module (ECM) X1 (LDT)

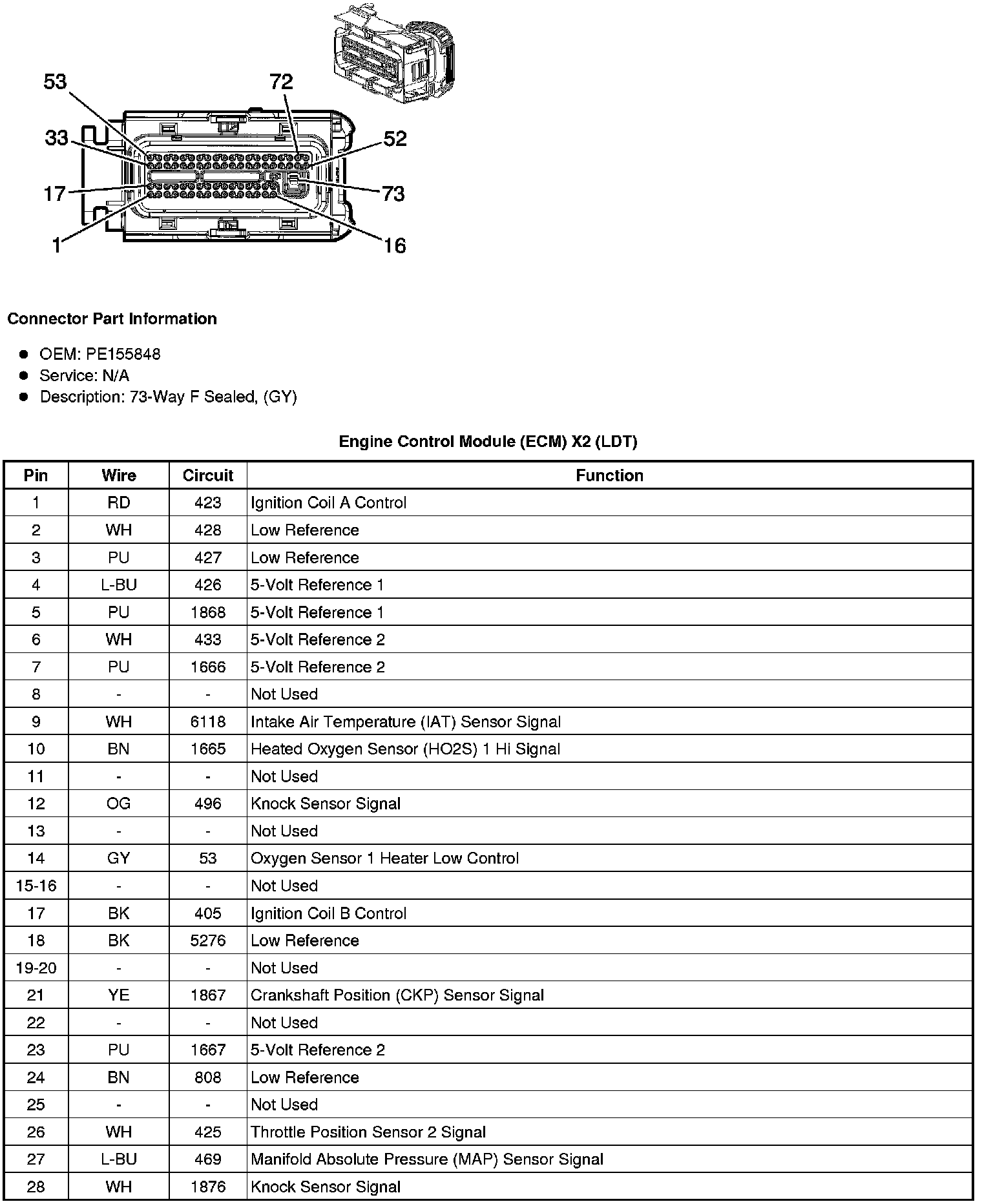

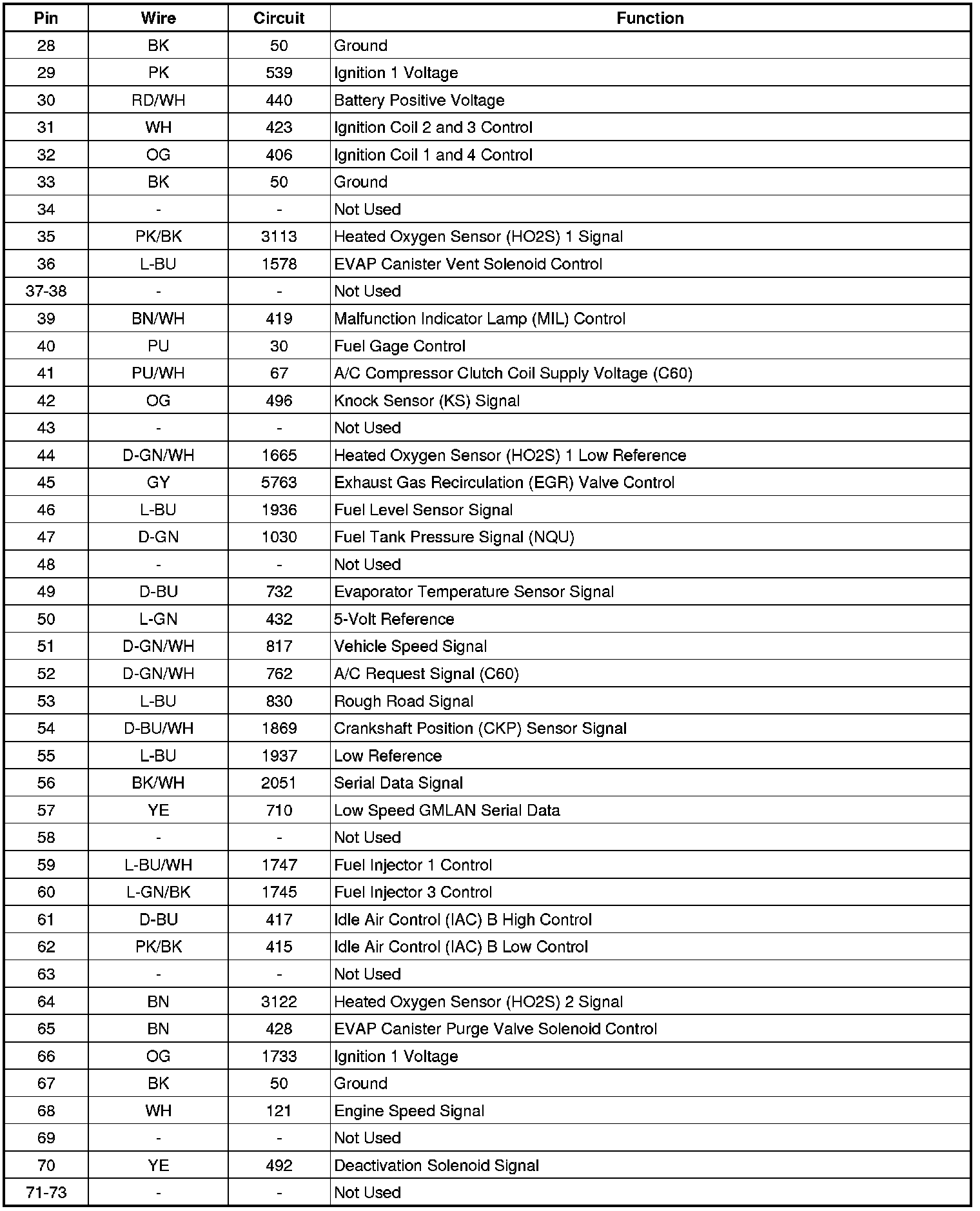

Engine Control Module (ECM) X2 (LDT)

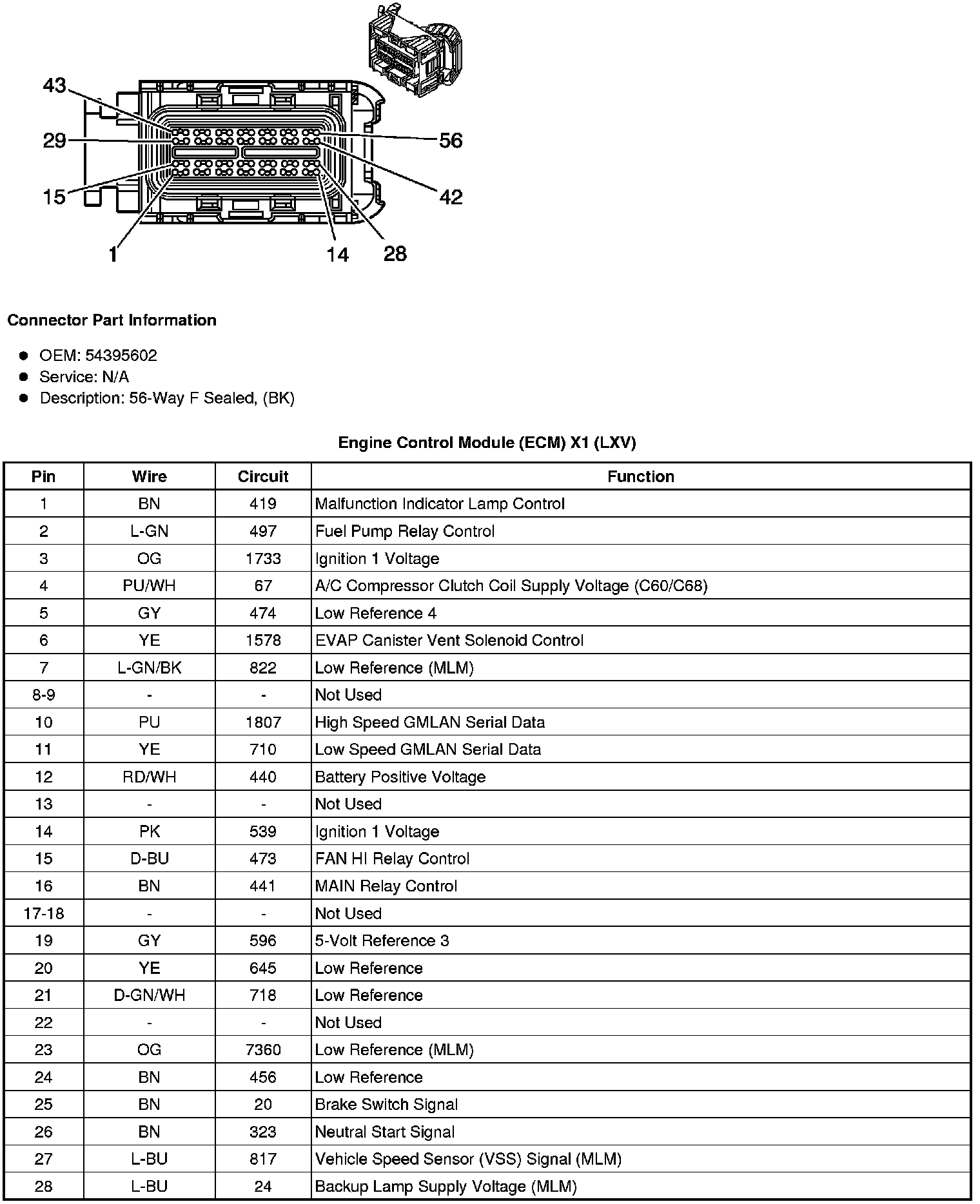

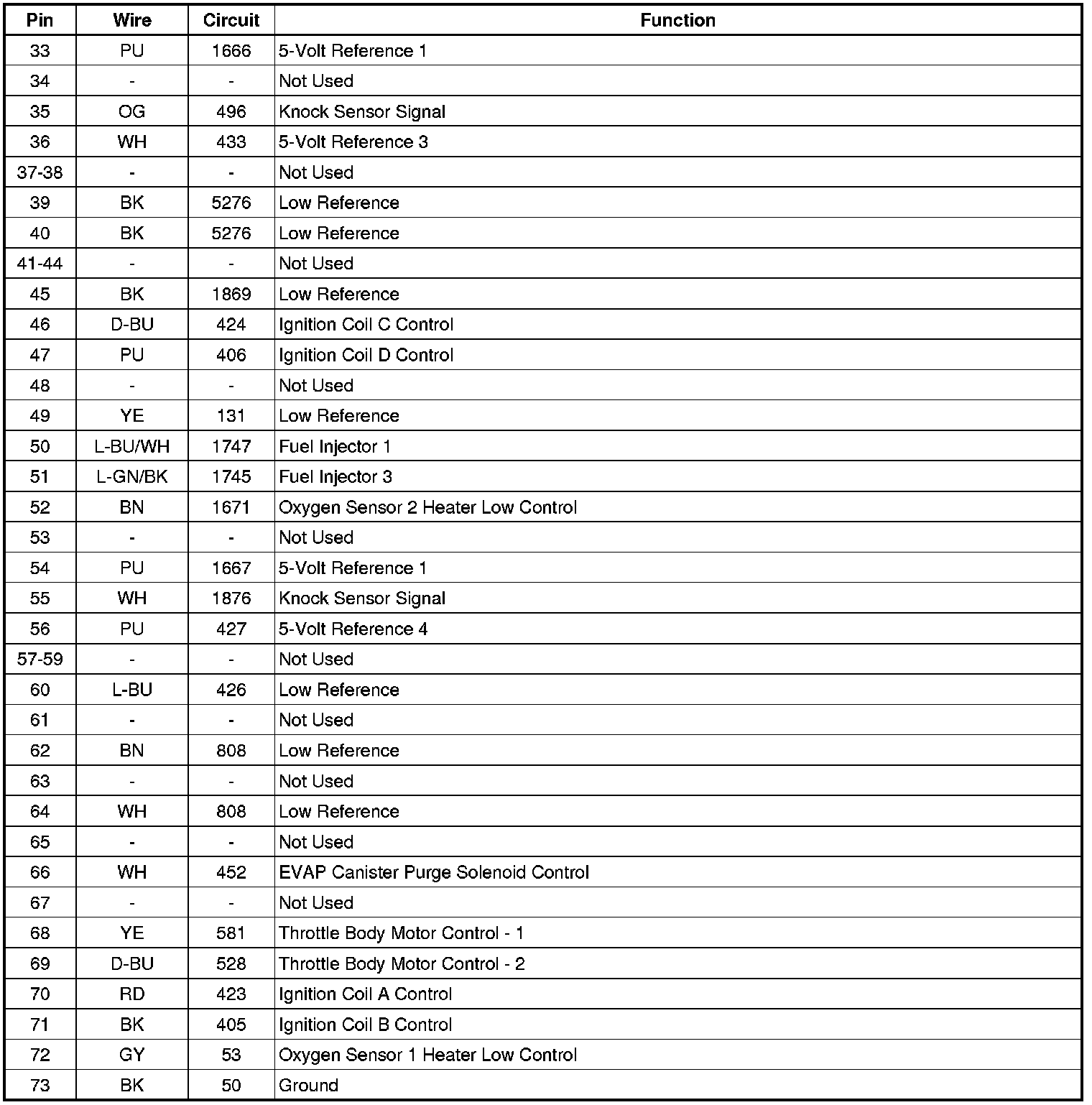

Engine Control Module (ECM) X1 (LXV)

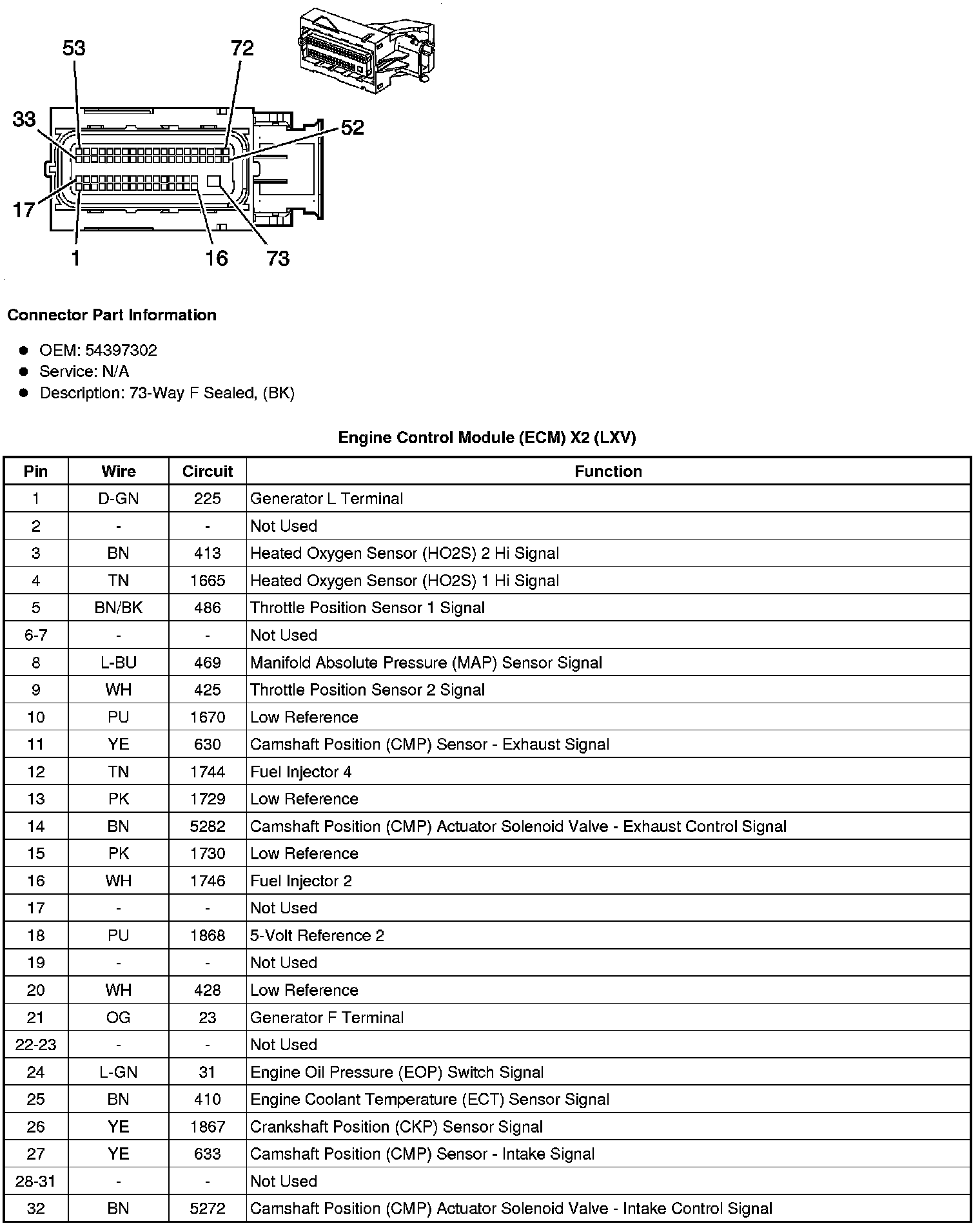

Engine Control Module (ECM) X2 (LXV)
