Repair and Diagnosis
>>
Locations
>>
Harness Locations
>>
Engine Views
Engine Views
Harness Routing Views

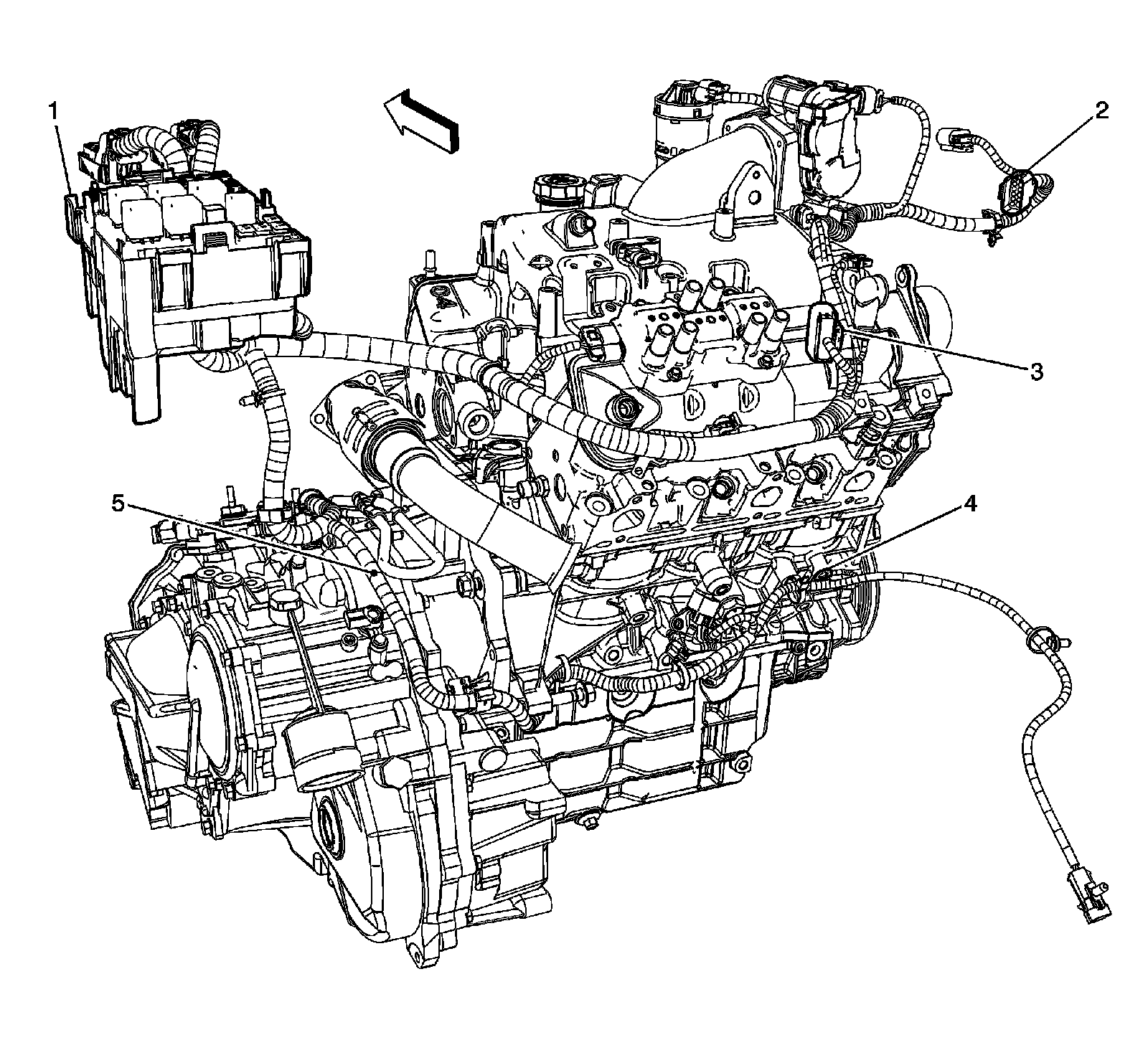

Engine Harness - Rear (LNJ)
1
- Fuse Block - Underhood
2
- X106
3
- X105
4
- G111
5
- J100
