Pontiac
>>
2009
>>
Torrent AWD V6-3.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Map Light
Map Light

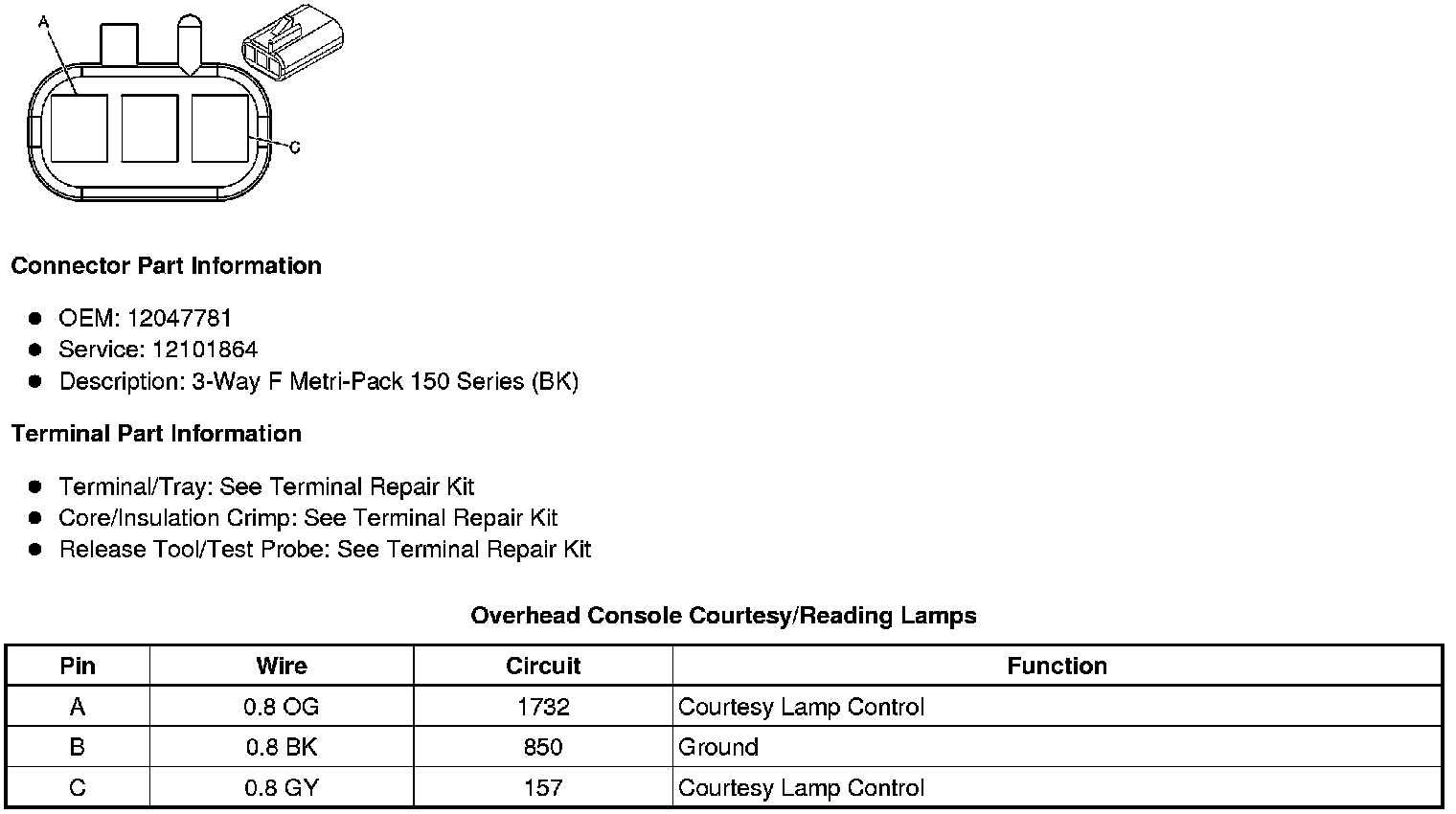

Component Connector End Views
Overhead Console Courtesy/Reading Lamps
