Pontiac
>>
2009
>>
Torrent AWD V6-3.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Keyless Entry Receiver
Keyless Entry Receiver

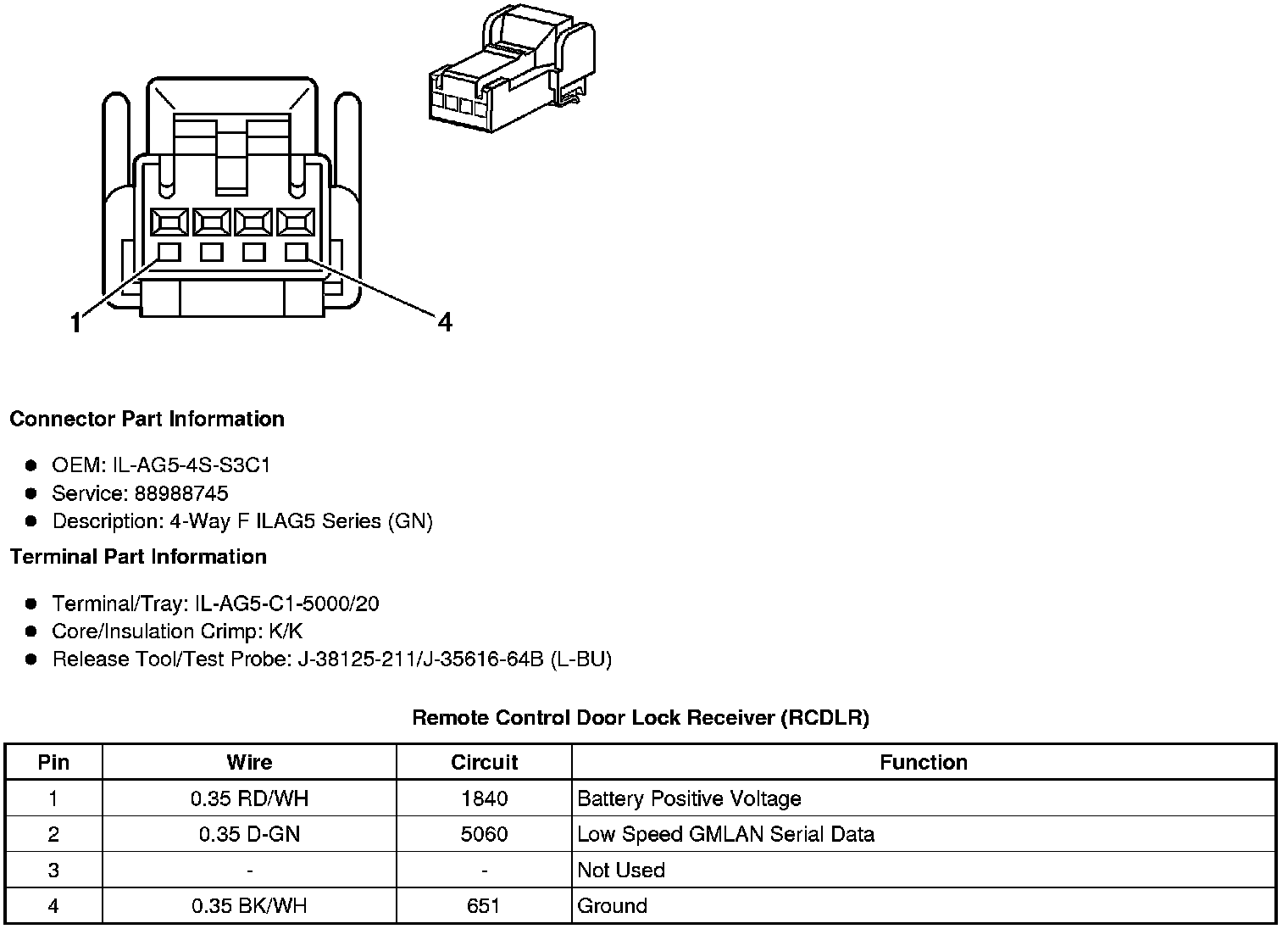

Component Connector End Views
Remote Control
Door Lock Receiver (RCDLR)
