Main Relay (Computer/Fuel System): Locations




Electrical Center Identification Views

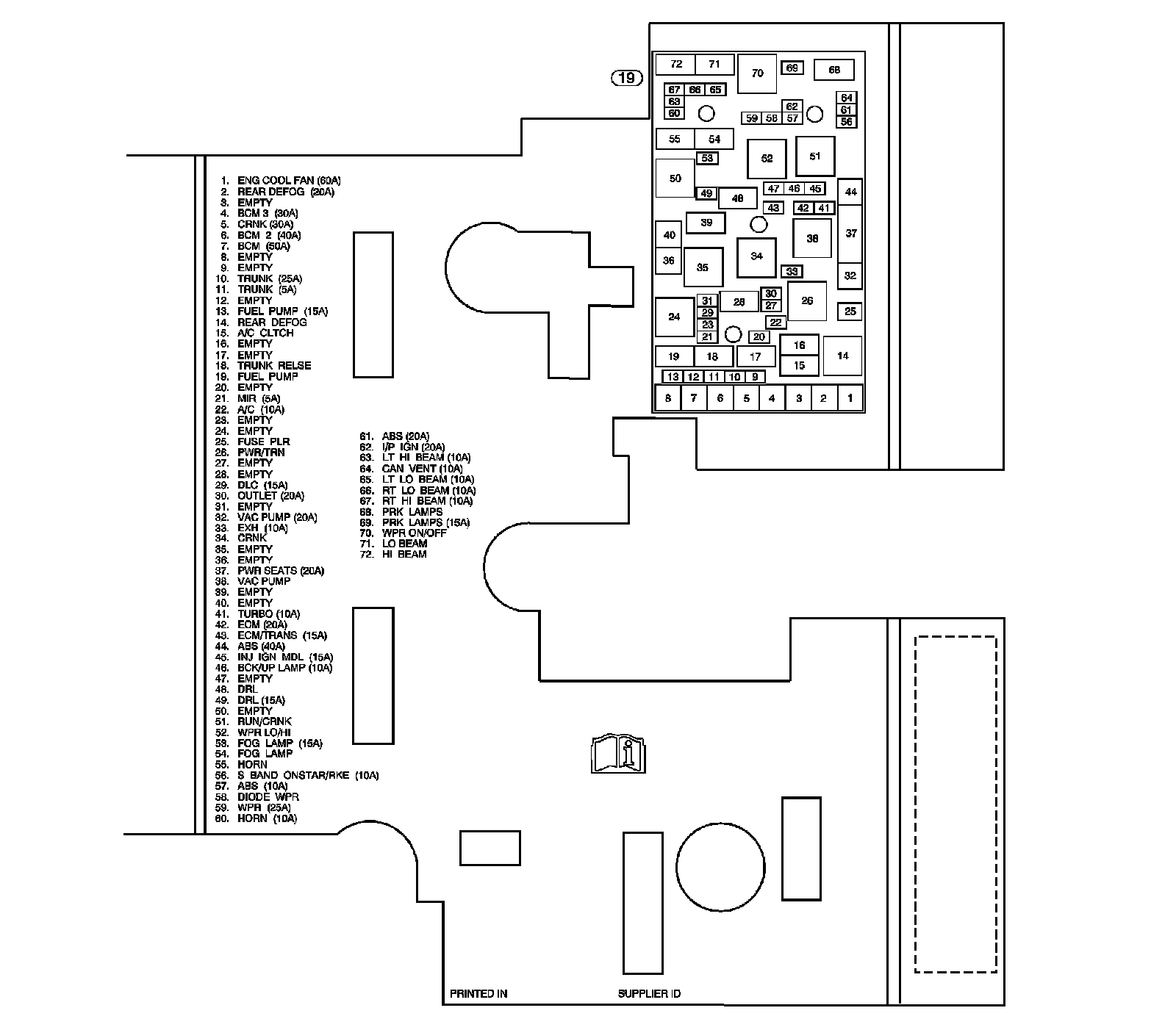

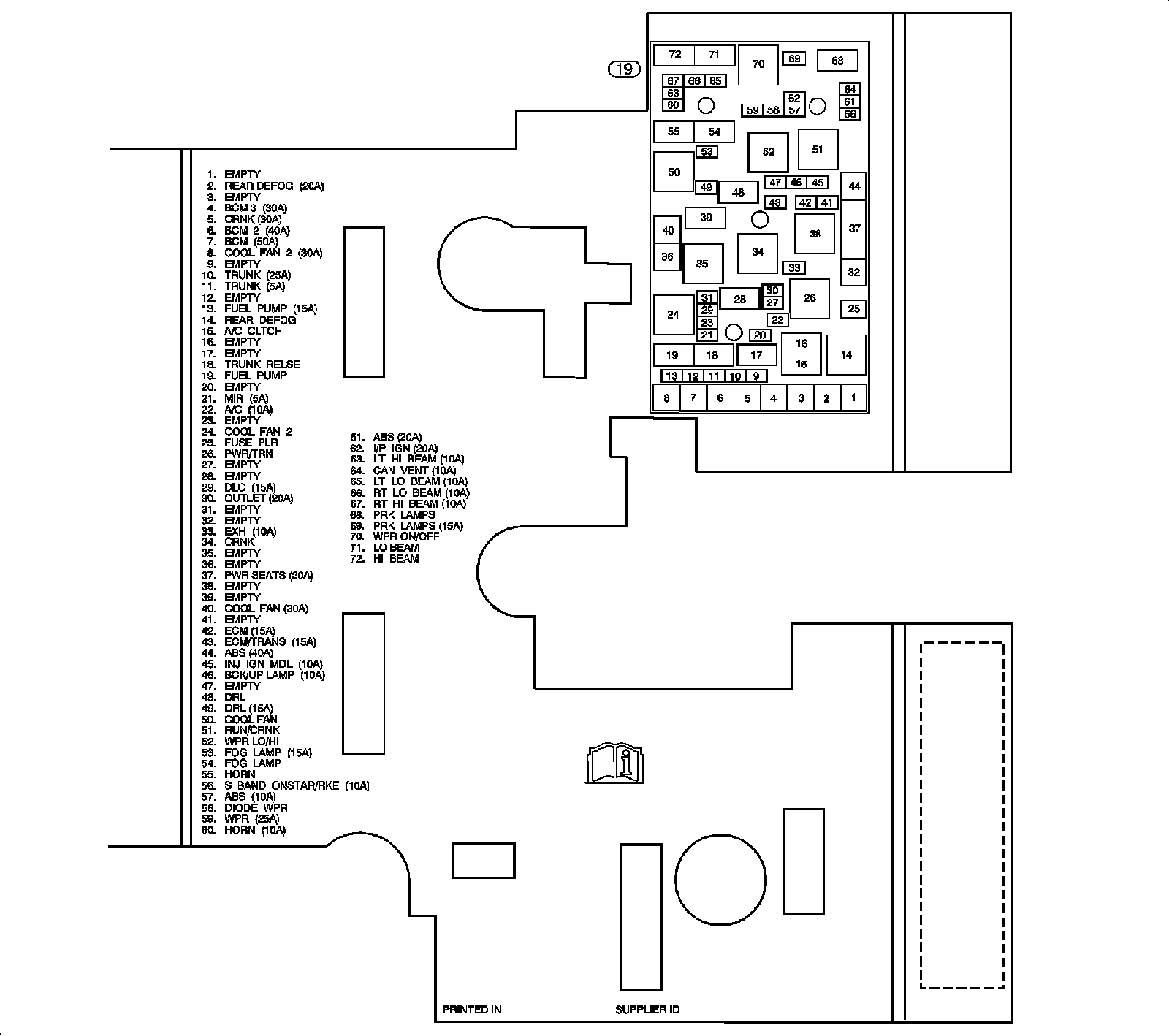

Fuse Block - Underhood Label - Convertible (LE5 with MA5)

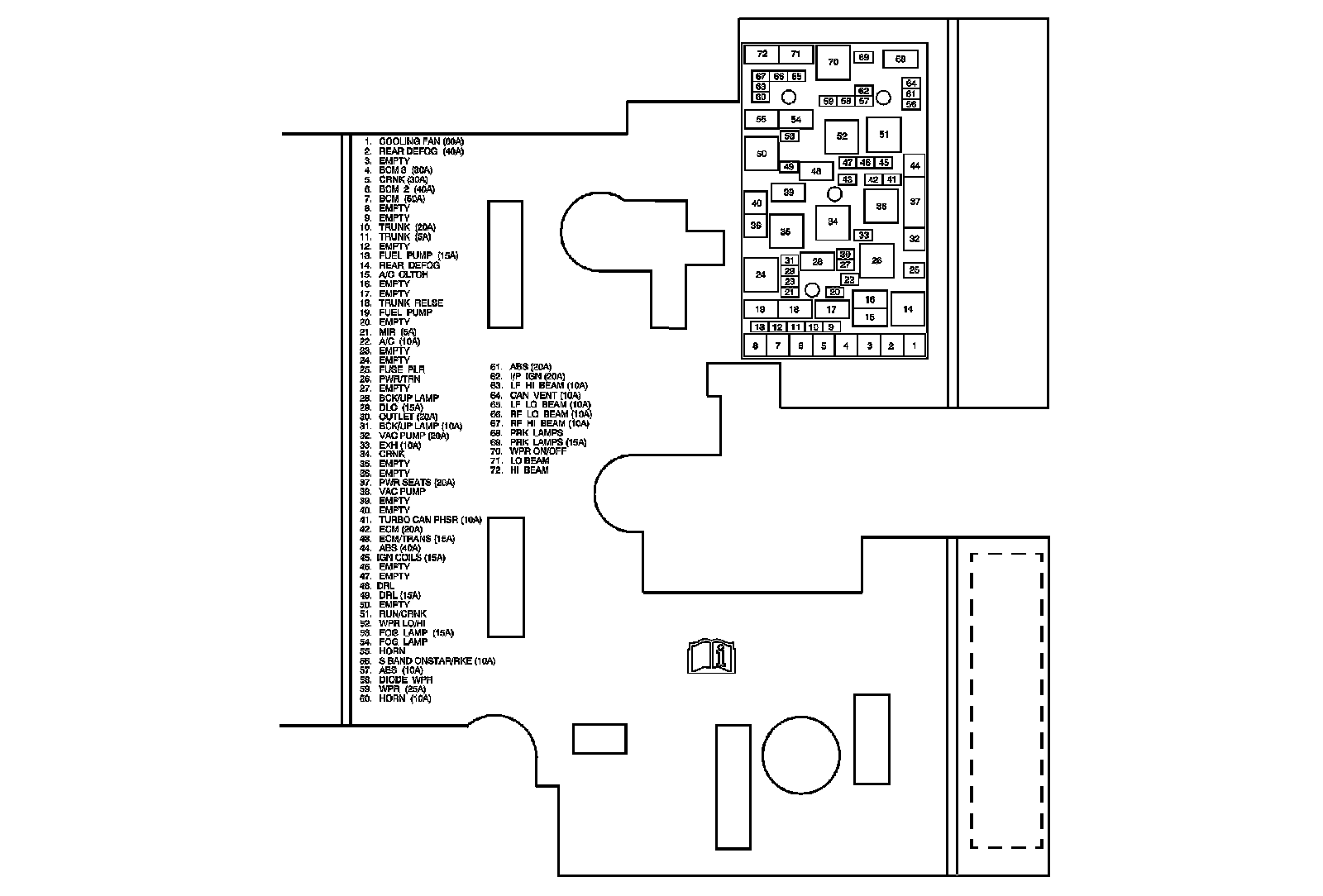

Fuse Block - Underhood Label - Solstice Coupe (LE5 with MA5)

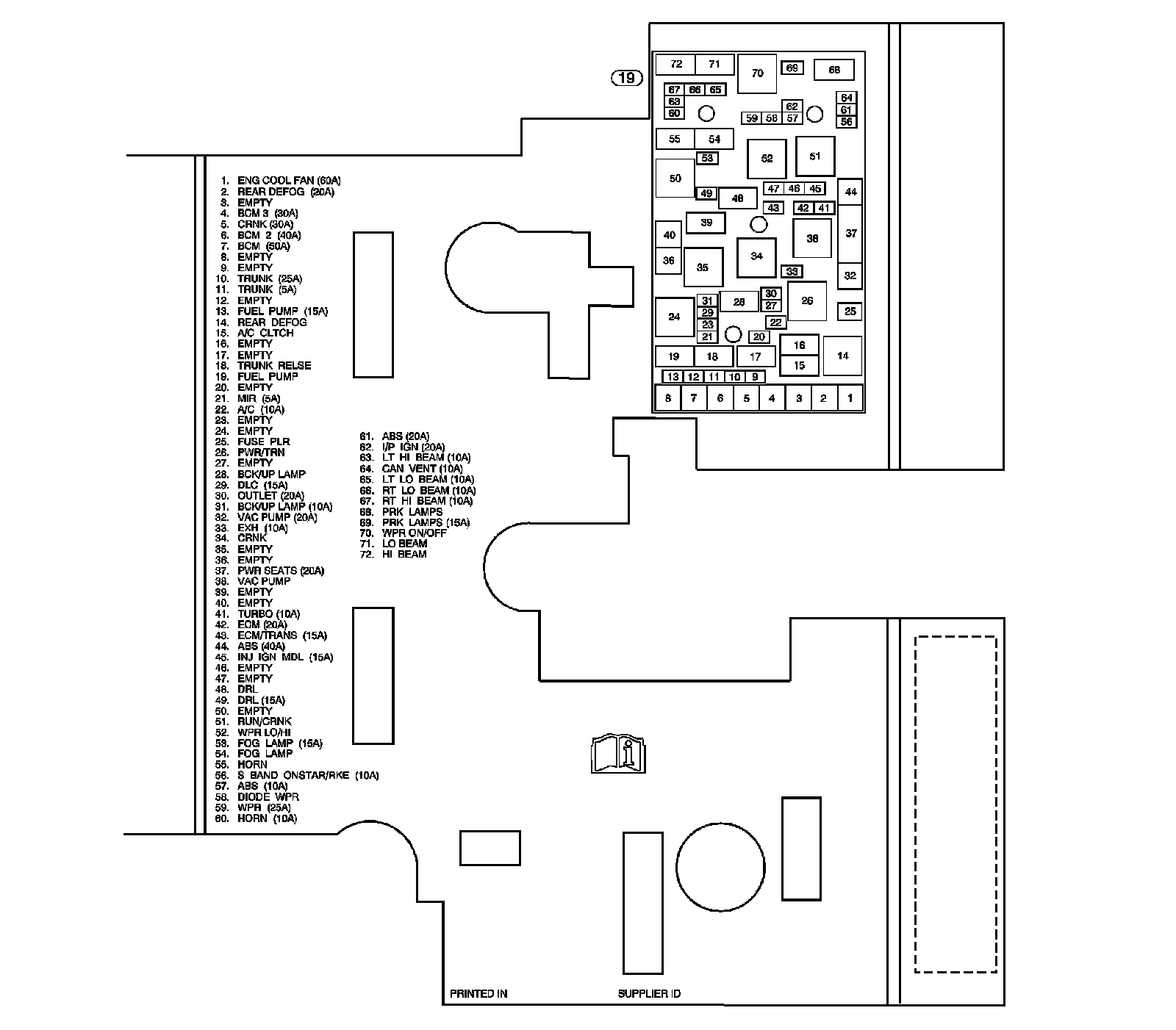

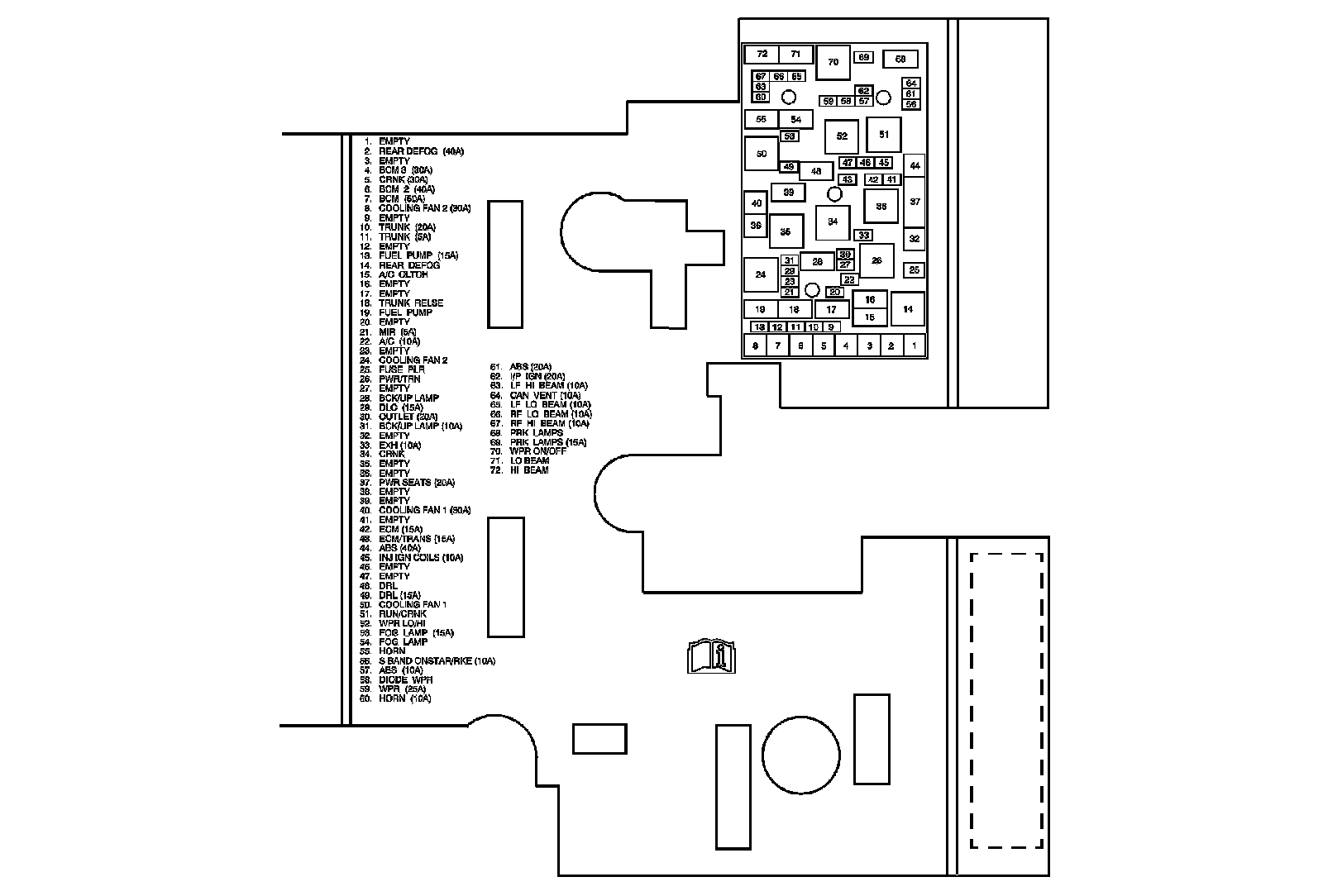

Fuse Block - Underhood Label - Convertible (LE5 with M82)

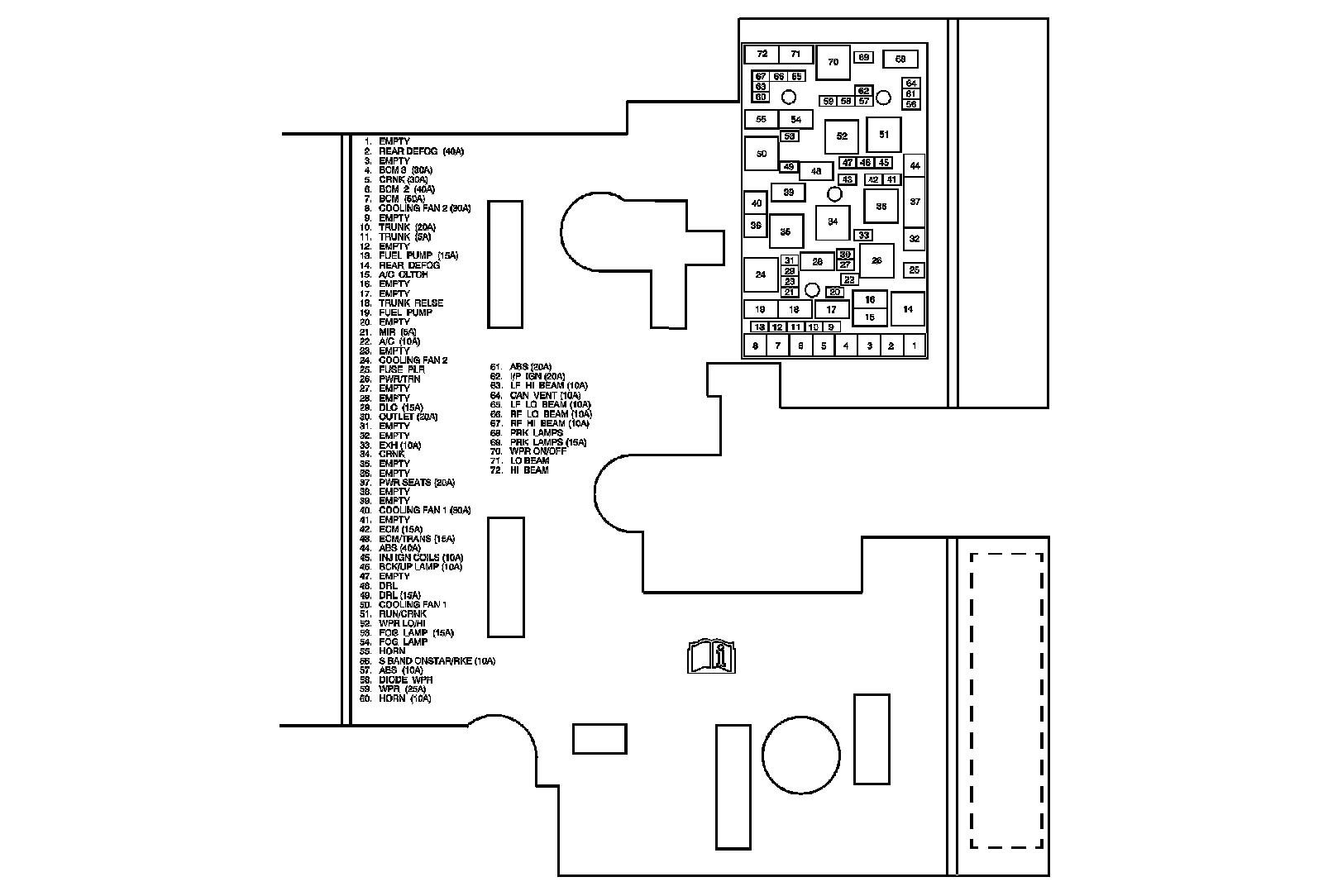

Fuse Block - Underhood Label - Solstice Coupe (LE5 with M82)

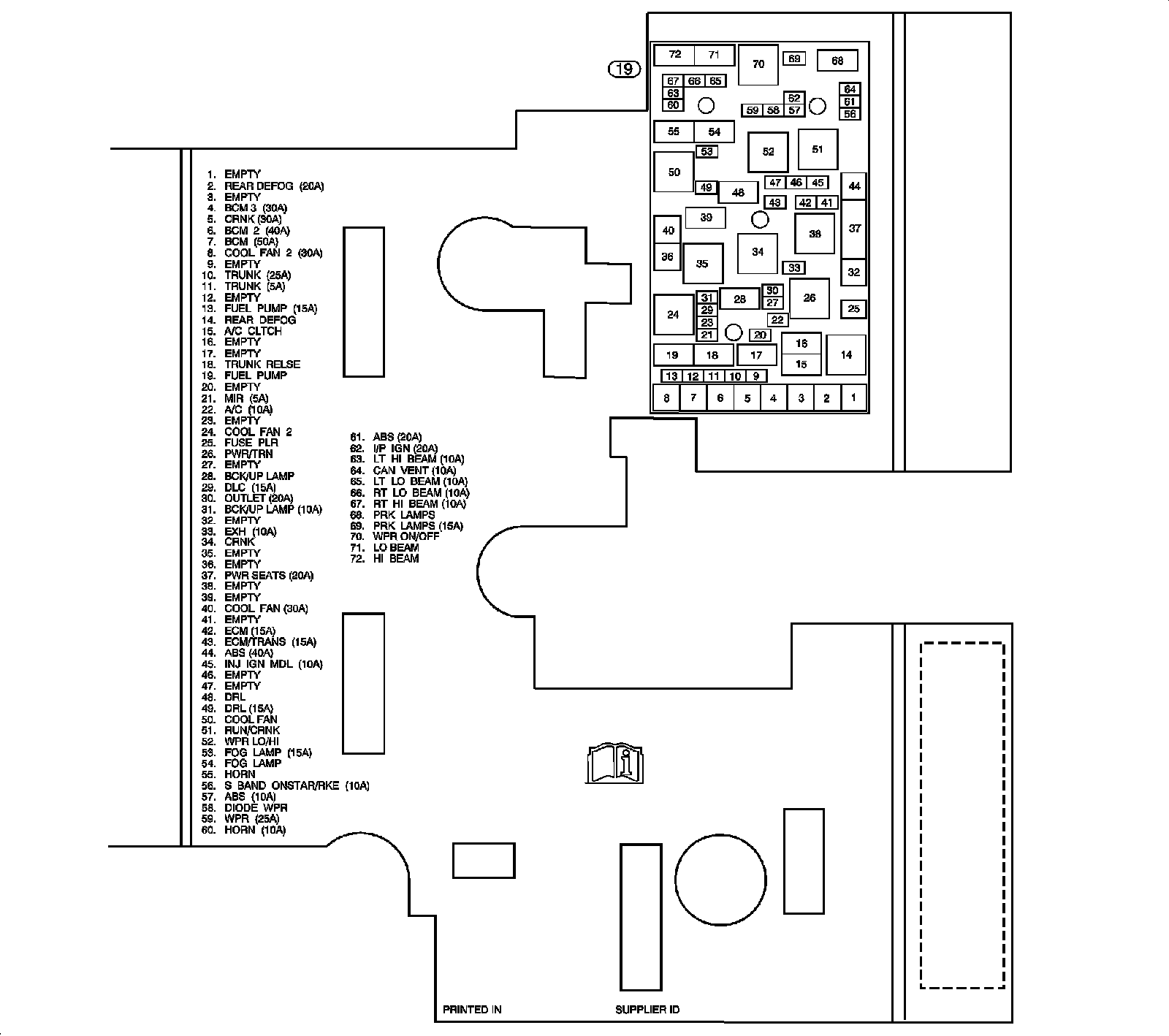

Fuse Block - Underhood Label - Convertible (LNF with MA5)





Fuse Block - Underhood Label - Solstice Coupe (LNF with MA5)





Fuse Block - Underhood Label - Convertible (LNF with M82)





Fuse Block - Underhood Label - Solstice Coupe (LNF with M82)

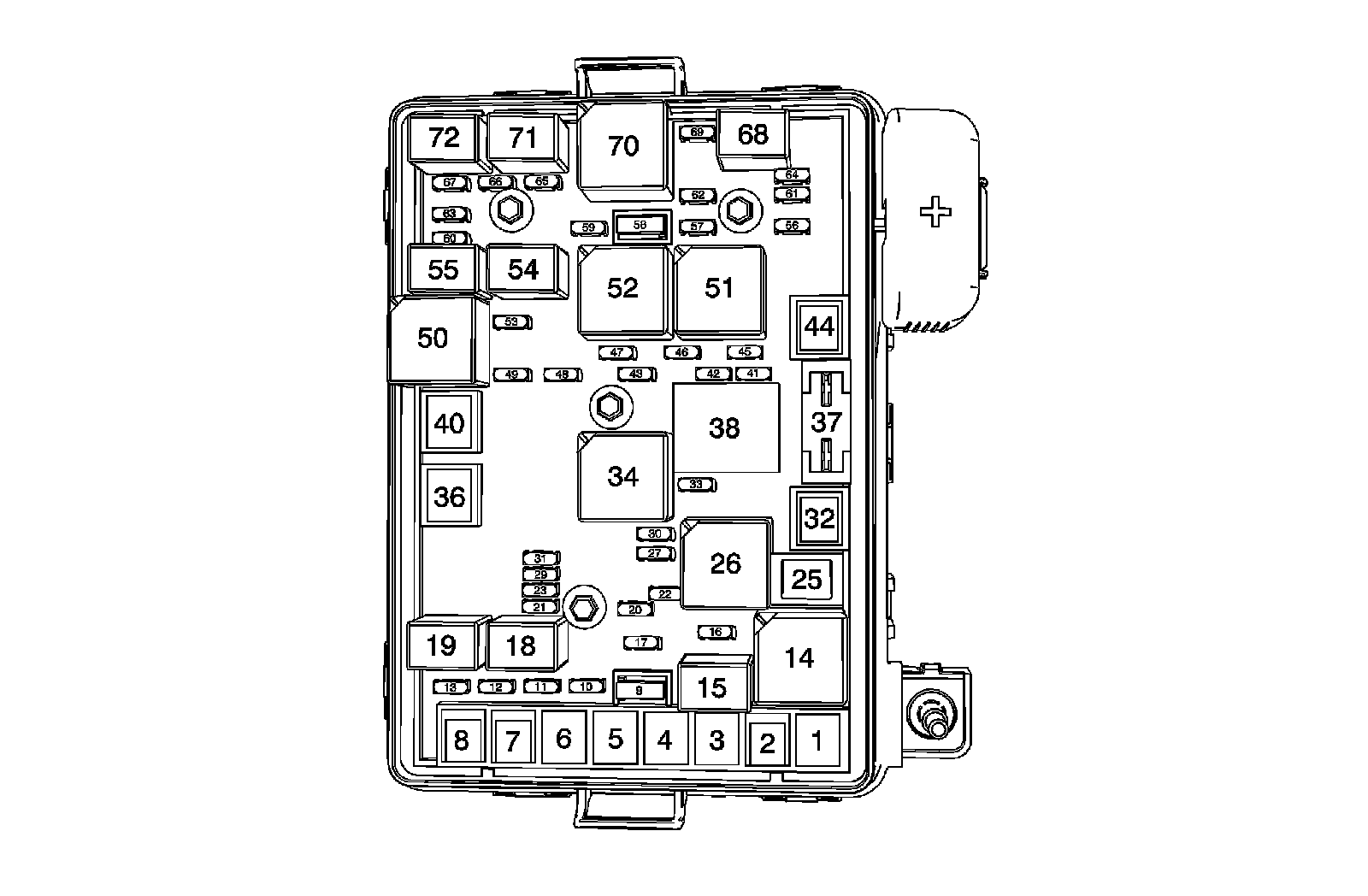

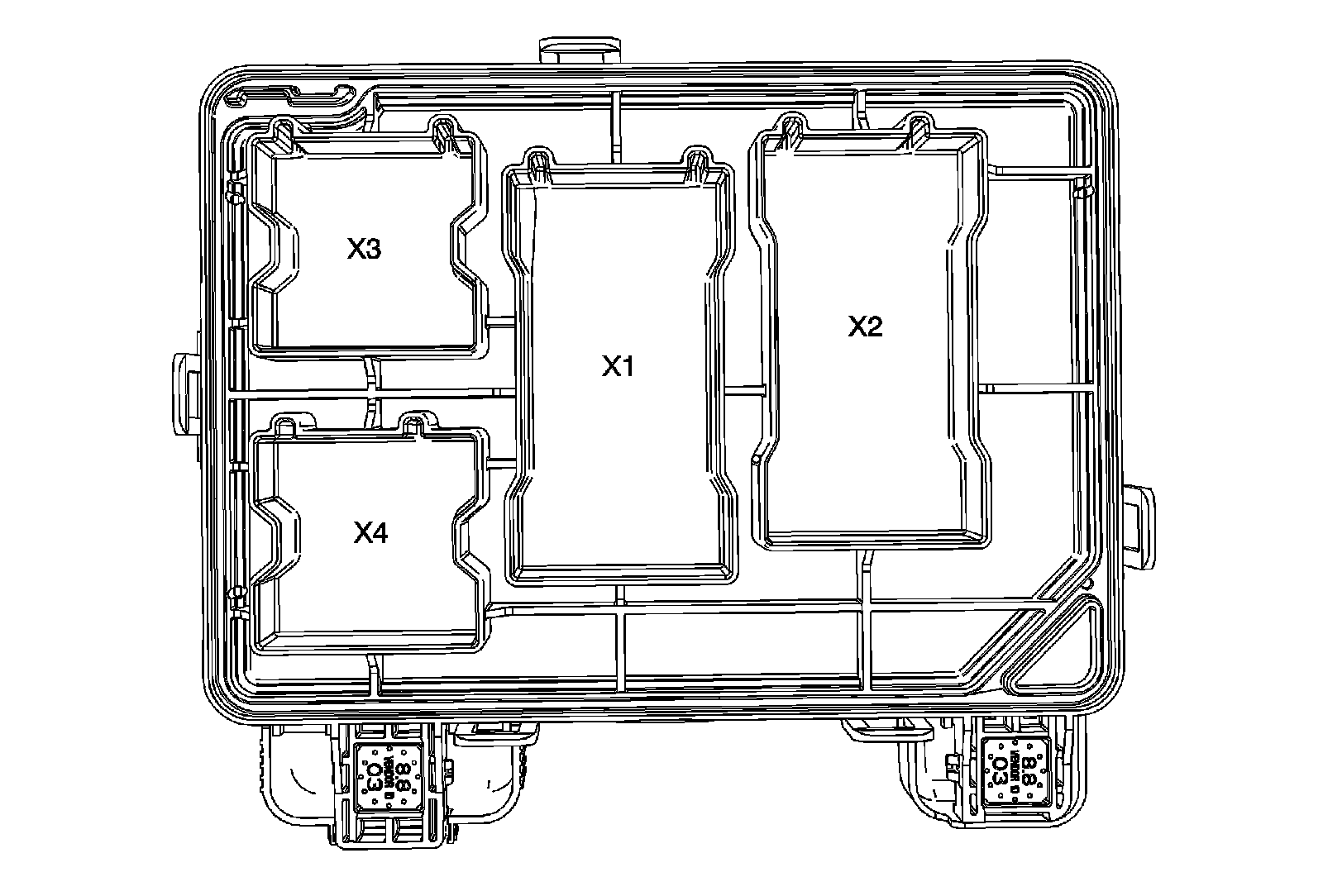

Fuse Block - Underhood Top View

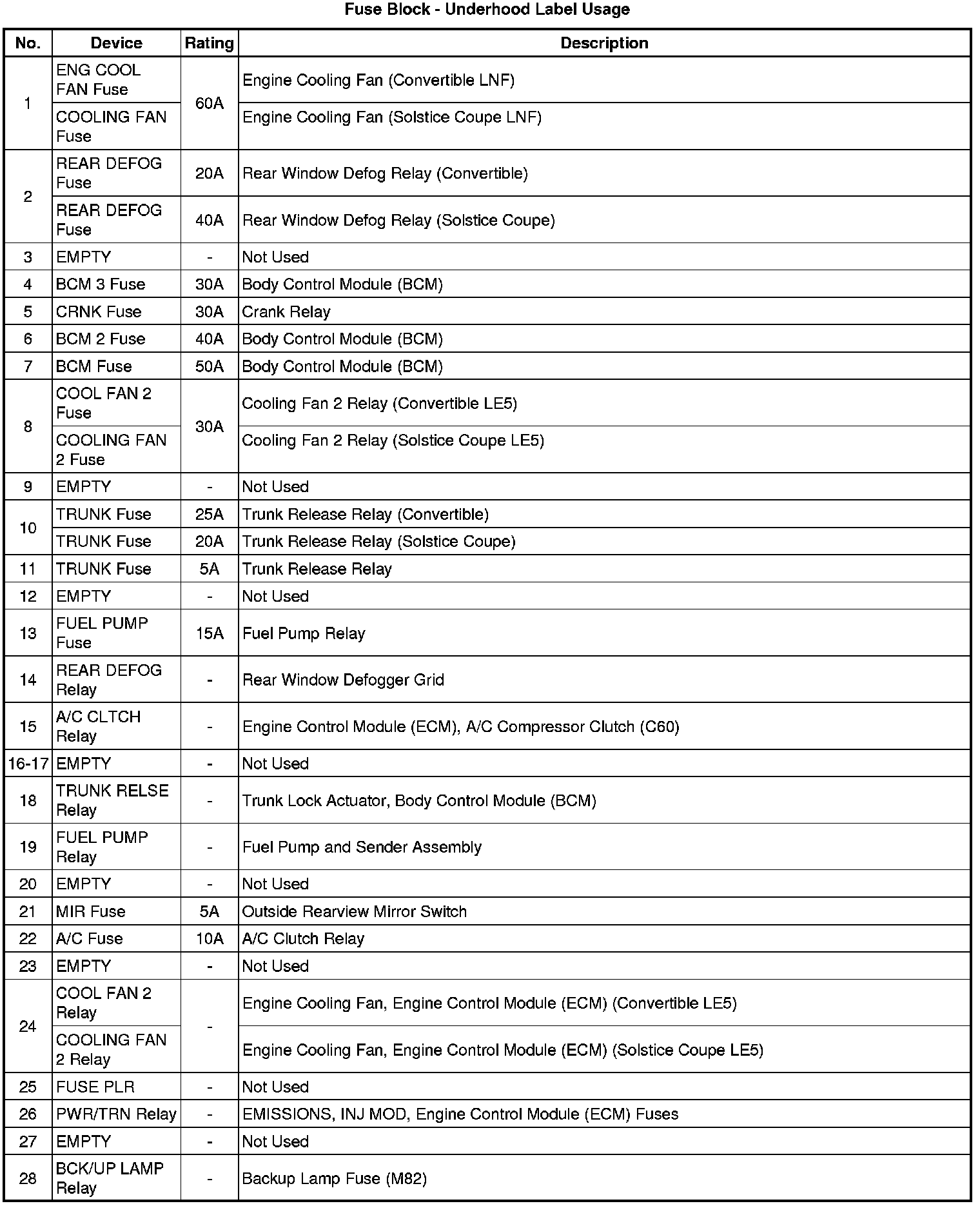

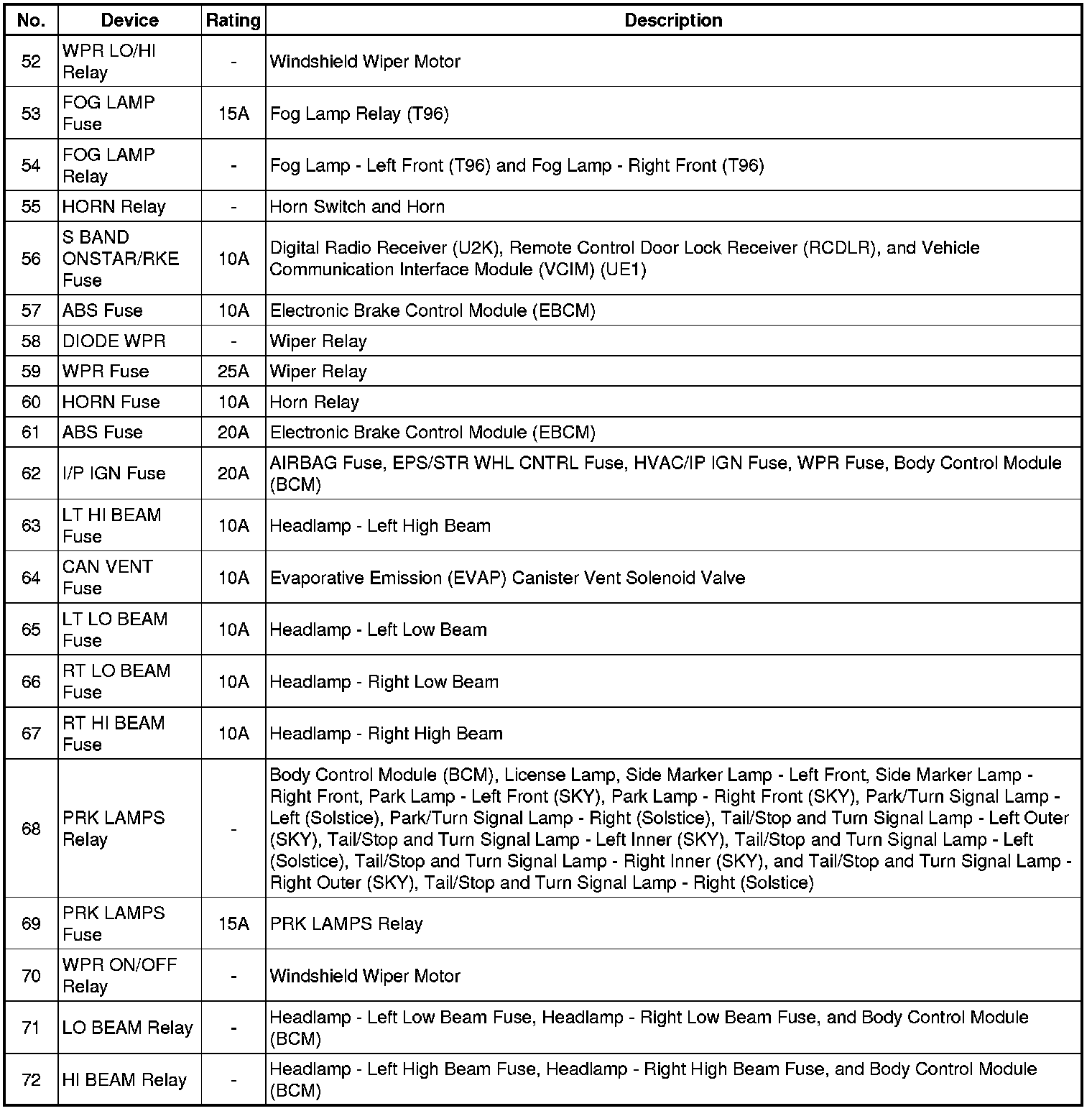

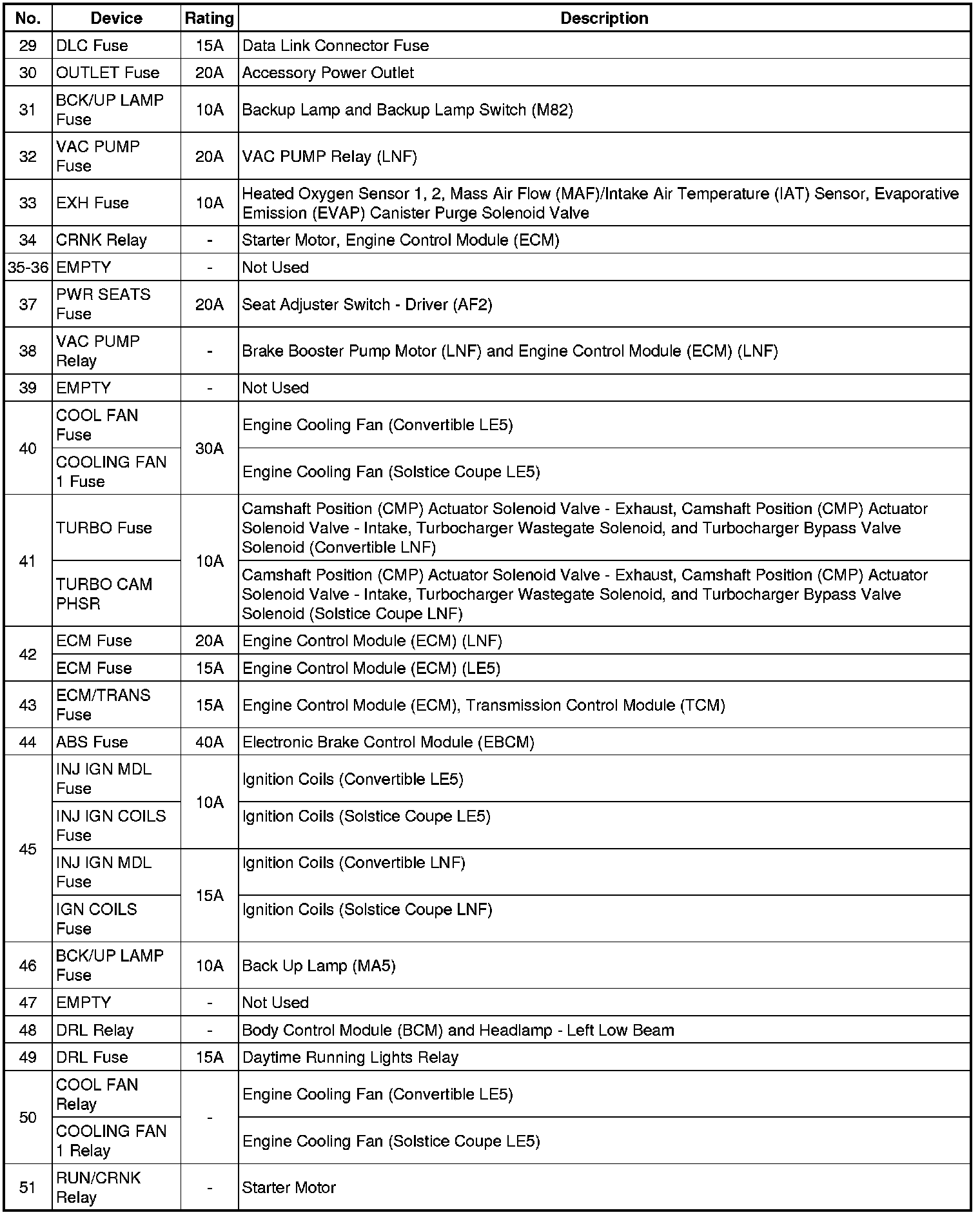

Fuse Block - Underhood Bottom View
