Engine Control Module: Locations

Harness Routing Views

Engine Harness - Left Side (LE5)




4 - Engine Control Module (ECM)

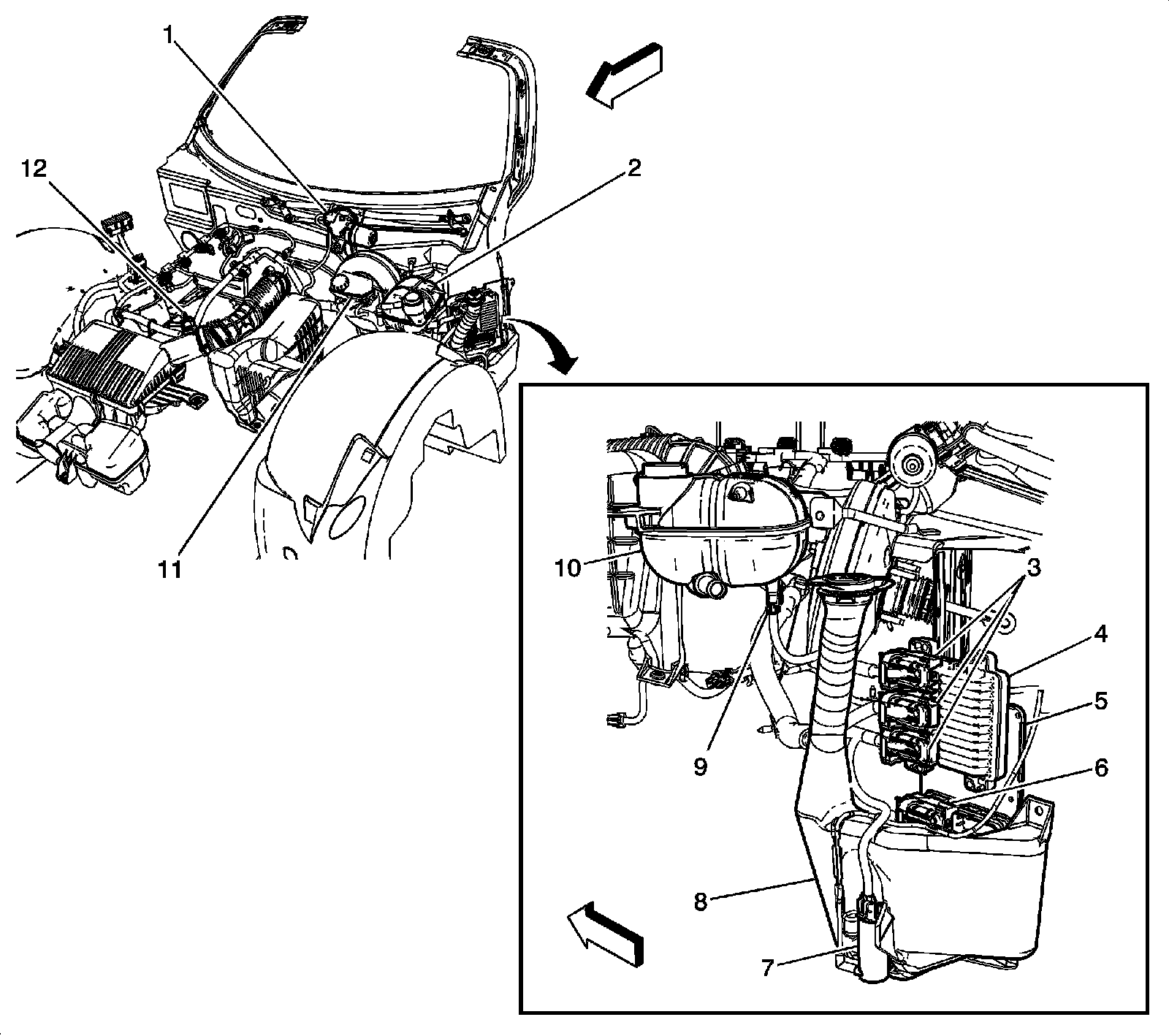

Front Engine Compartment - Components




4 - Engine Control Module (ECM)

Engine Harness - Left Side (LE5)




4 - Engine Control Module (ECM)

Left Rear Of Engine Compartment




1 - Engine Control Module (ECM)
2 - Engine Control Module (ECM) Bracket Bolt
3 - Engine Control Module (ECM) Bracket
