Body Control Systems
Body Control System Schematics

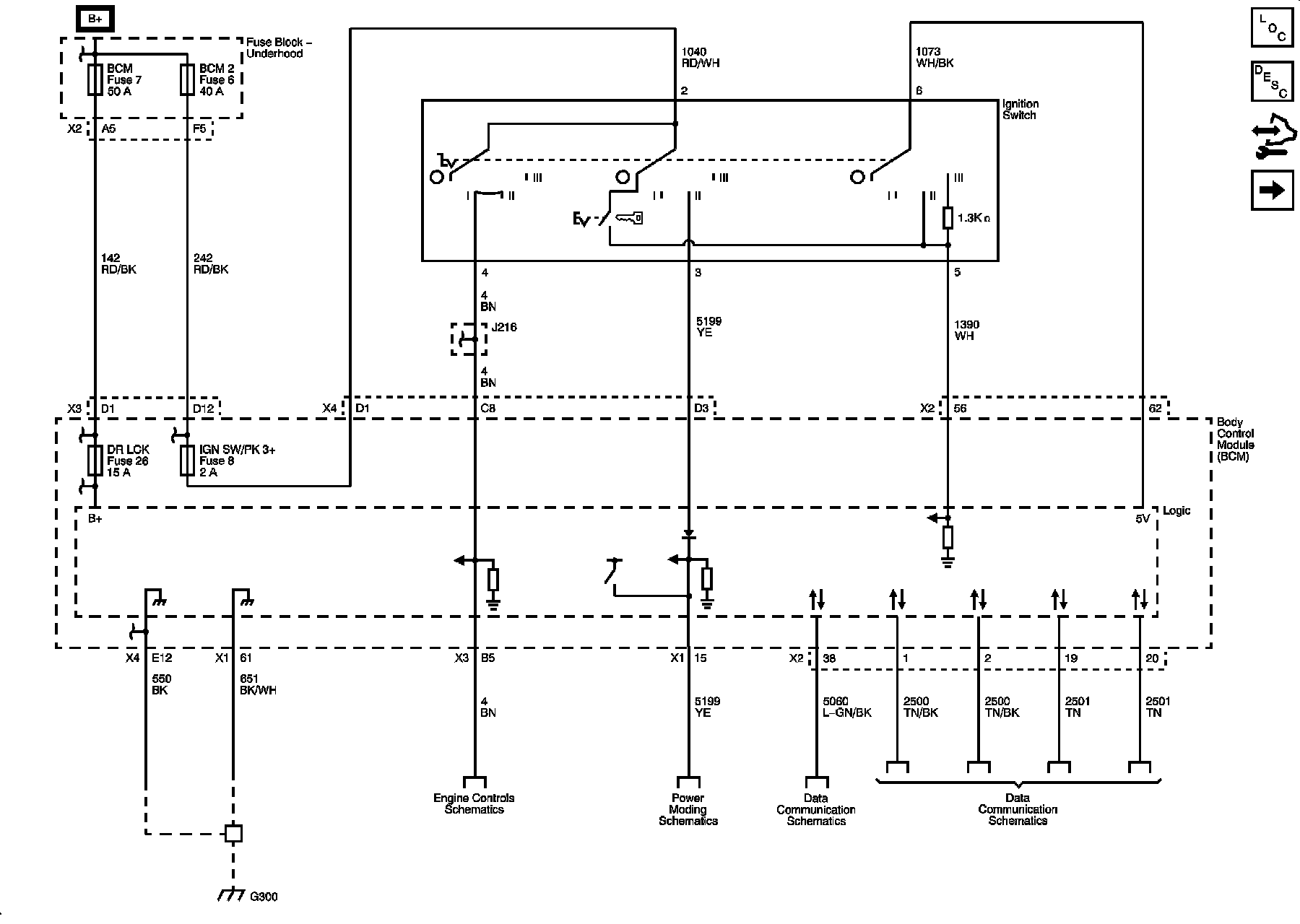

Power, Ground, and Data Link

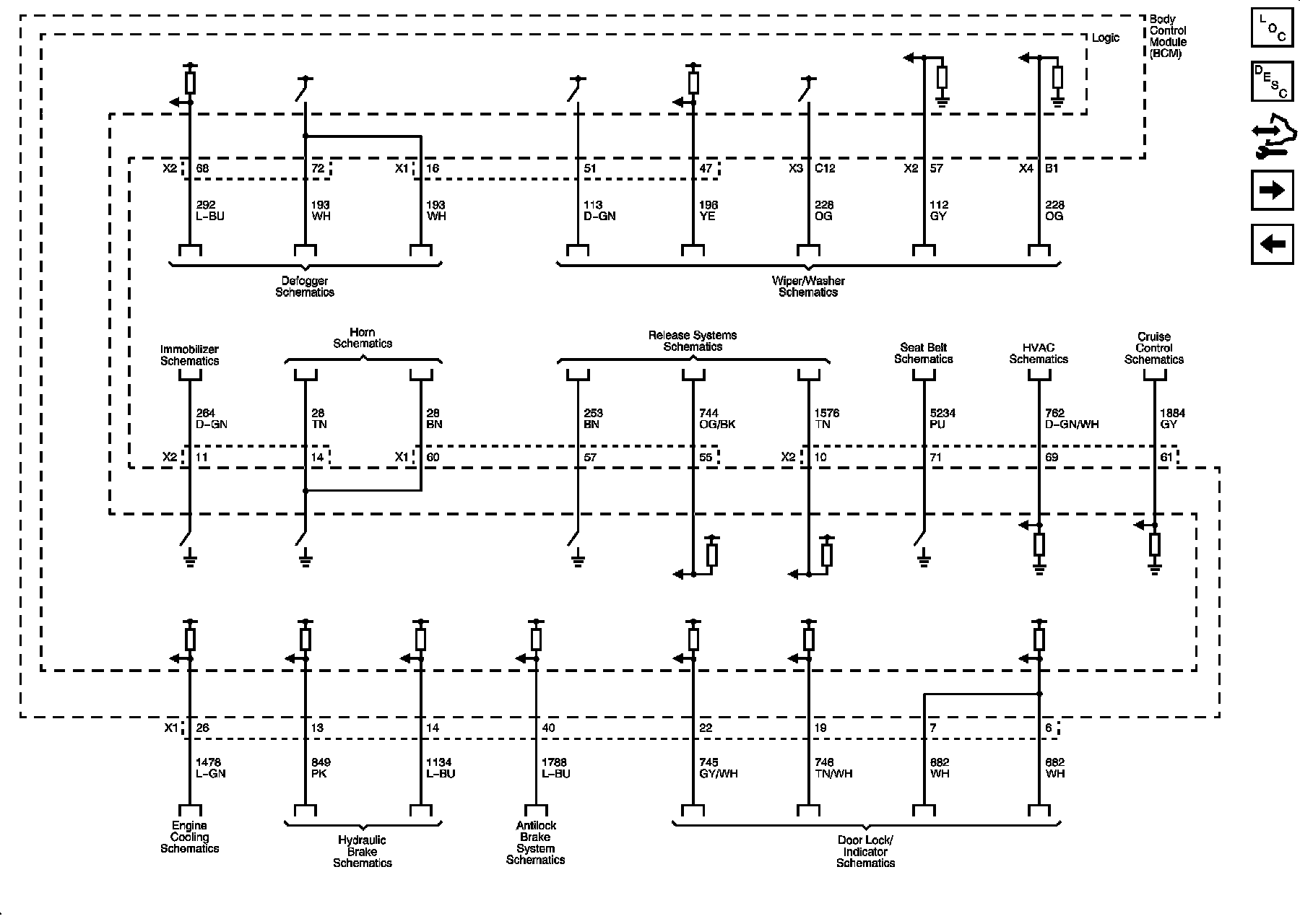

Defogger, Wiper/Washer, Immobilizer, Horn, Release Systems, Seat Belt, HVAC, Cruise, Brakes, Cooling System, and Door Lock/Indicator References

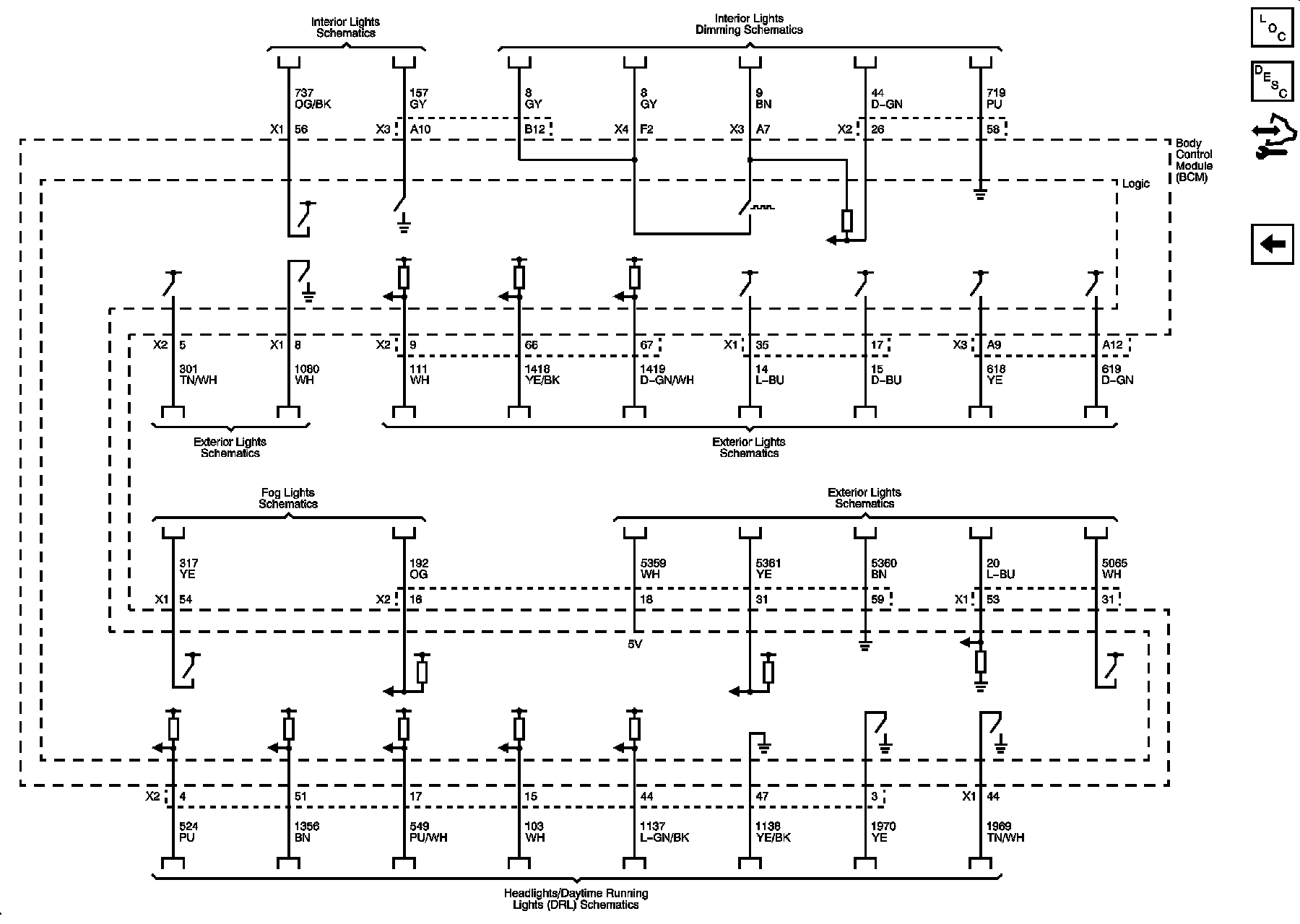

Lights
Body Control System Schematics
Power, Ground, and Data Link
Defogger, Wiper/Washer, Immobilizer, Horn, Release Systems, Seat Belt, HVAC, Cruise, Brakes, Cooling System, and Door Lock/Indicator References
Lights
