Home >> Pontiac >> 2009 >> Solstice L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Lateral Accelerometer

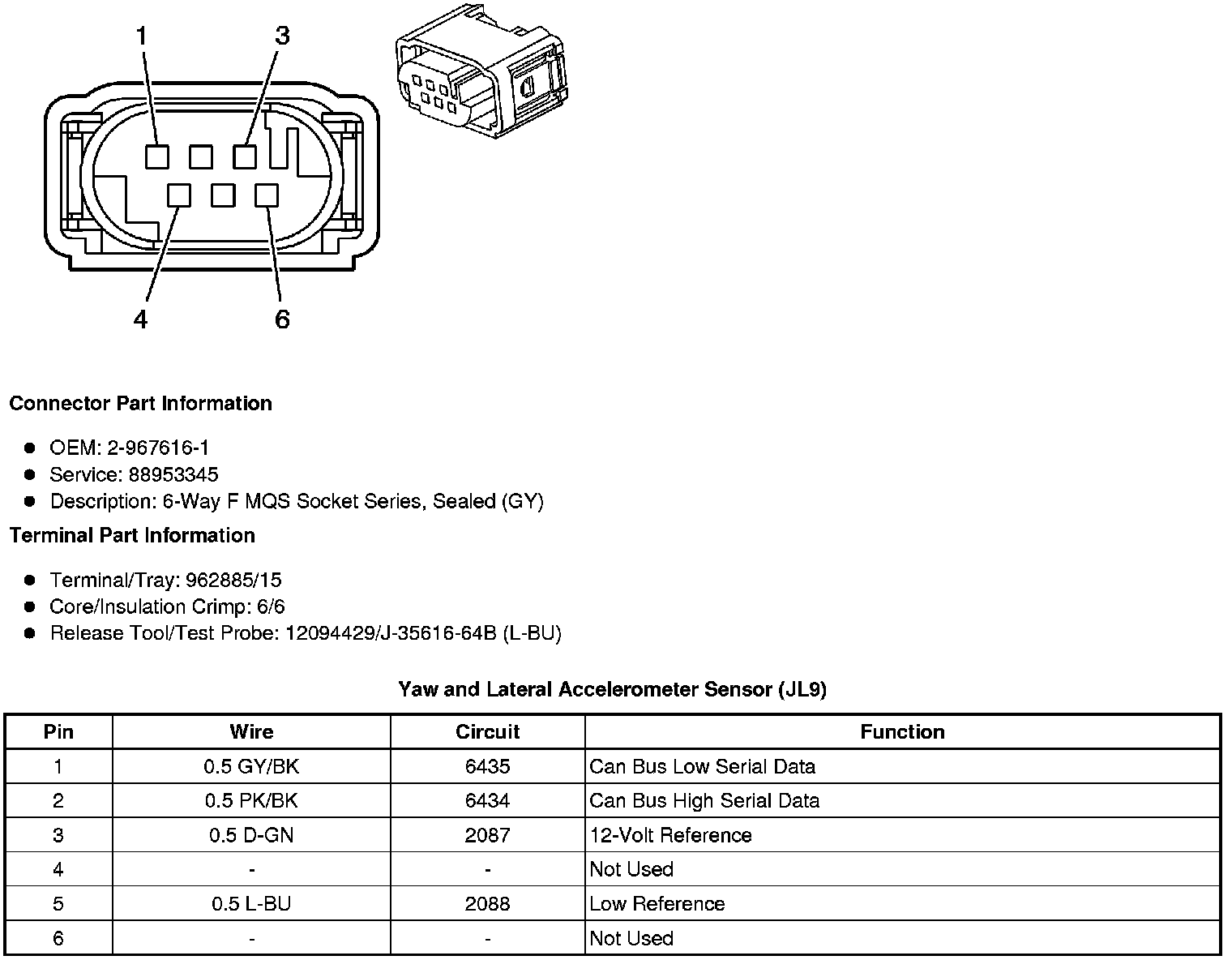

Lateral Accelerometer




Component Connector End Views

Yaw and Lateral Accelerometer Sensor (JL9)
